A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Air Conditioning System
Air Conditioning System

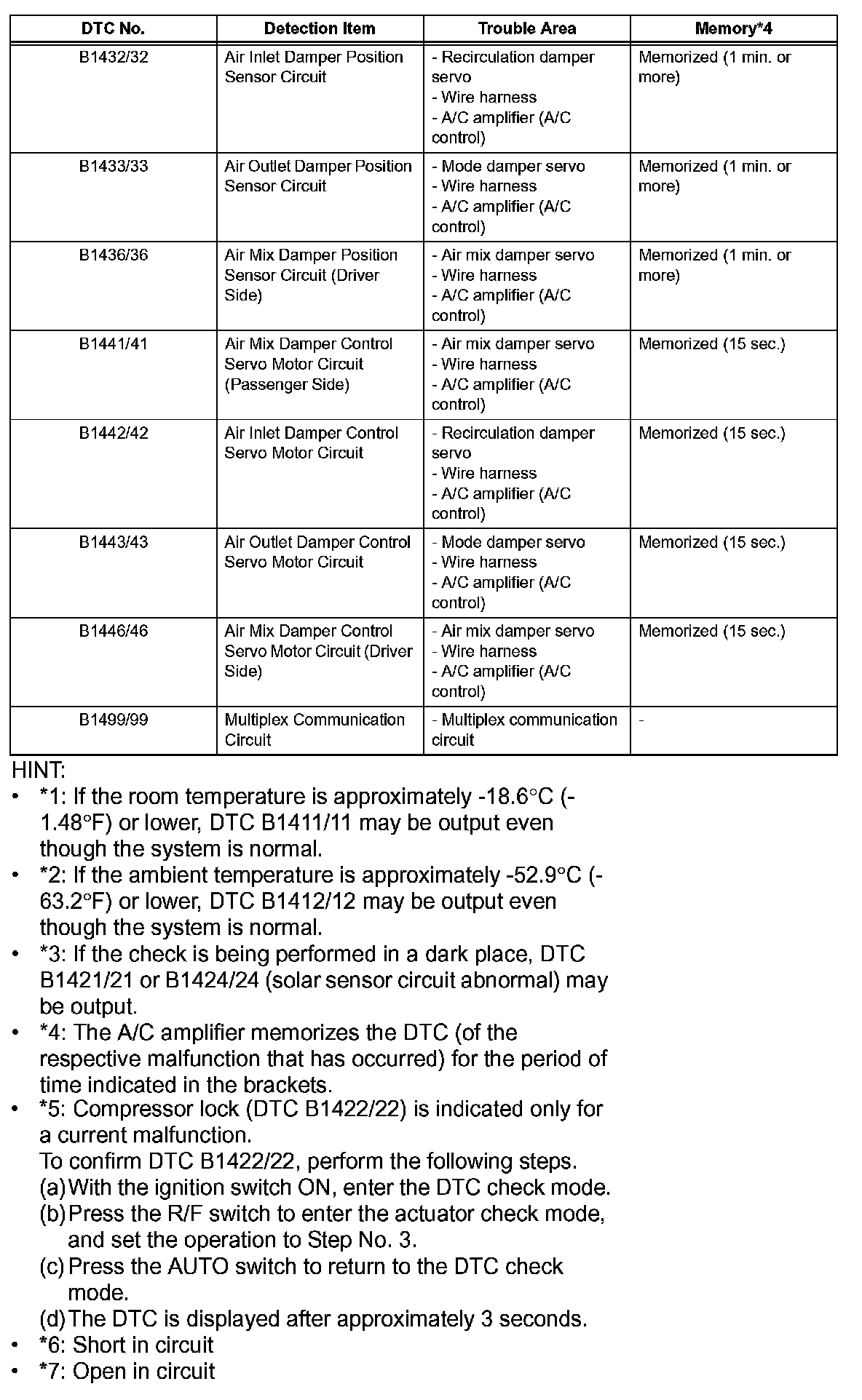

DIAGNOSTIC TROUBLE CODE CHART
B1411/11 - B1431/31:
B1432/32 - B1499/99:
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
