ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

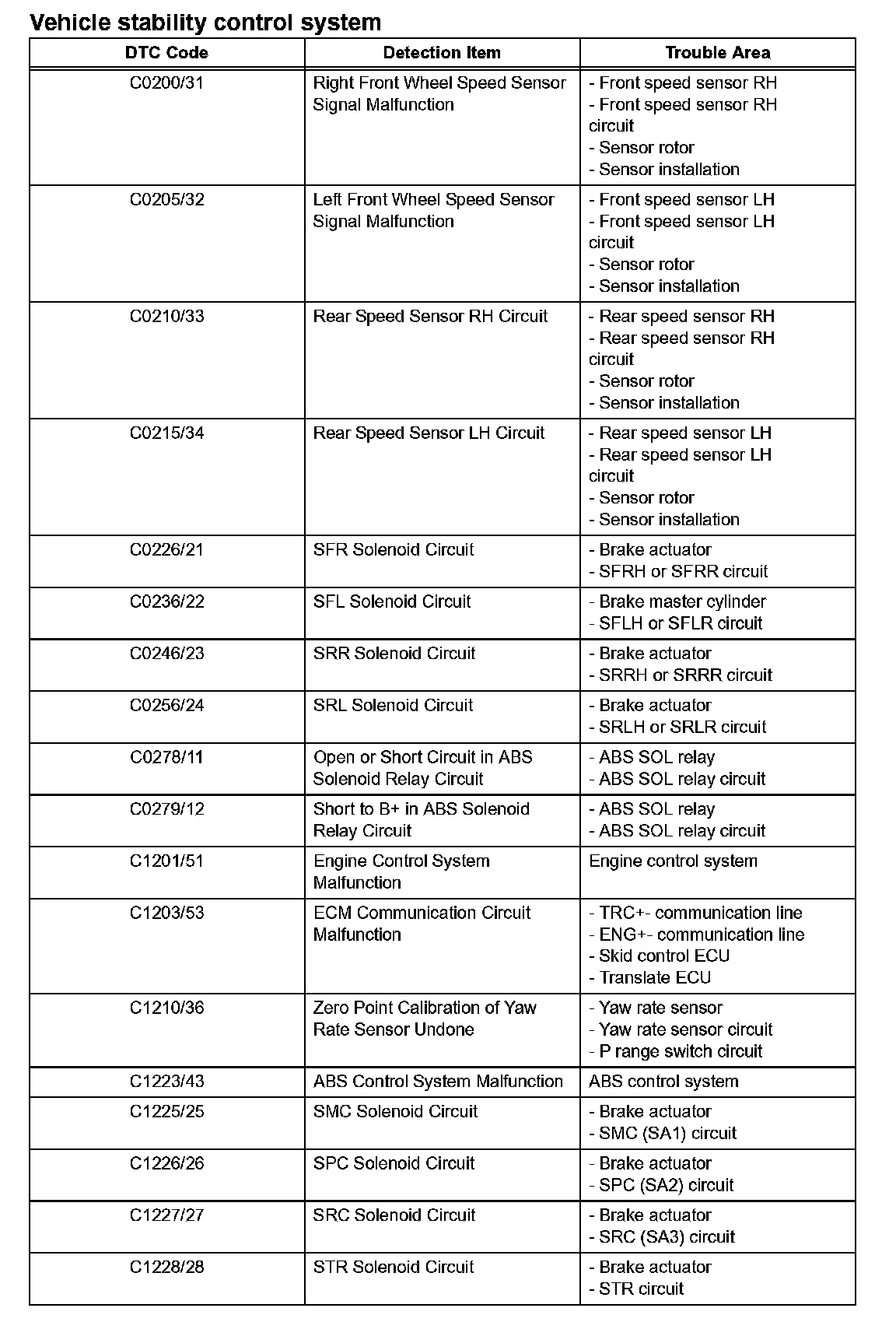

C0200/31-C1228/28:

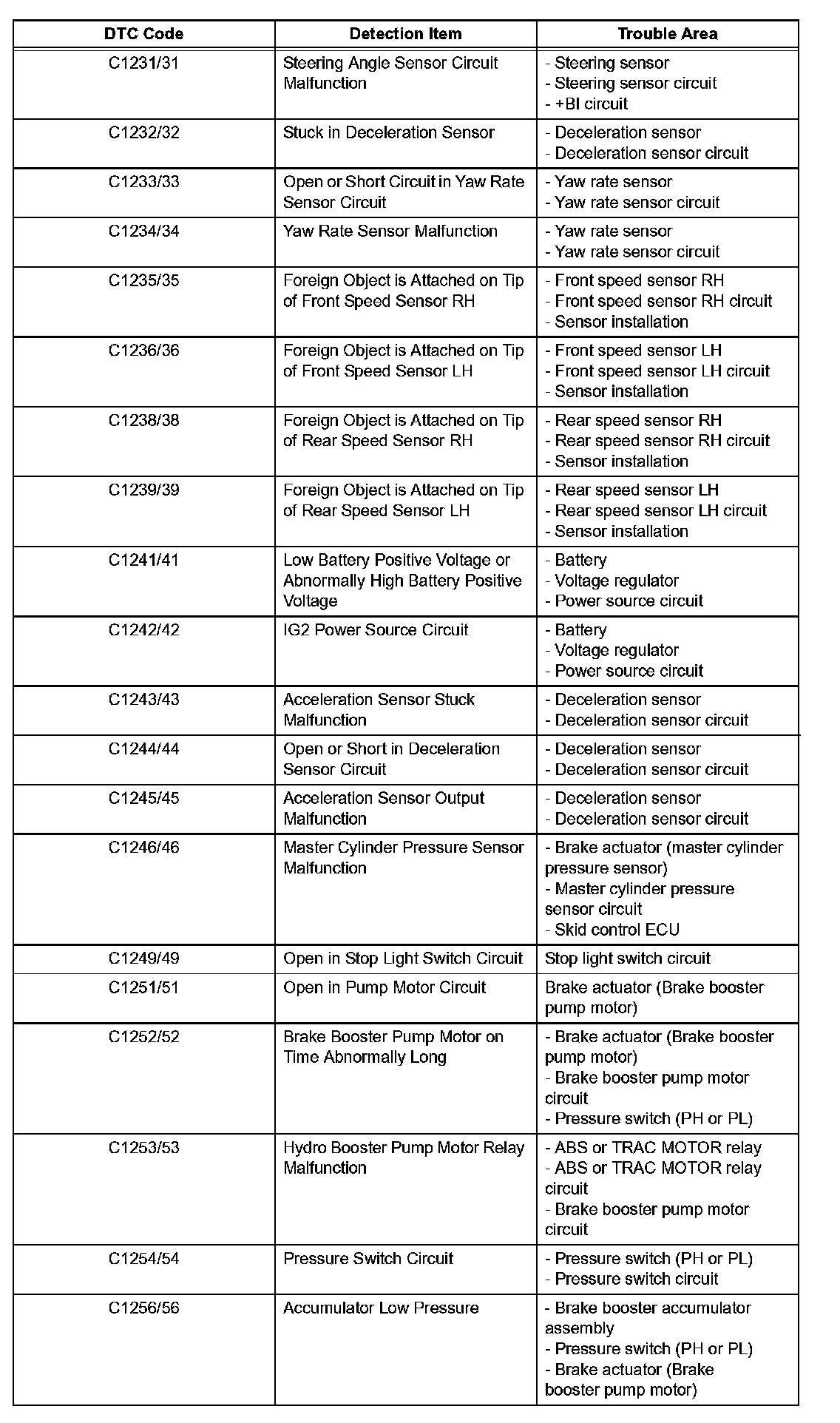

C1231/31-C1256/56:

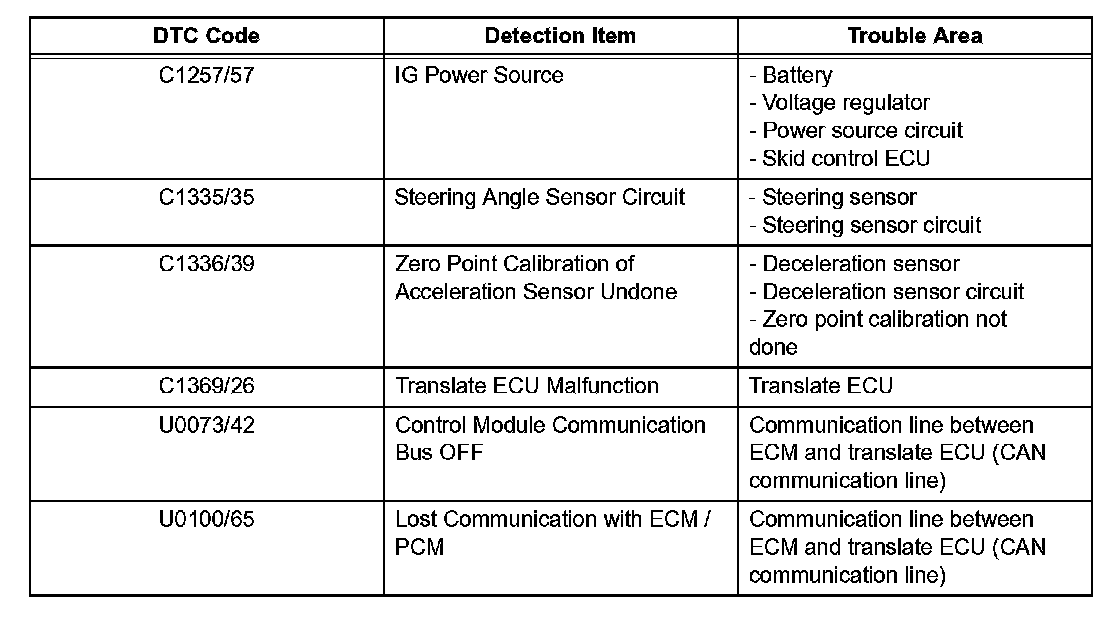

C1257/57-U0100/65:

HINT:
- If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the table.
