C2195

DTC C2195/95 Multi-receiver Antenna Circuit (Test Mode DTC)

DESCRIPTION

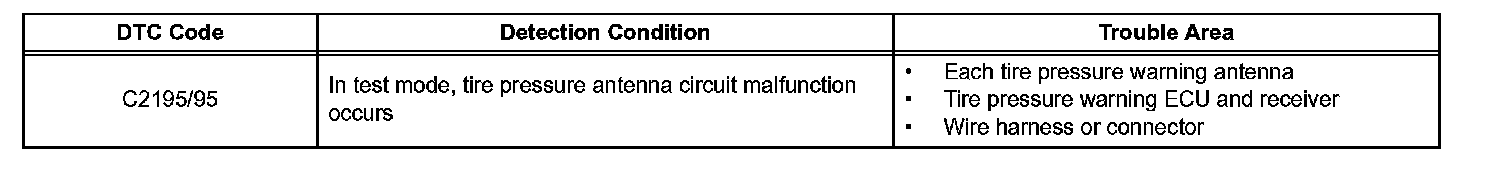

C2195/95:

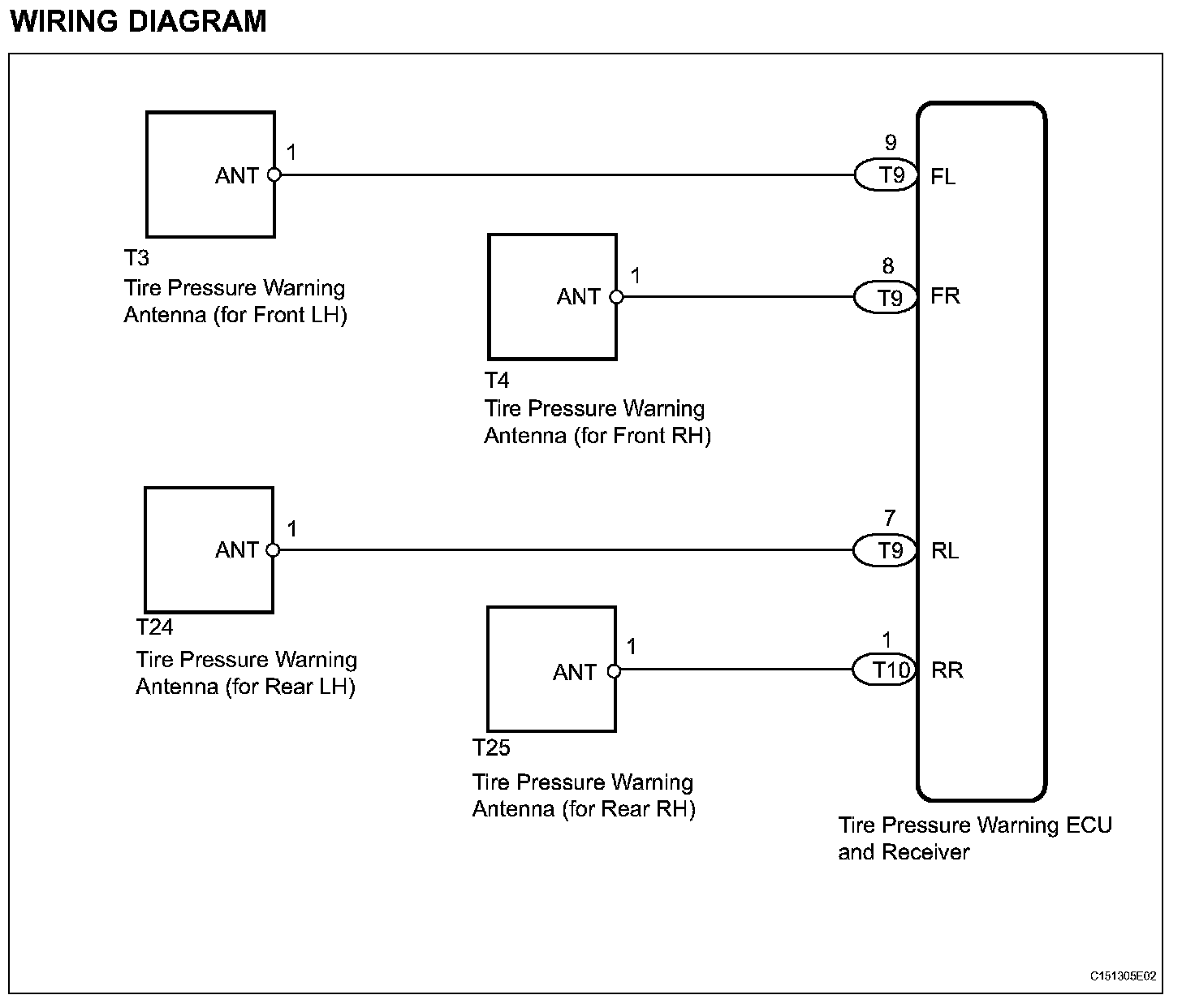

WIRING DIAGRAM:

INSPECTION PROCEDURE

NOTICE:
^ When replacing the tire pressure warning ECU and receiver, read the IDs stored in the old ECU using the intelligent tester and write them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU and receiver after the tire pressure warning ECU and receiver has been replaced.

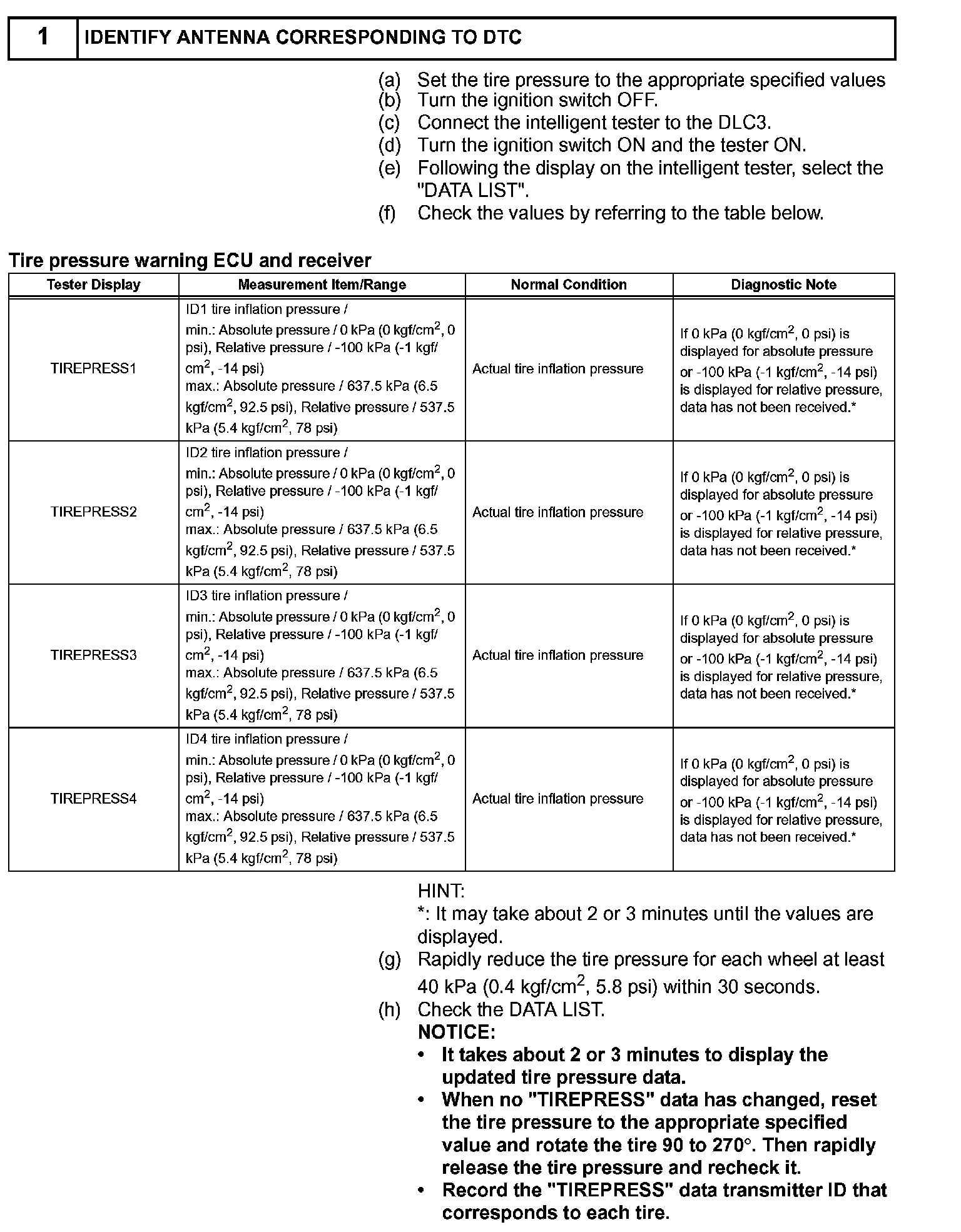

Step 1(Part 1):

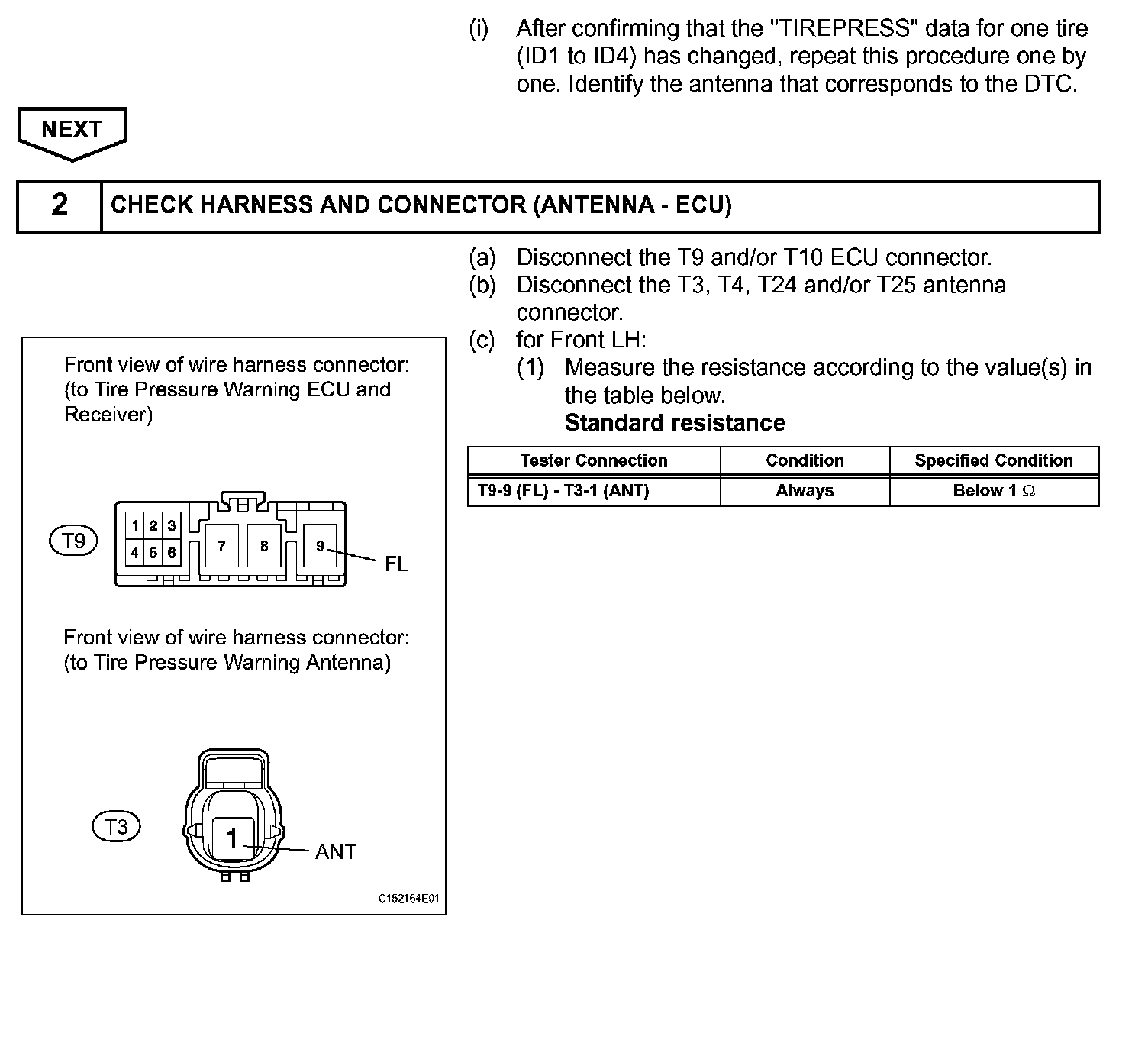

Steps 1(Part 2)-2(Part 1):

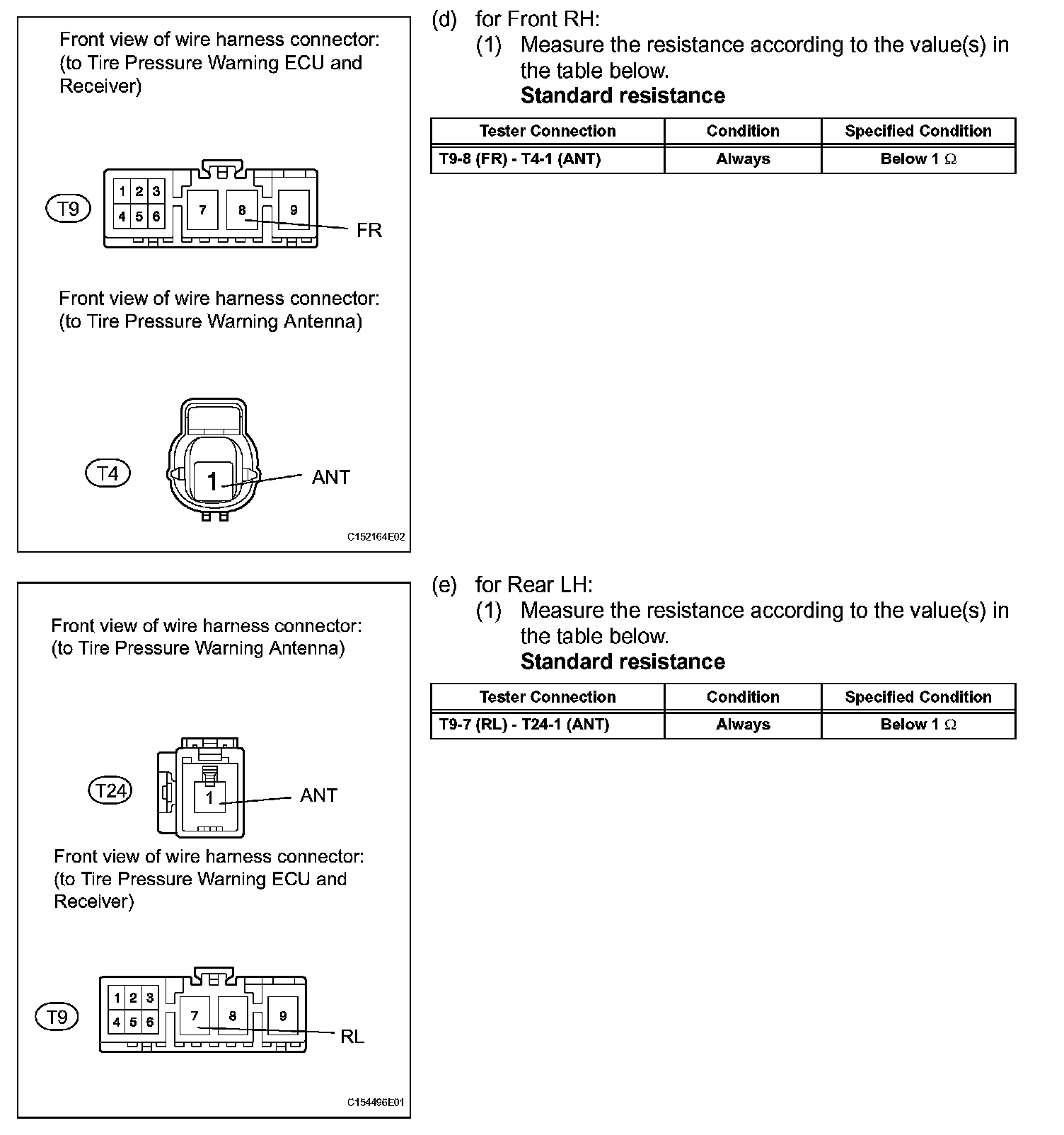

Step 2(Part 2):

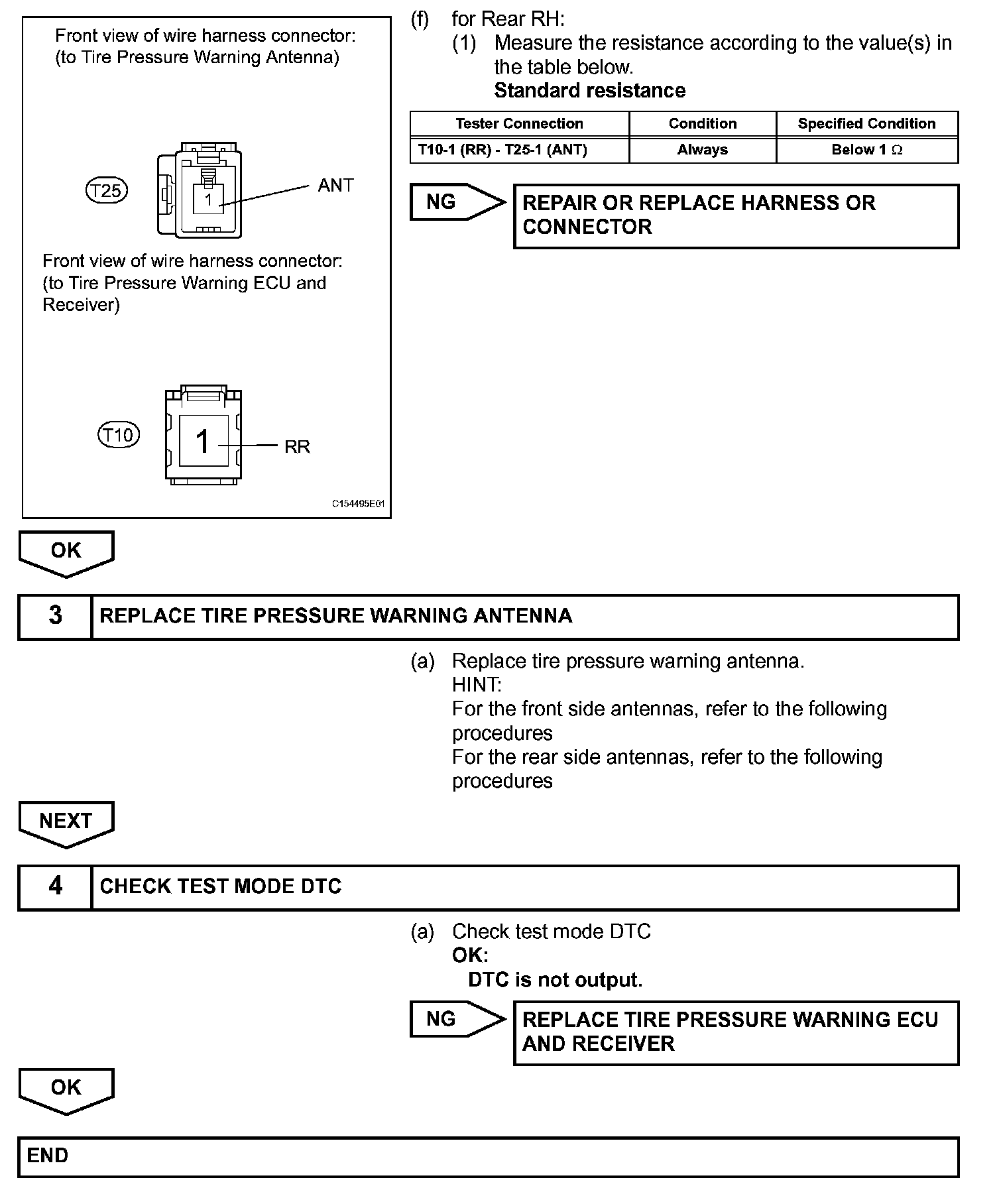

Step 2(Part 3)-4:
