C1254

DTC C1254/54 Pressure Switch Circuit

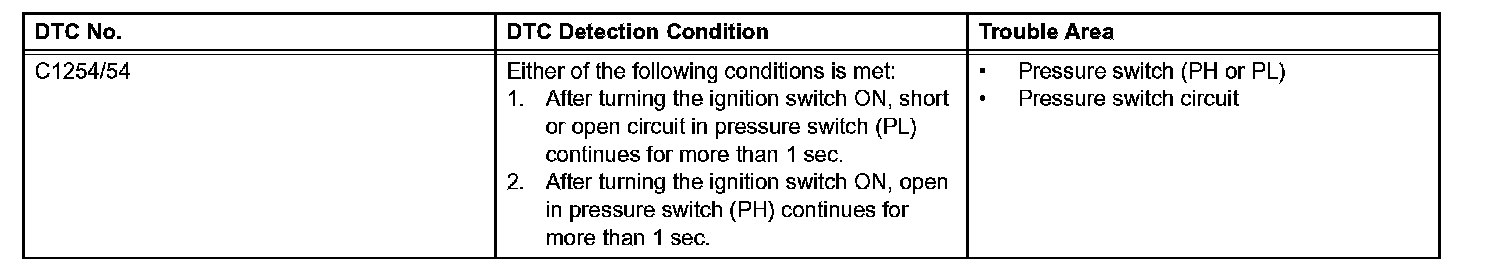

DTC Detection Condition:




DESCRIPTION

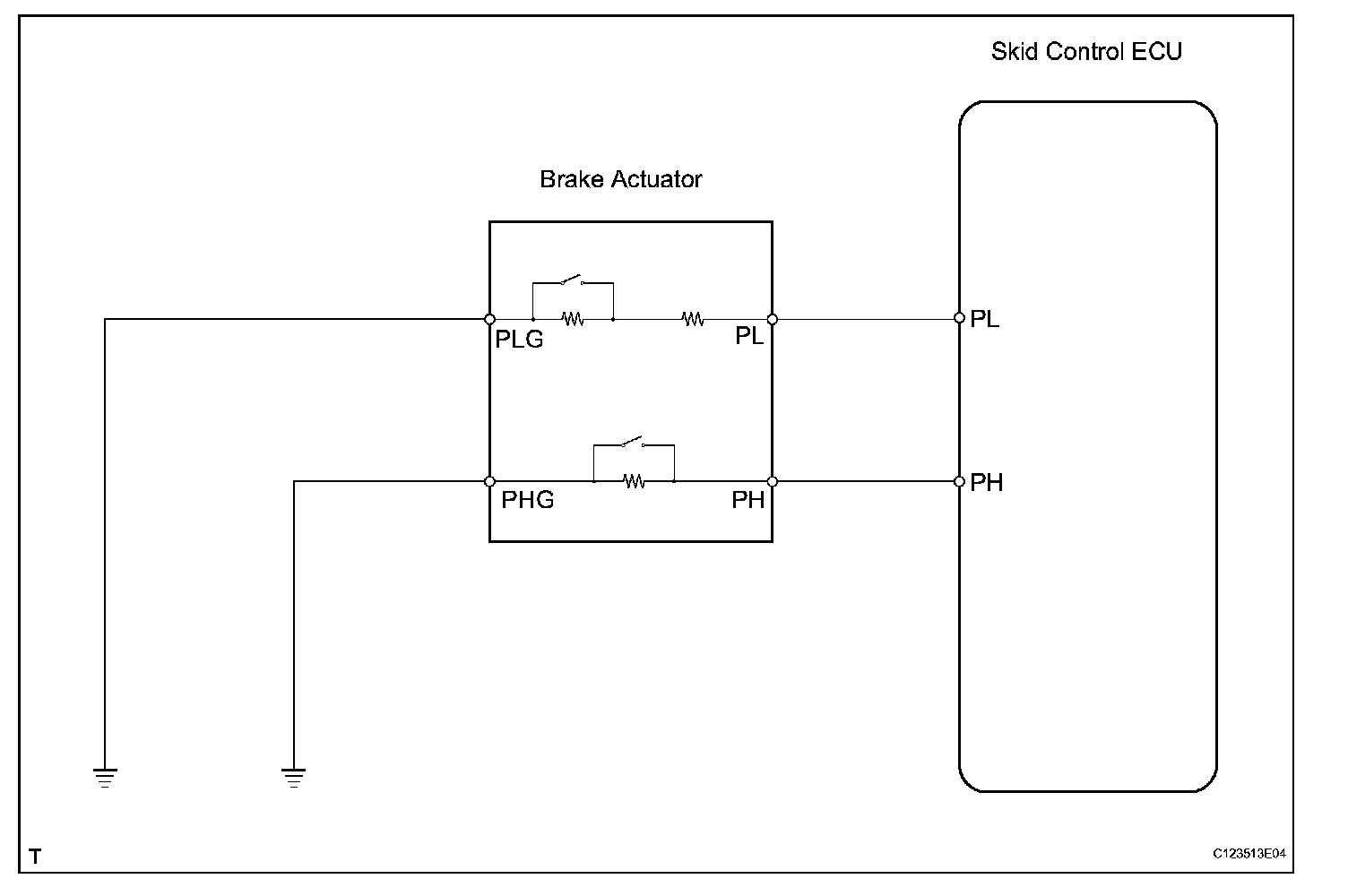

Wiring Diagram:






Step 1:

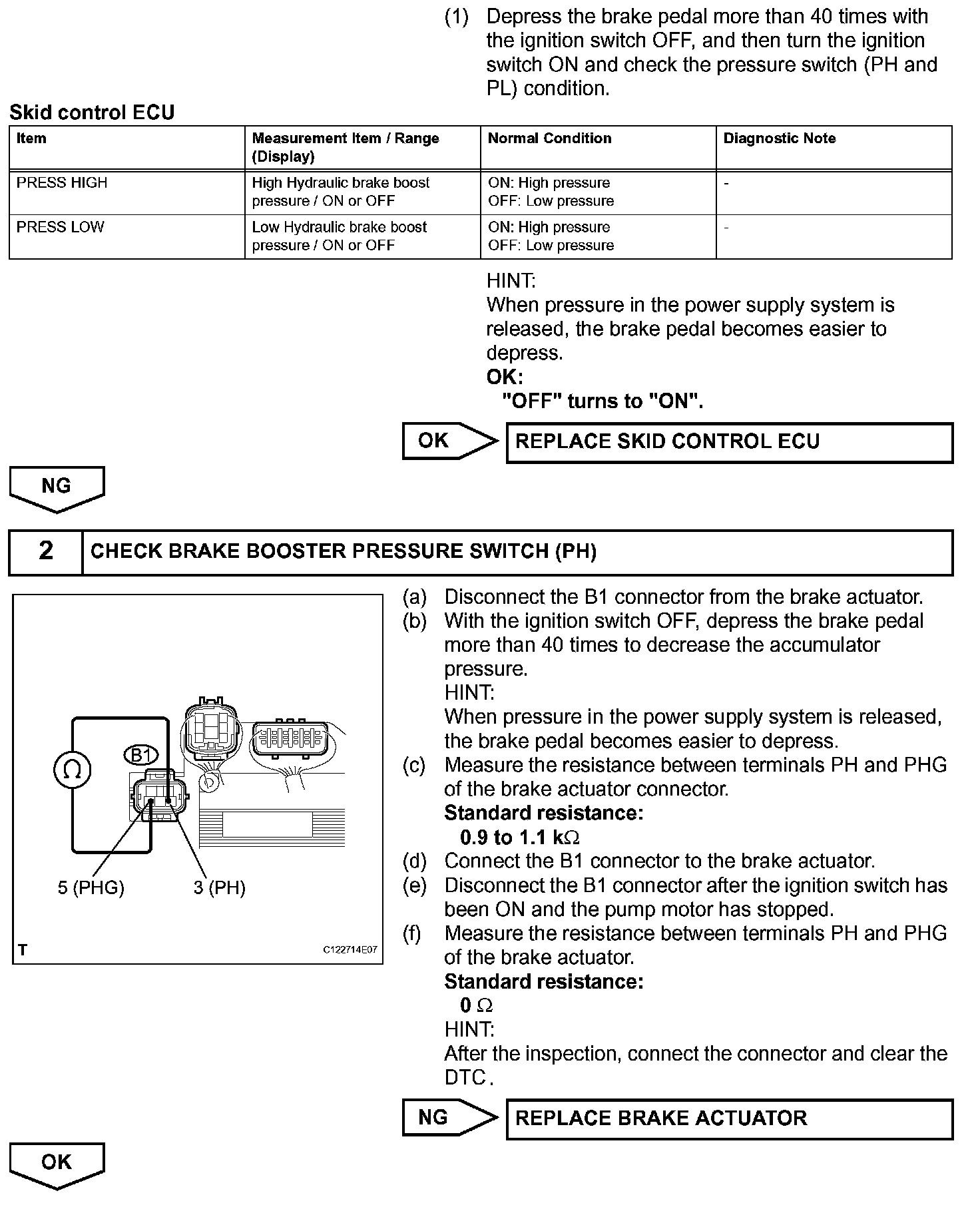

Step 1(Continued)-2:

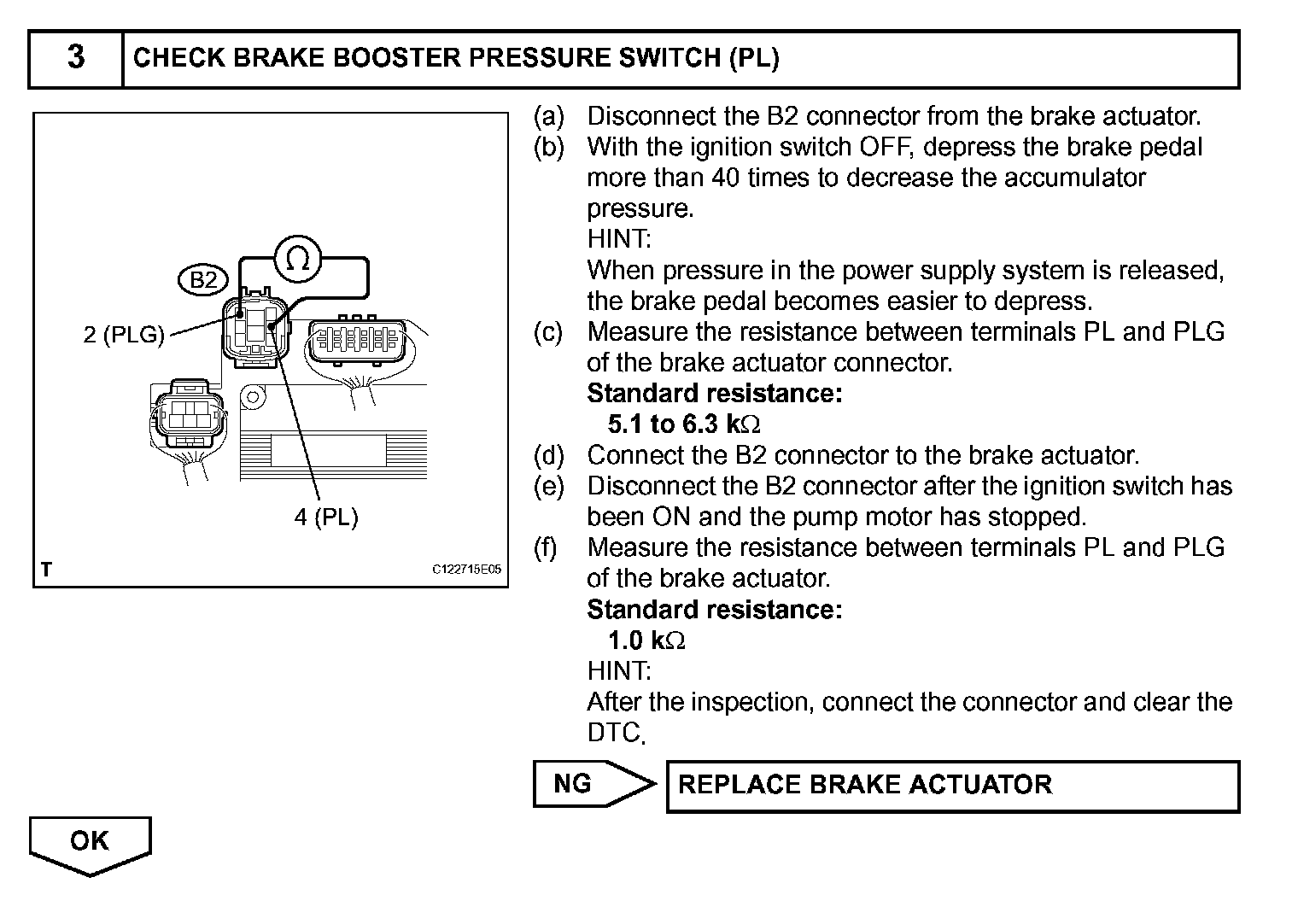

Step 3:

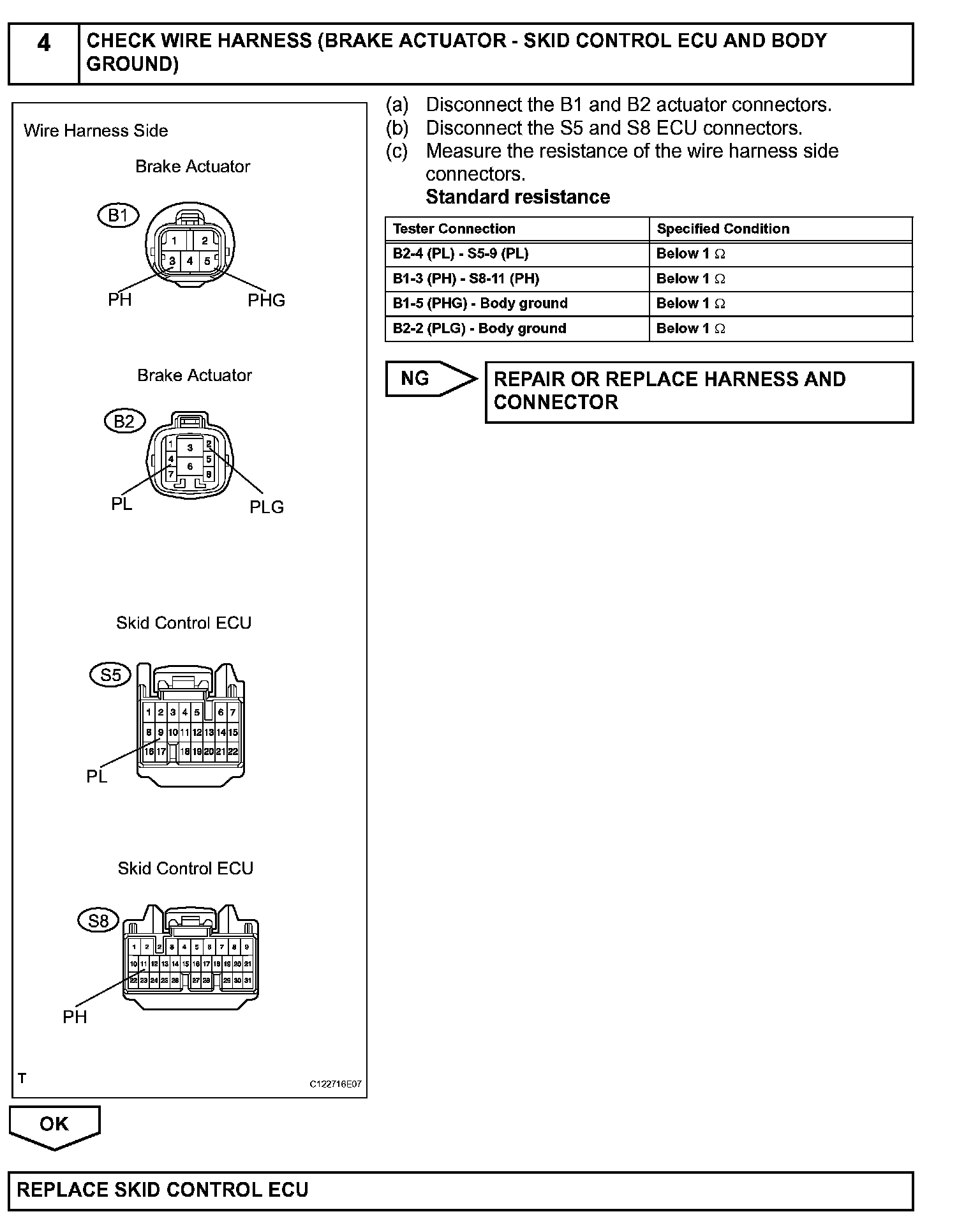

Step 4:




INSPECTION PROCEDURE
