C1249

DTC C1249/49 Open in Stop Light Switch Circuit

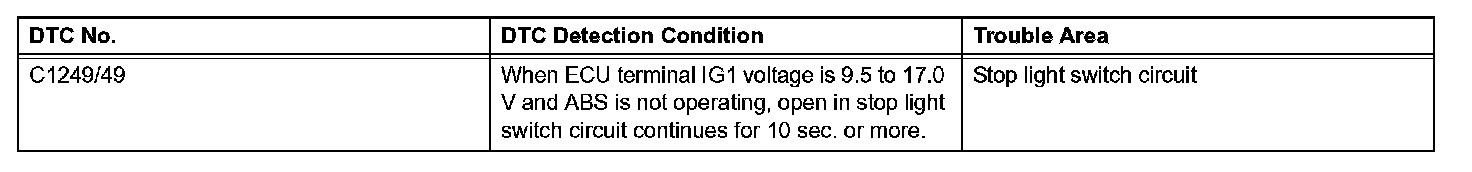

DTC Detection Condition:




DESCRIPTION

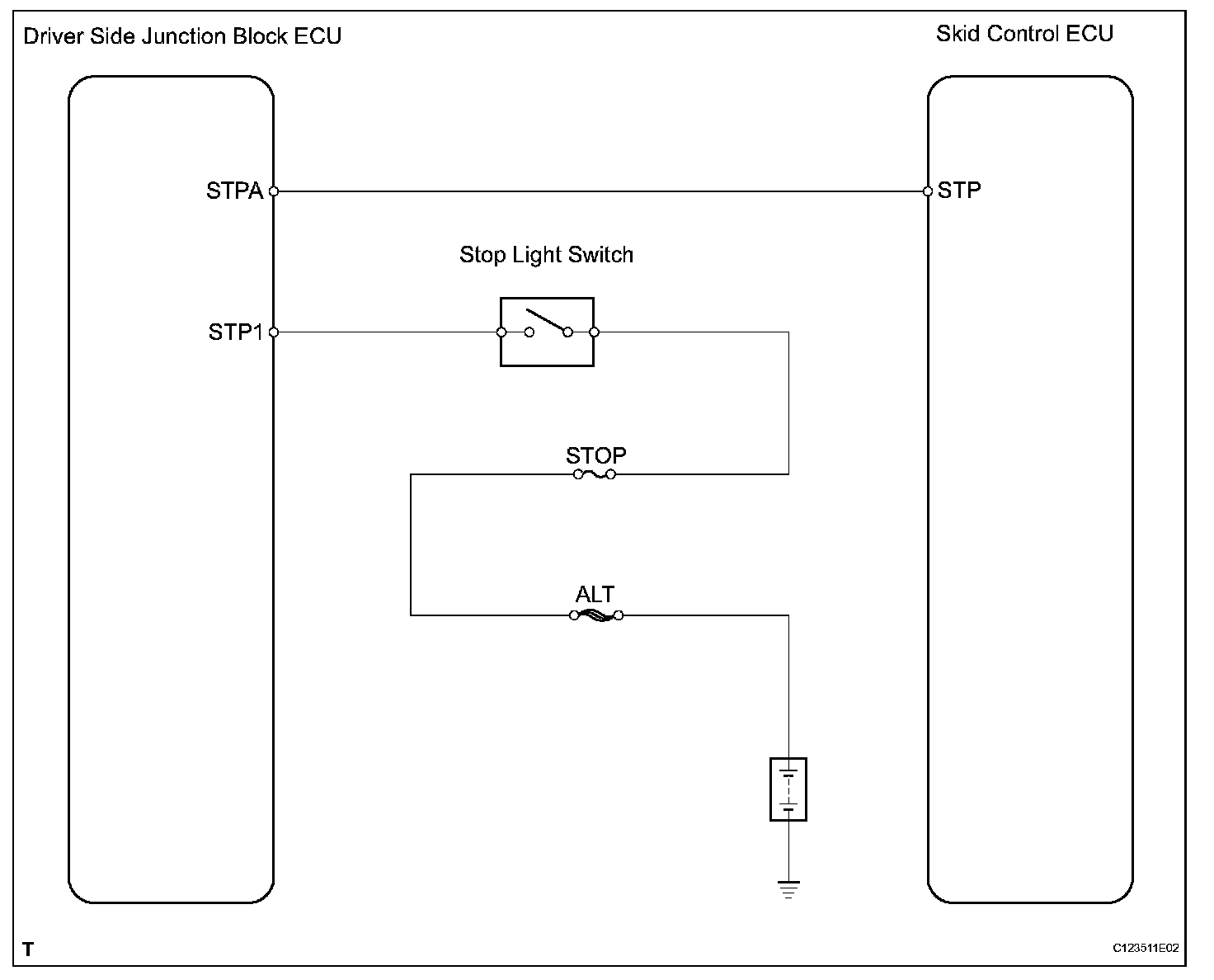

Wiring Diagram:

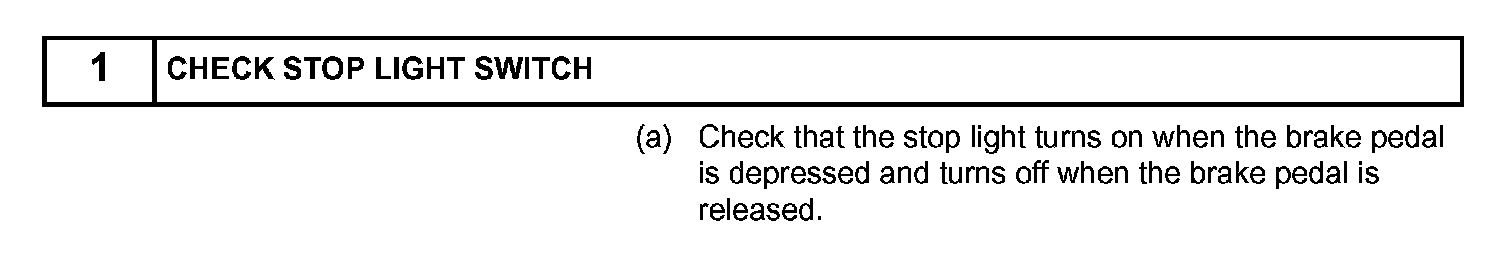

Step 1:

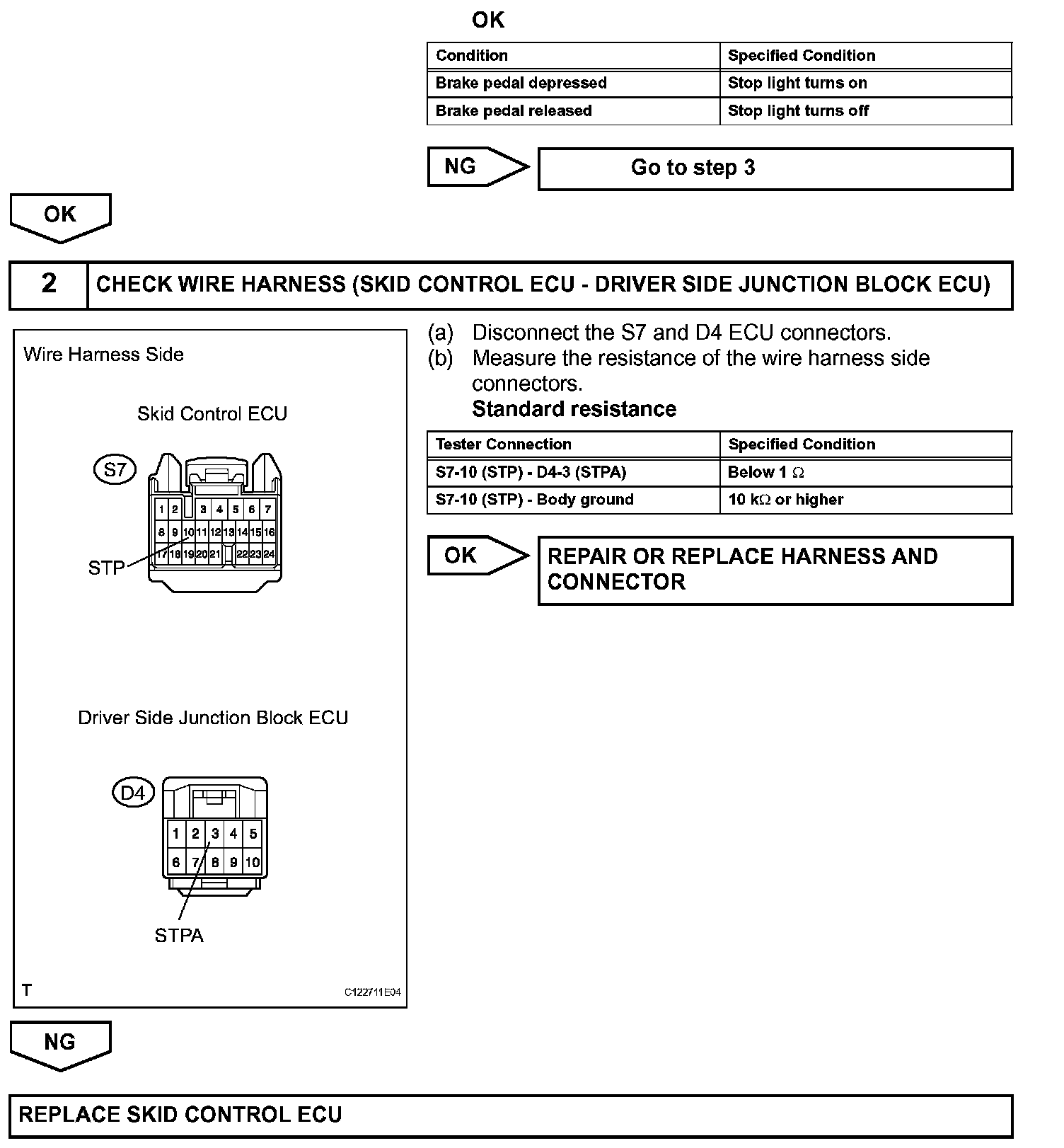

Step 1(Continued)-2:

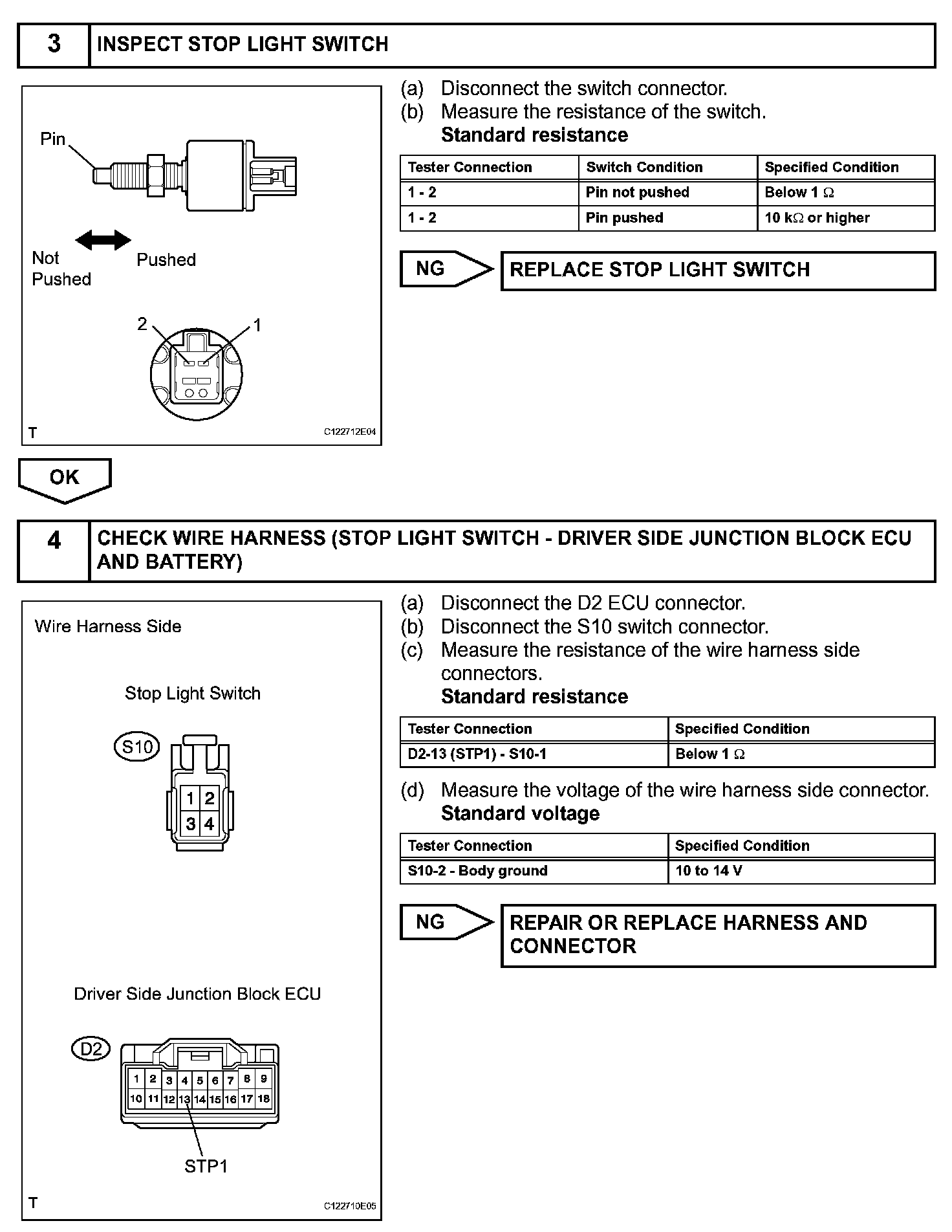

Step 3-4:

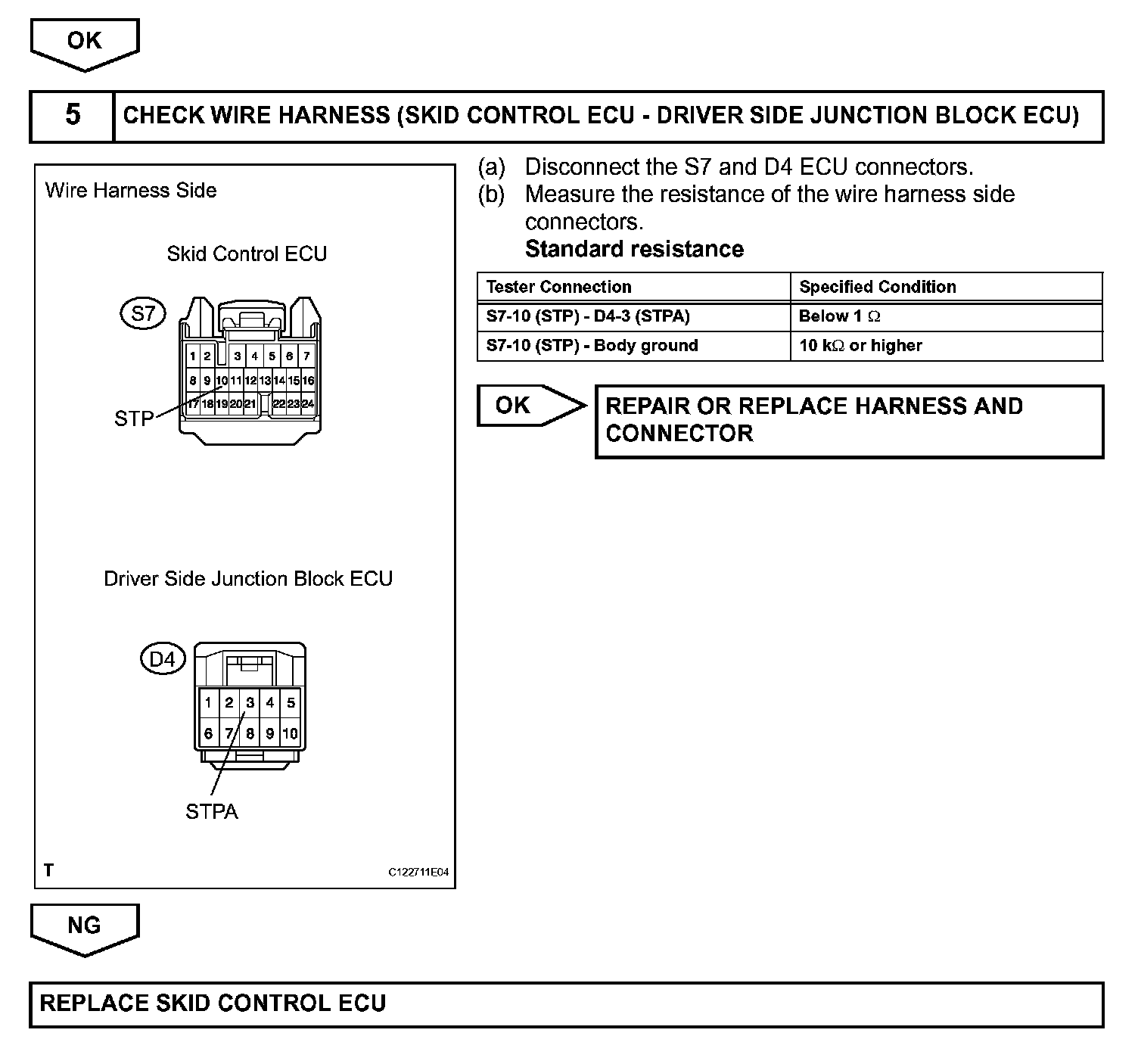

Step 4(Continued)-5:




INSPECTION PROCEDURE
