DTC C1246/46 Master Cylinder Pressure Sensor Malfunction

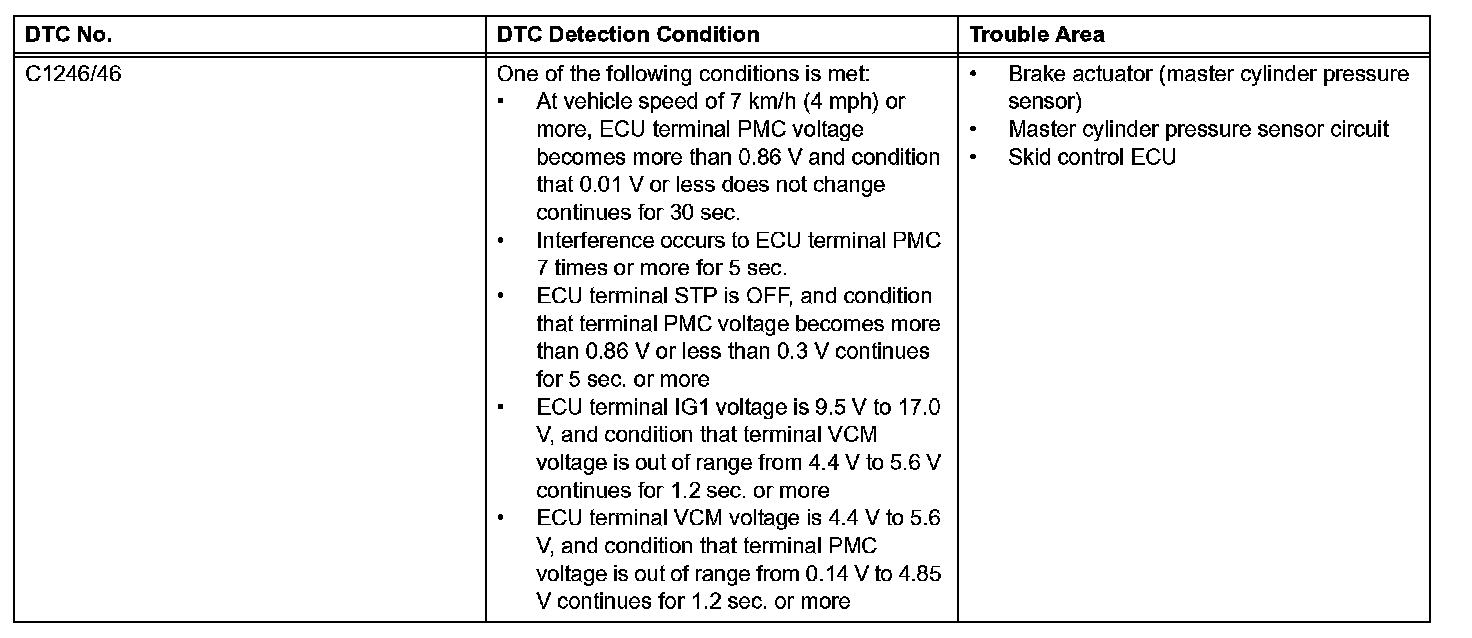

DTC Detection Condition:
DESCRIPTION

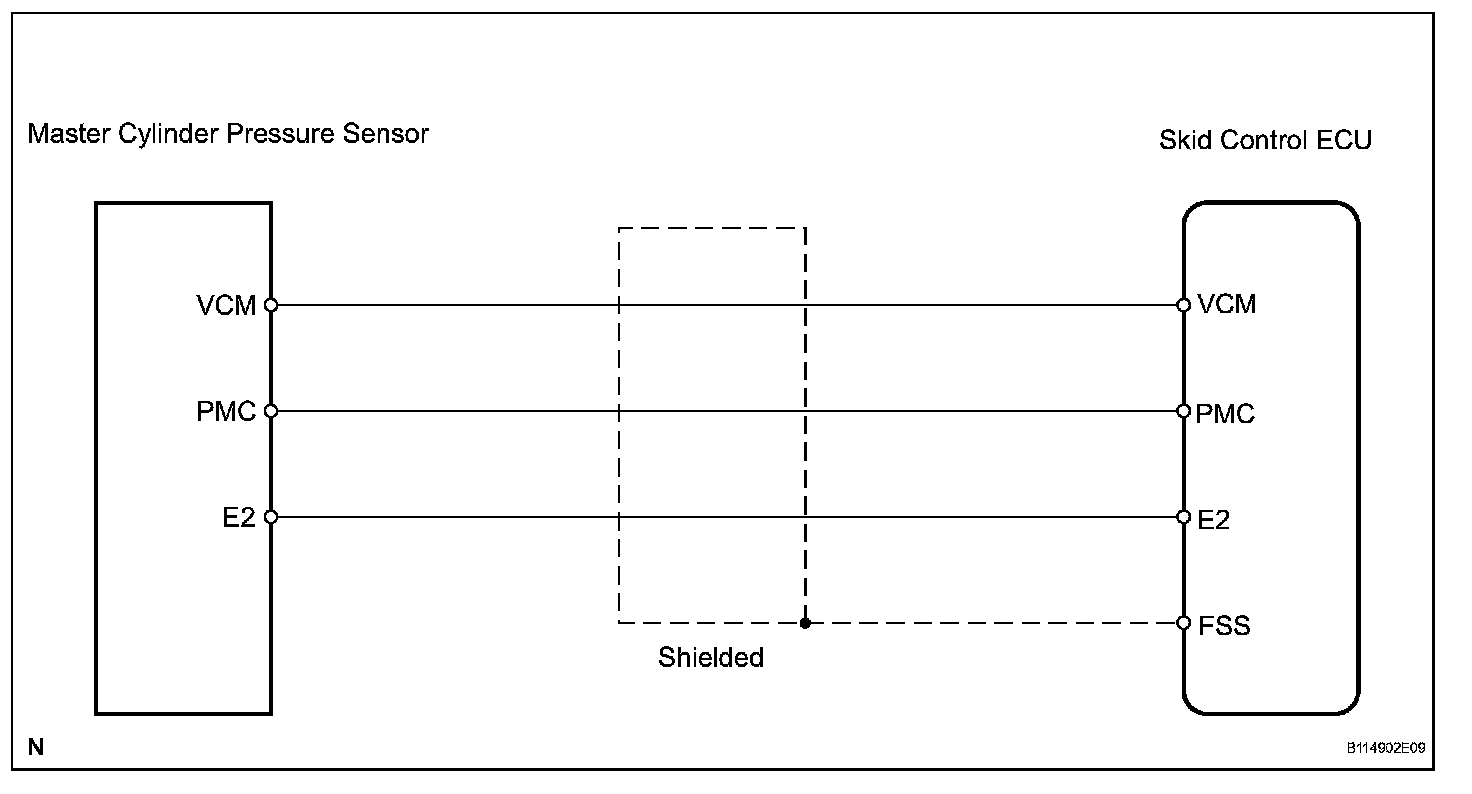

Wiring Diagram:

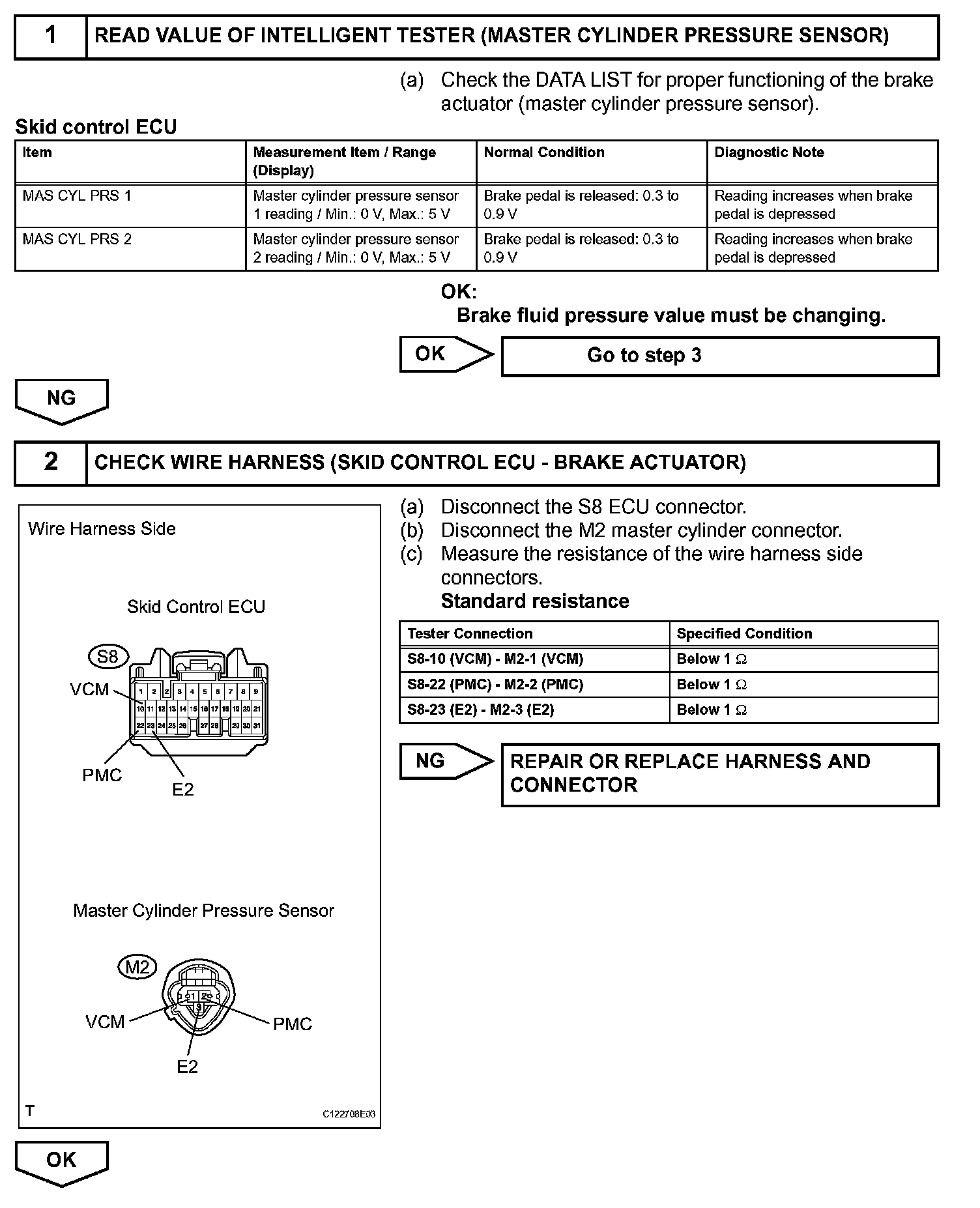

Step 1-2:

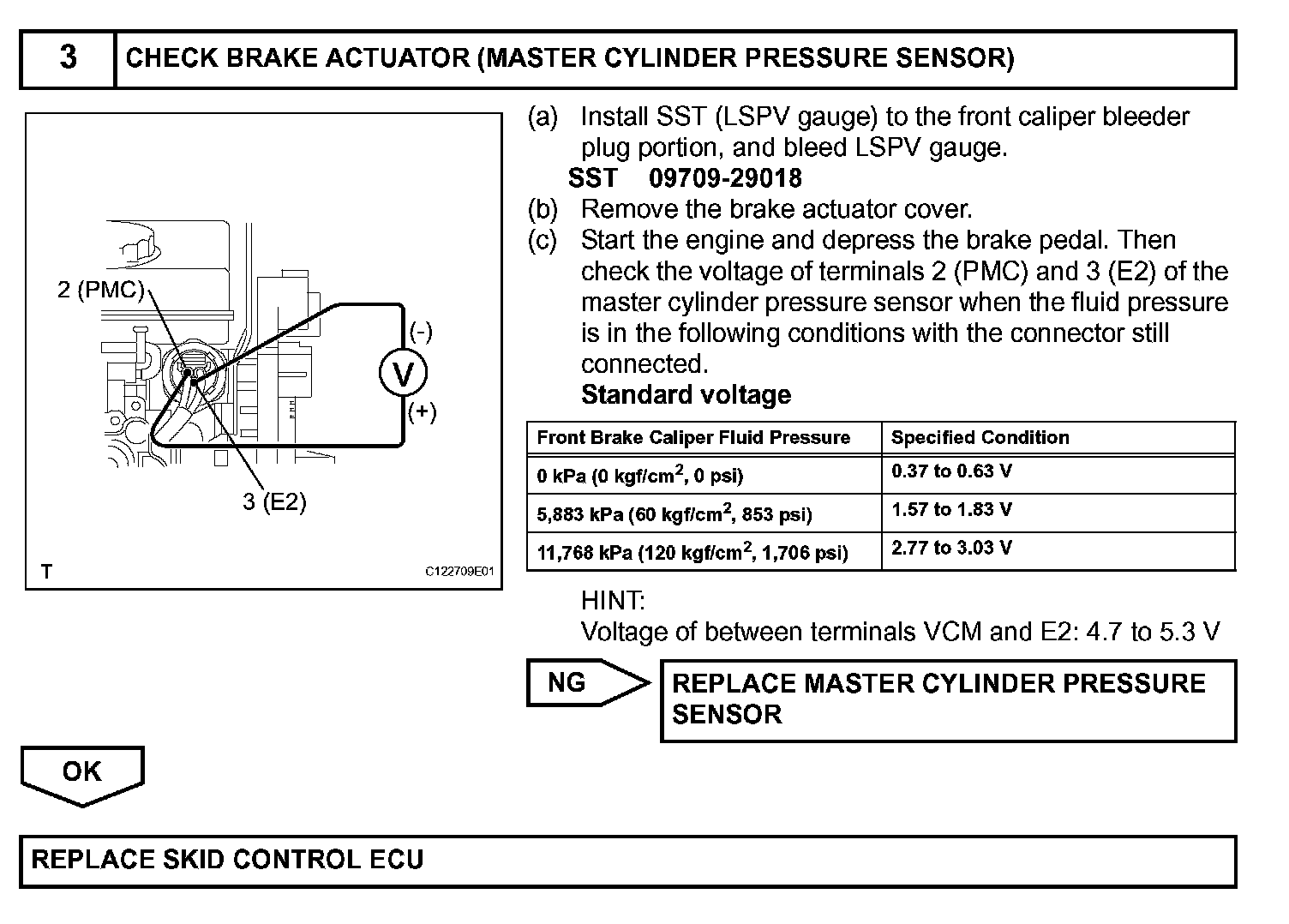

Step 3:
INSPECTION PROCEDURE
