DTC C1233/33 Open or Short Circuit in Yaw Rate Sensor Circuit
DTC Detection Condition:
DESCRIPTION

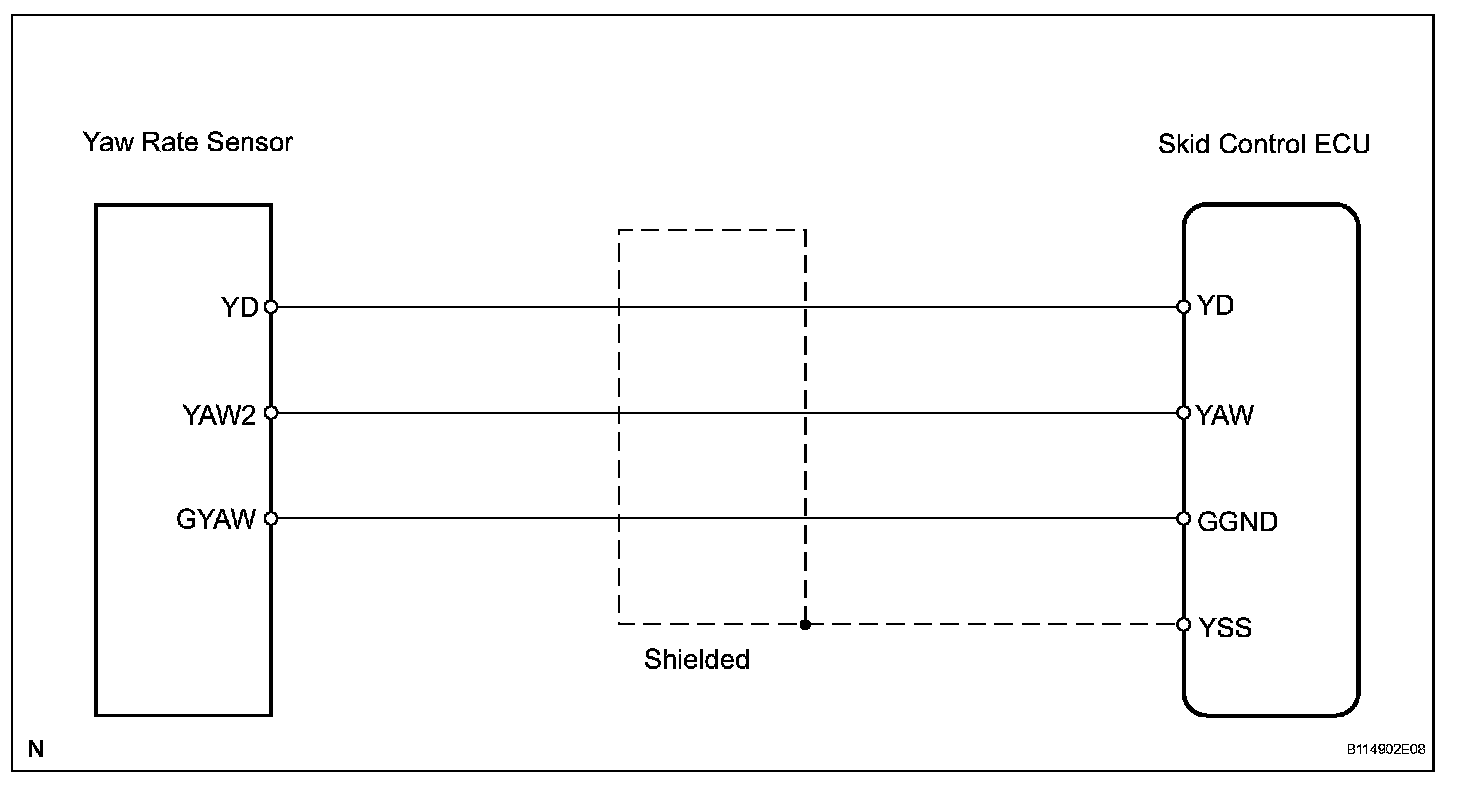

Wiring Diagram:

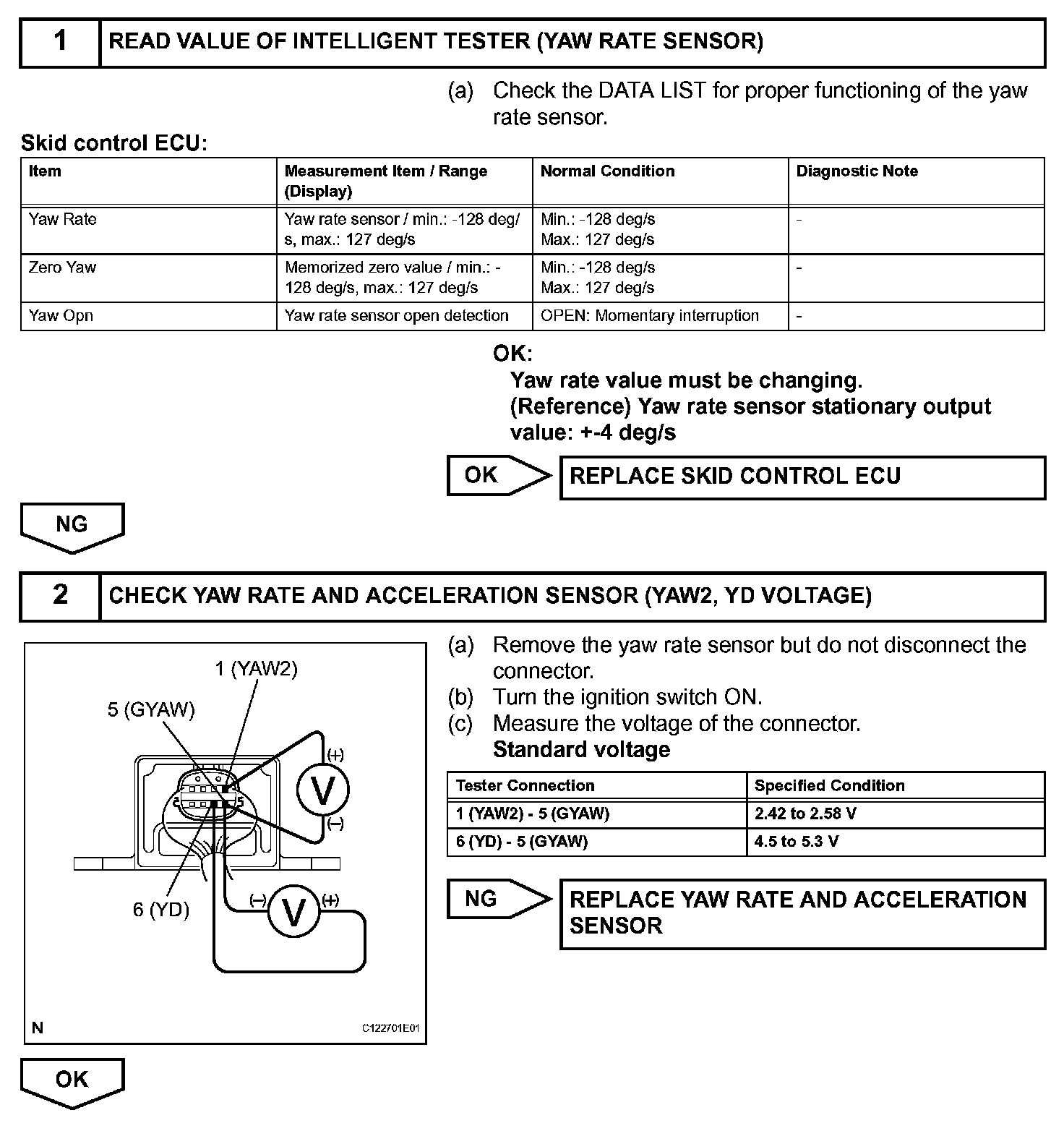

Step 1-2:

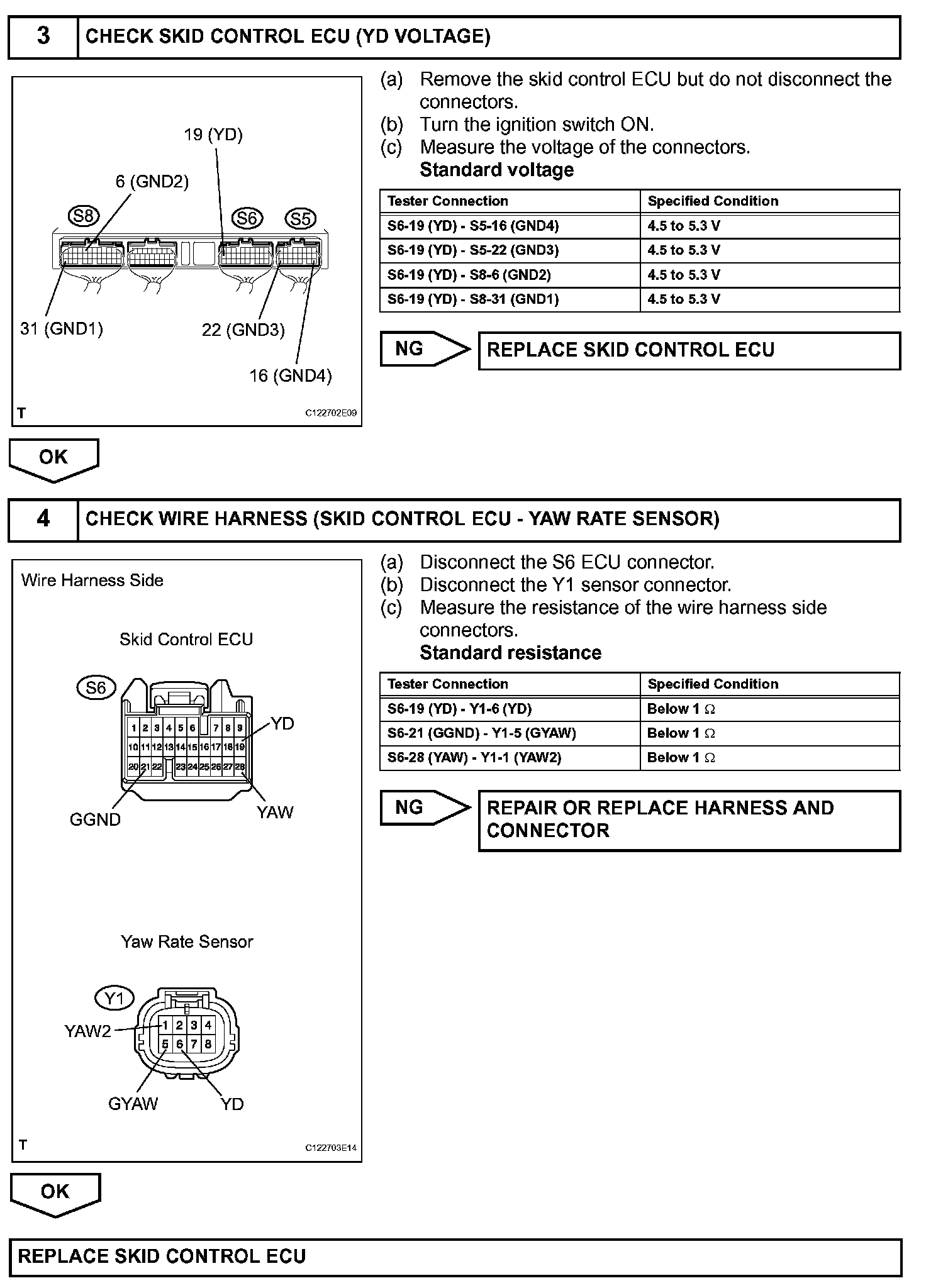

Step 3-4:
INSPECTION PROCEDURE
