Lexus
>>
2007
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1231
C1231
DTC C1231/31 Steering Angle Sensor Circuit Malfunction

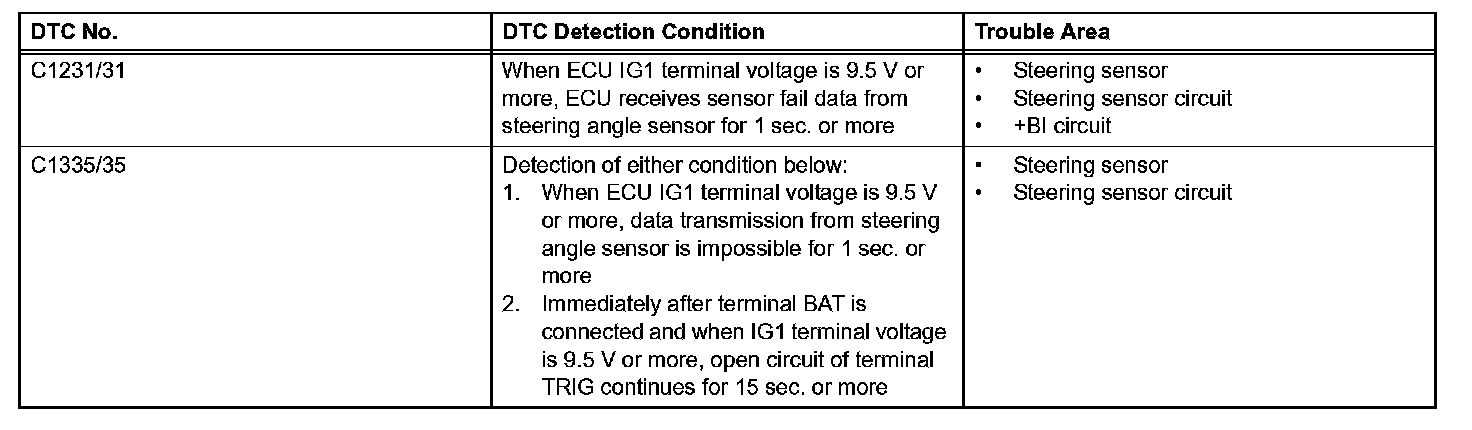

DTC Detection Condition:
DESCRIPTION
Wiring Diagram:

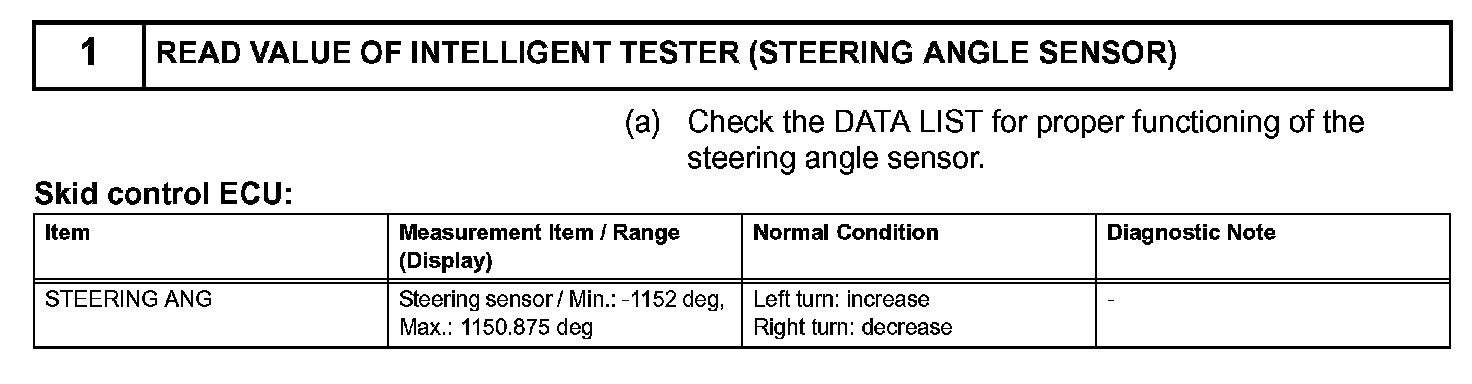

Step 1:

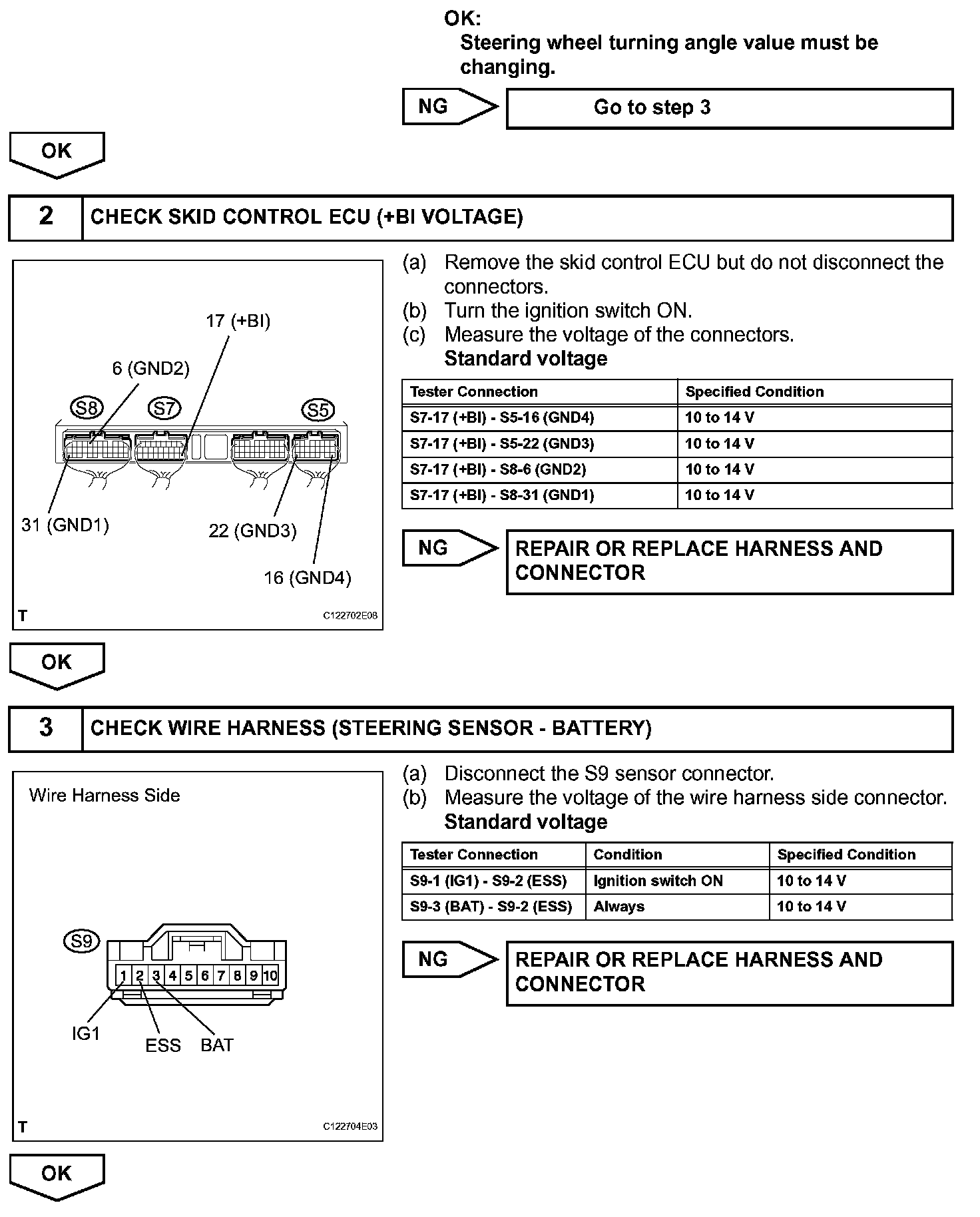

Step 1(Continued)-3:

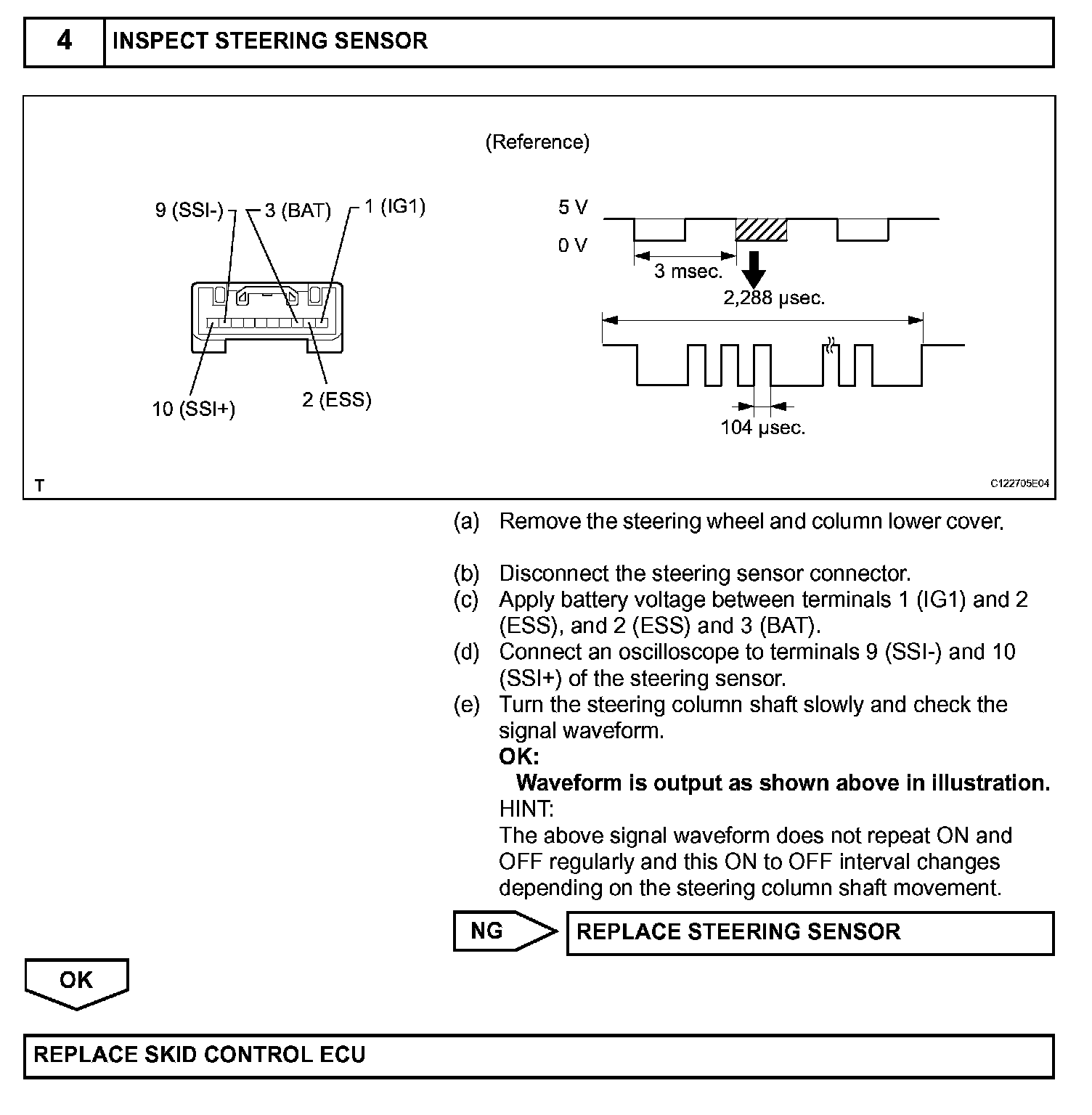

Step 4:
INSPECTION PROCEDURE
