C1210

DTC C1210/36 Zero Point Calibration of Yaw Rate Sensor Undone

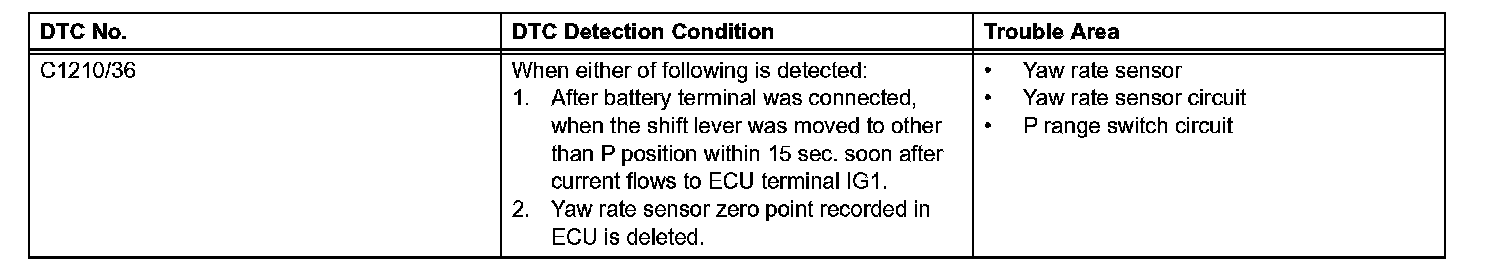

DTC Detection Condition:

DESCRIPTION

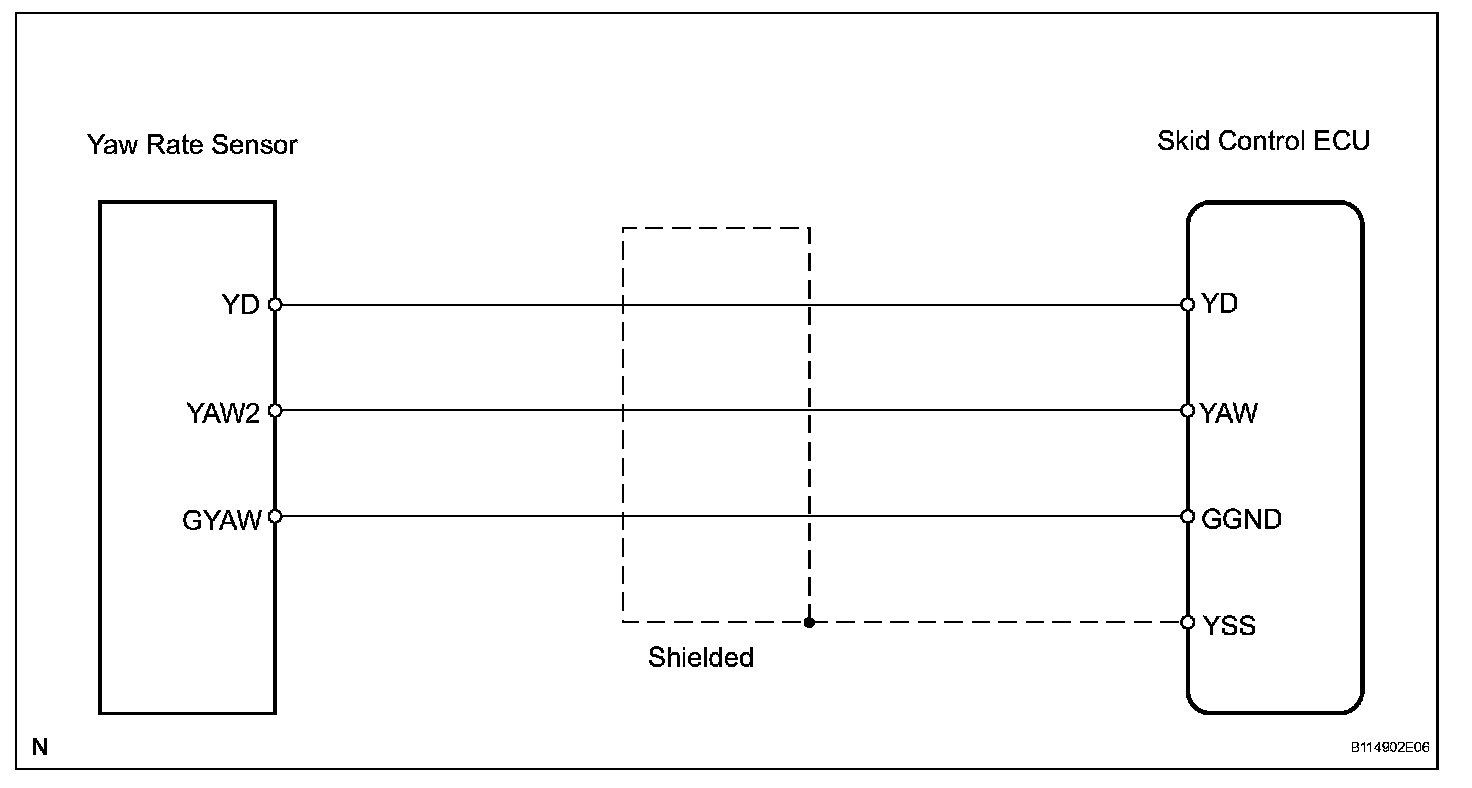

Wiring Diagram:

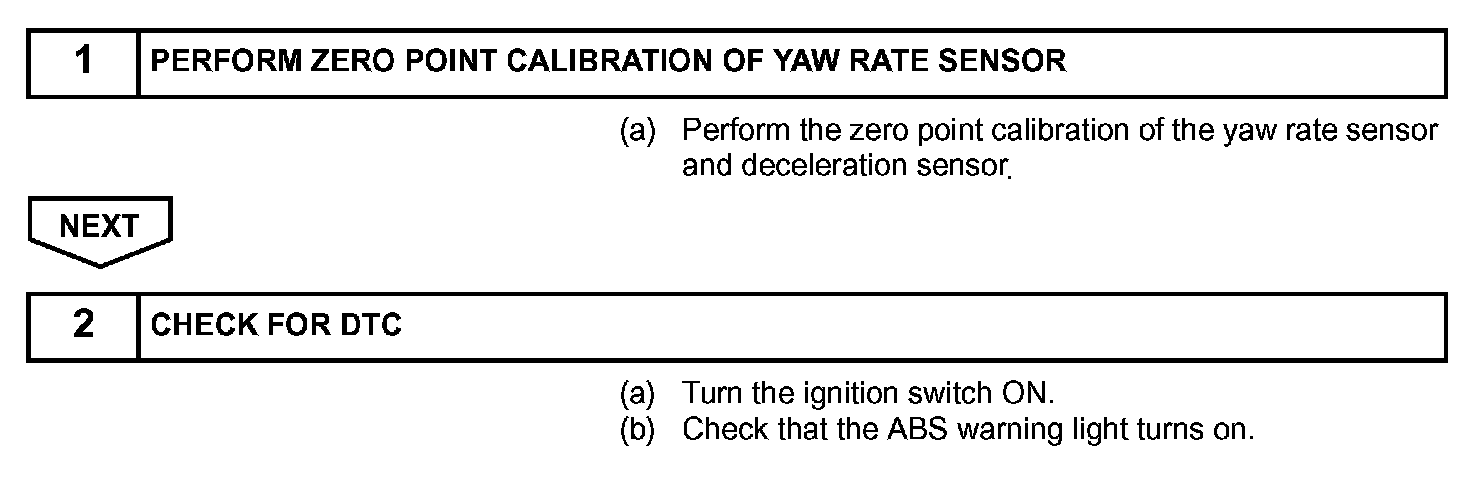

Step 1-2:

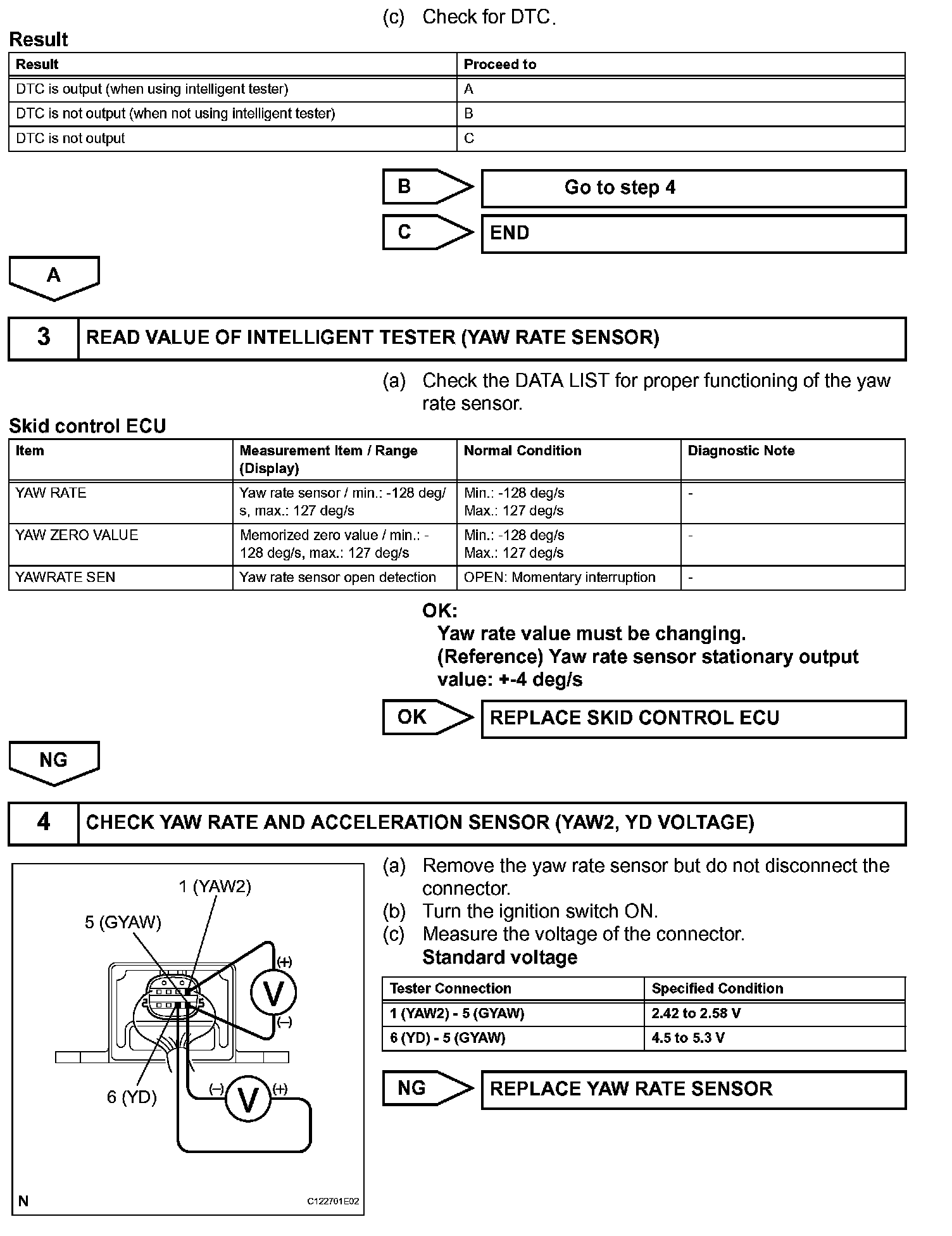

Step 2(Continued)-4:

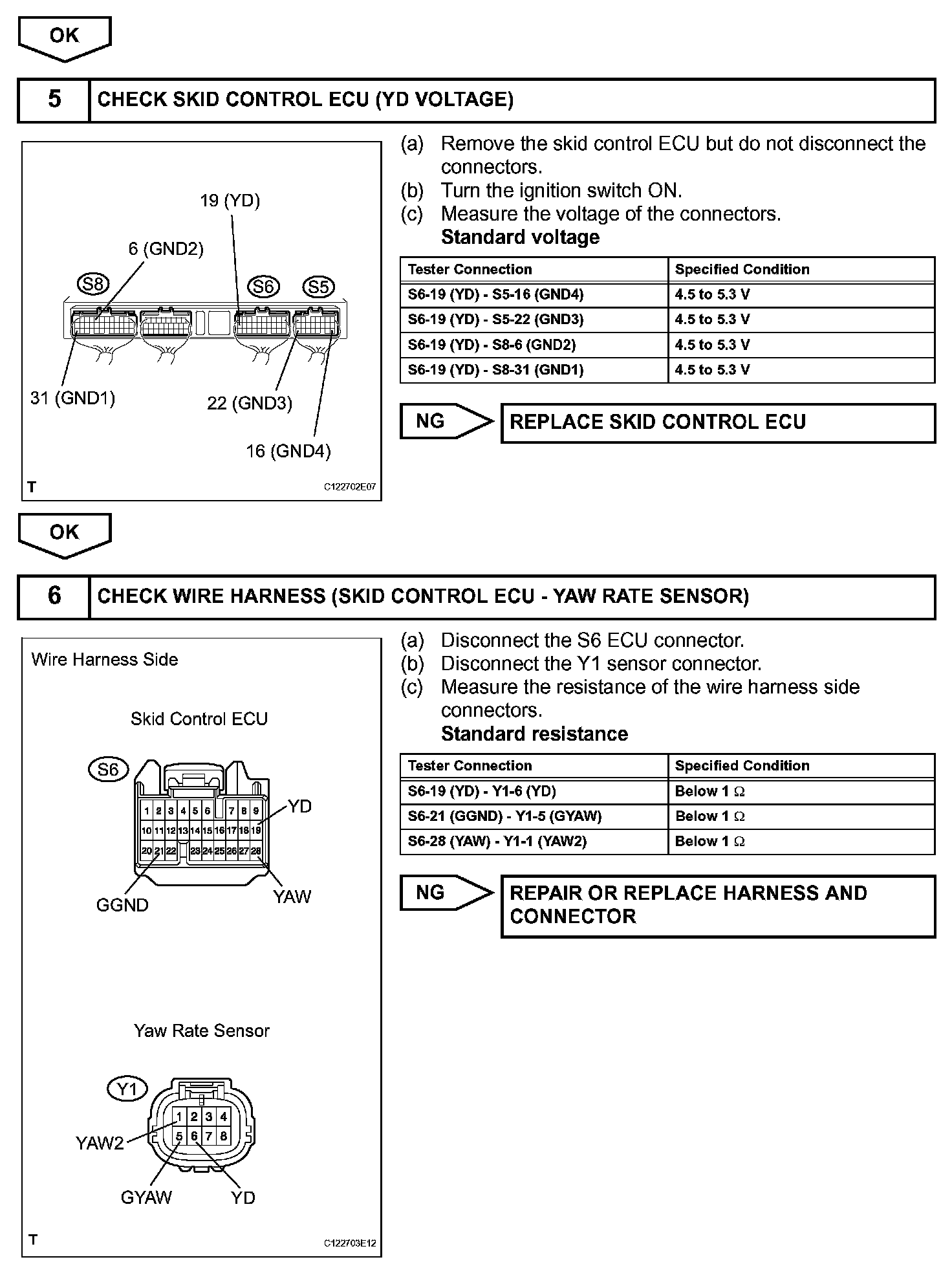

Step 4(Continued)-6:

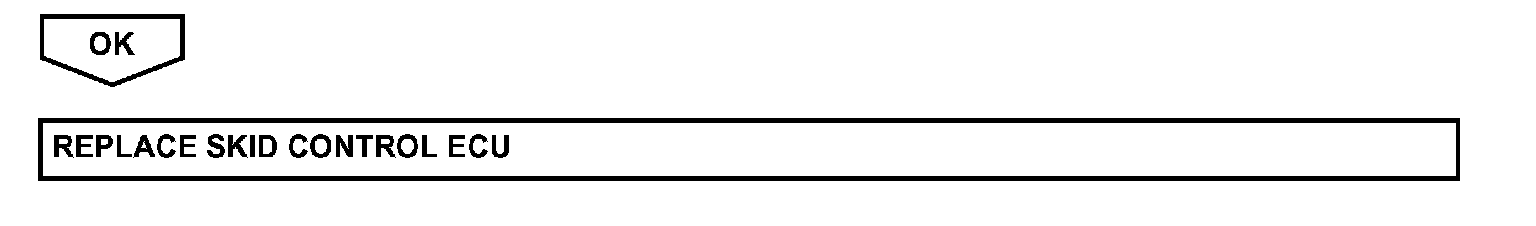

Step 6(Continued):

INSPECTION PROCEDURE
