C0278

DTC C0278/11 Open or Short Circuit in ABS Solenoid Relay Circuit

DESCRIPTION

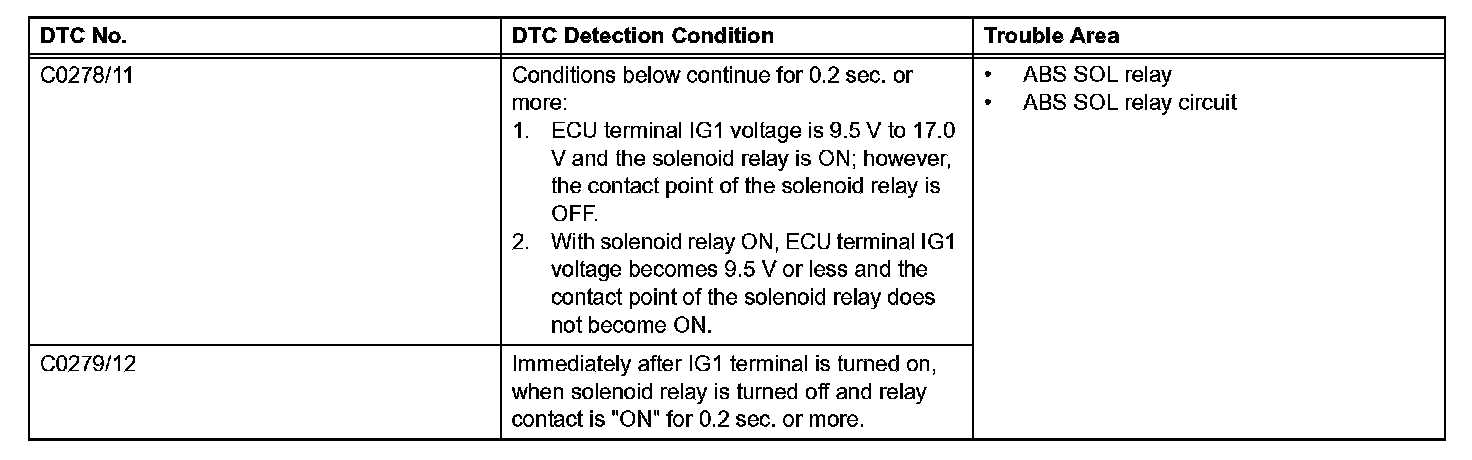

DTC Detection Condition:

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay turns on.

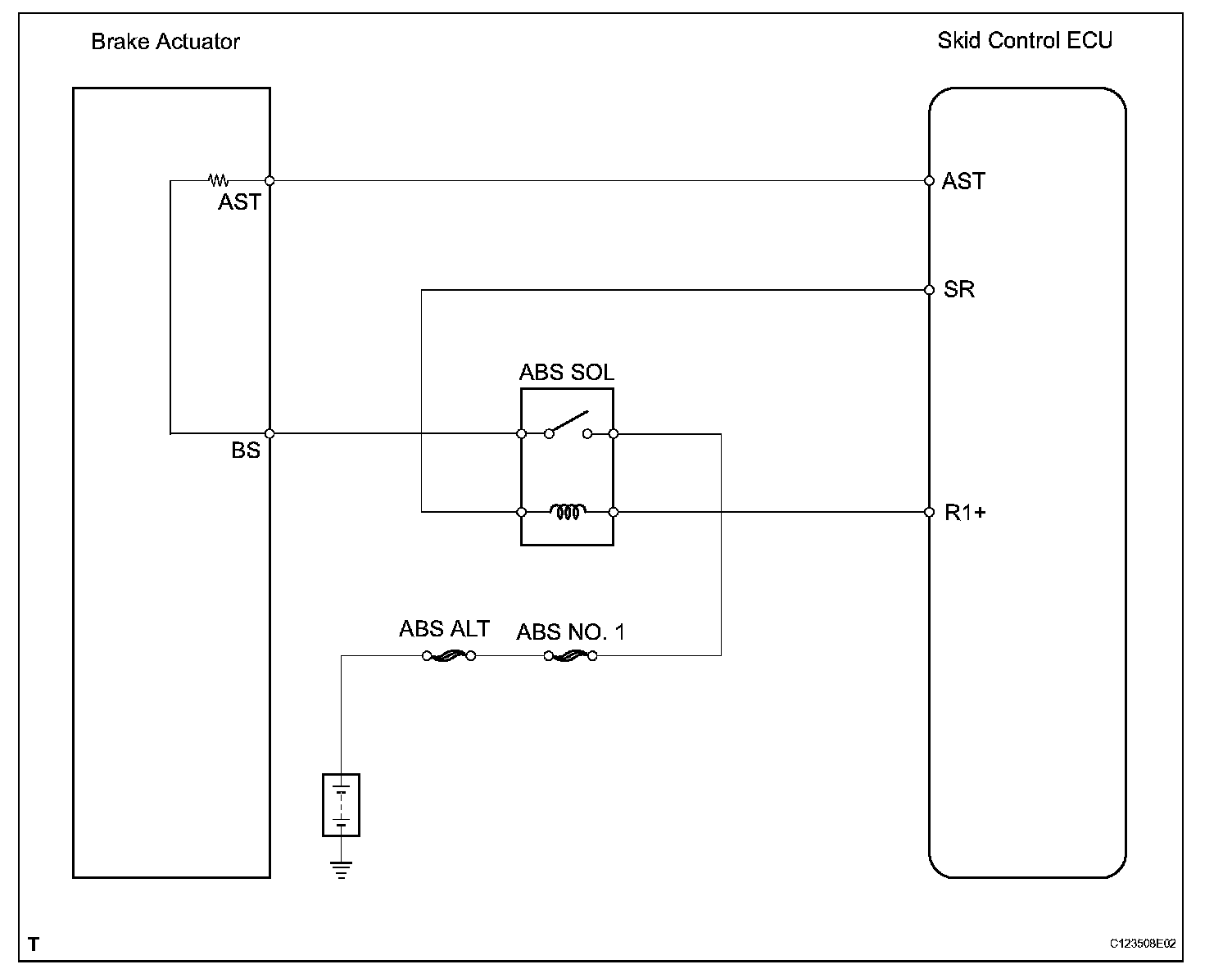

Wiring Diagram:

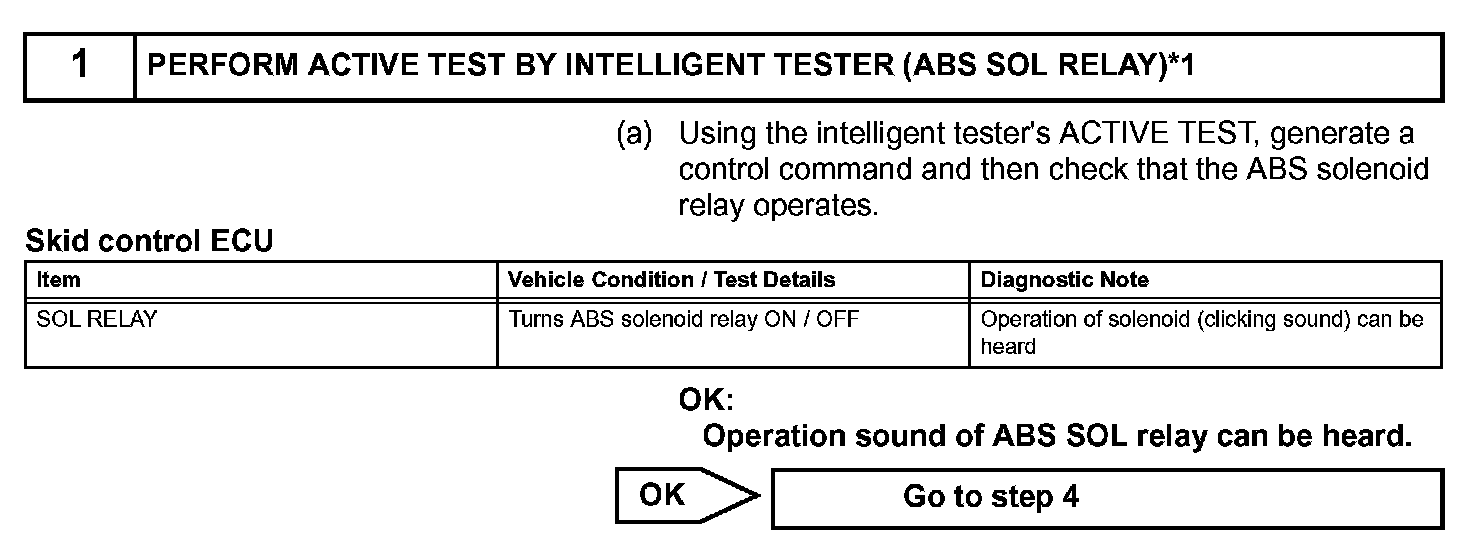

Step 1:

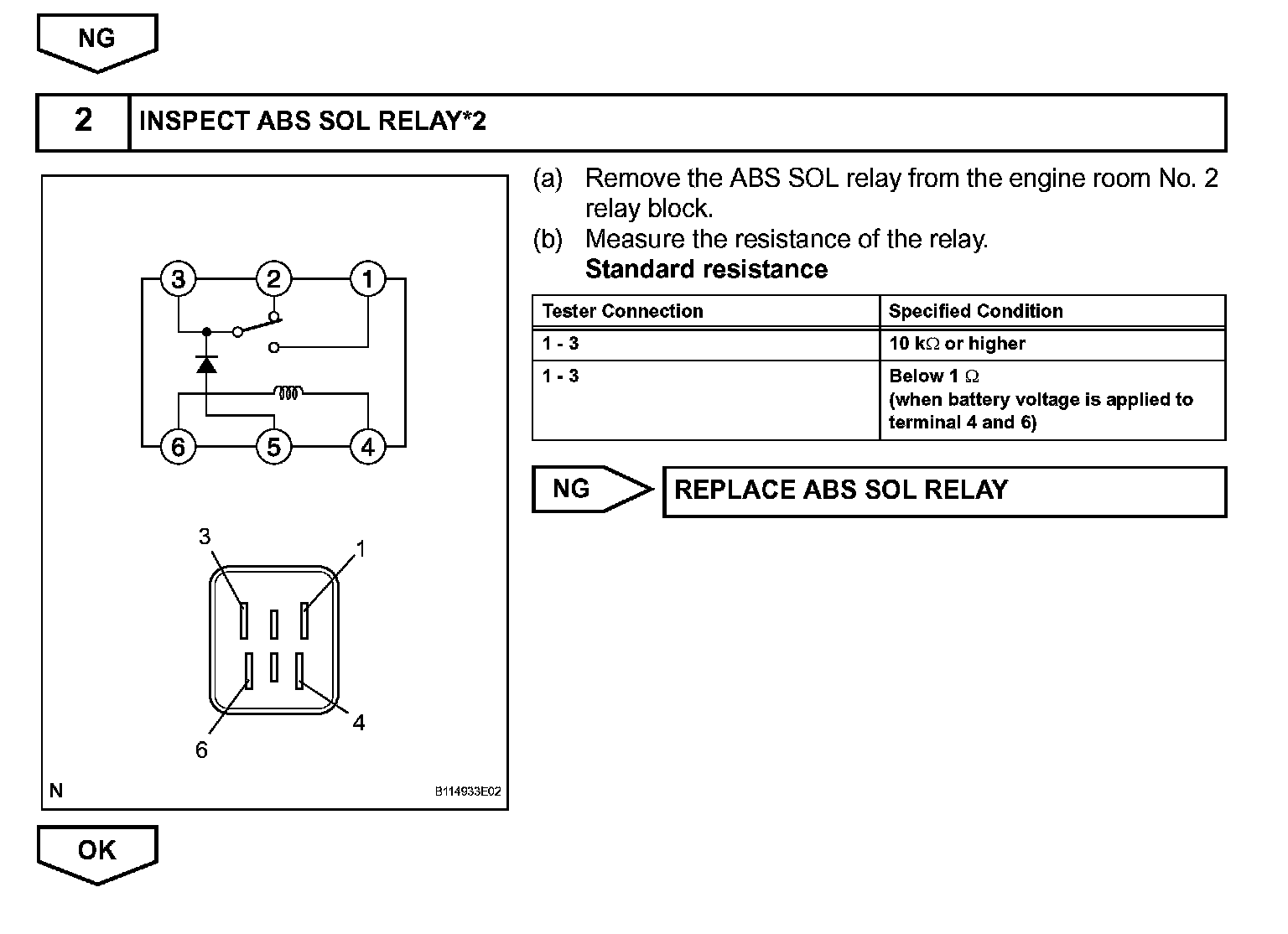

Step 1(Continued)-2:

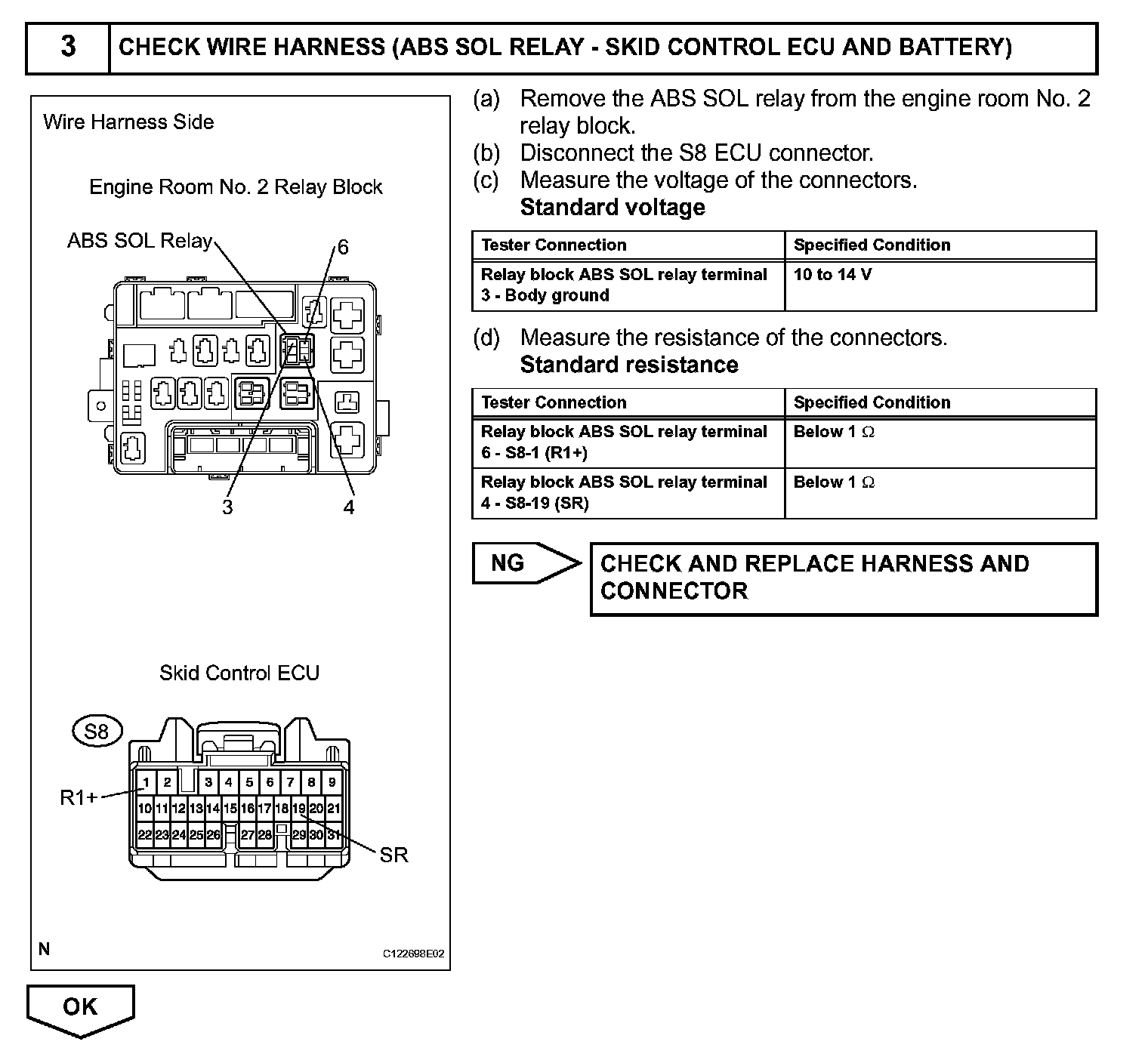

Step 3:

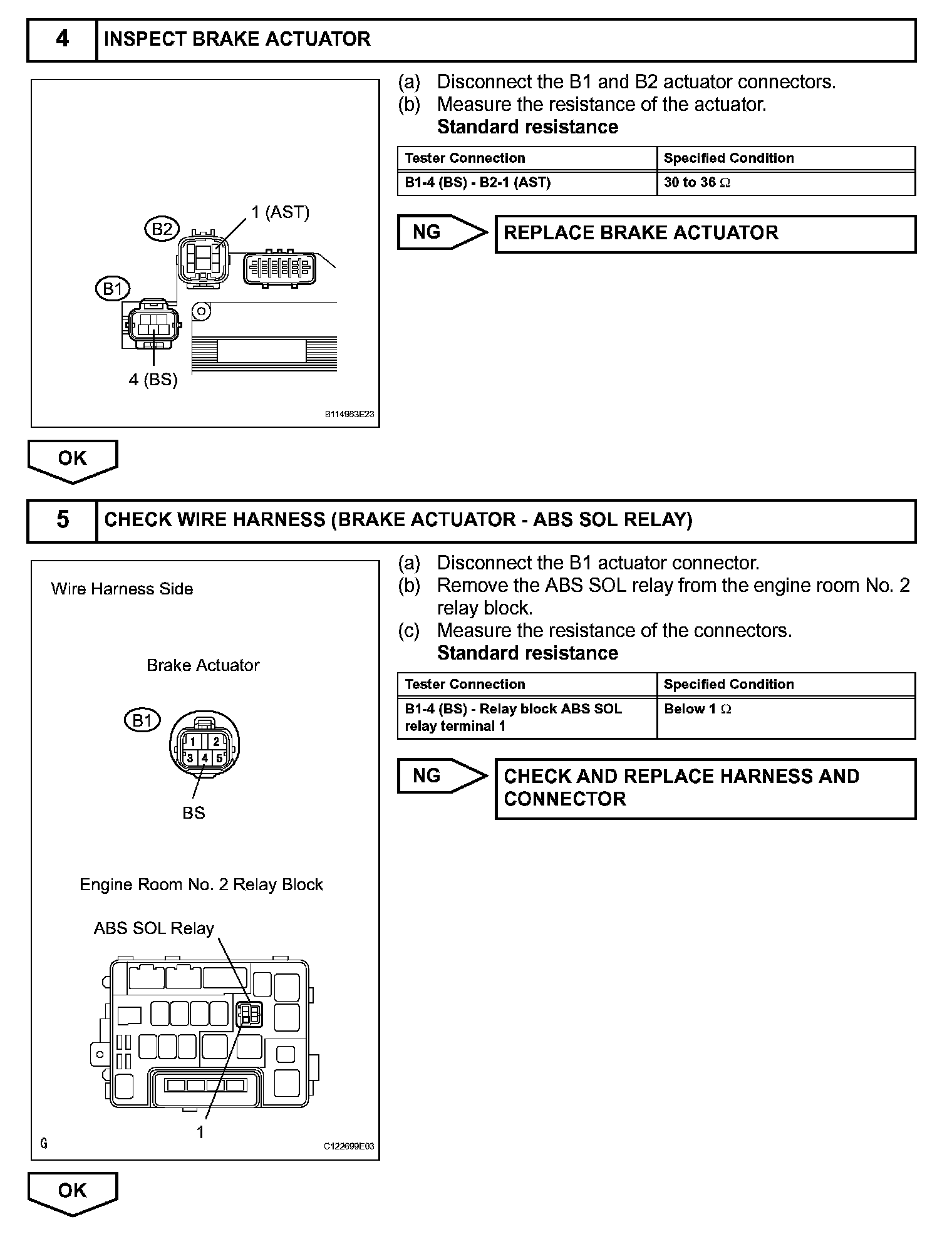

Step 4-5:

Step 6:

INSPECTION PROCEDURE

HINT: When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.
