B2798

DTC B2796 No Communication in Immobilizer System
DTC B2798 Communication Malfunction No.2

DESCRIPTION

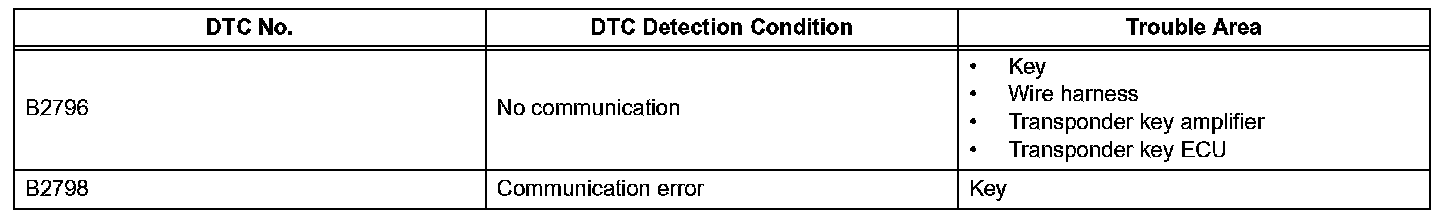

DTC Detection Condition:

When a key is inserted into the ignition key cylinder but no communication occurs between the key and transponder key ECU, DTC B2796 is output.

When a key is inserted into the ignition key cylinder but a communication error occurs between the key and transponder key ECU, DTC B2798 is output.

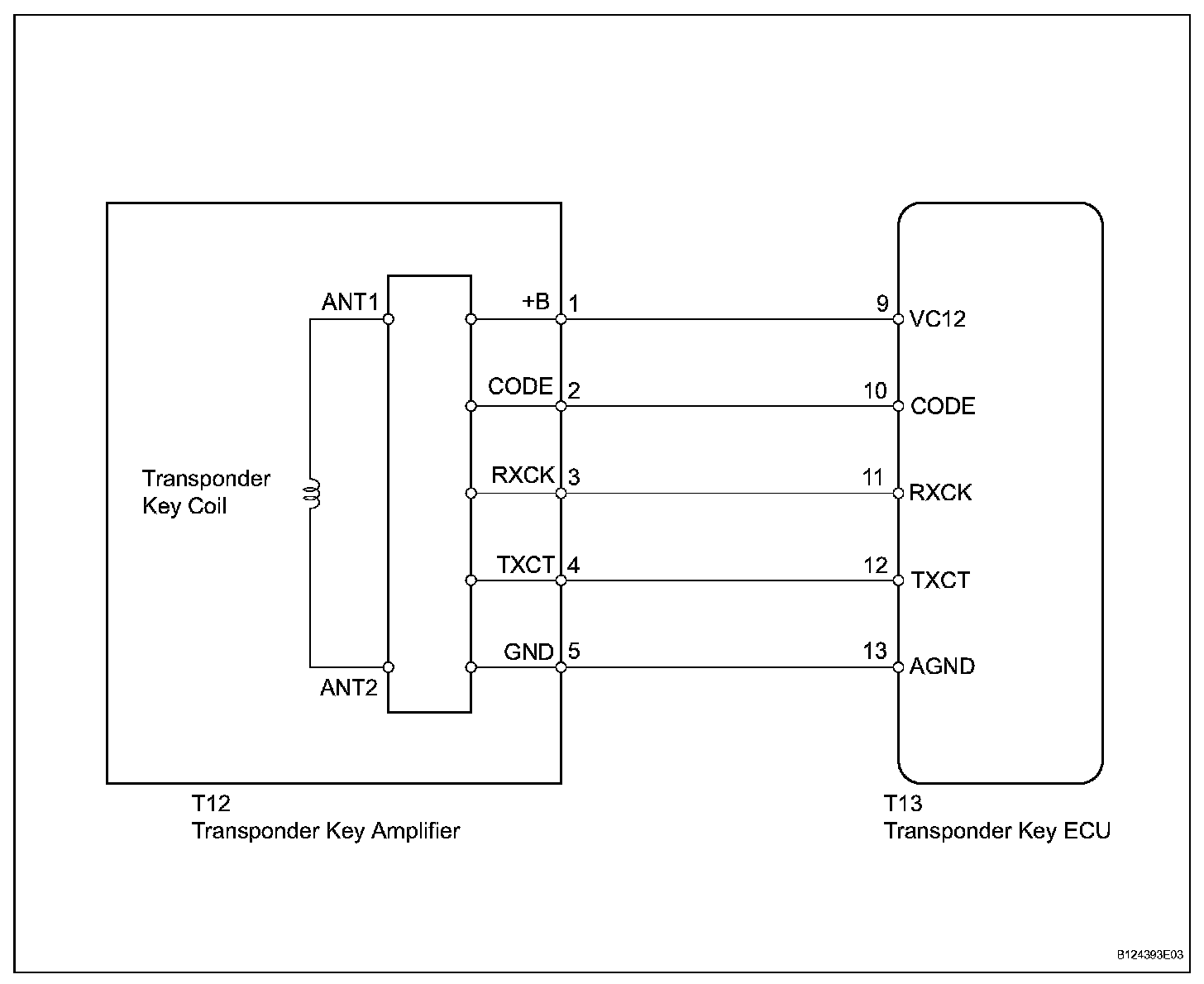

Wiring Diagram:

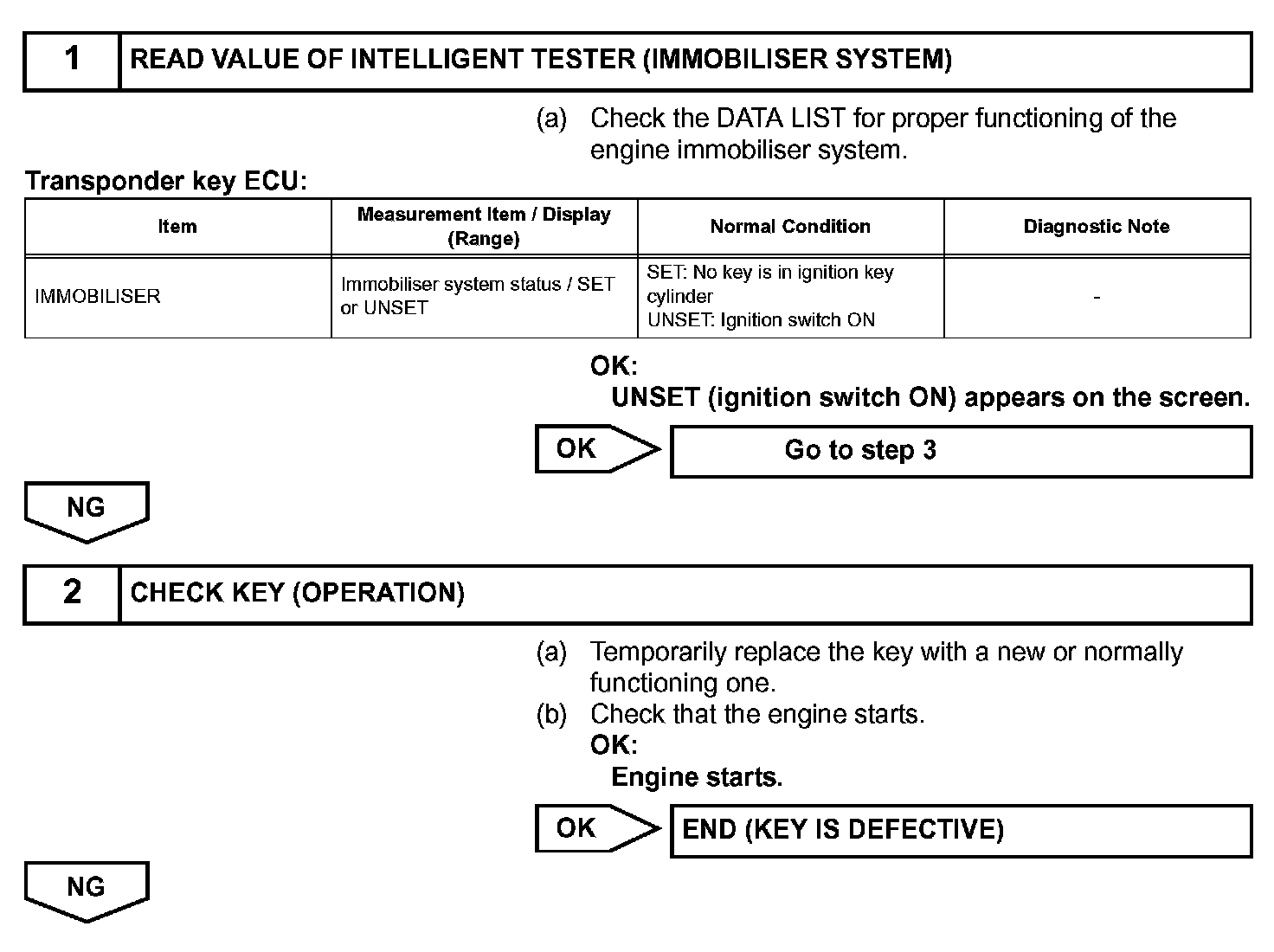

Step 1-2:

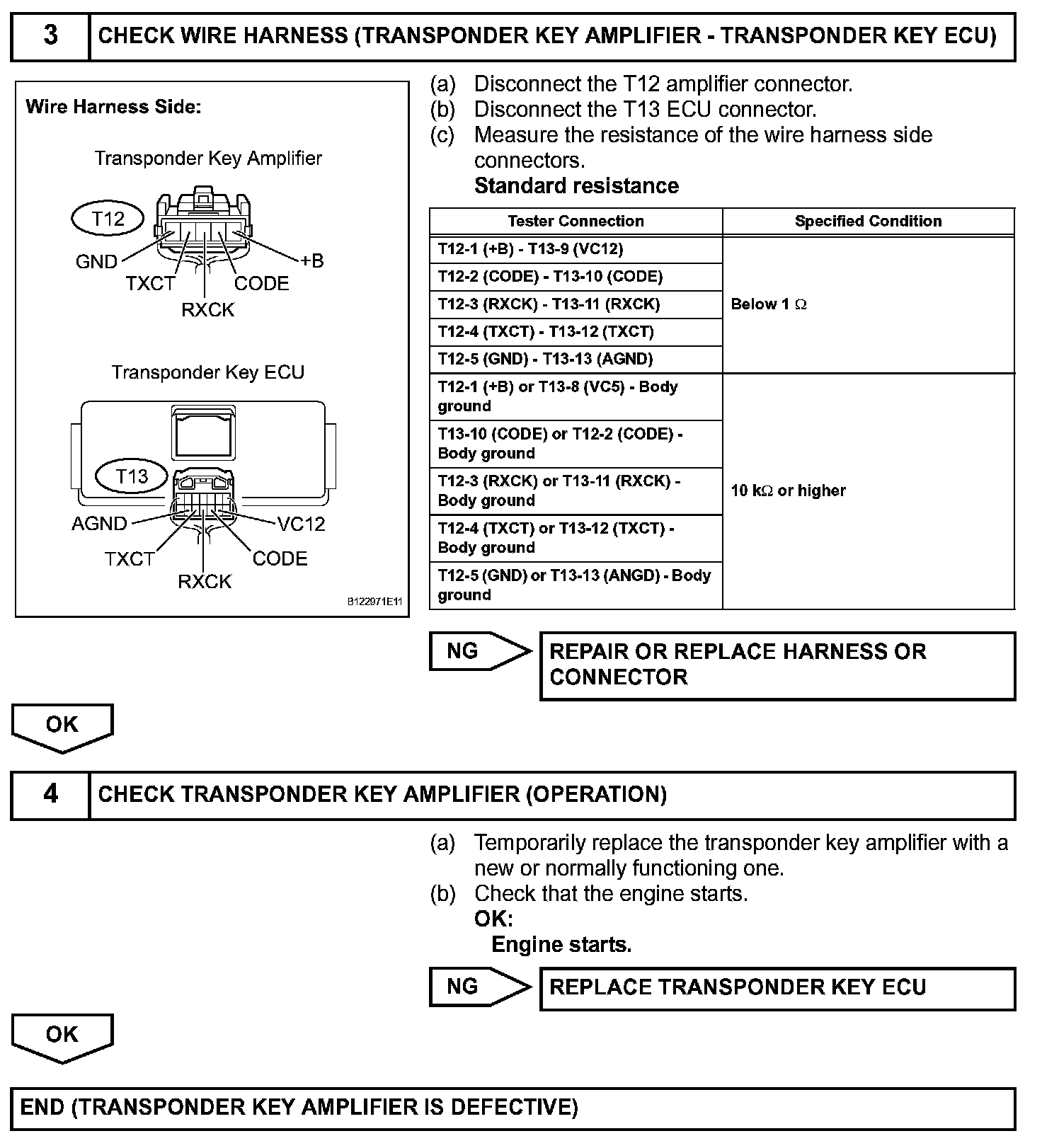

Step 3-4:

INSPECTION PROCEDURE
