B2797

DTC B2797 Communication Malfunction No.1

DESCRIPTION

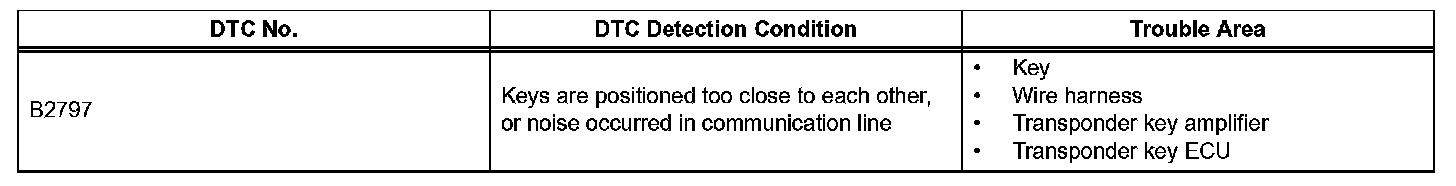

DTC Detection Condition:

This DTC is output when a communication error occurs between the transponder key amplifier and transponder key ECU. A possible reason for the communication error is that noise is occurring in the communication line.

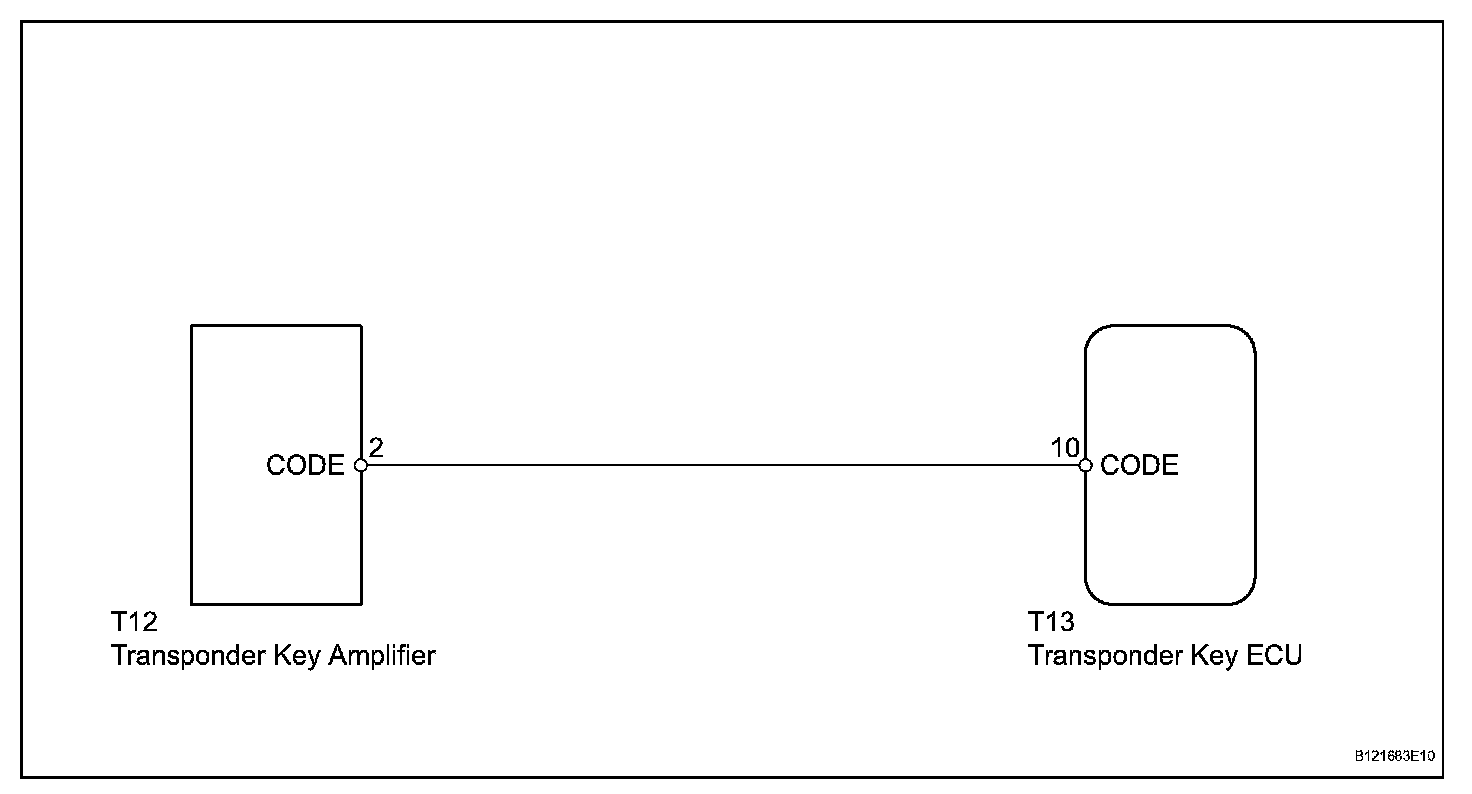

Wiring Diagram:

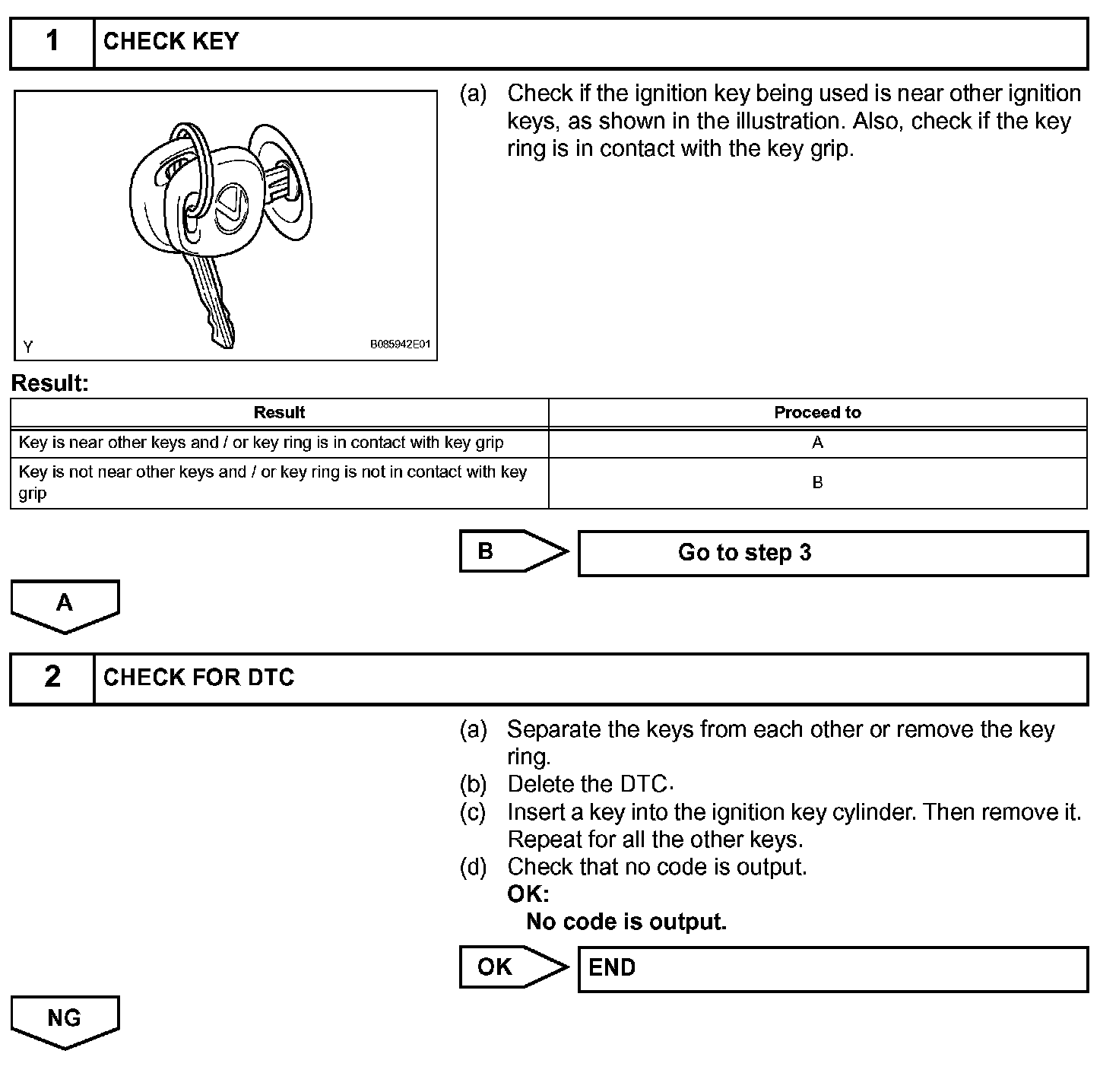

Step 1-2:

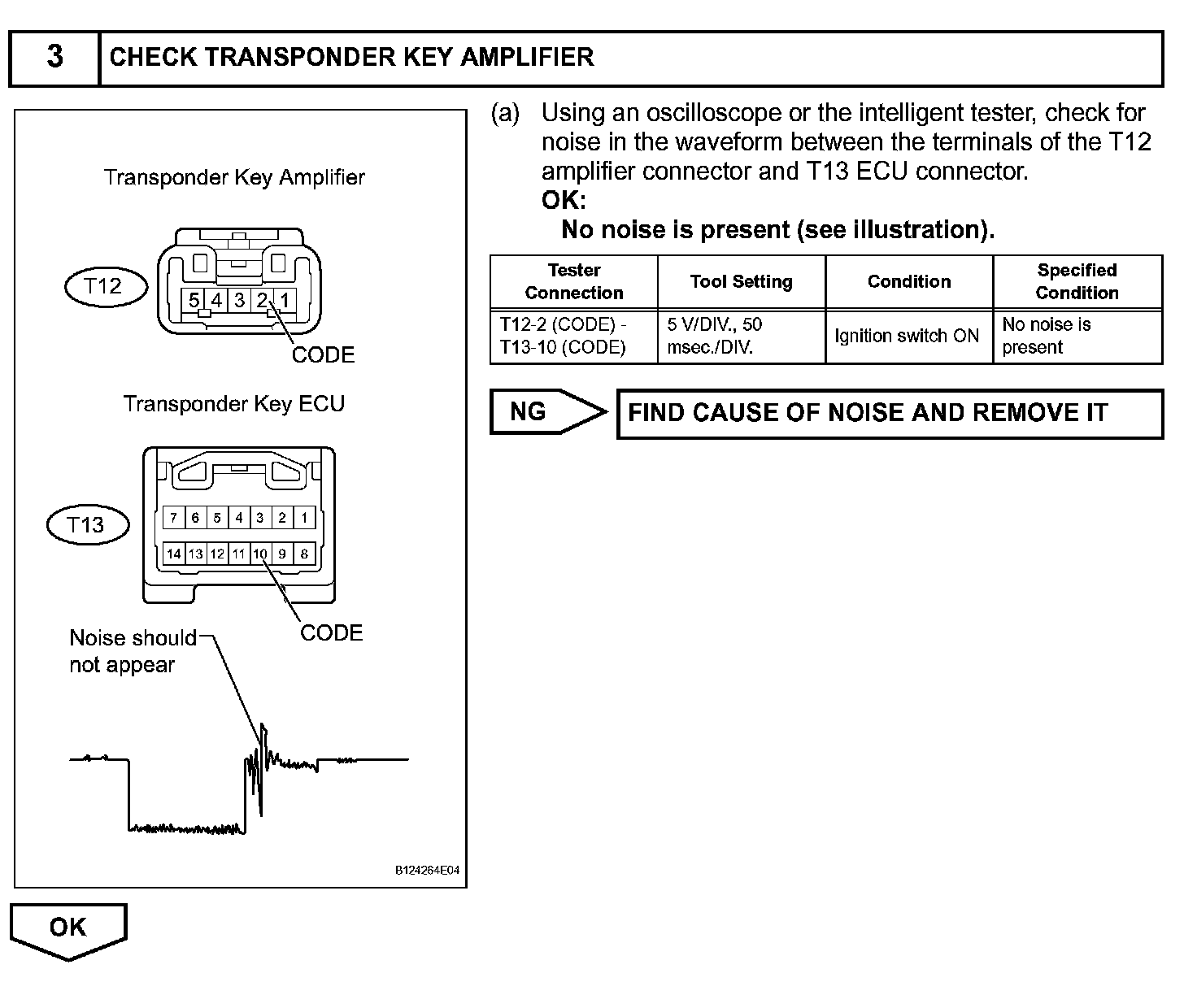

Step 3:

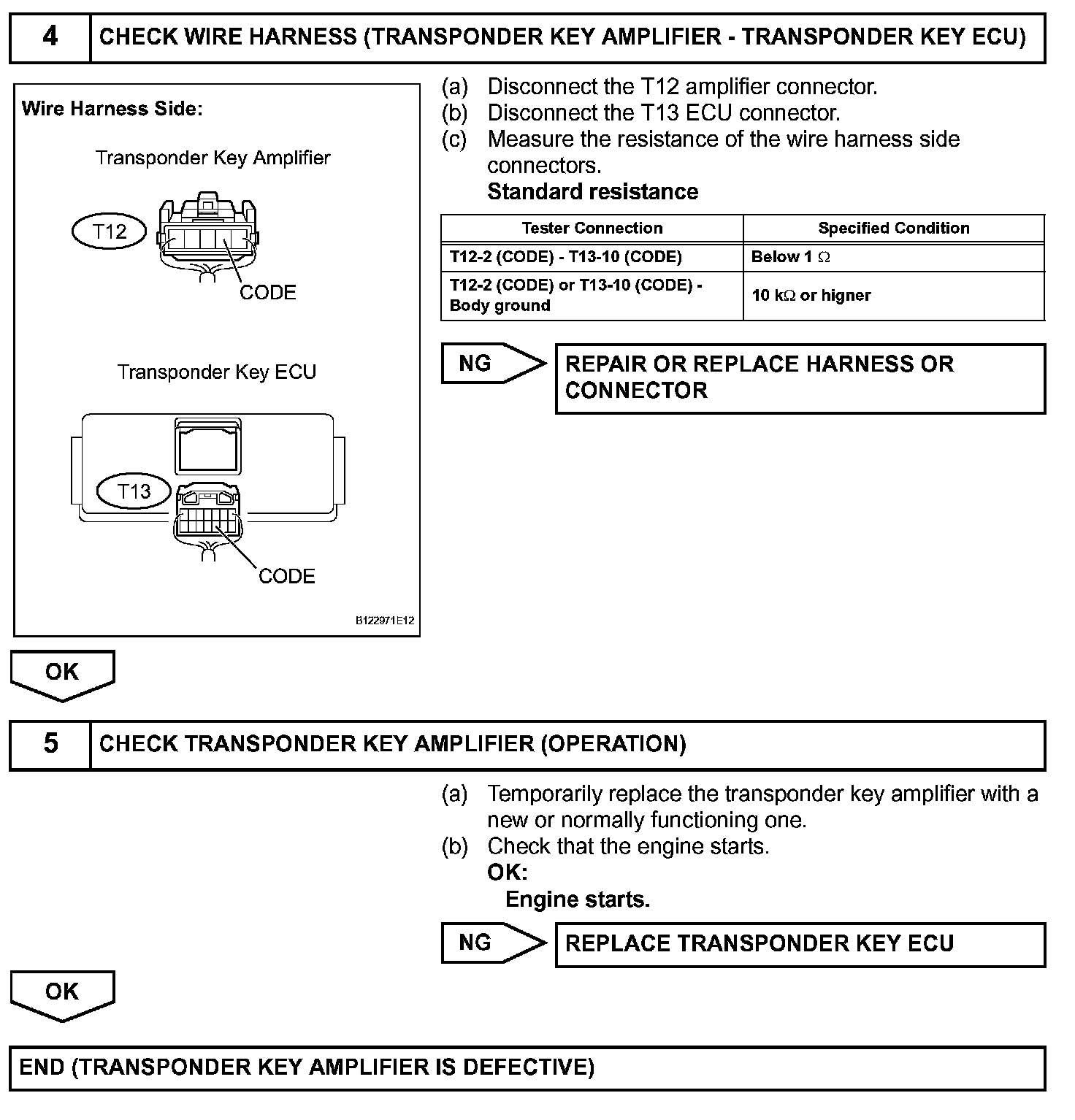

Step 4-5:

INSPECTION PROCEDURE
