B2793

DTC B2793 Transponder Chip Malfunction

DESCRIPTION

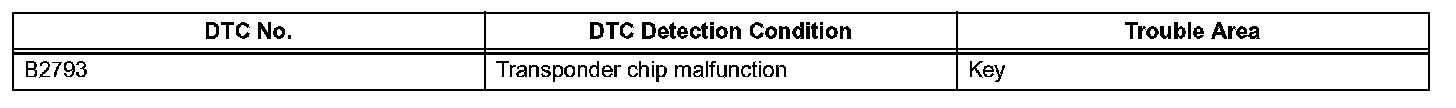

DTC Detection Condition:




This DTC is output when: 1) during key code registration, a key malfunction occurs; or 2) the key code was unable to be registered properly.

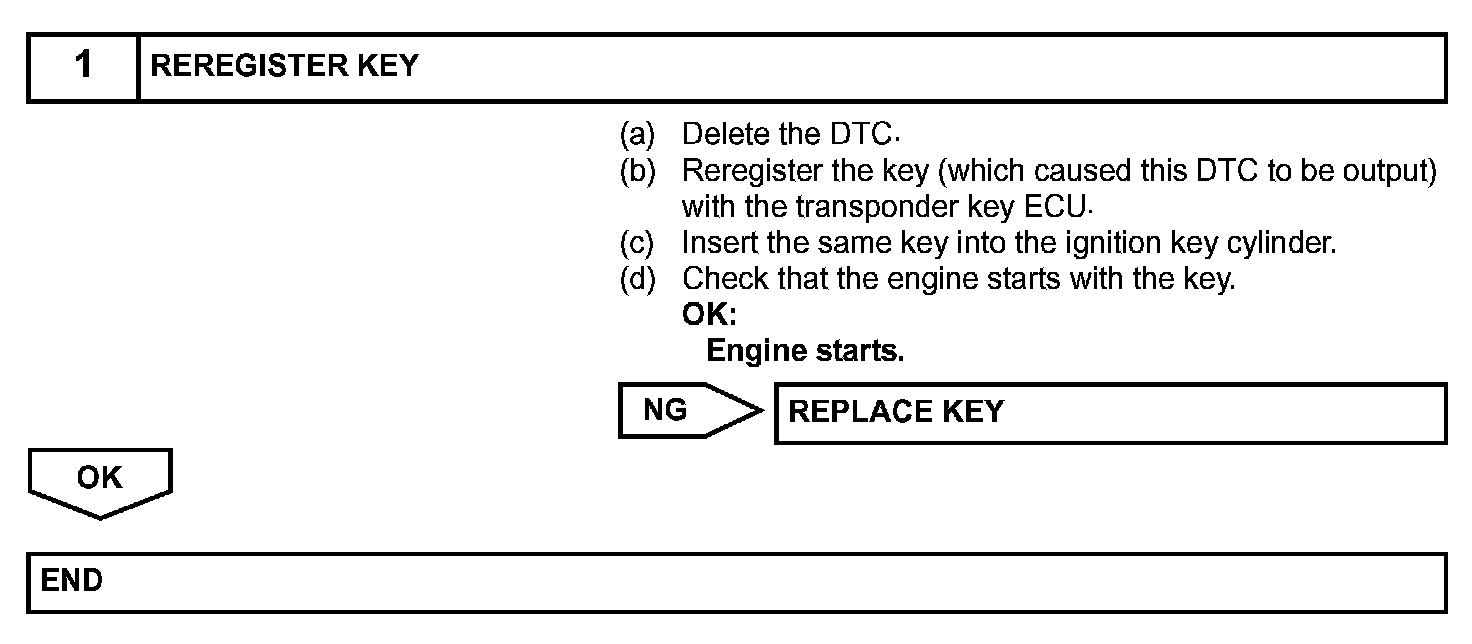

Step 1:




INSPECTION PROCEDURE
