B2620
DTC B2620 ECU Power Source Circuit MalfunctionDESCRIPTION
The ECU power source circuit supplies positive (+) battery voltage to the multiplex tilt and telescopic ECU.

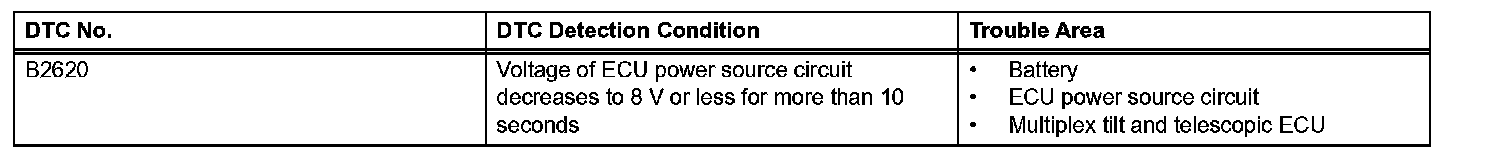

B2620:

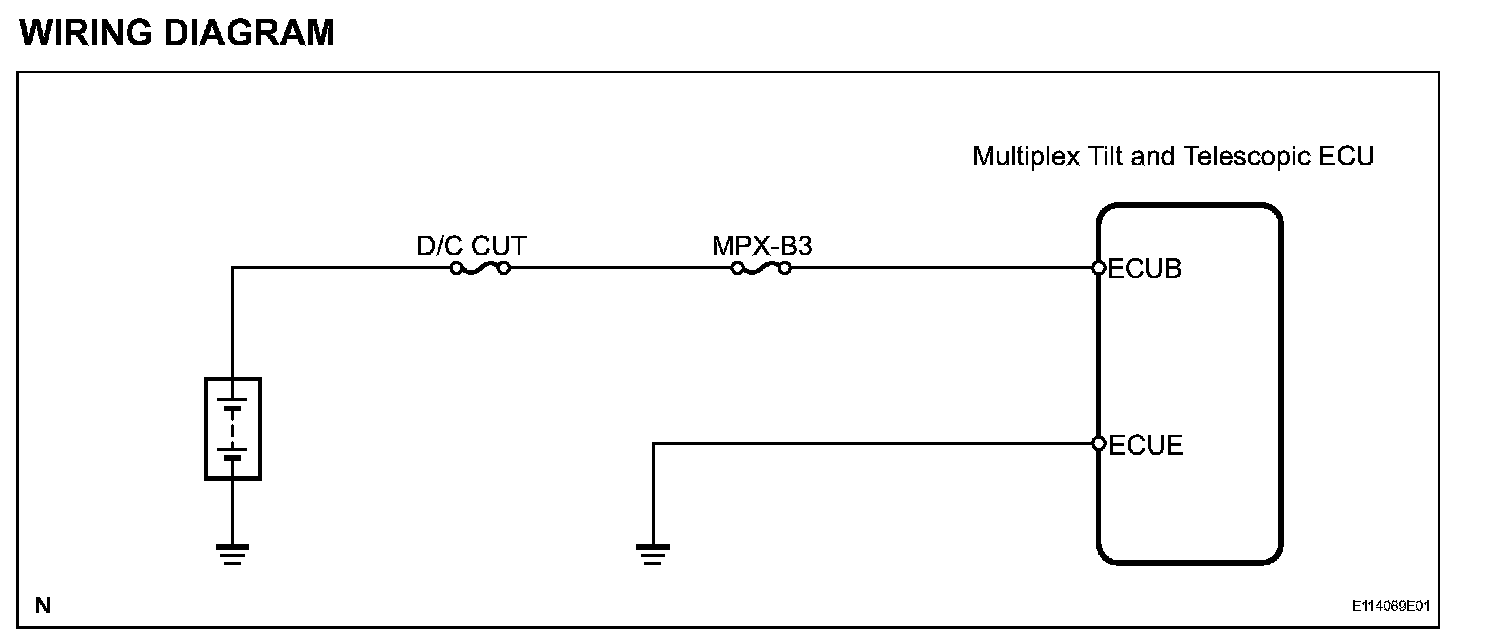

WIRING DIAGRAM:
INSPECTION PROCEDURE
Step 1:

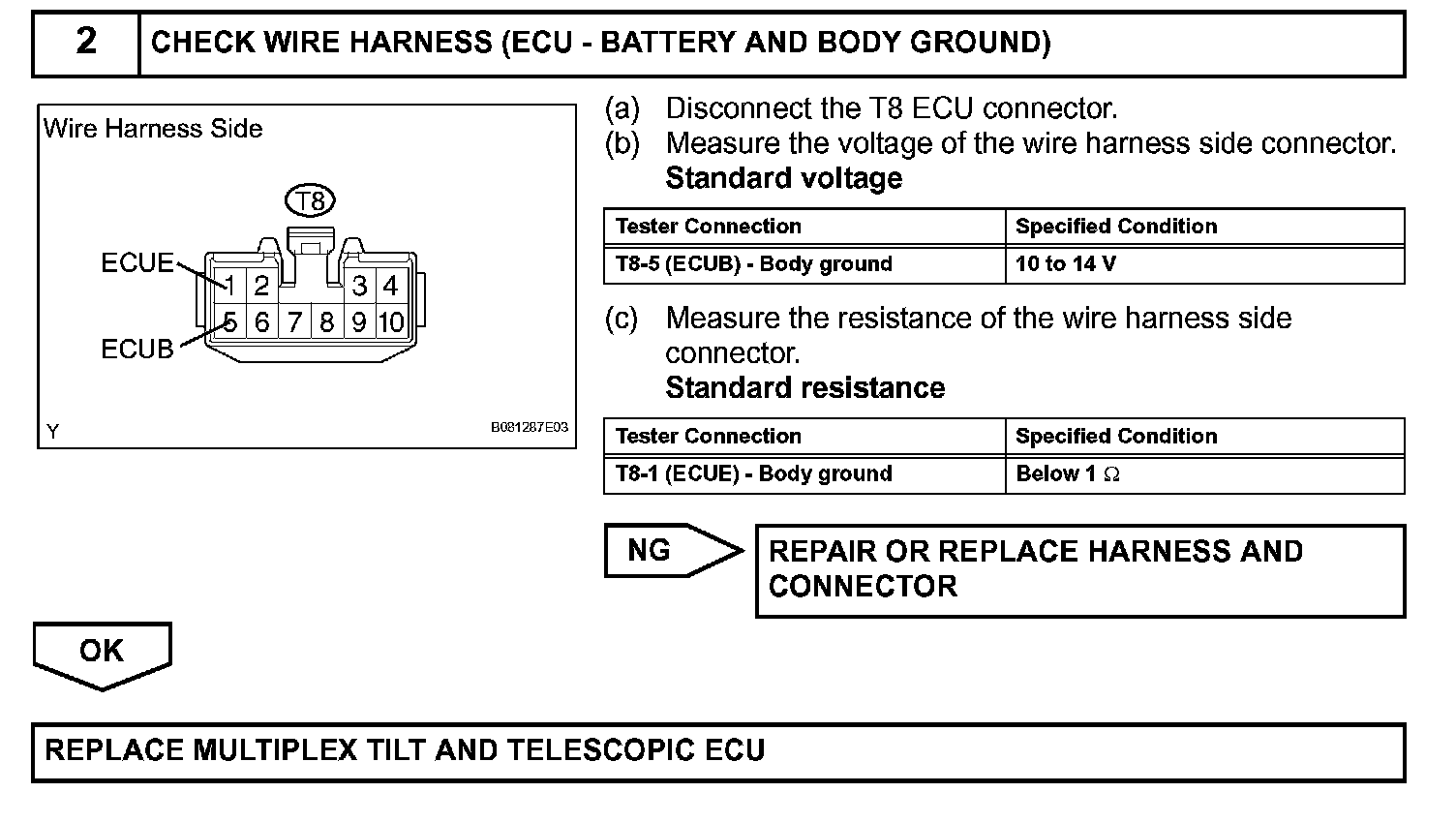

Step 2:
DESCRIPTION
The ECU power source circuit supplies positive (+) battery voltage to the multiplex tilt and telescopic ECU.
INSPECTION PROCEDURE
