B2610

DTC B2610 Tilt Position Sensor or Tilt Motor Circuit Malfunction

DESCRIPTION





The tilt motor is powered by voltage supplied from the multiplex tilt and telescopic ECU, and makes the steering column tilt upward and downward. The tilt position sensor in the ECU detects the tilt of the steering column and outputs a signal to the CPU.

HINT: Limit positions can be confirmed on the screen of the intelligent tester.

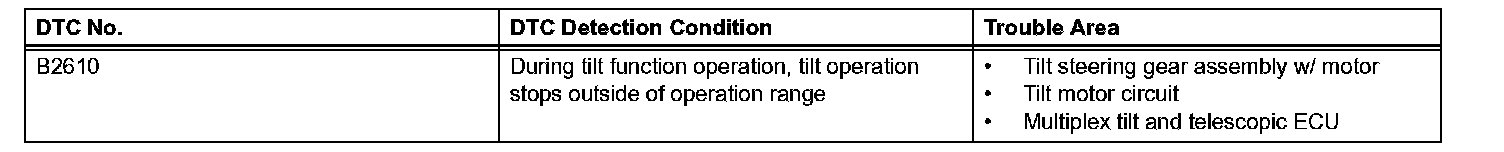

B2610:

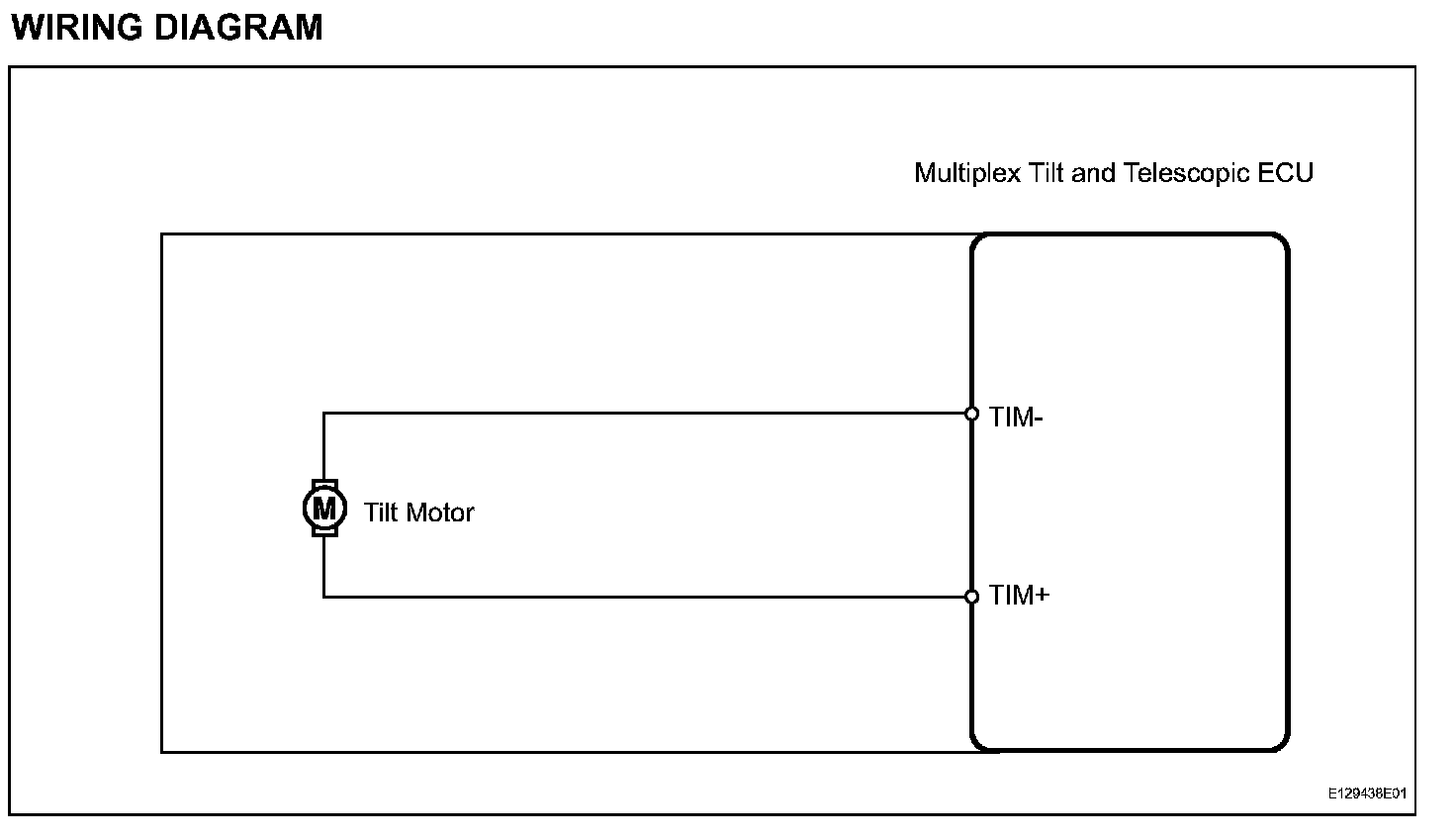

WIRING DIAGRAM:

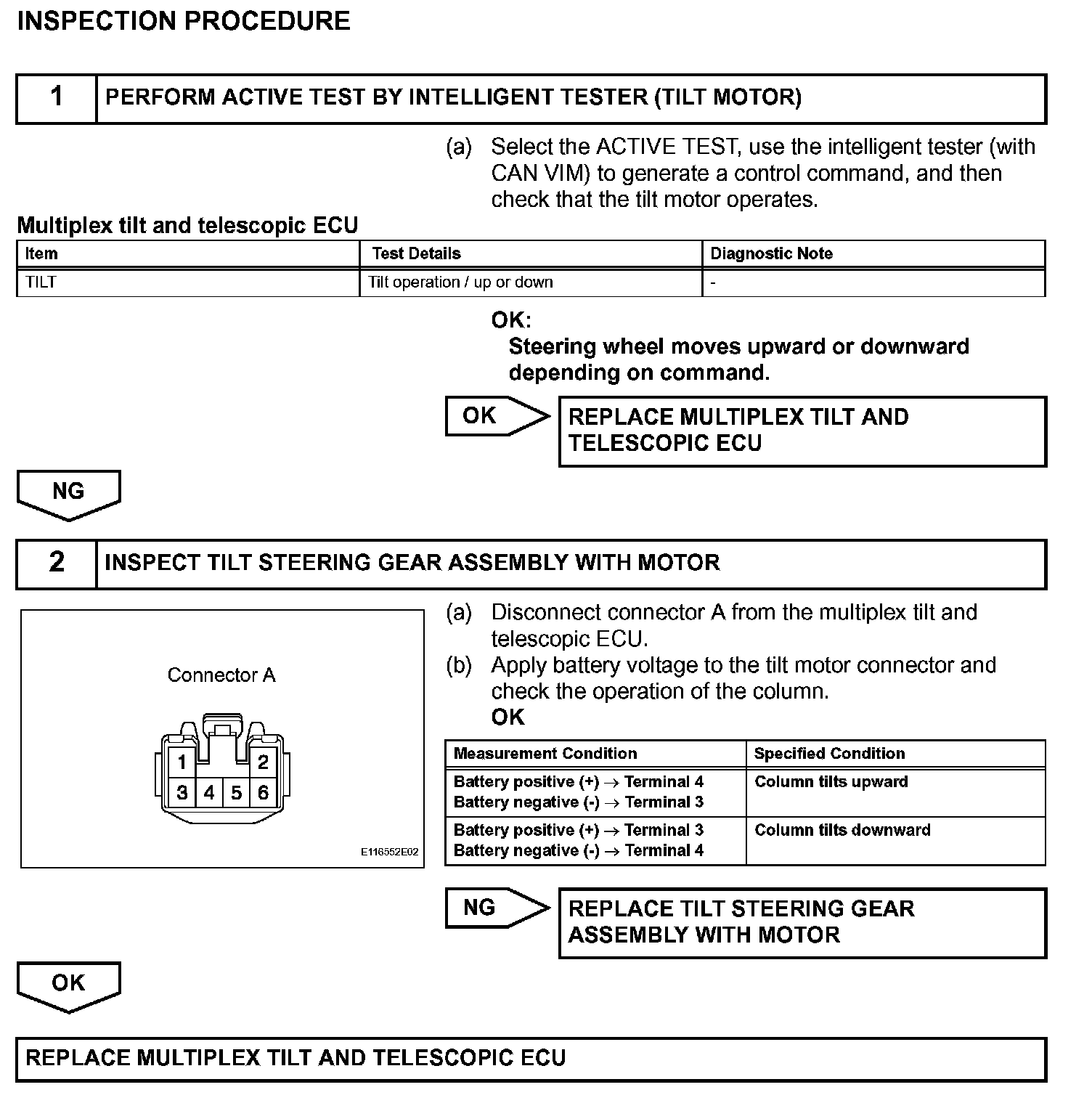

INSPECTION PROCEDURE

Steps 1-2:
