B2555

DTC B2555 A/C ECU Communication Stop

DESCRIPTION
The sliding roof control ECU receives the multiplex signals (ambient temperature).

The sliding roof control ECU changes the fixed control number according to the above information.

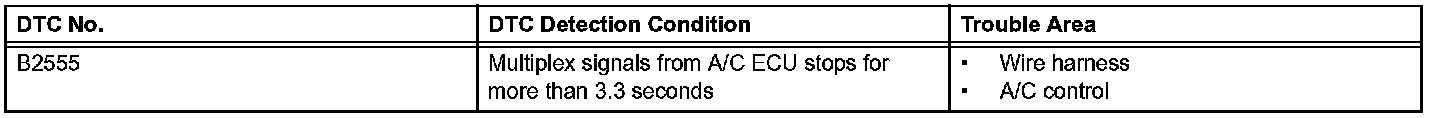

DTC Detection Condition:

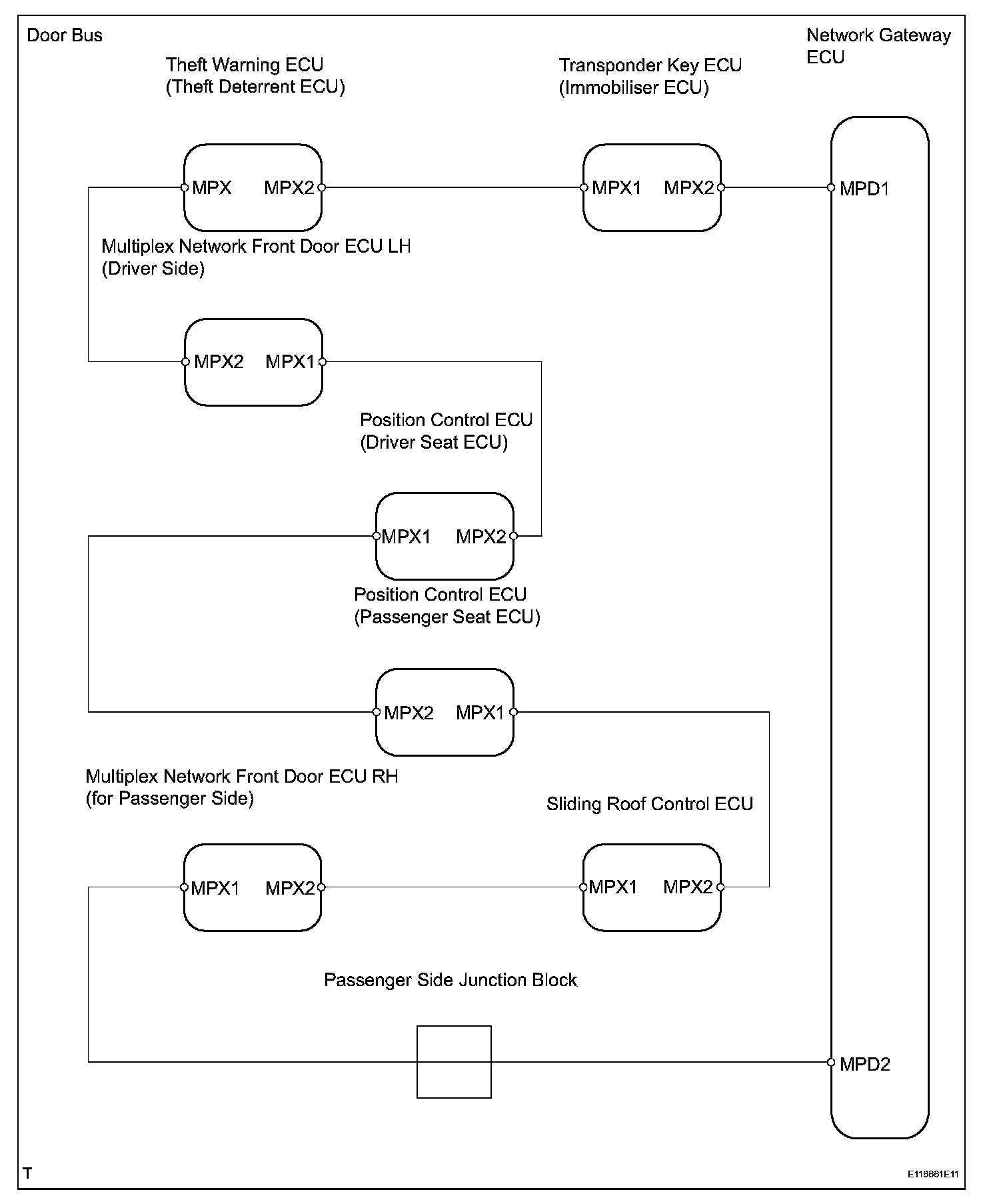

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

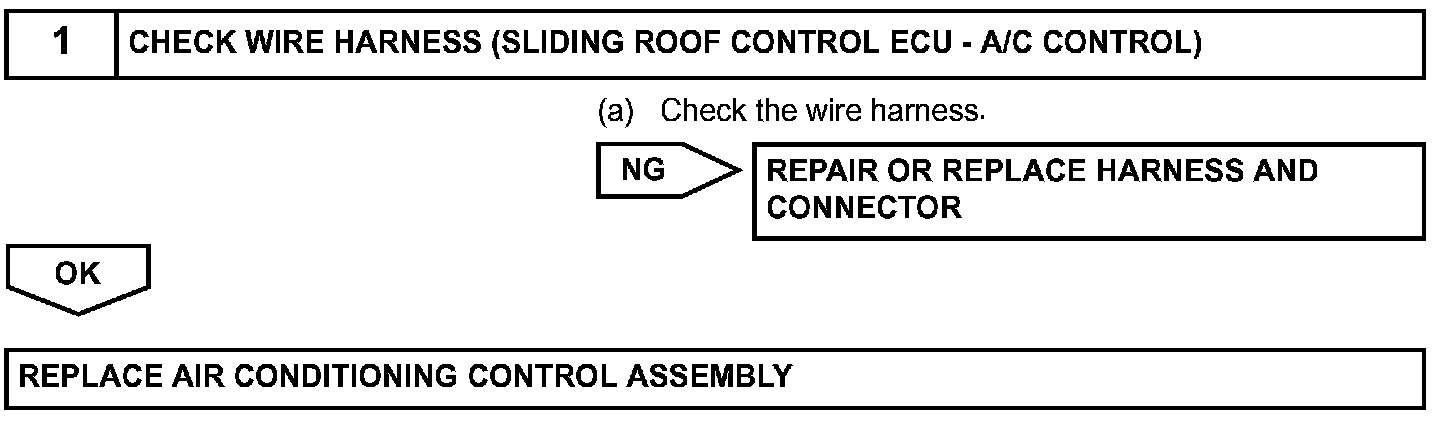

Step 1:
