B2552

DTC B2552 Pulse Width Modulation Motor LH Power Sup-ply Circuit Malfunction

DESCRIPTION
This circuit indicates the roof motor, luggage motor or luggage closer motor depending on which motor is being used.

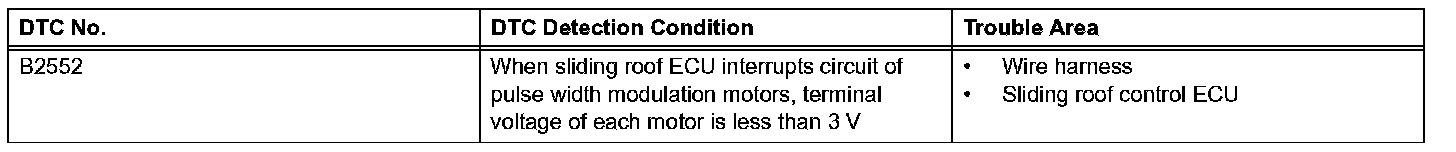

DTC Detection Condition:

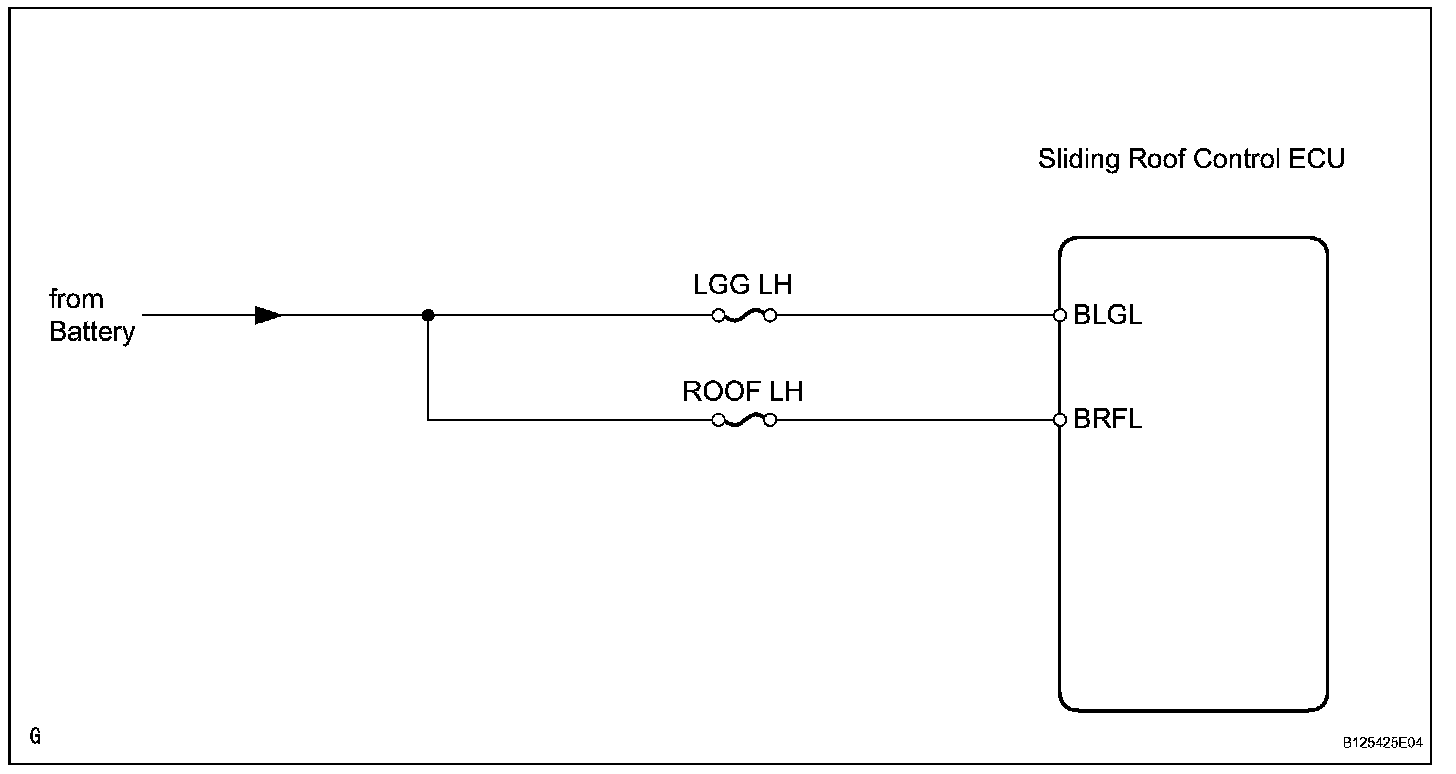

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

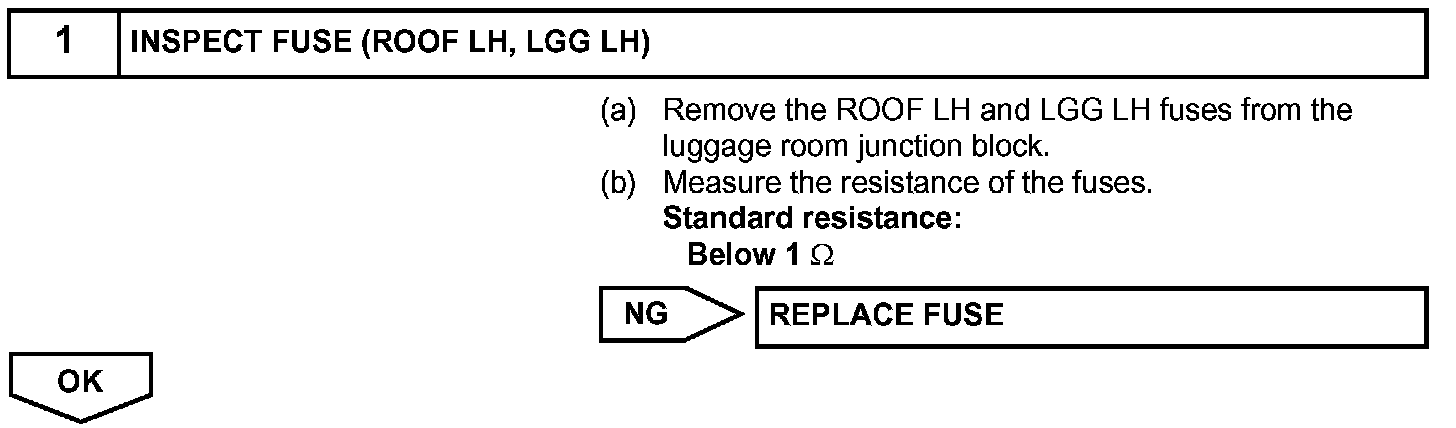

Step 1:

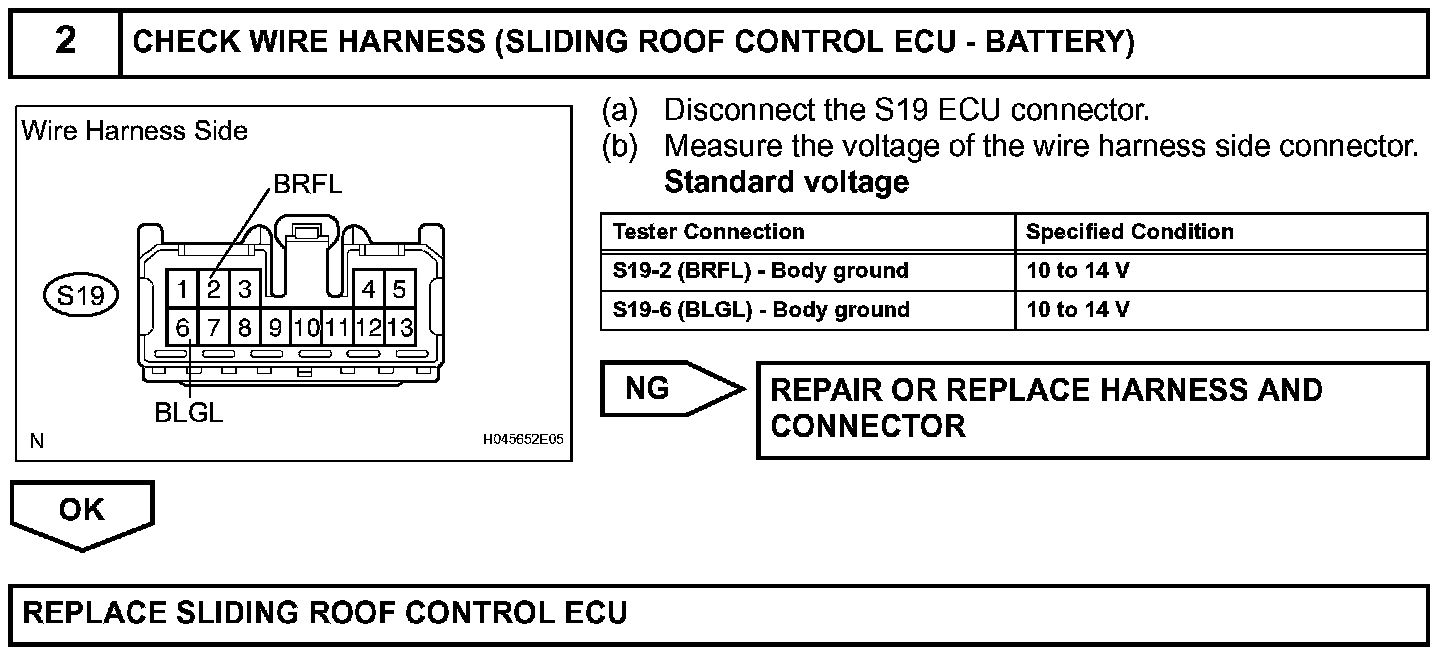

Step 2:
