B2551

DTC B2551 Pulse Width Modulation Motor RH Power Sup-ply Circuit Malfunction

DESCRIPTION
This circuit indicates the roof motor, luggage motor or luggage closer motor depending on which motor is being used.

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

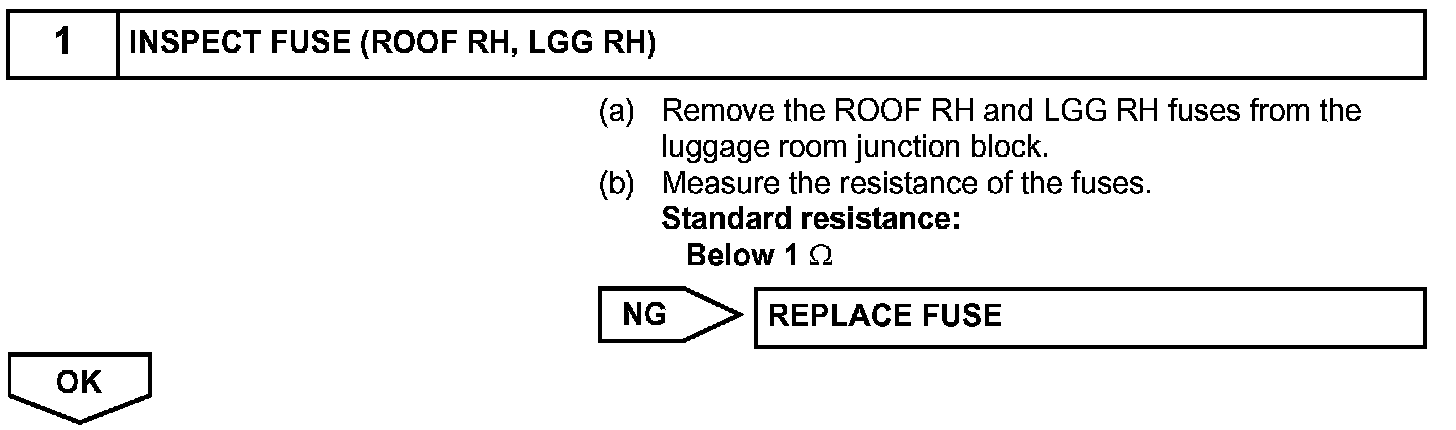

Step 1:

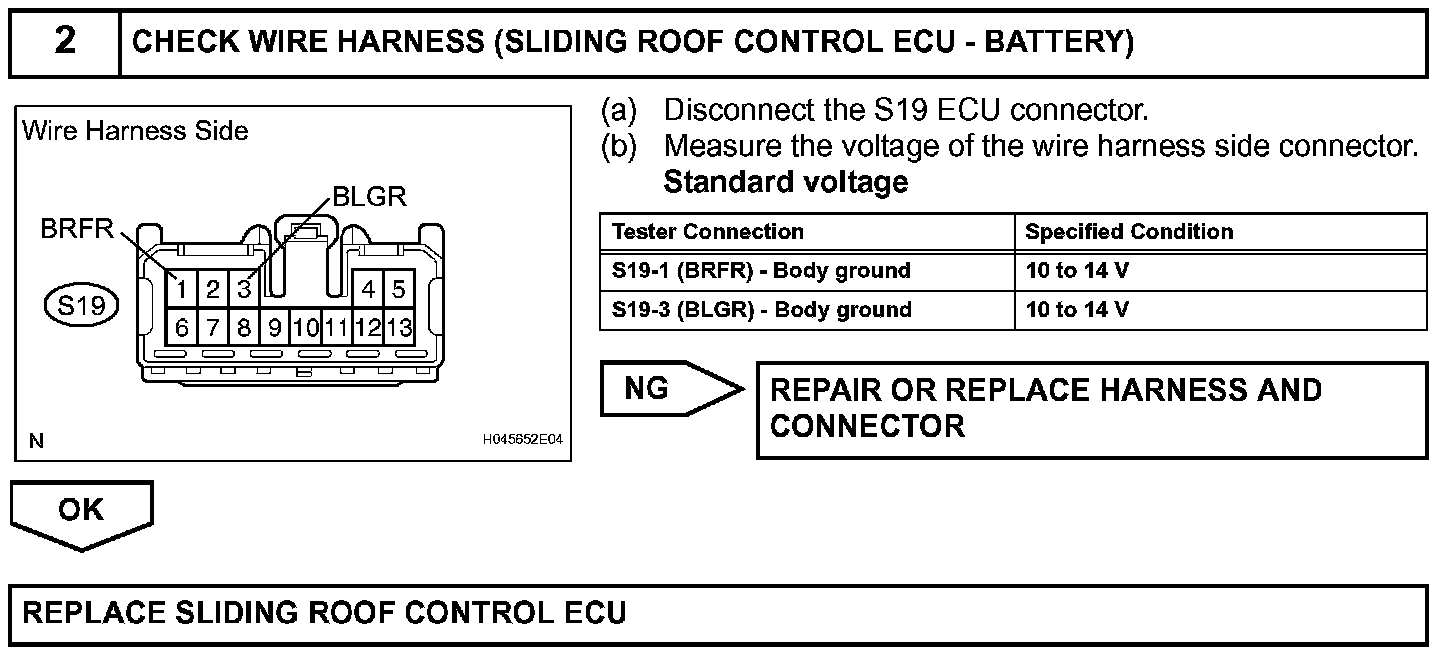

Step 2:
