B2550

DTC B2550 Passenger Door ECU Communication Stop

DESCRIPTION
The sliding roof control ECU receives the multiplex signals (Passenger side window position).

The sliding roof operation will be stopped if the window does not open further from the specified position.

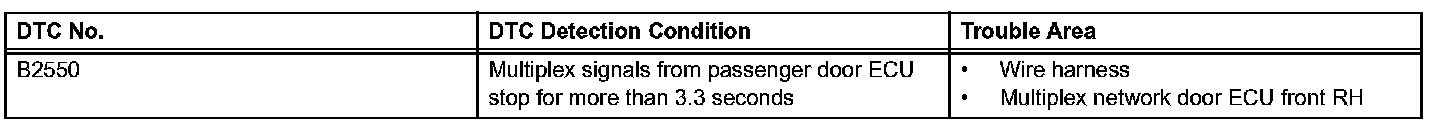

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:
