B2547
DTC B2547 Luggage Room J/B ECU Communication StopDESCRIPTION
The sliding roof control ECU receives the multiplex signals (luggage courtesy information).
The luggage courtesy switch on condition is one of the conditions to permit the retractable hardtop operation.
If the operation switch is pressed without satisfying the above condition, the indicator will start blinking.

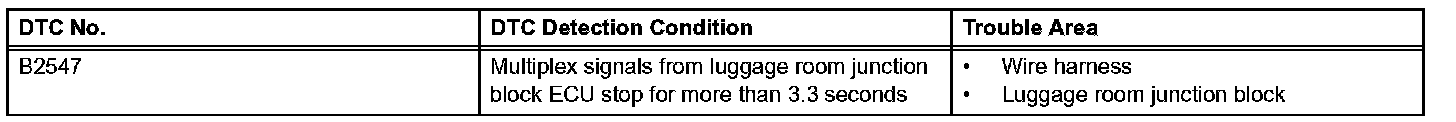

DTC Detection Condition:
WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

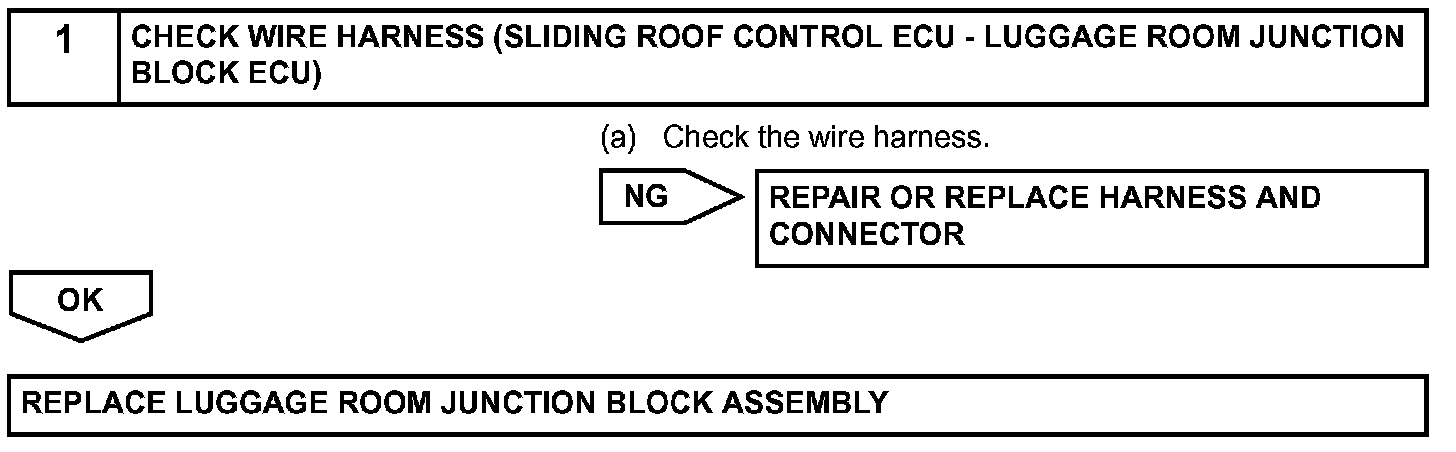

Step 1:
