B2543

DTC B2543 Abnormal Difference between RH and LH Lug-gage Door Drive Motor Pulse

DESCRIPTION
The pulse signal is created by the rotation of the luggage door drive motor.

The signal is used to control the luggage door operation's speed.

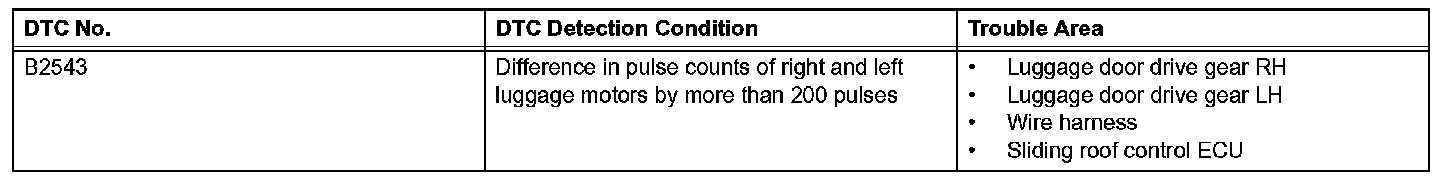

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

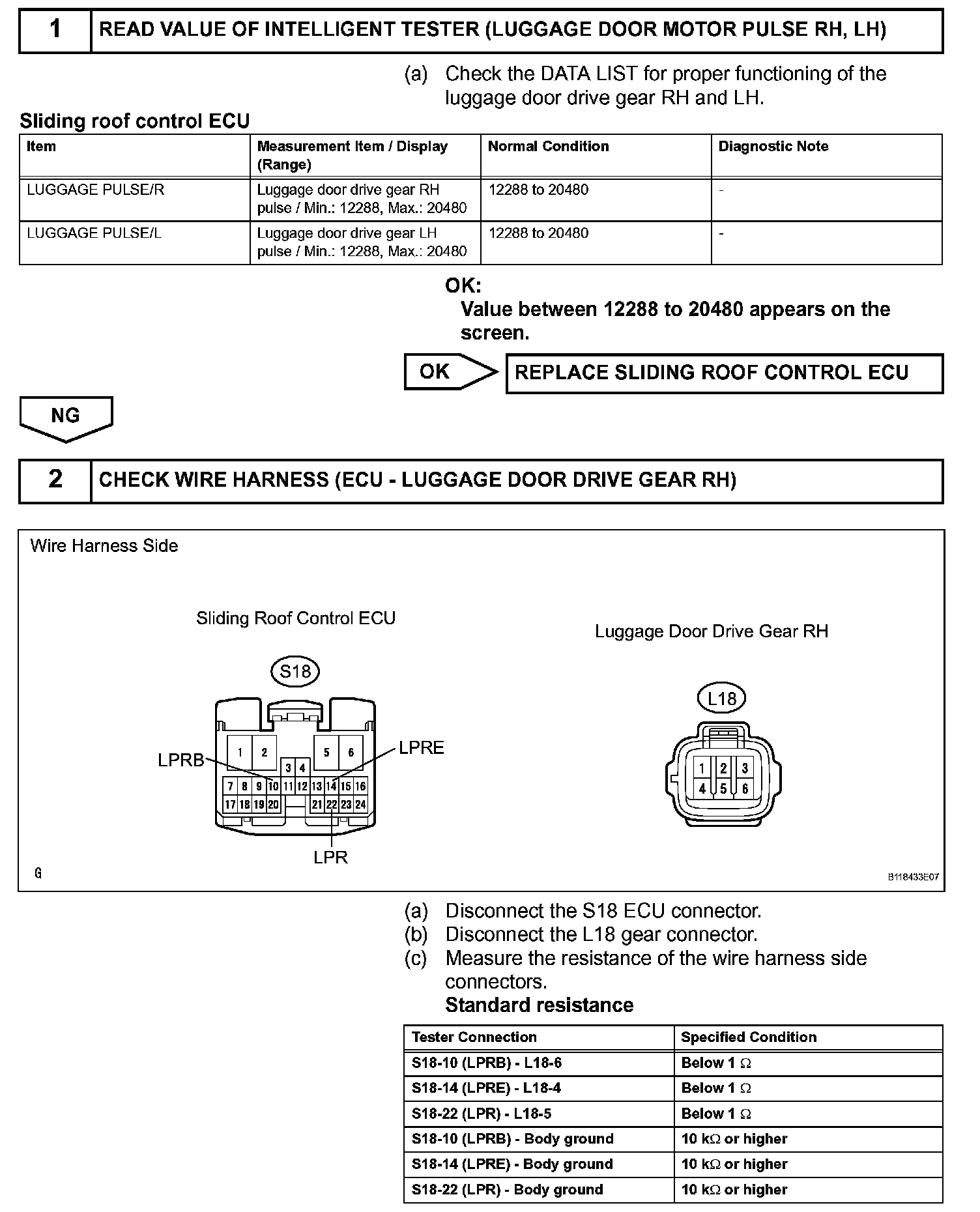

Step 1 - 2:

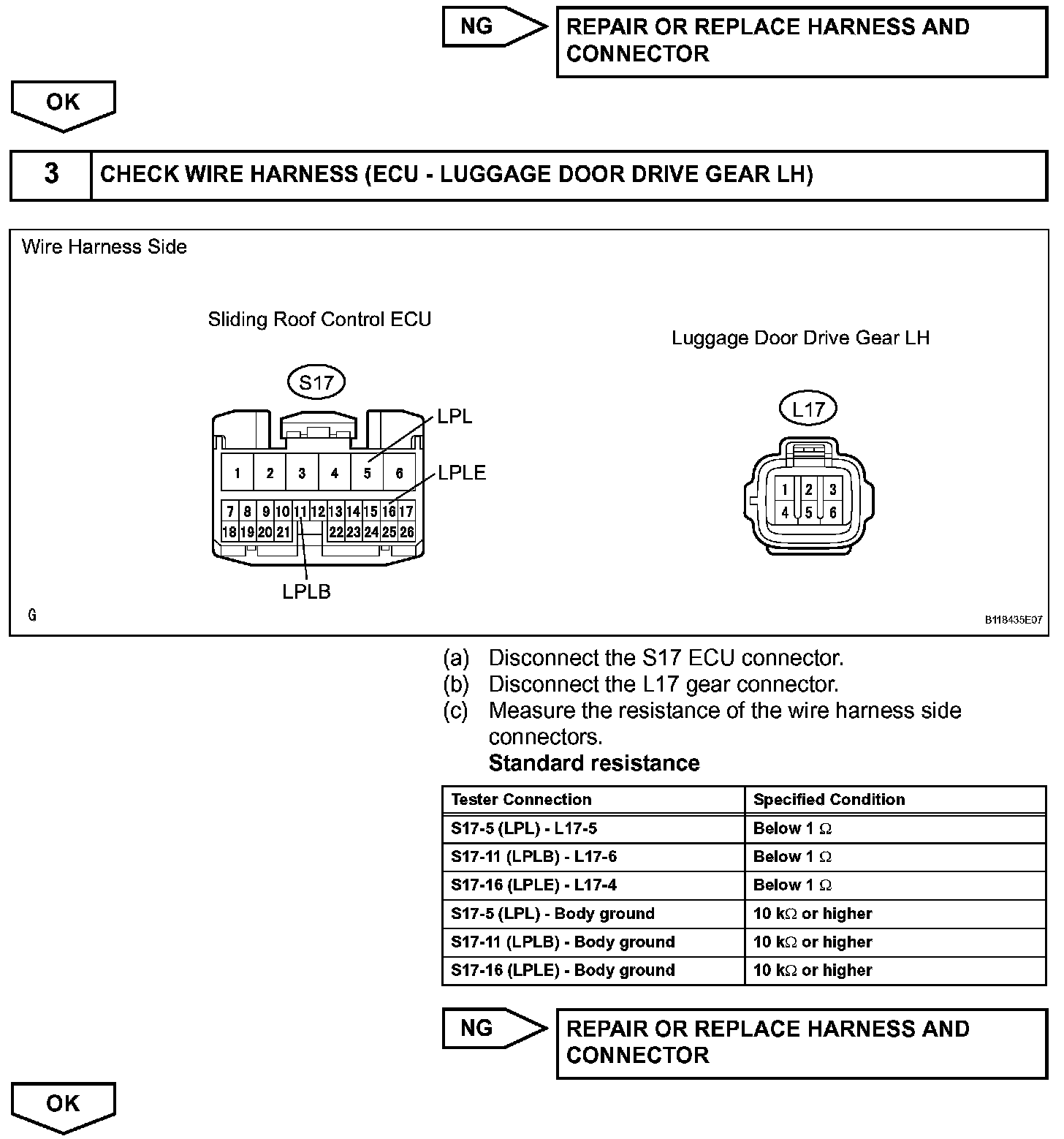

Step 2(Continued) - 3:

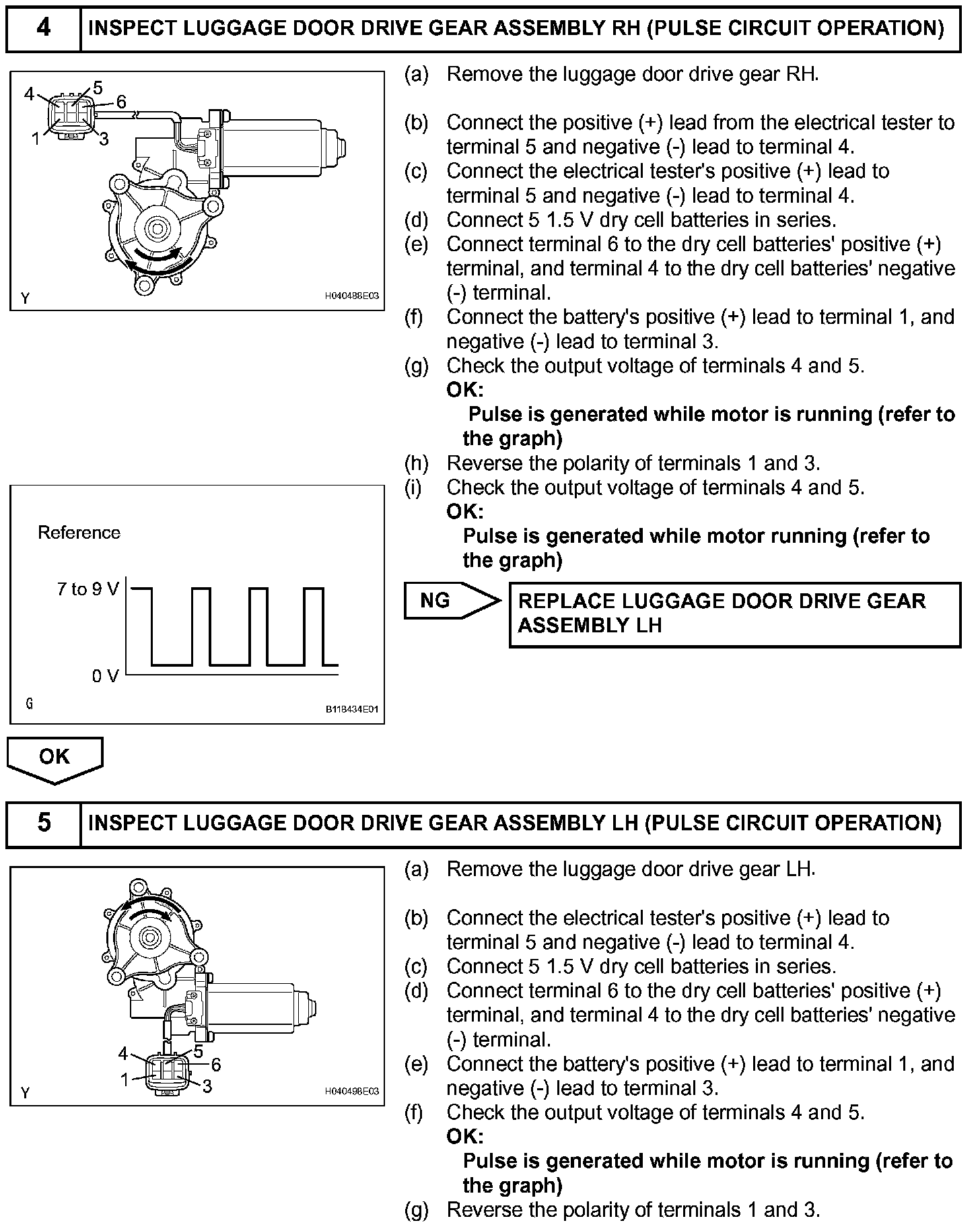

Step 4 - 5:

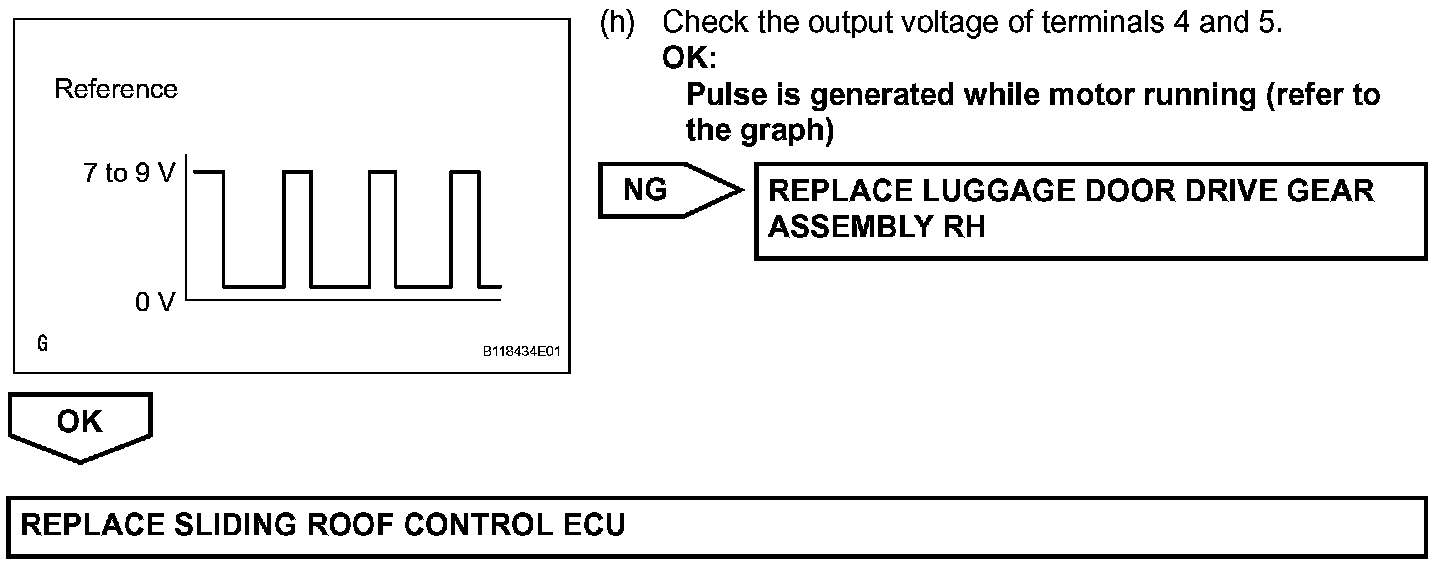

Step 5(Continued):
