DTC B2542 Abnormal Luggage Door Drive Motor LH Pulse

DESCRIPTION
The pulse signal is created by the rotation of the luggage door drive motor.

The signal is used to control the luggage door operation's speed.

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

HINT: If DTCs B2508 and B2539 are output simultaneously, the luggage door drive motor LH circuit may be open. Perform troubleshooting of DTC B2508 first.

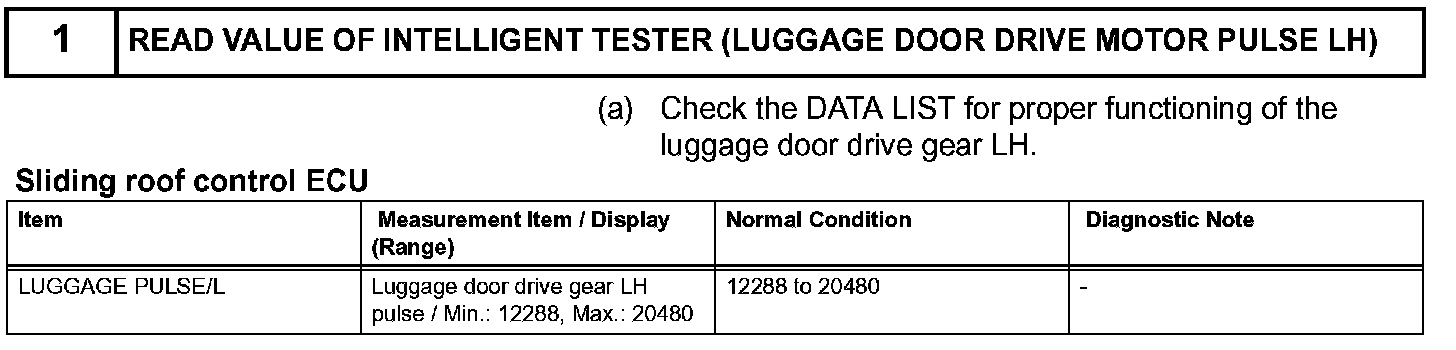

Step 1:

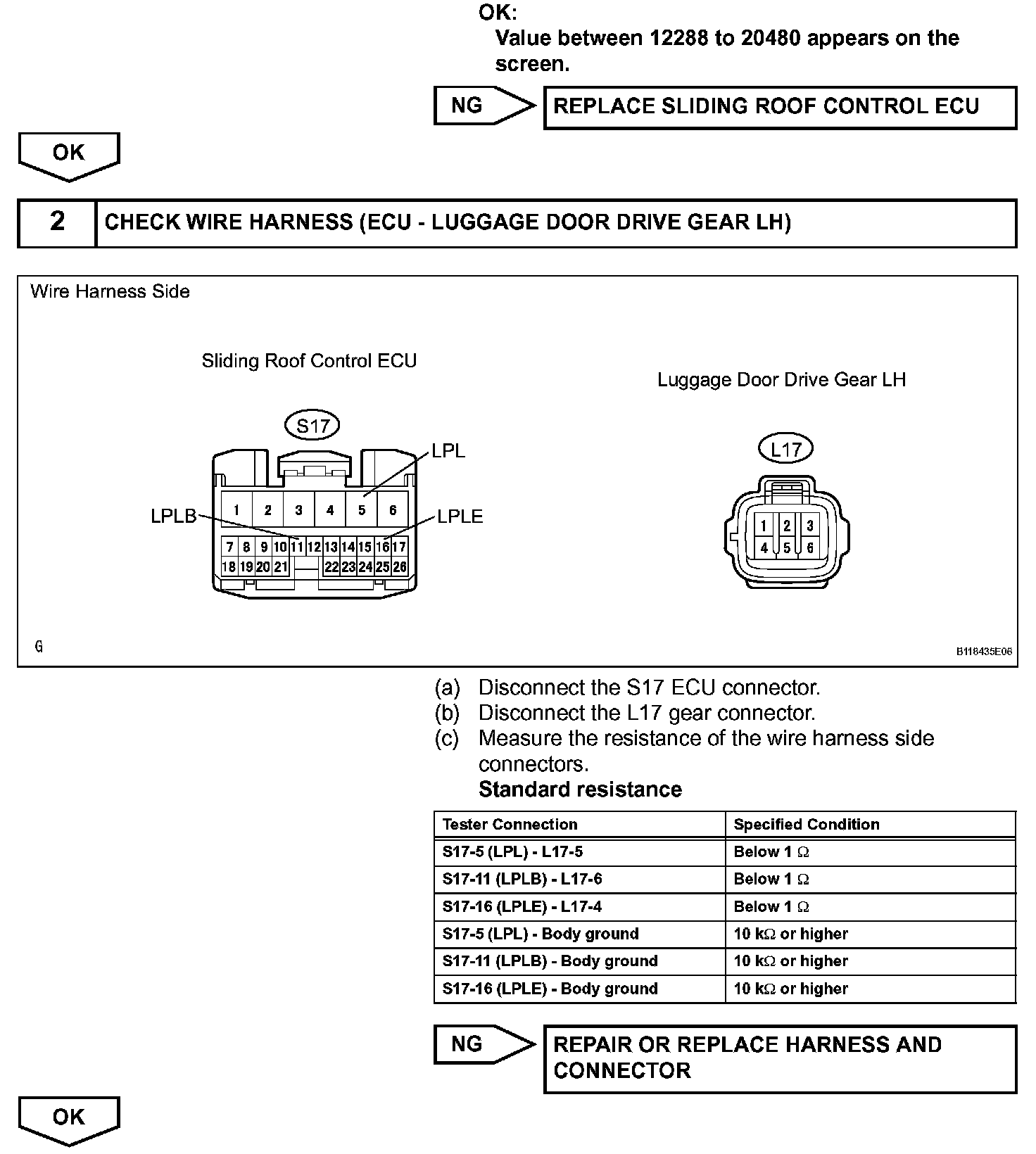

Step 1(Continued) - 2:

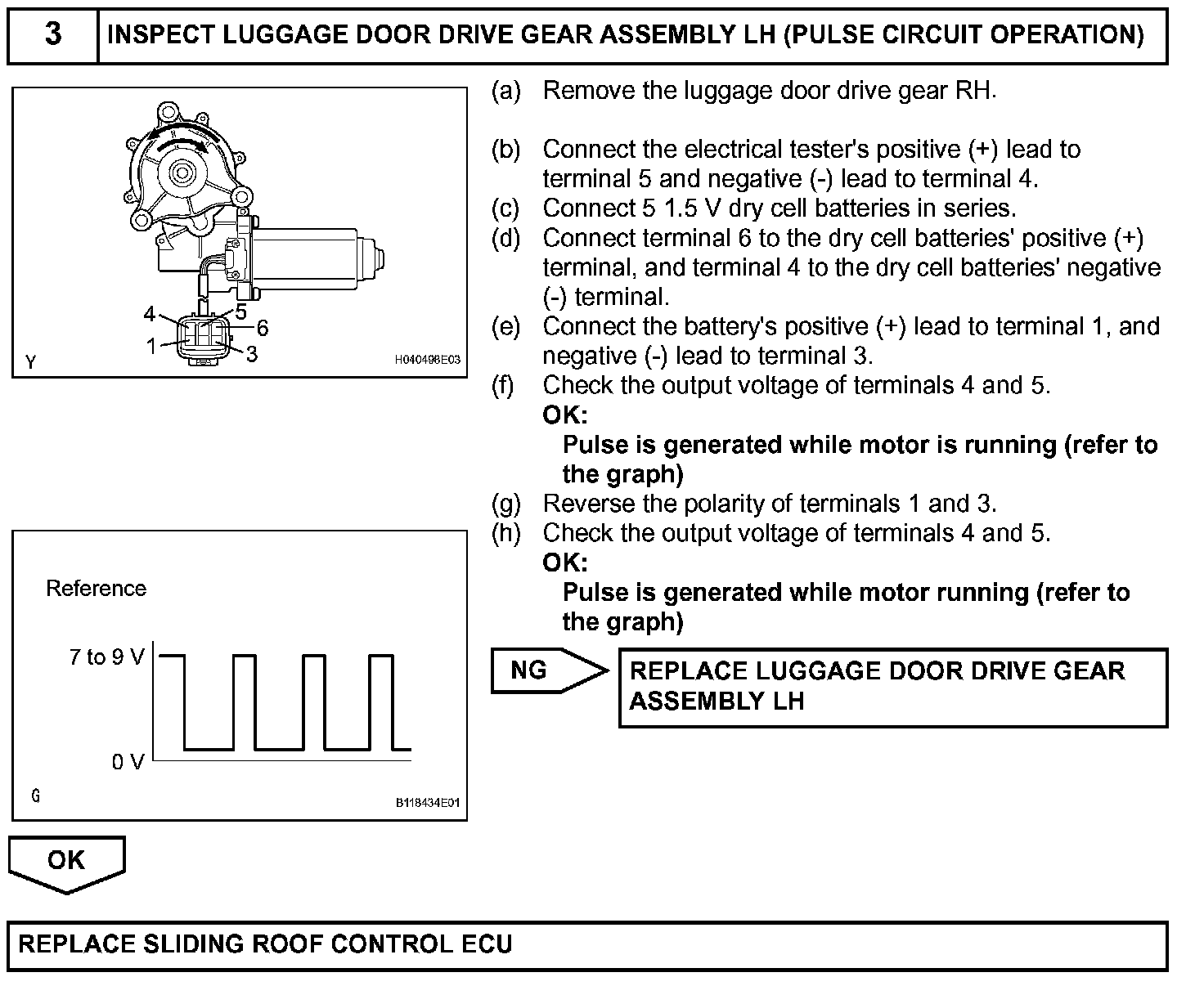

Step 3:
