DTC B2541 Abnormal Luggage Door Drive Motor RH Pulse

DESCRIPTION
The pulse signal is created by the rotation of the luggage door drive motor.

The signal is used to control the luggage door operation's speed.

DTC Detection Condition:

WIRING DIAGRAM

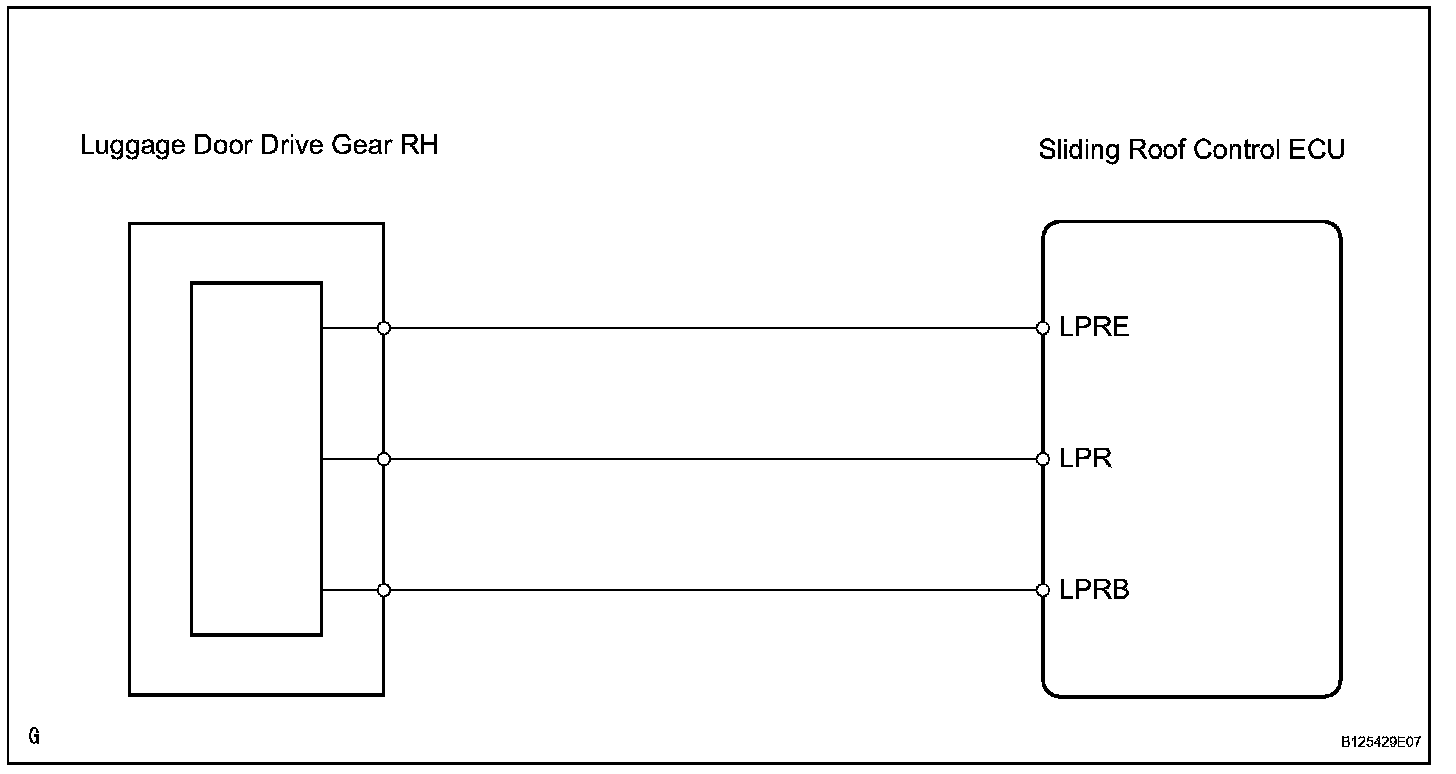

Wiring Diagram:

INSPECTION PROCEDURE

HINT: If DTCs B2506 and B2538 are output simultaneously, the luggage door drive motor LH circuit may be open. Perform troubleshooting of DTC B2506 first.

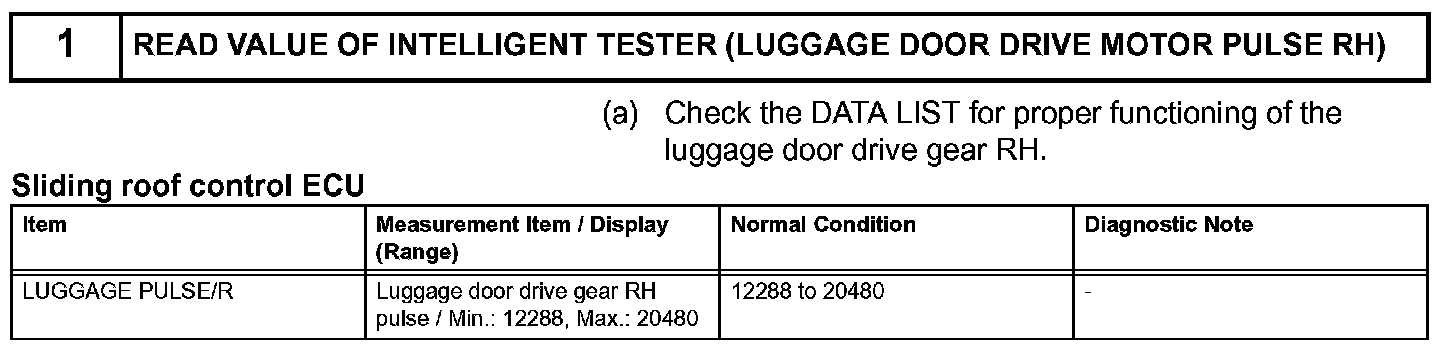

Step 1:

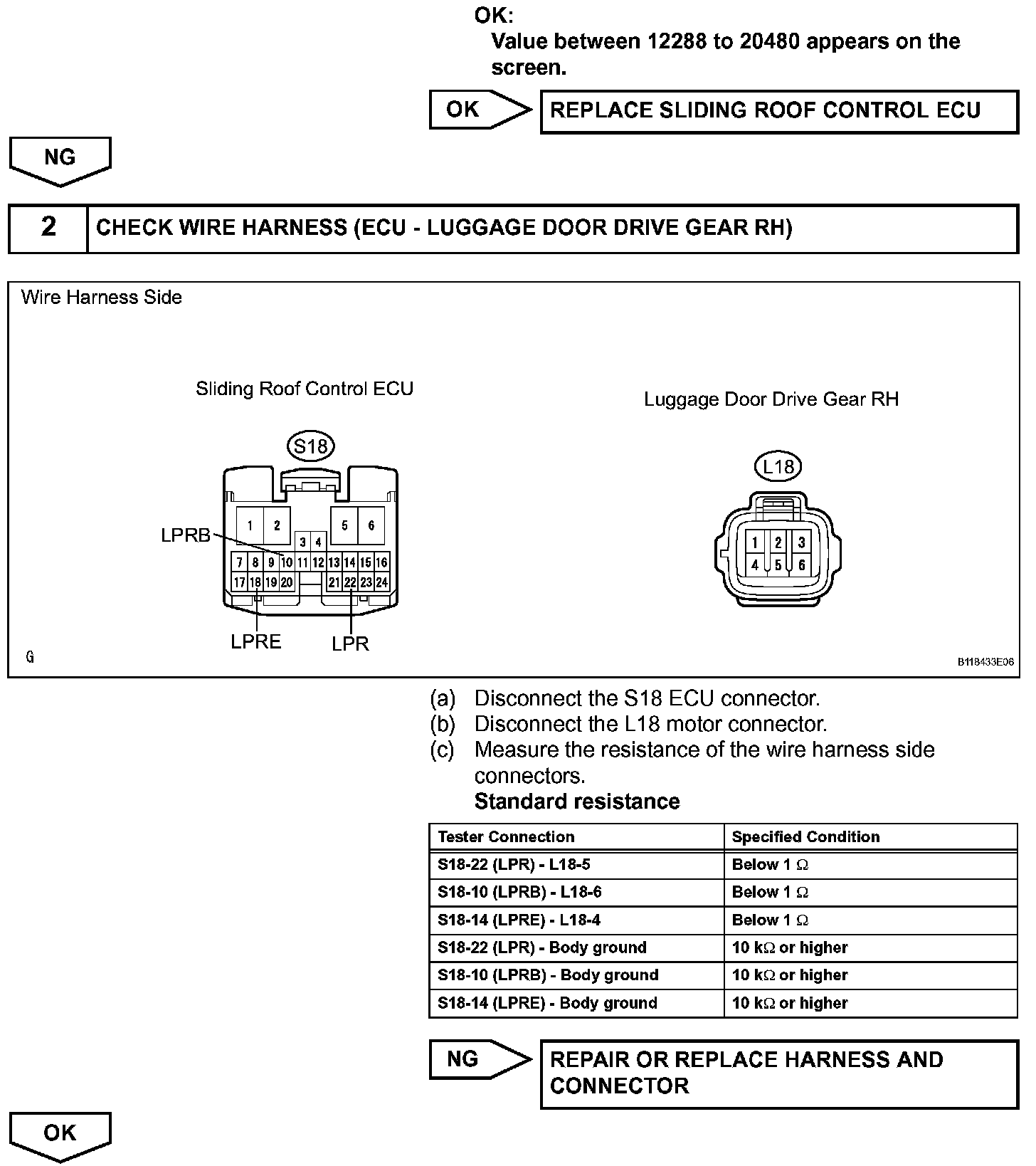

Step 1(Continued) - 2:

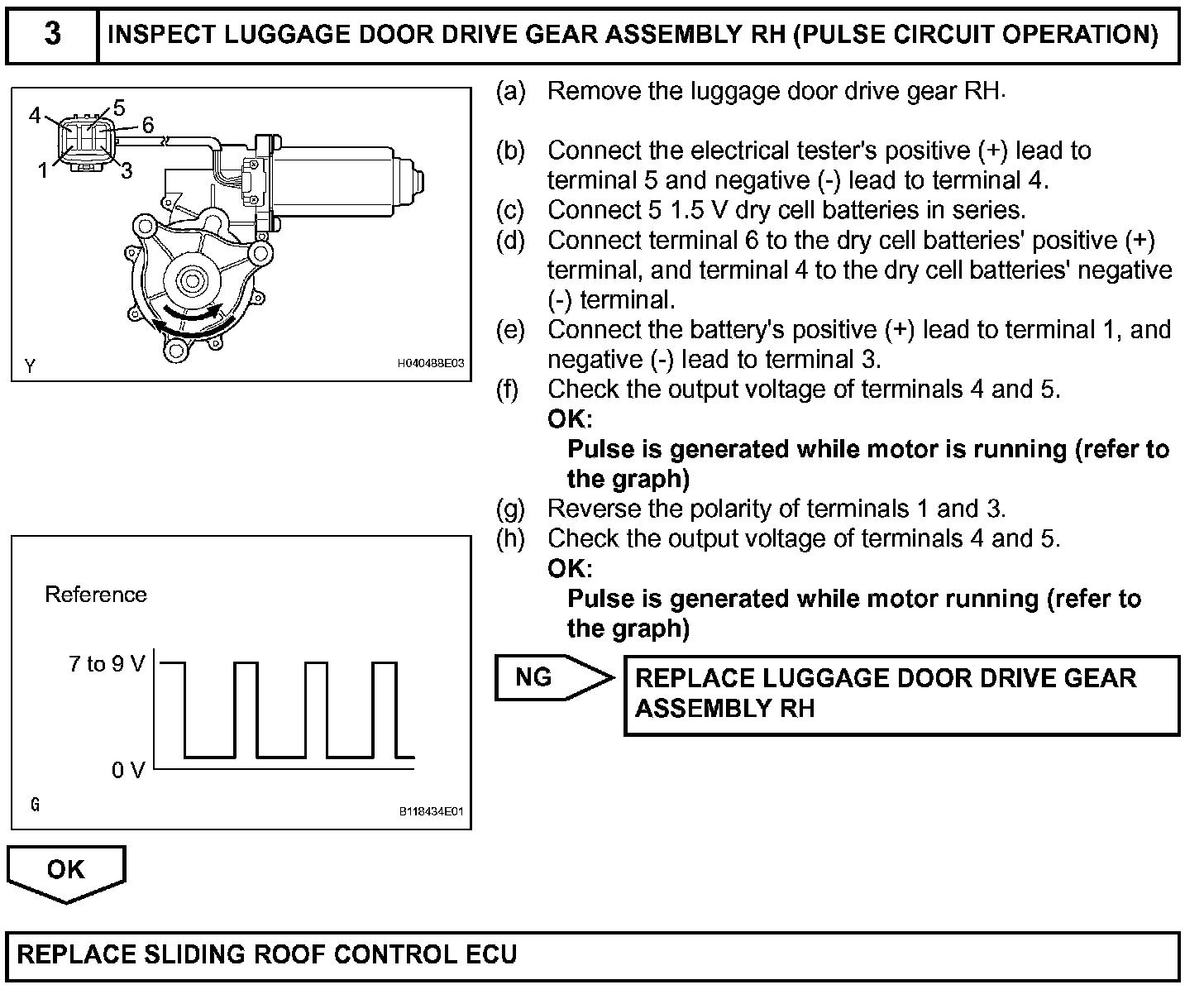

Step 3:
