B2540

DTC B2540 Abnormal Difference Between RH and LH Roof Drive Motor Pulse

DESCRIPTION
The pulse signal is created by the rotation of the roof drive motor.

The signal is used to control the luggage roof operation.

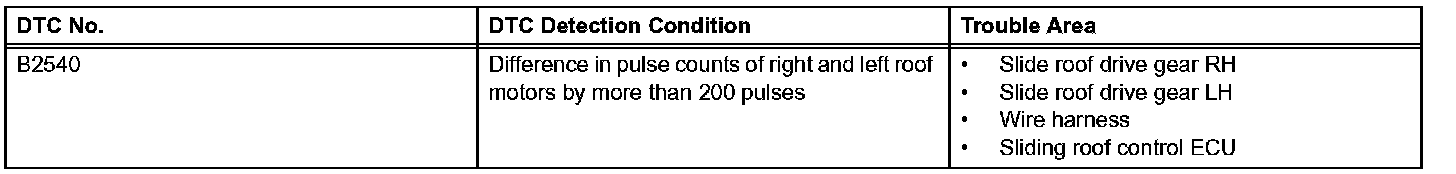

DTC Detection Condition:

WIRING DIAGRAM

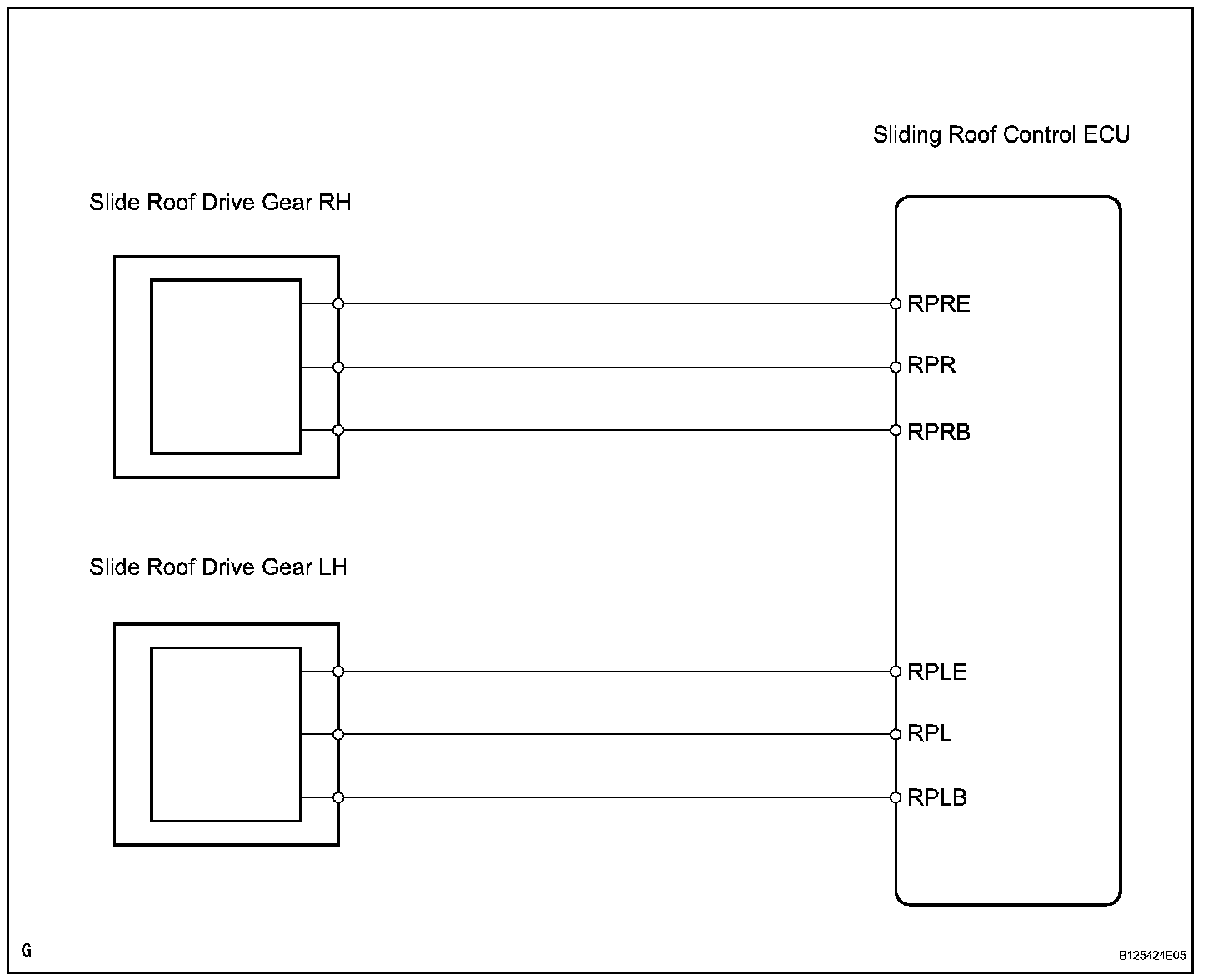

Wiring Diagram:

INSPECTION PROCEDURE

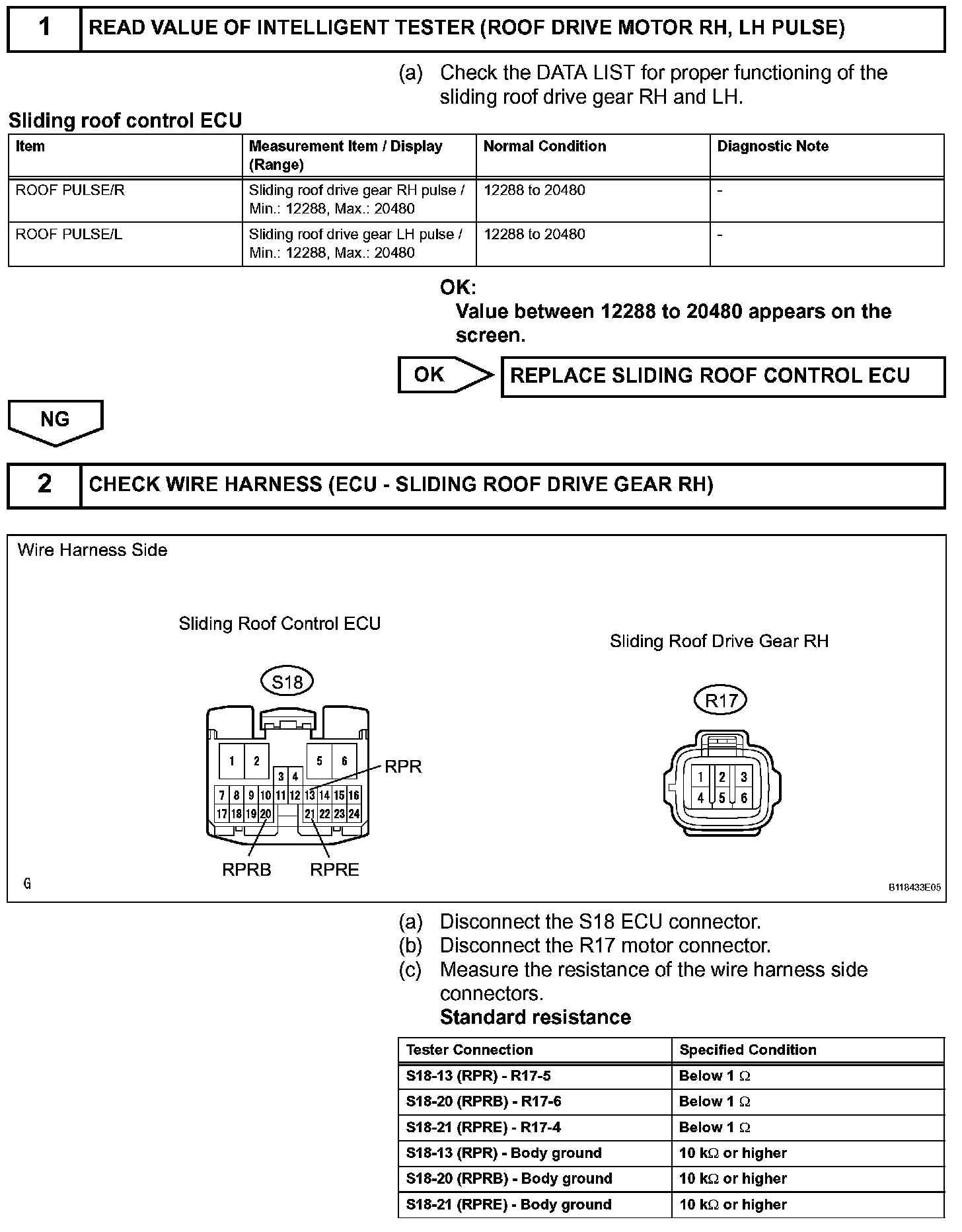

Step 1 - 2:

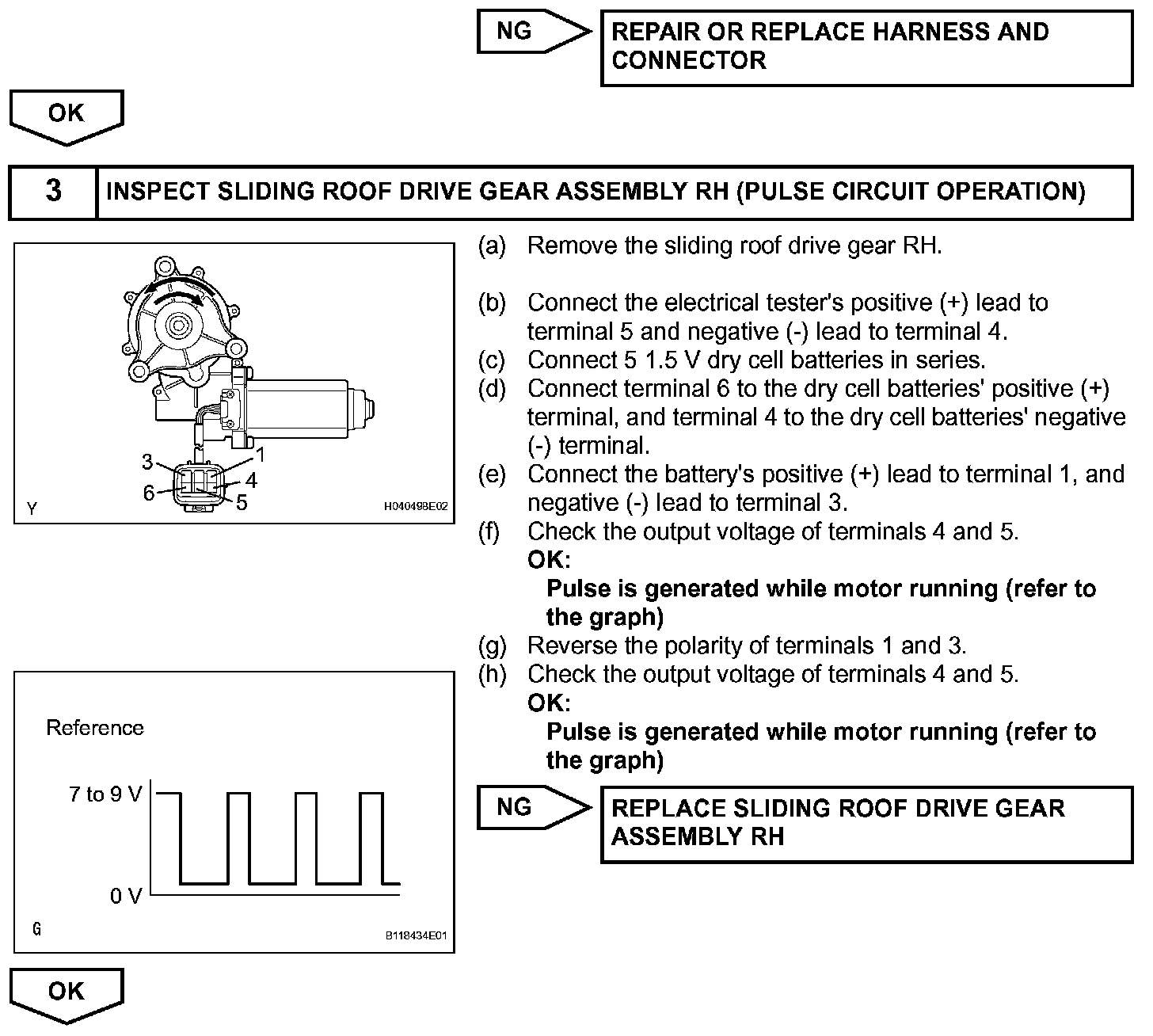

Step 2(Continued) - 3:

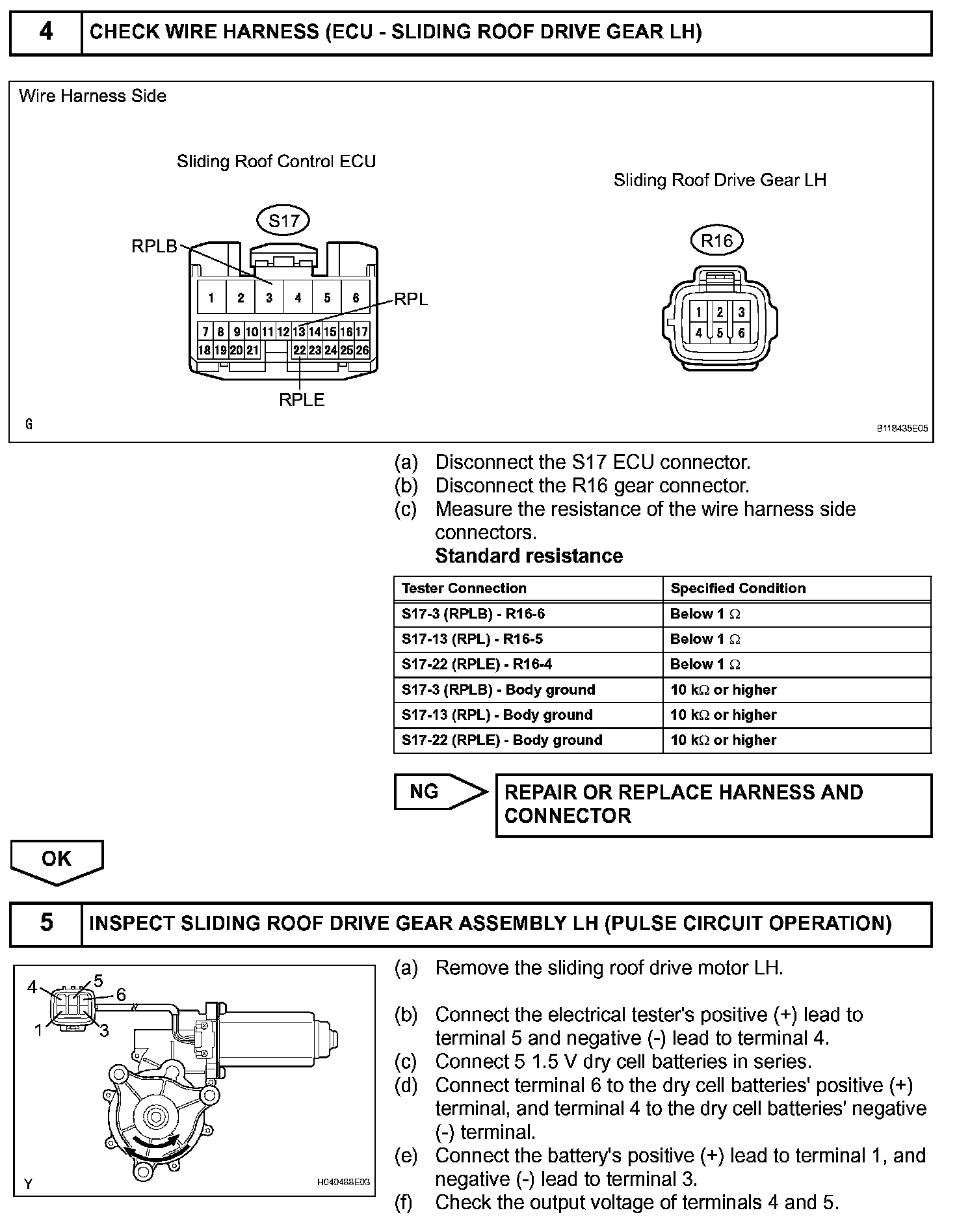

Step 4 - 5:

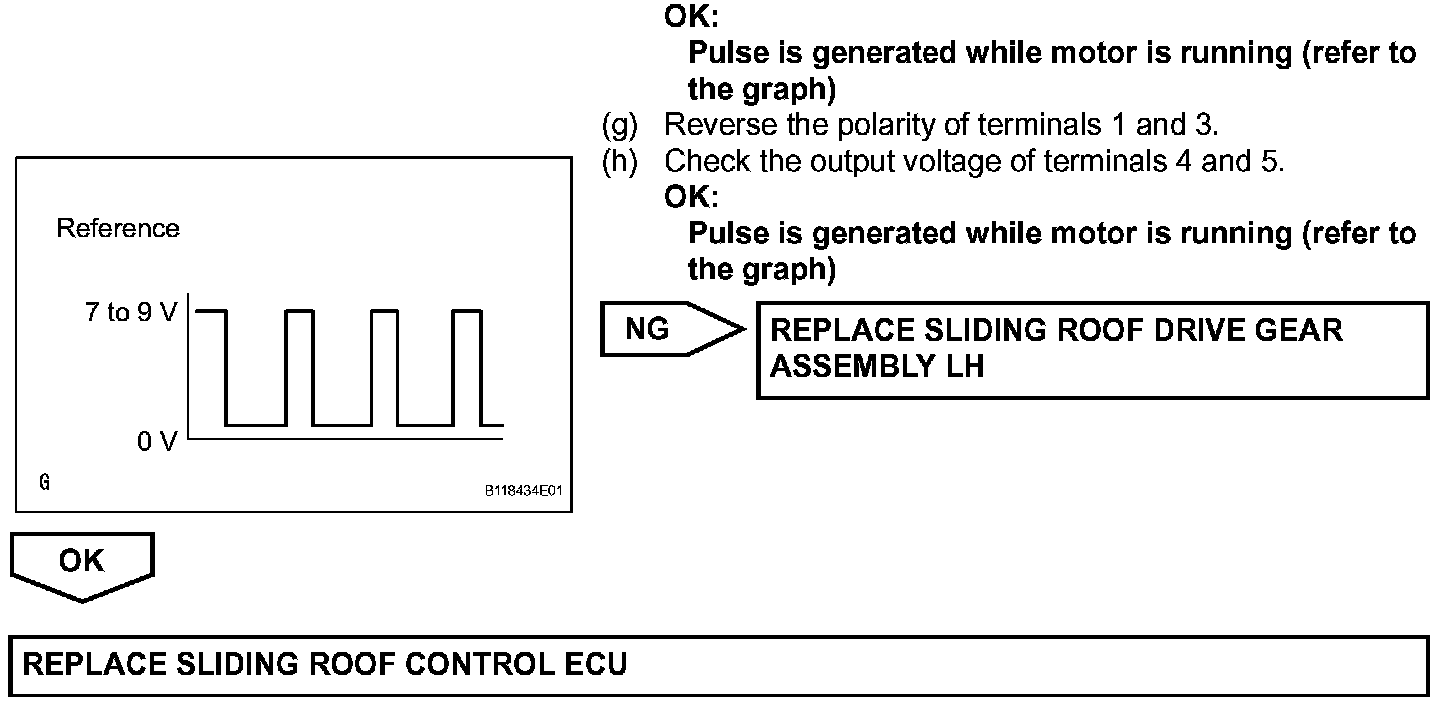

Step 5(Continued):
