B2539

DTC B2539 Abnormal Roof Drive Motor LH Pulse

DESCRIPTION
The pulse signal is created by the rotation of the roof drive motor.

The signal is used to control the speed for the luggage roof operation.

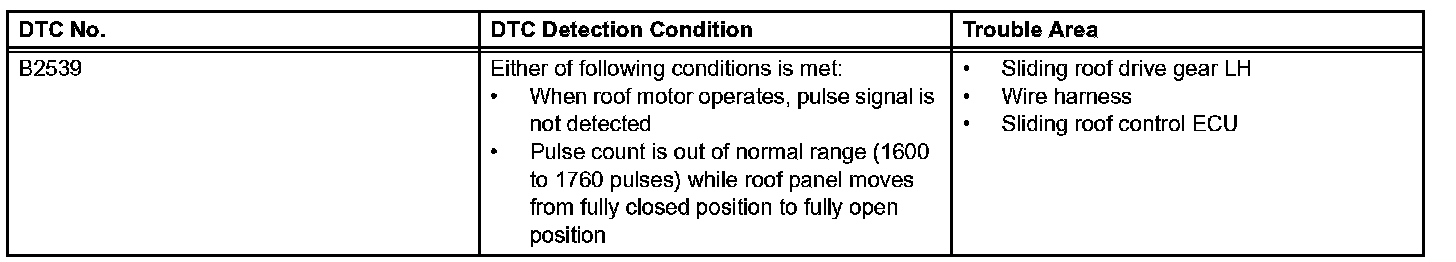

DTC Detection Condition:

WIRING DIAGRAM

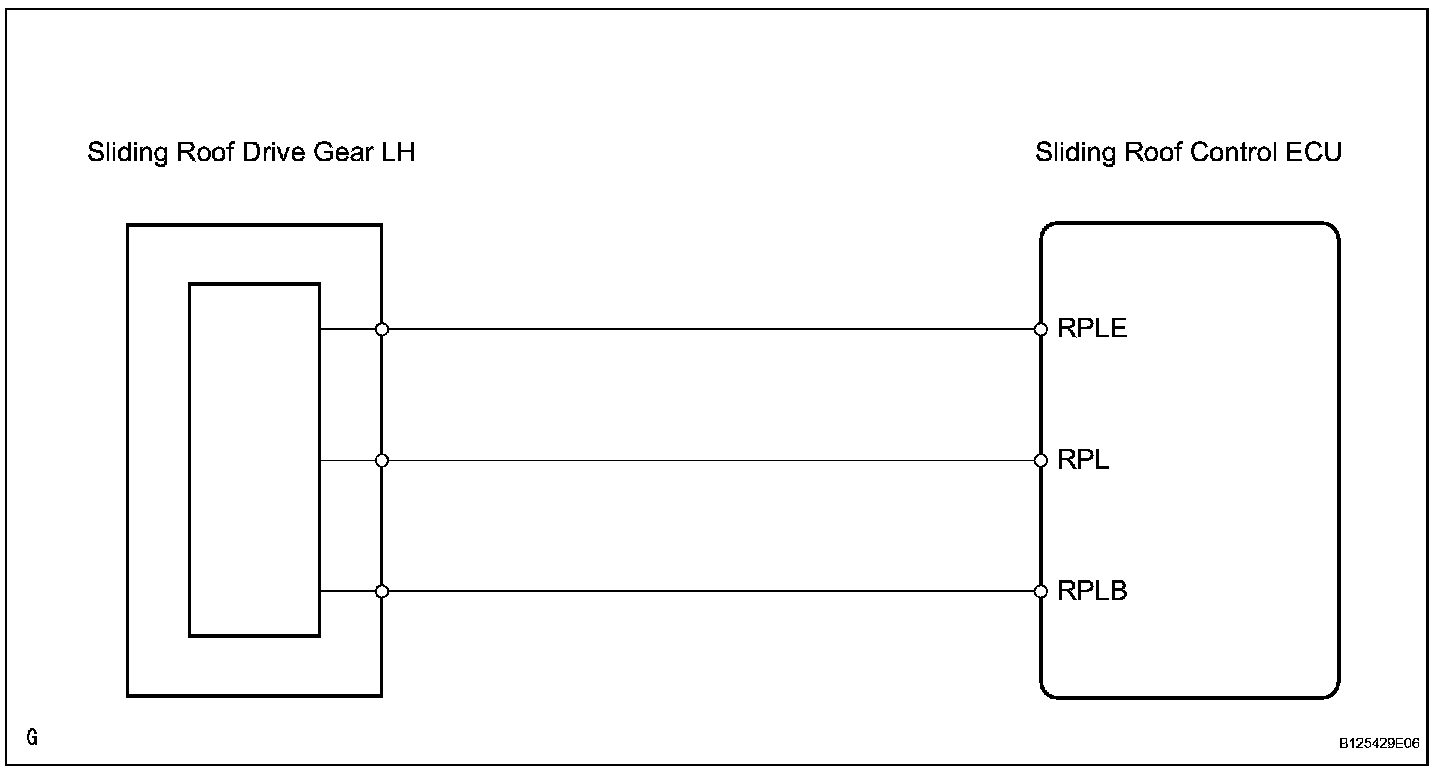

Wiring Diagram:

INSPECTION PROCEDURE

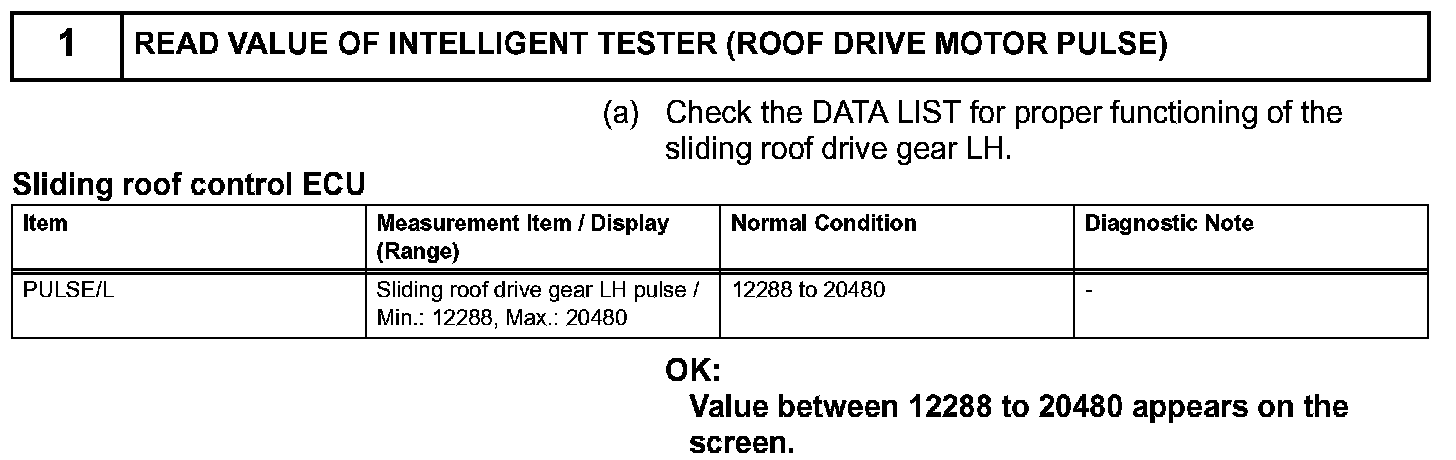

Step 1:

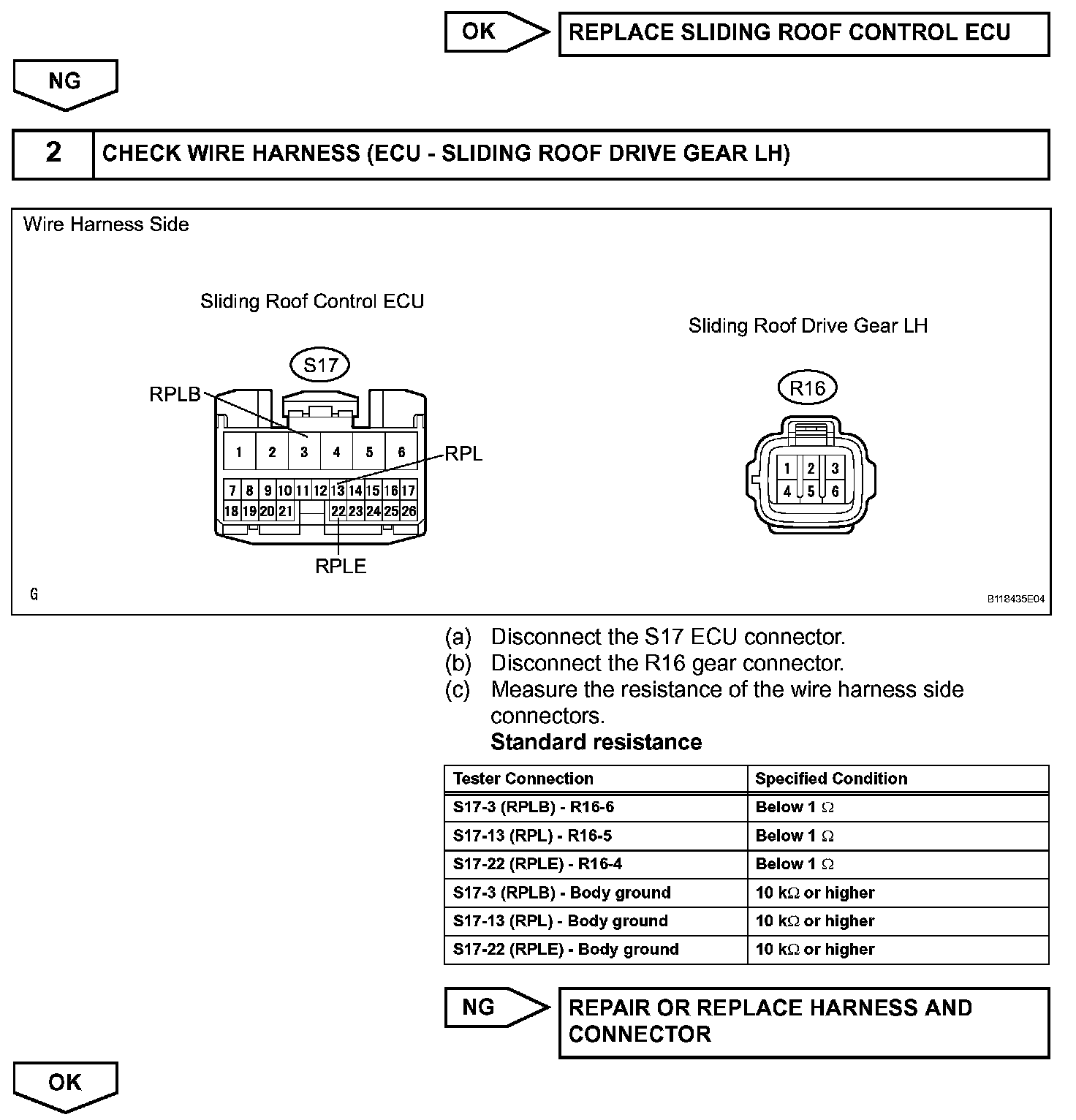

Step 1(Continued) - 2:

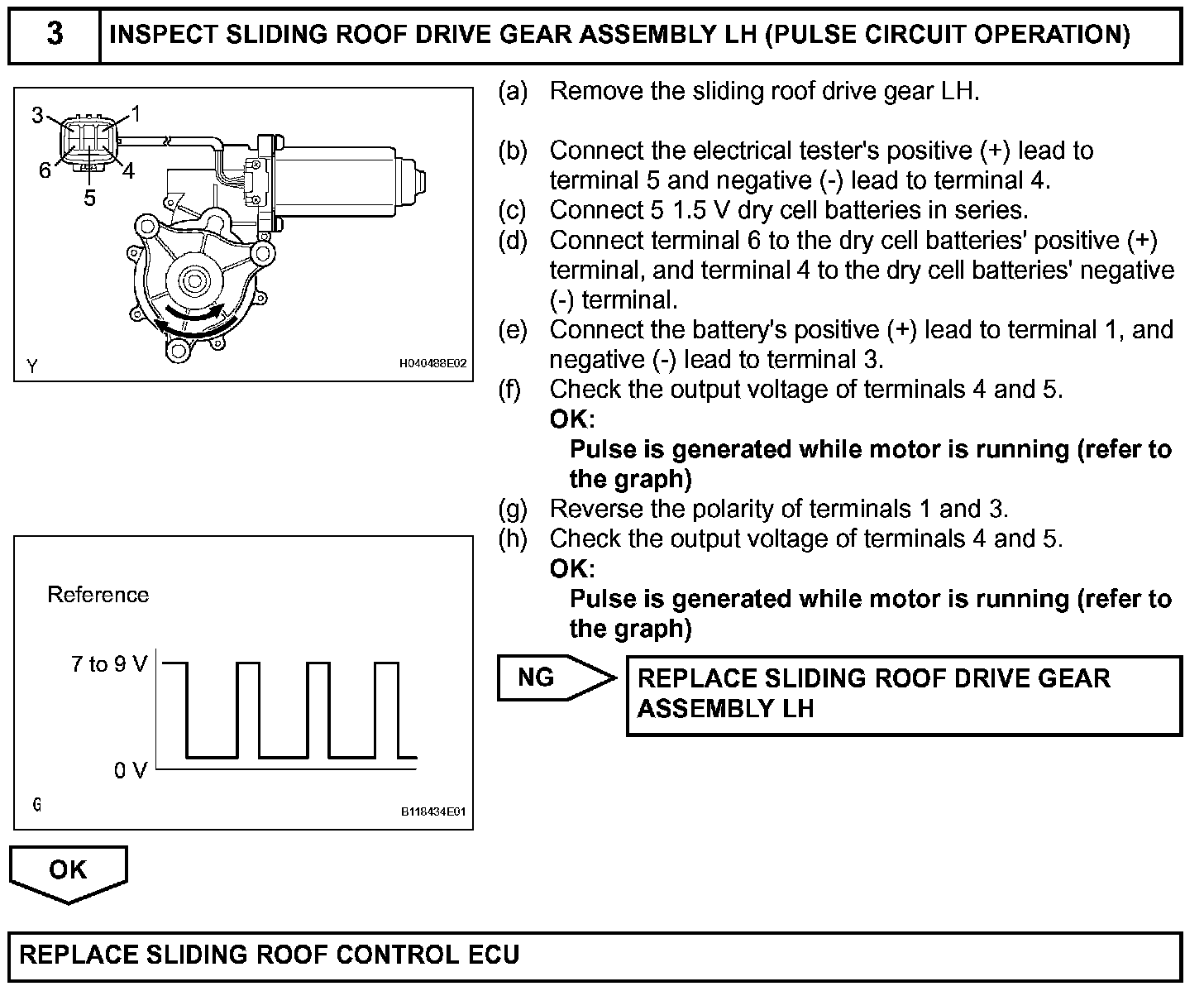

Step 3:
