B2538

DTC B2538 Abnormal Roof Drive Motor RH Pulse

DESCRIPTION
The pulse signal is created by the rotation of the roof drive motor.

The signal is used to control the speed for the luggage roof operation.

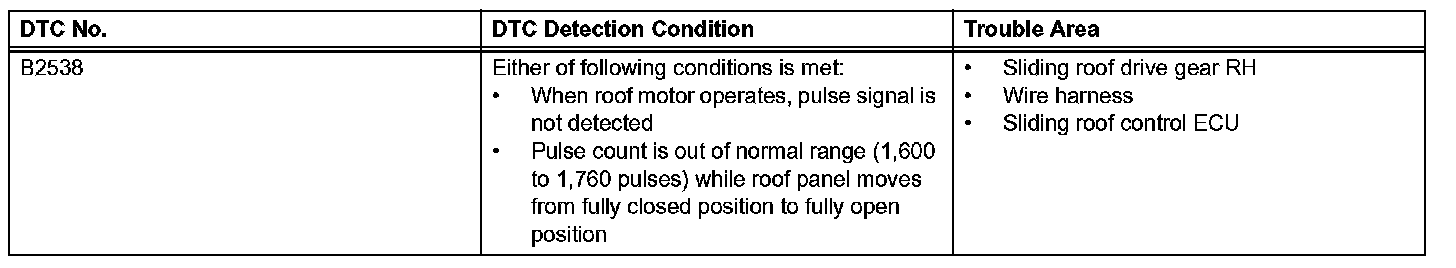

DTC Detection Condition:

WIRING DIAGRAM

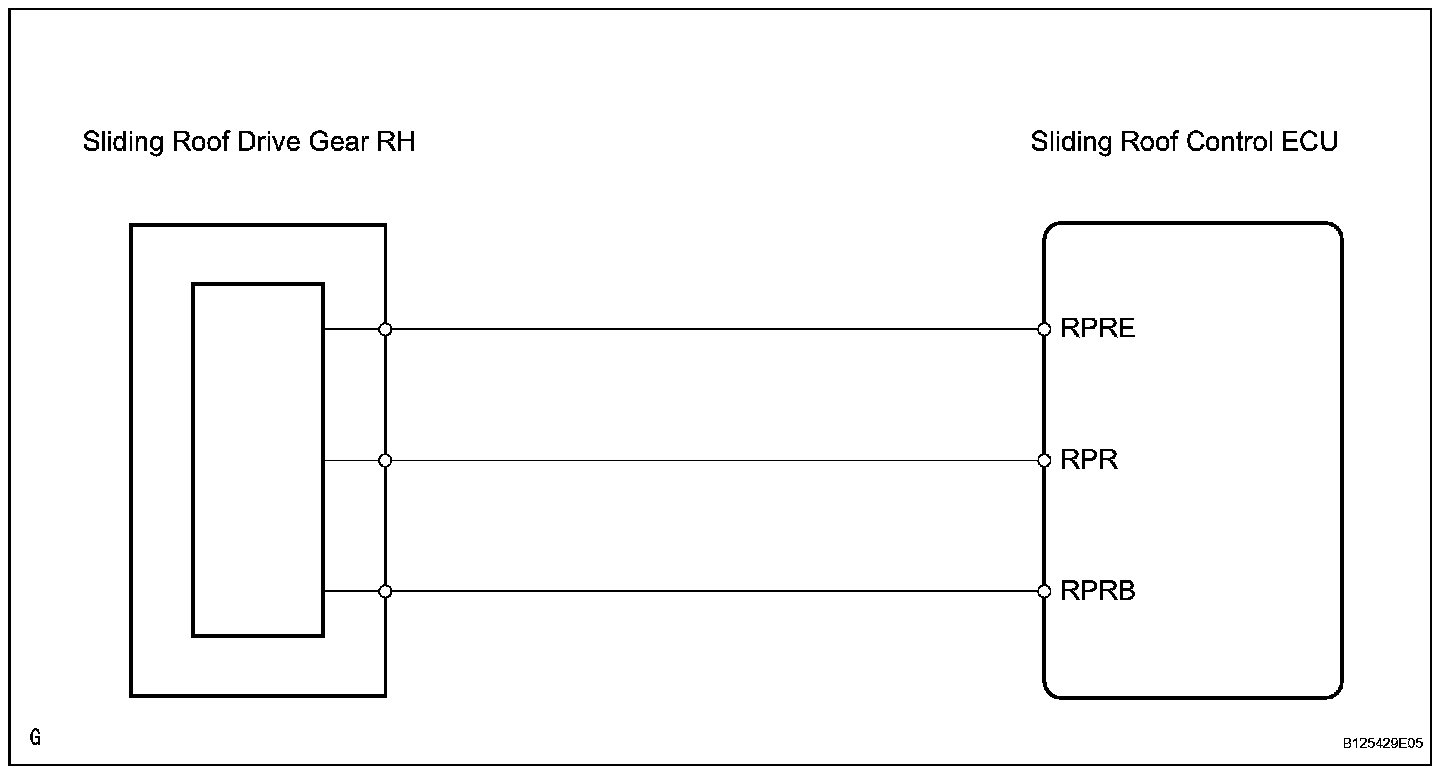

Wiring Diagram:

INSPECTION PROCEDURE

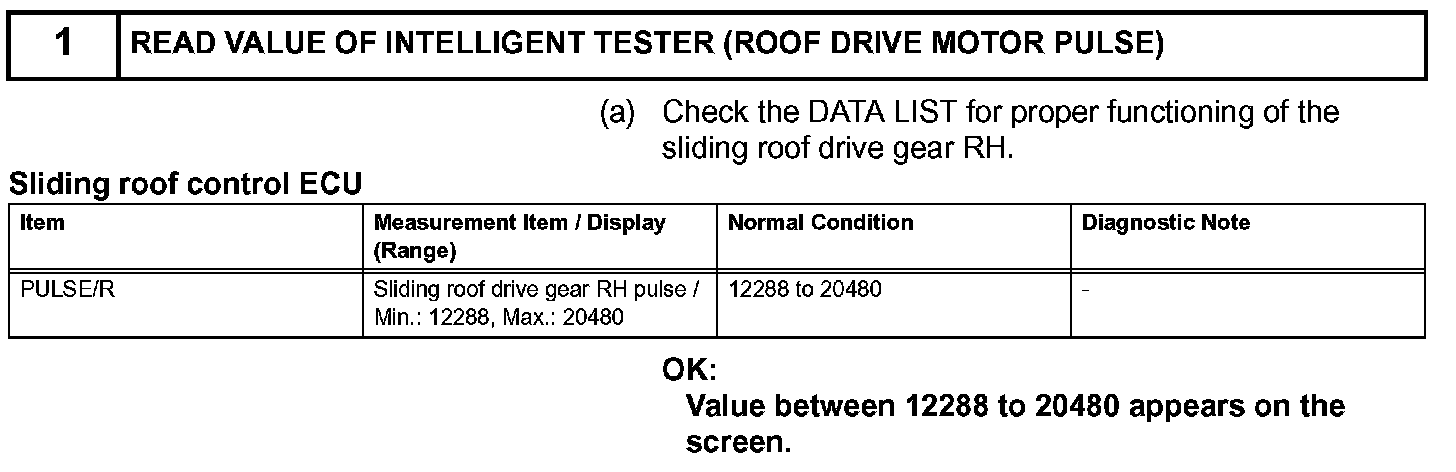

Step 1:

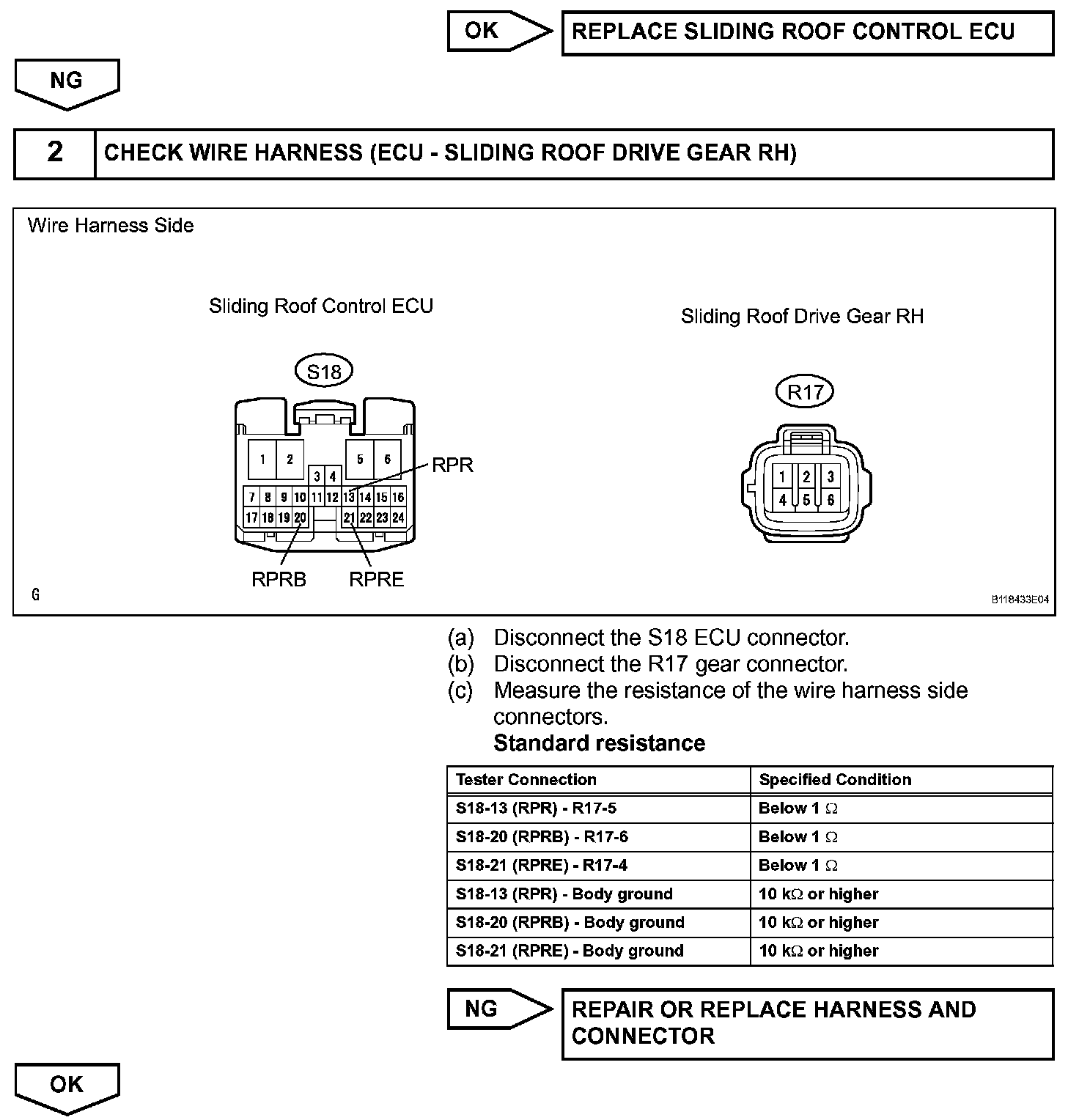

Step 1(Continued) - 2:

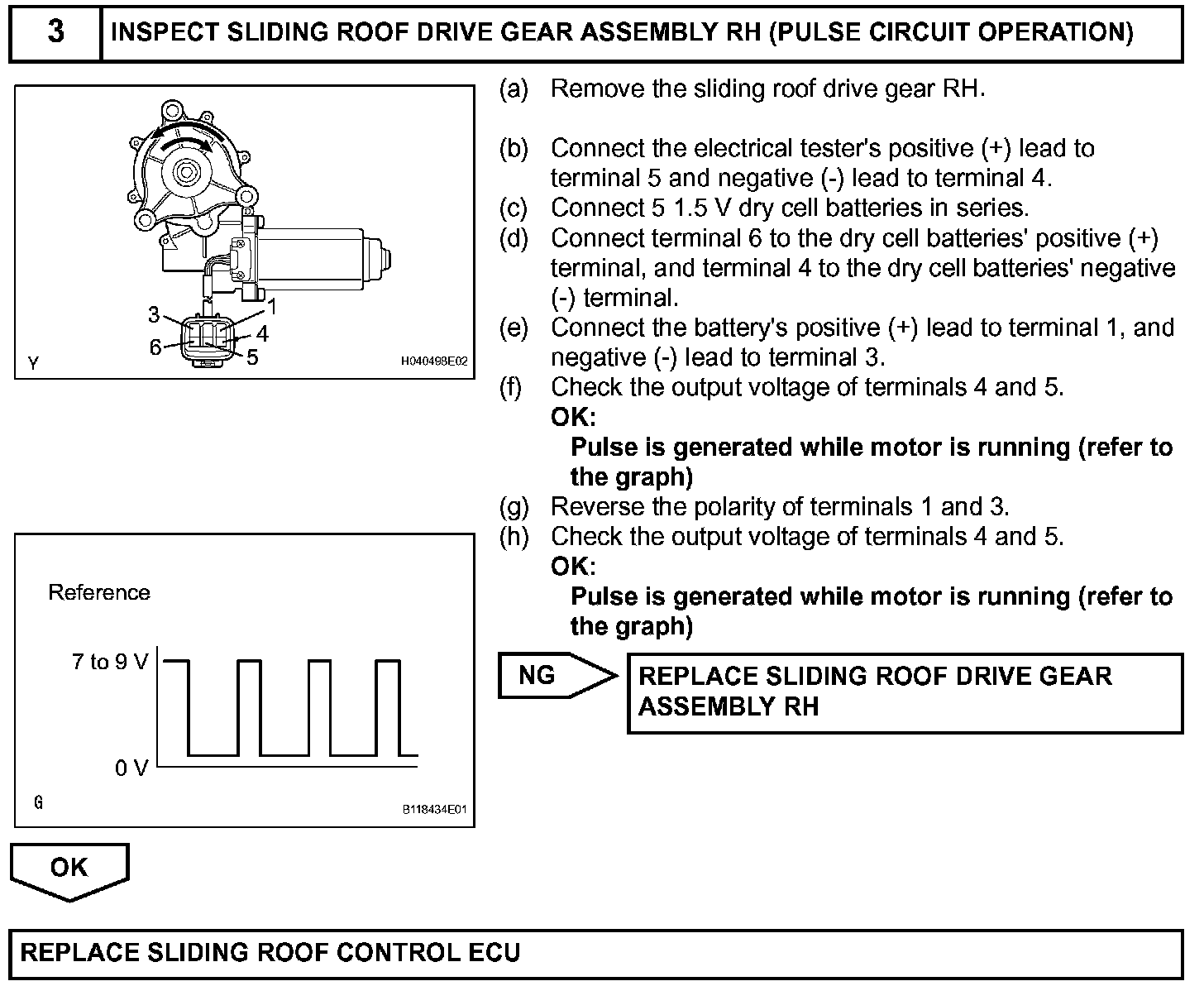

Step 3:
