B2536

DTC B2536 Luggage Courtesy Switch Malfunction

DESCRIPTION
The luggage courtesy switch is located at the luggage rear lock portion.

The luggage courtesy switch detects if the luggage door is fully closed.

Turning the luggage courtesy switch ON and the luggage rear lock switch ON permits the sliding roof to operate.

The luggage courtesy switch in turned ON when the luggage rear lock switch is turned ON.

Turning the luggage courtesy switch ON permits the luggage door to start opening. Therefore, pressing the roof control switch with the luggage rear lock switch OFF causes the indicator to blink.

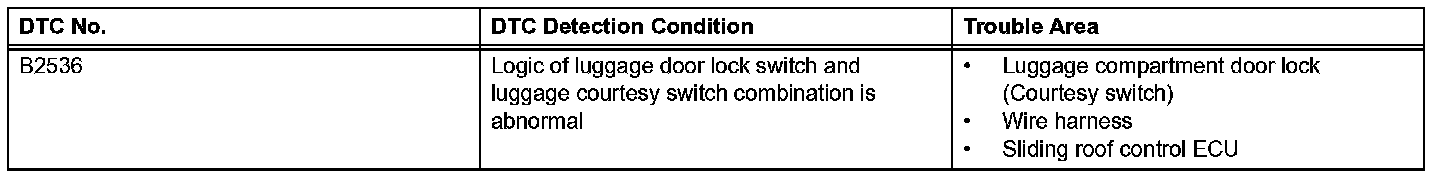

DTC Detection Condition:

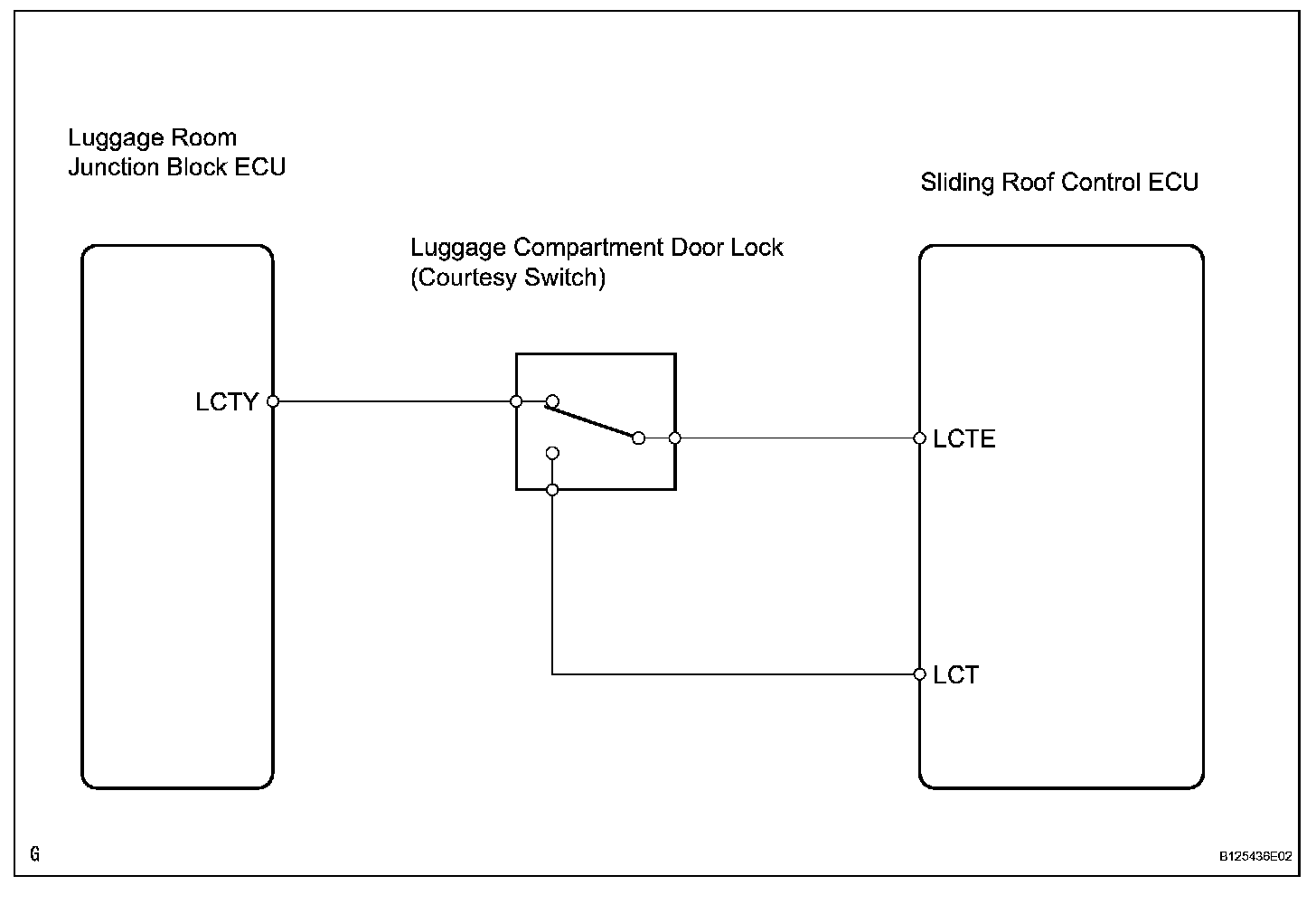

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

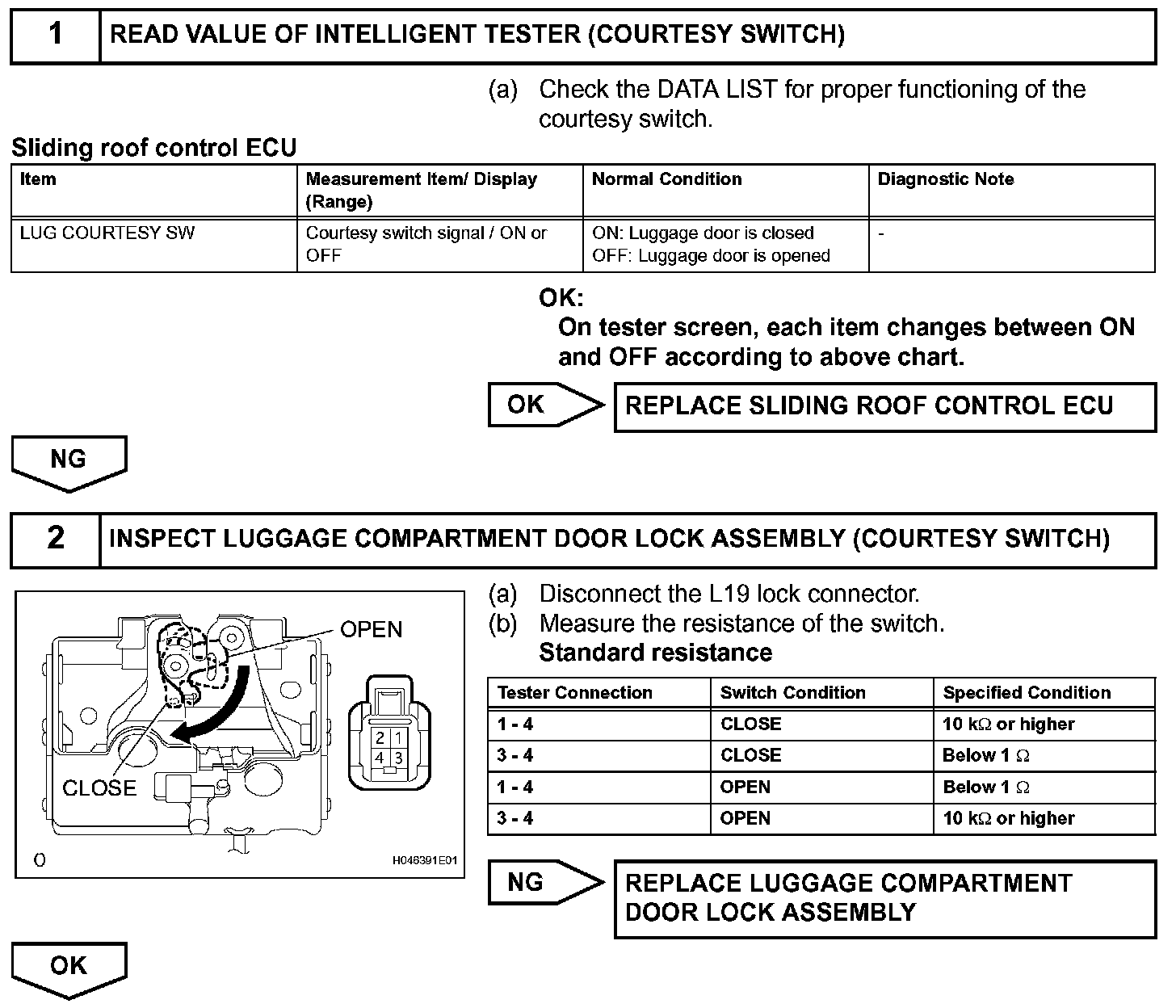

Step 1 - 2:

Step 3:
