B2535

DTC B2535 Tonneau Cover Switch Malfunction

DESCRIPTION
Turning the tonneau cover switch ON permits the luggage door to start opening. Therefore, pressing the roof control switch with the tonneau cover switch OFF causes the indicator to blink.

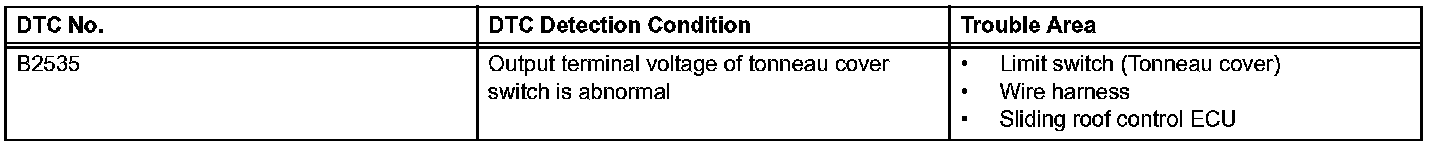

DTC Detection Condition:

WIRING DIAGRAM

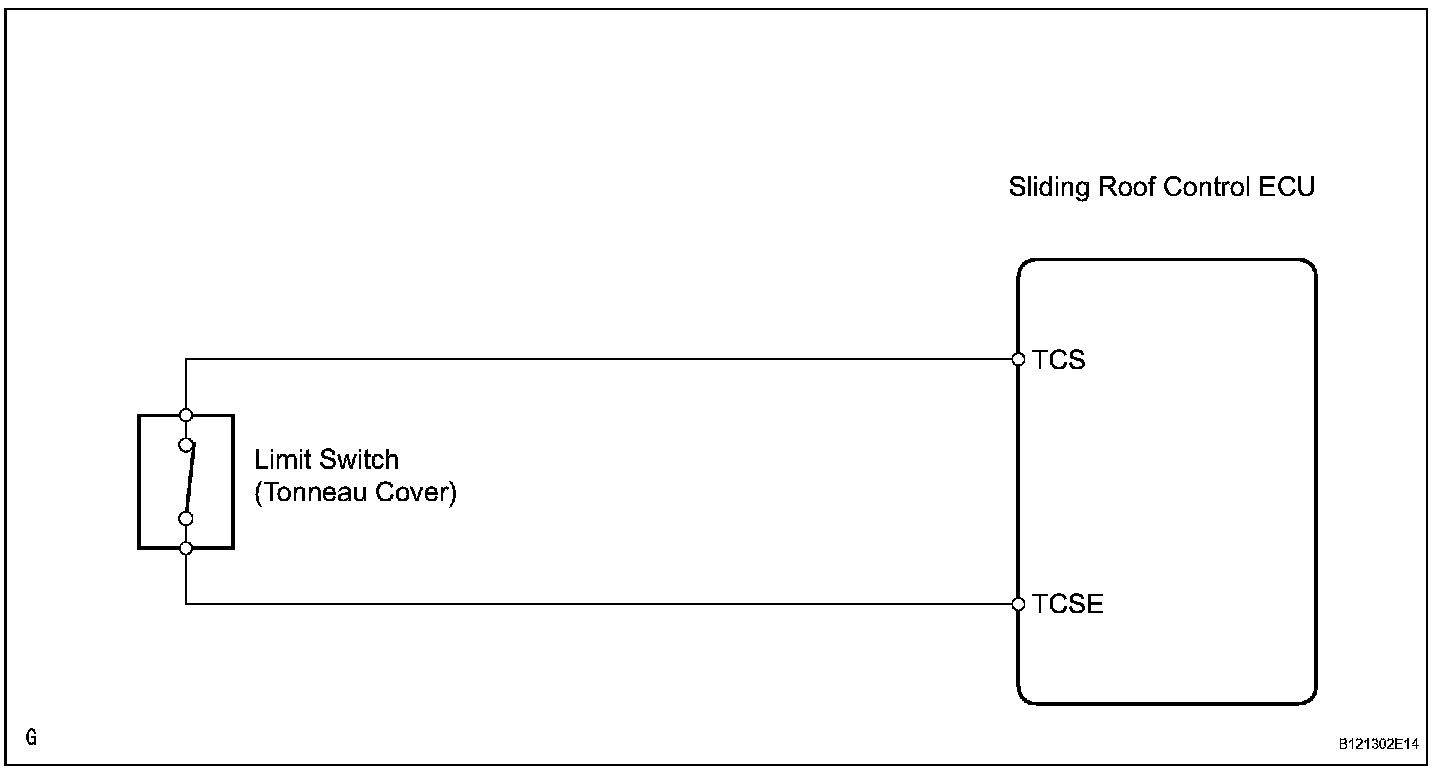

Wiring Diagram:

INSPECTION PROCEDURE

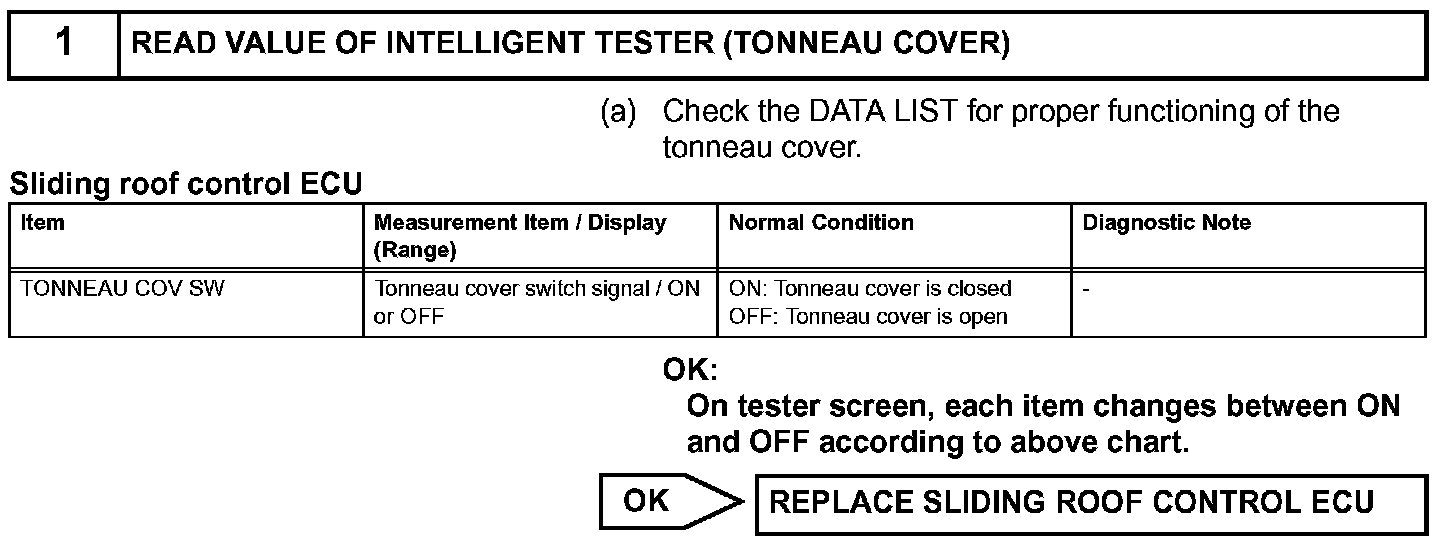

Step 1:

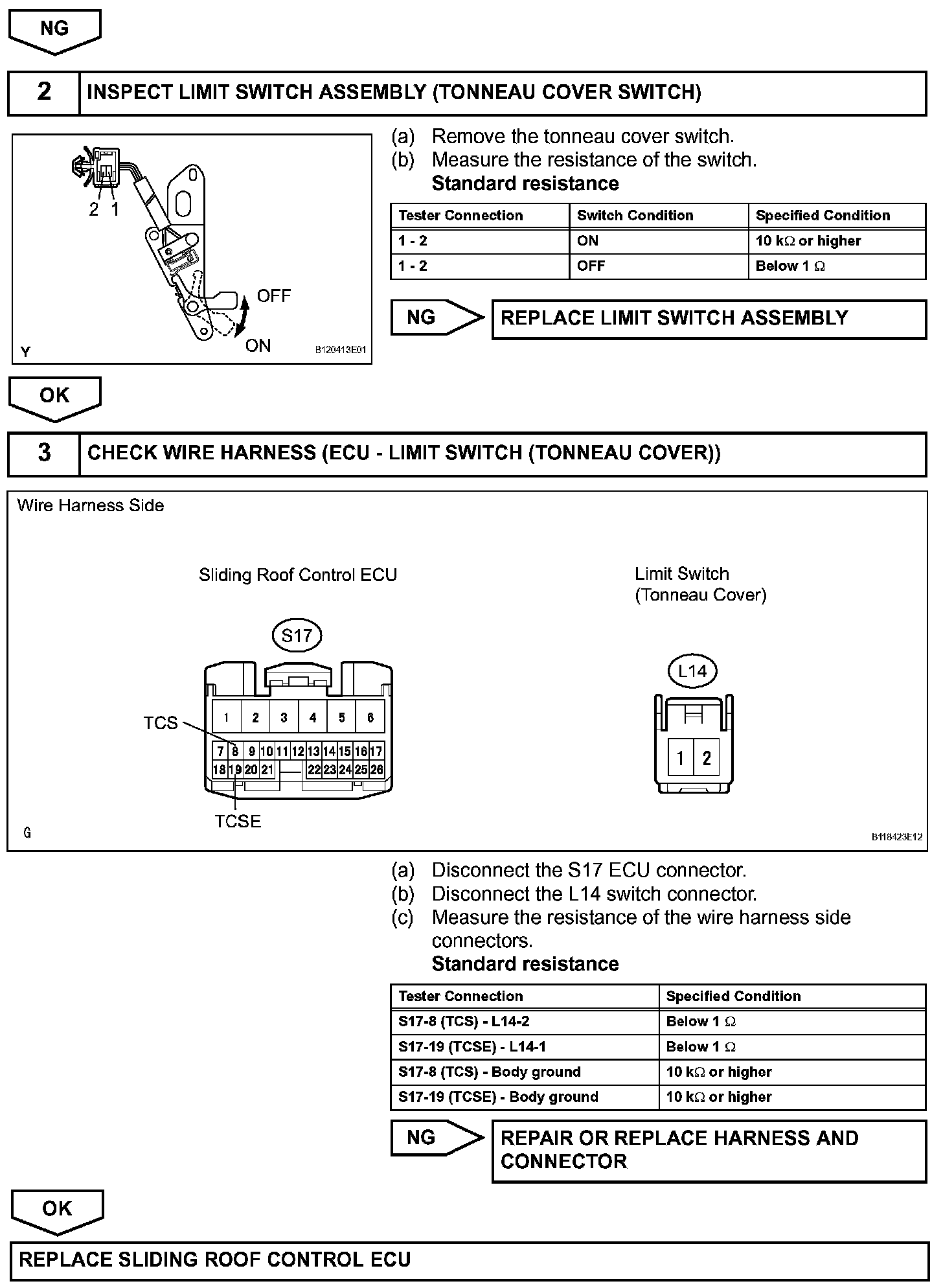

Step 2 - 3:
