B2534

DTC B2534 Package Tray Switch No. 1 or No. 2 Malfunction

DESCRIPTION
This circuit indicates package tray switch No. 1 or No. 2 depending on the position of the package tray.

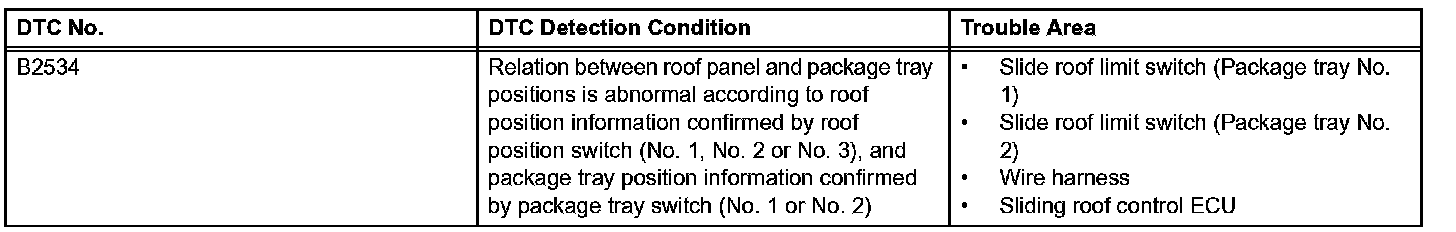

DTC Detection Condition:

WIRING DIAGRAM

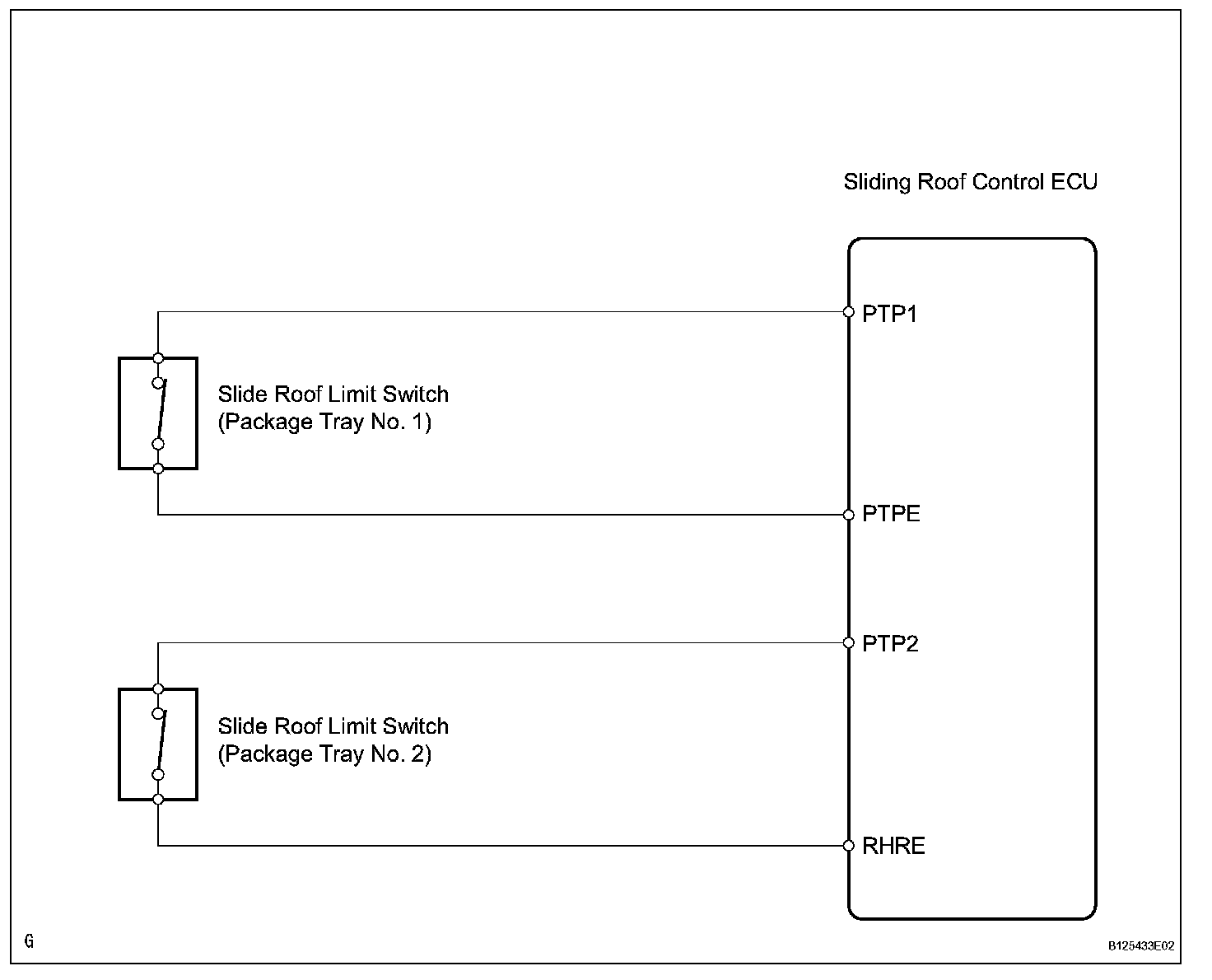

Wiring Diagram:

INSPECTION PROCEDURE

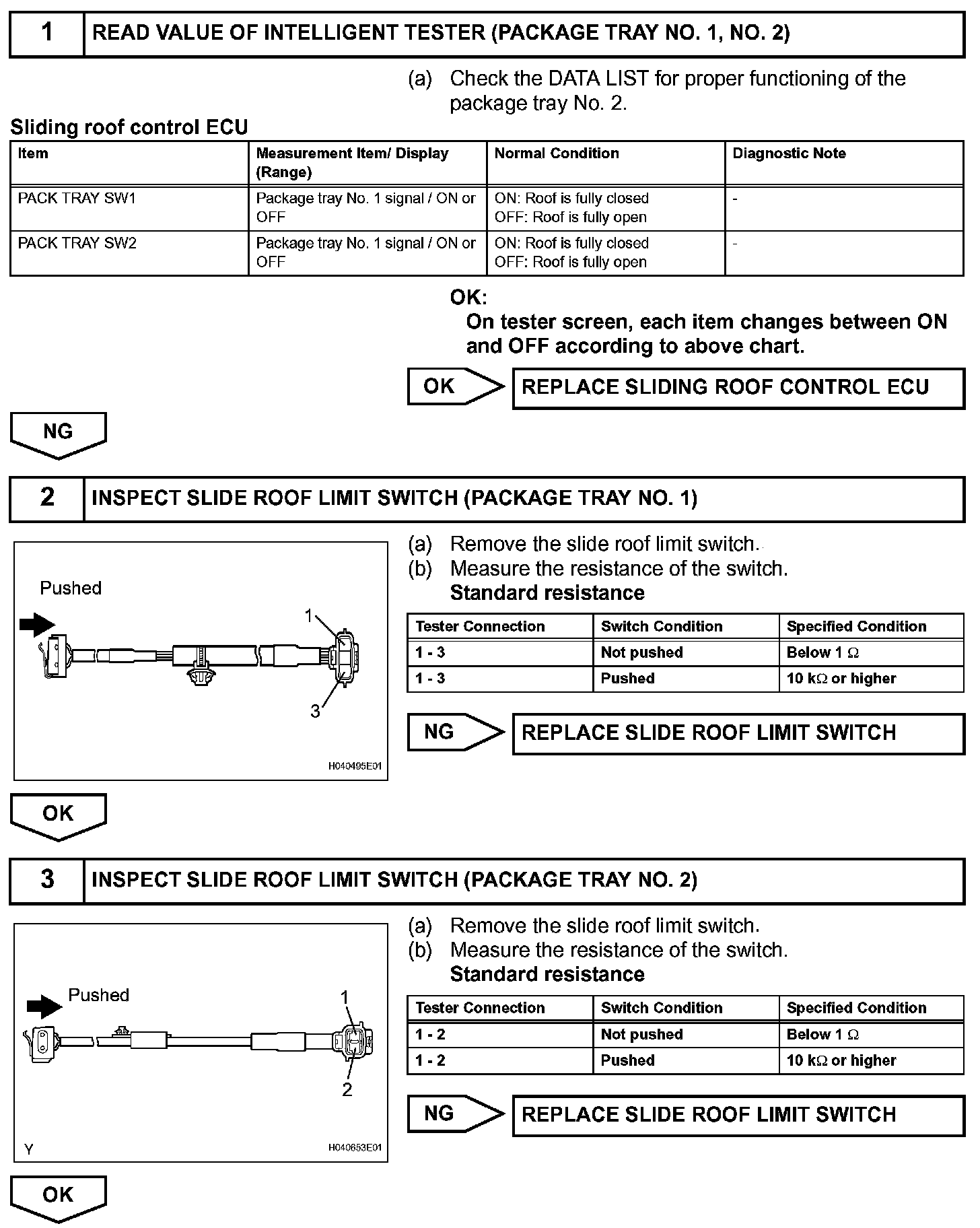

Step 1 - 3:

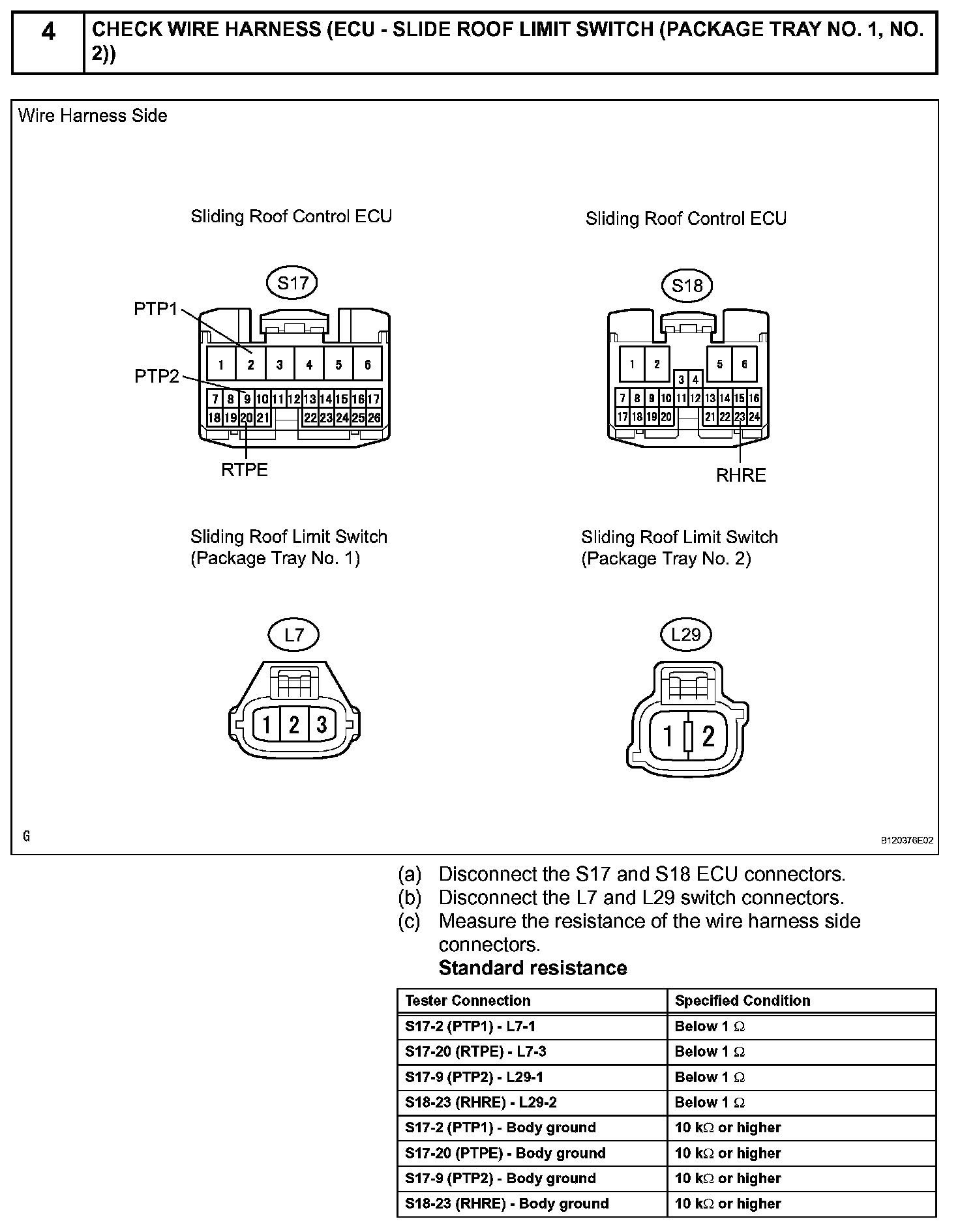

Step 4:

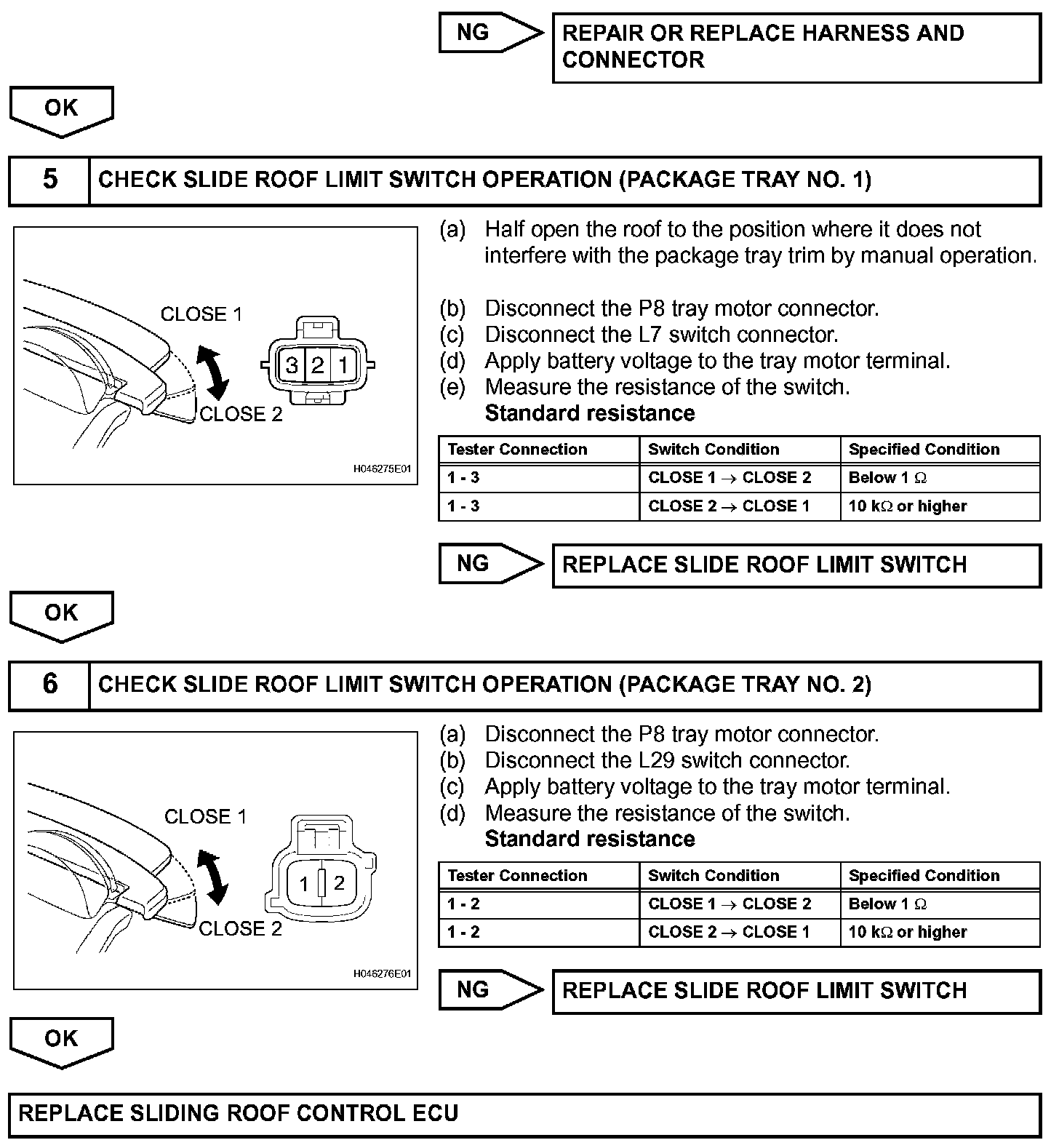

Step 4(Continued) - 6:
