B2533

DTC B2533 Package Tray Switch No. 2 Malfunction

DESCRIPTION
The package tray switch is located at the bottom of the package tray link.

The package tray switch detects whether the package tray opening position (Close 1, close 2 and open position).

The package tray switch is turned ON when the sliding roof is fully closed and turned OFF when it is fully open.

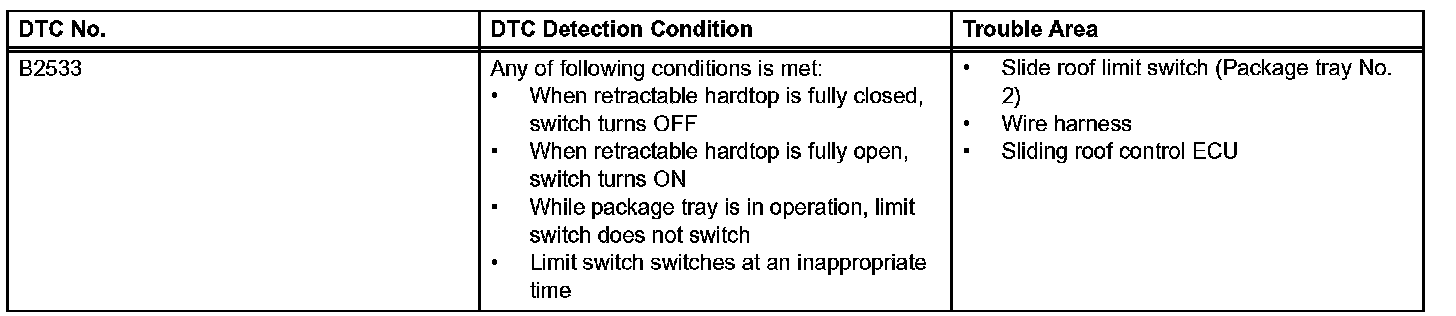

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

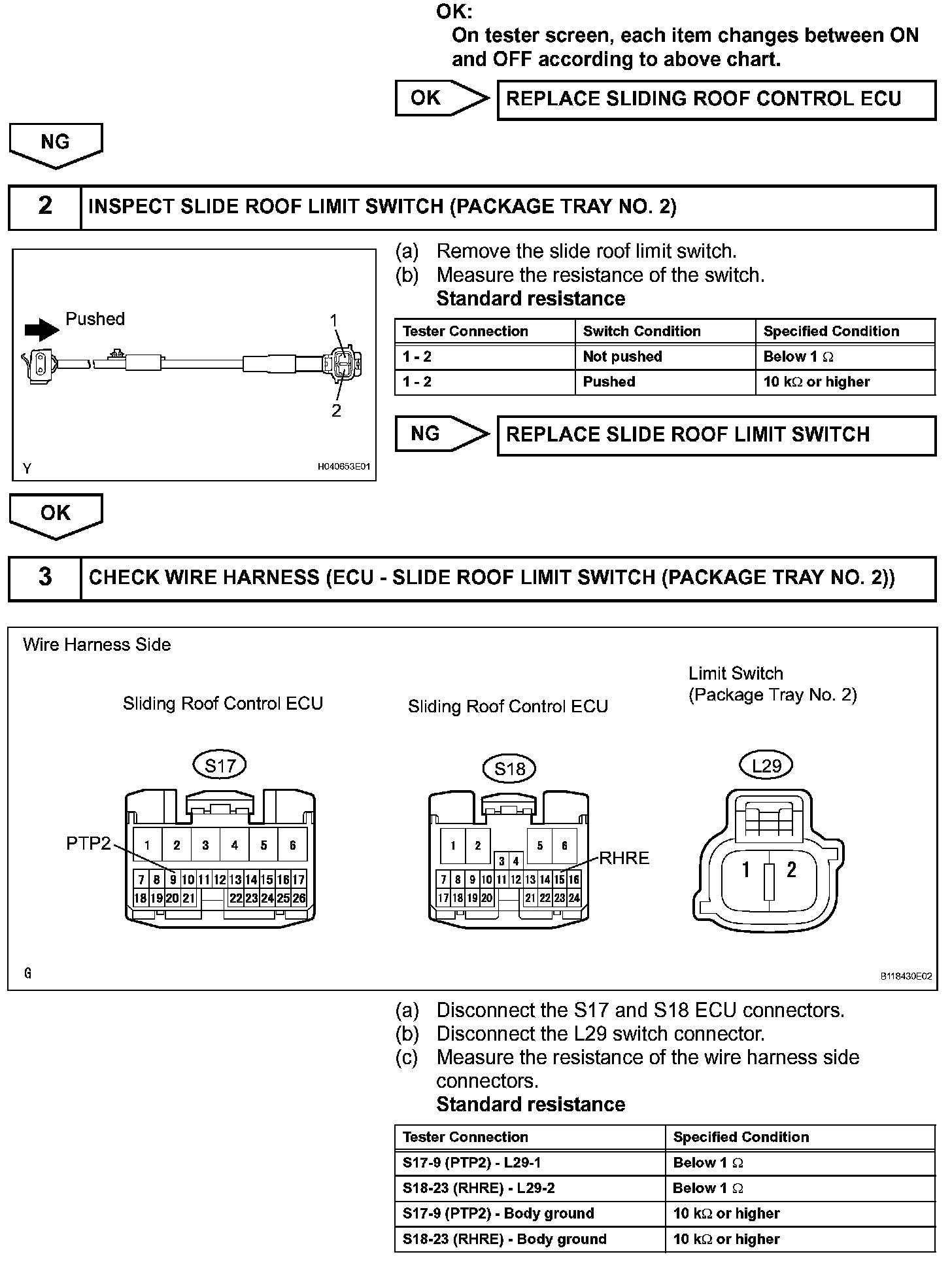

Step 1(Continued) - 3:

Step 3(Continued) - 5:
