B2530
DTC B2530 Luggage Front Lock Switch LH MalfunctionDESCRIPTION
The luggage front lock switch is located at the luggage front lock portion.
The luggage front lock switch detects the lock/unlock condition of the luggage front lock.
The luggage front lock switch is turned ON when the luggage front lock is locked and turned OFF when it is unlocked.

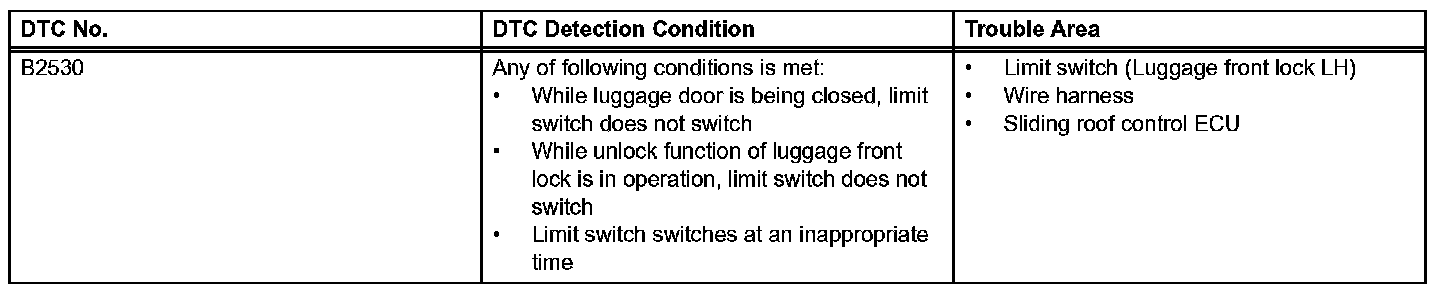

DTC Detection Condition:
WIRING DIAGRAM

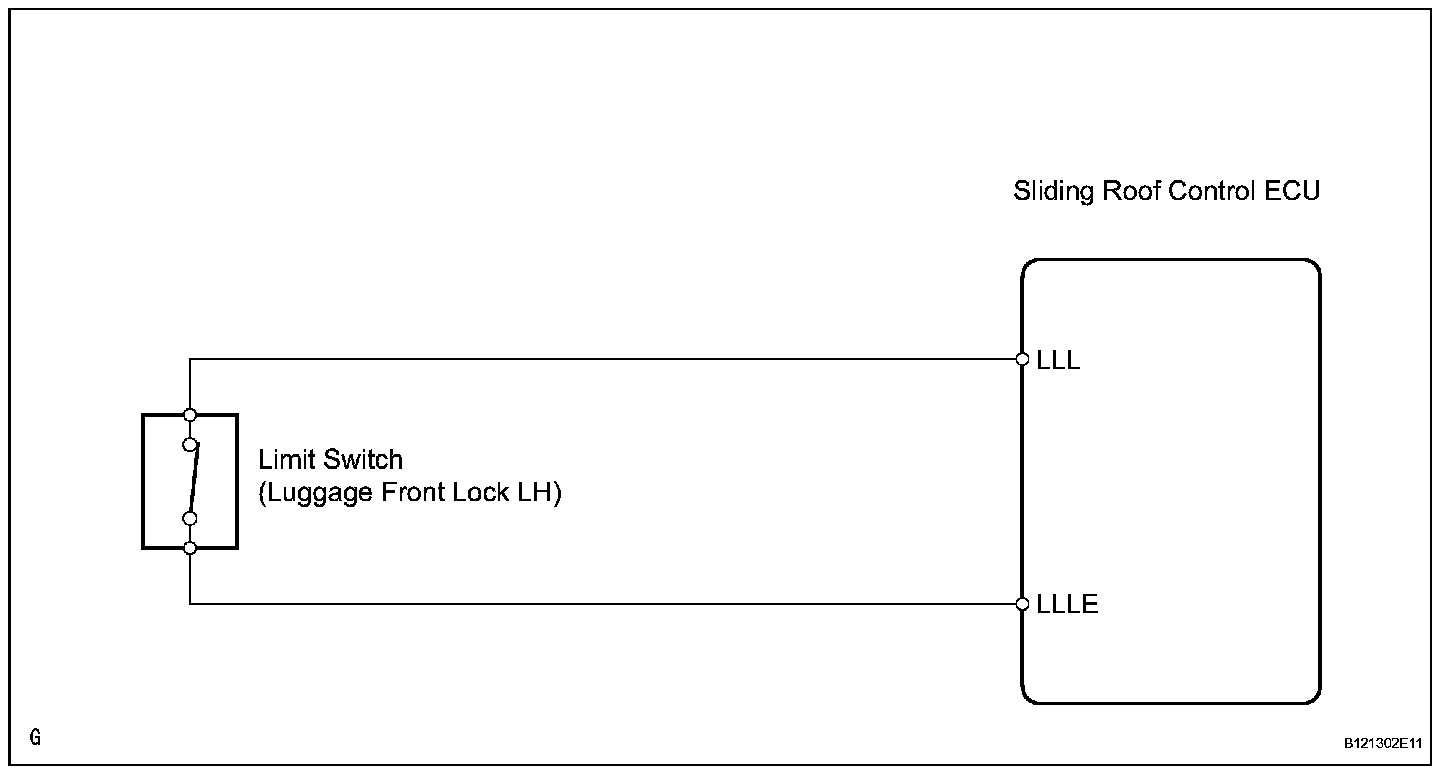

Wiring Diagram:
INSPECTION PROCEDURE

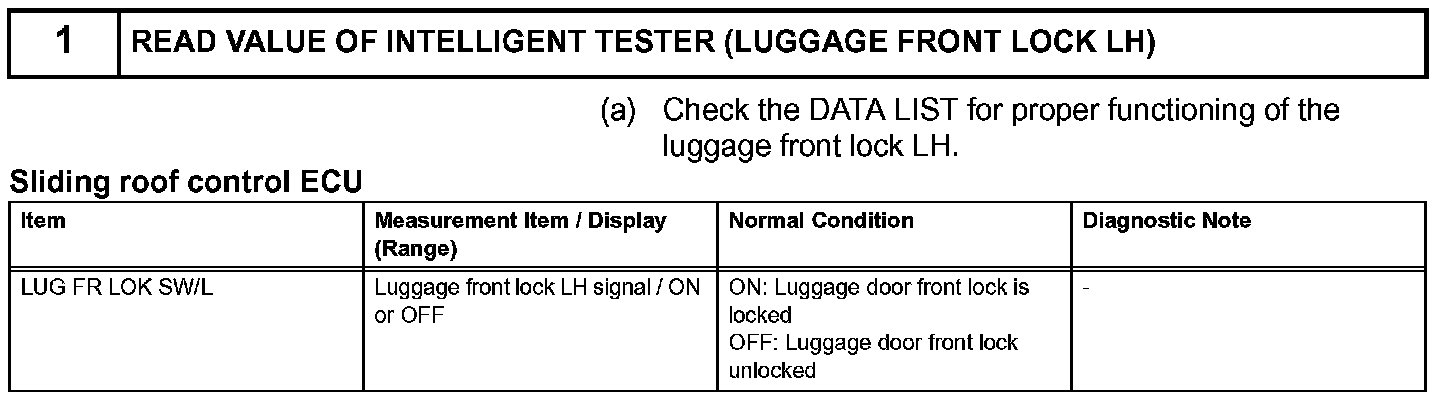

Step 1:

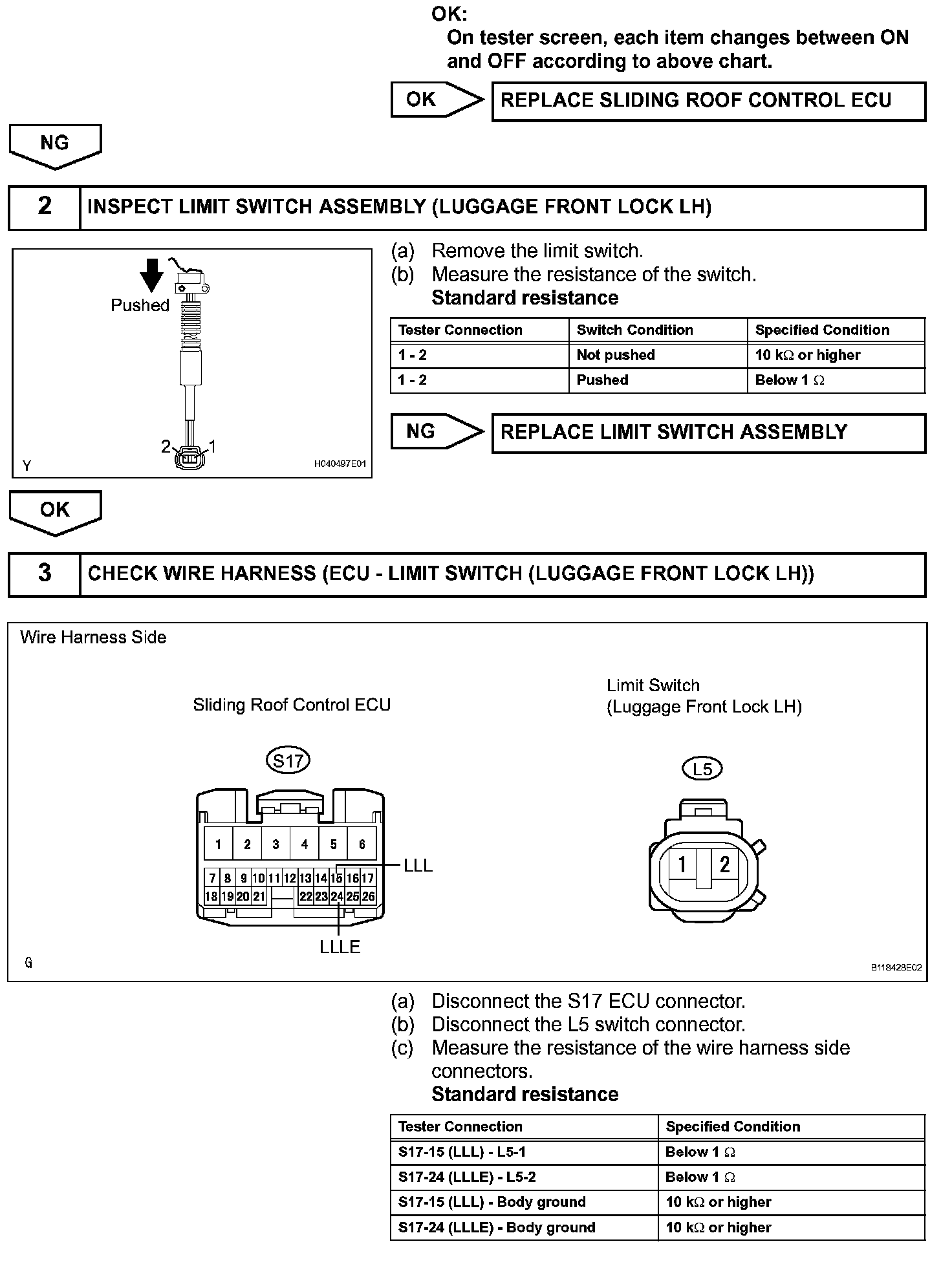

Step 1(Continued) - 3:

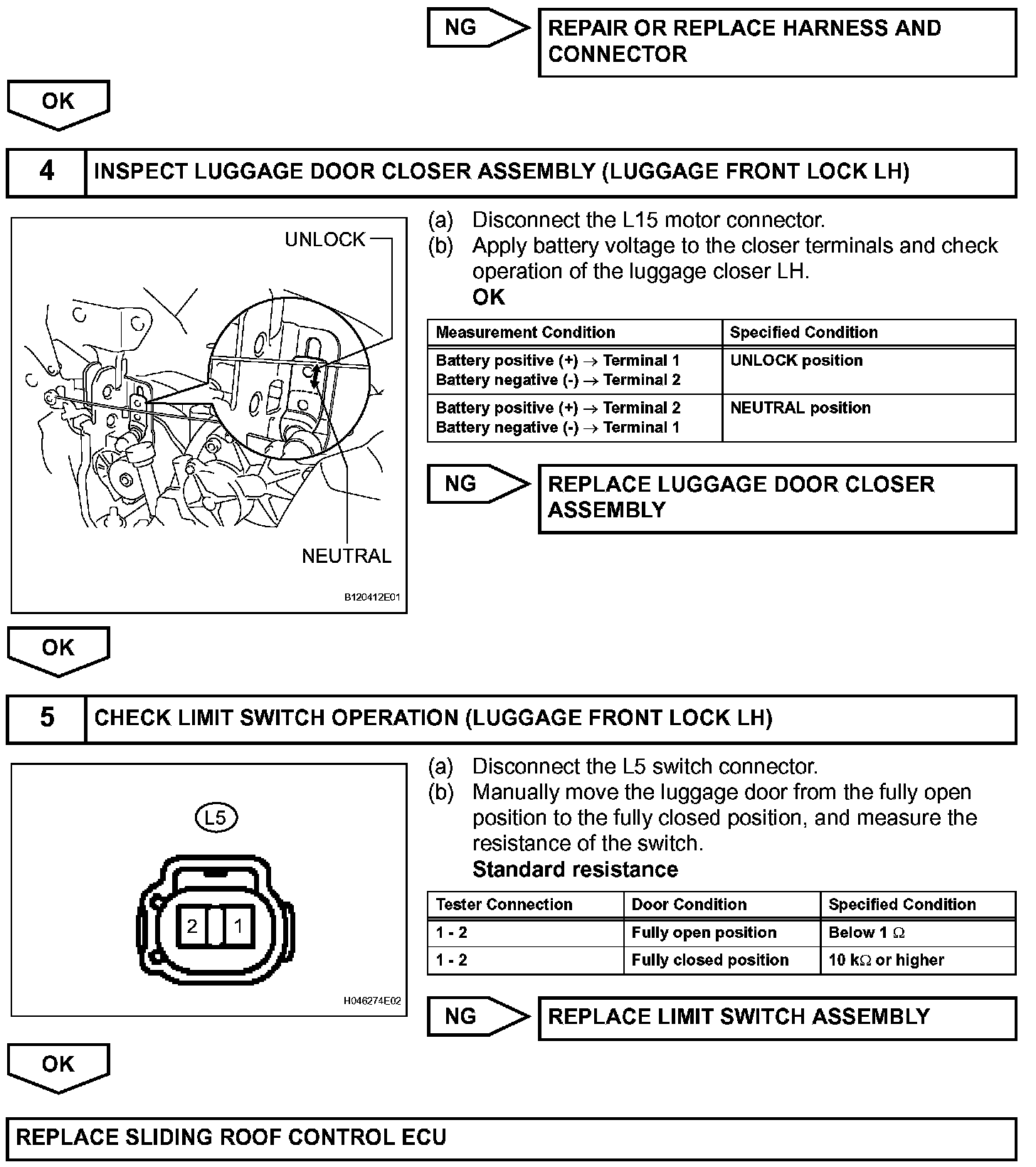

Step 3(Continued) - 5:
