B2527

DTC B2527 Roof Open Switch Malfunction

DESCRIPTION
The roof open switch is located at the locking position of the roof lock (Package tray bracket) when the roof panel is fully open.

The roof open switch detects if the roof panel is fully open or not.

The roof open switch is turned ON when the roof is fully closed and turned OFF when it is fully open.

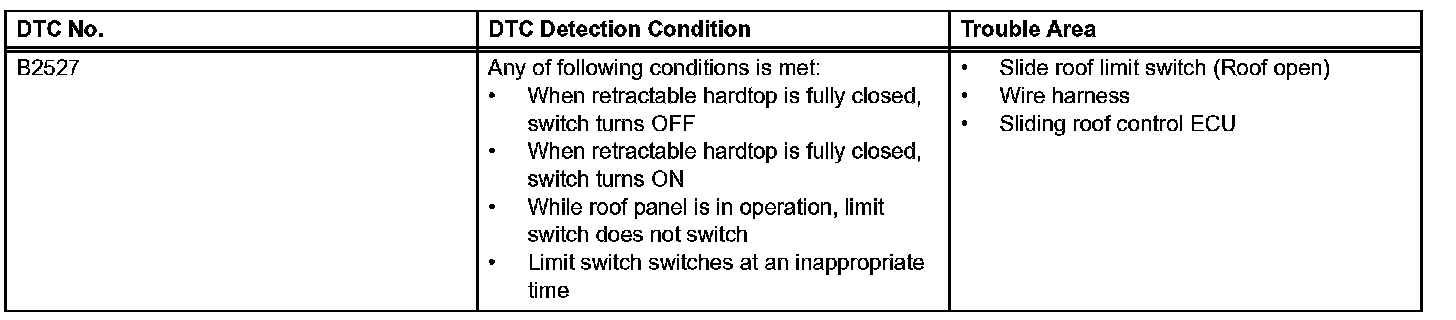

DTC Detection Condition:

WIRING DIAGRAM

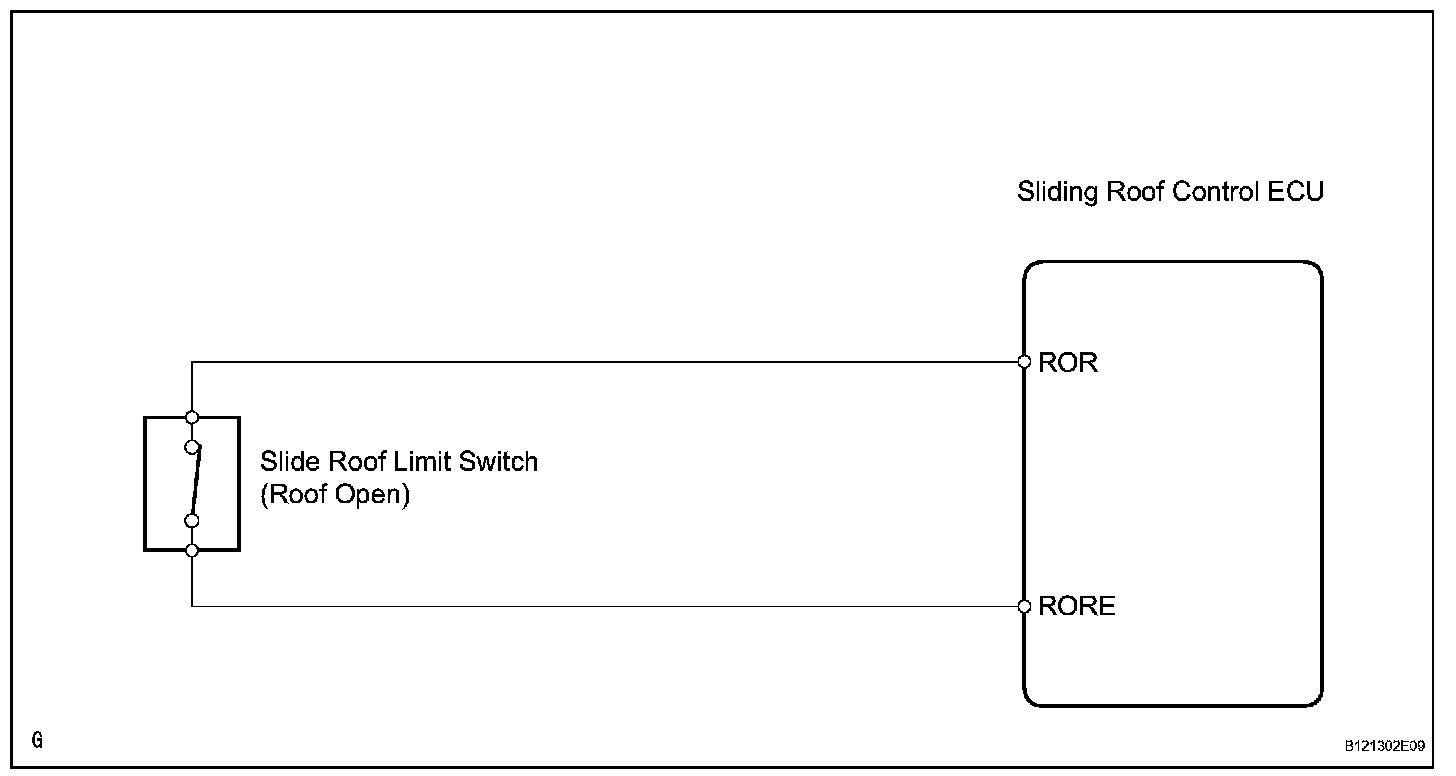

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.

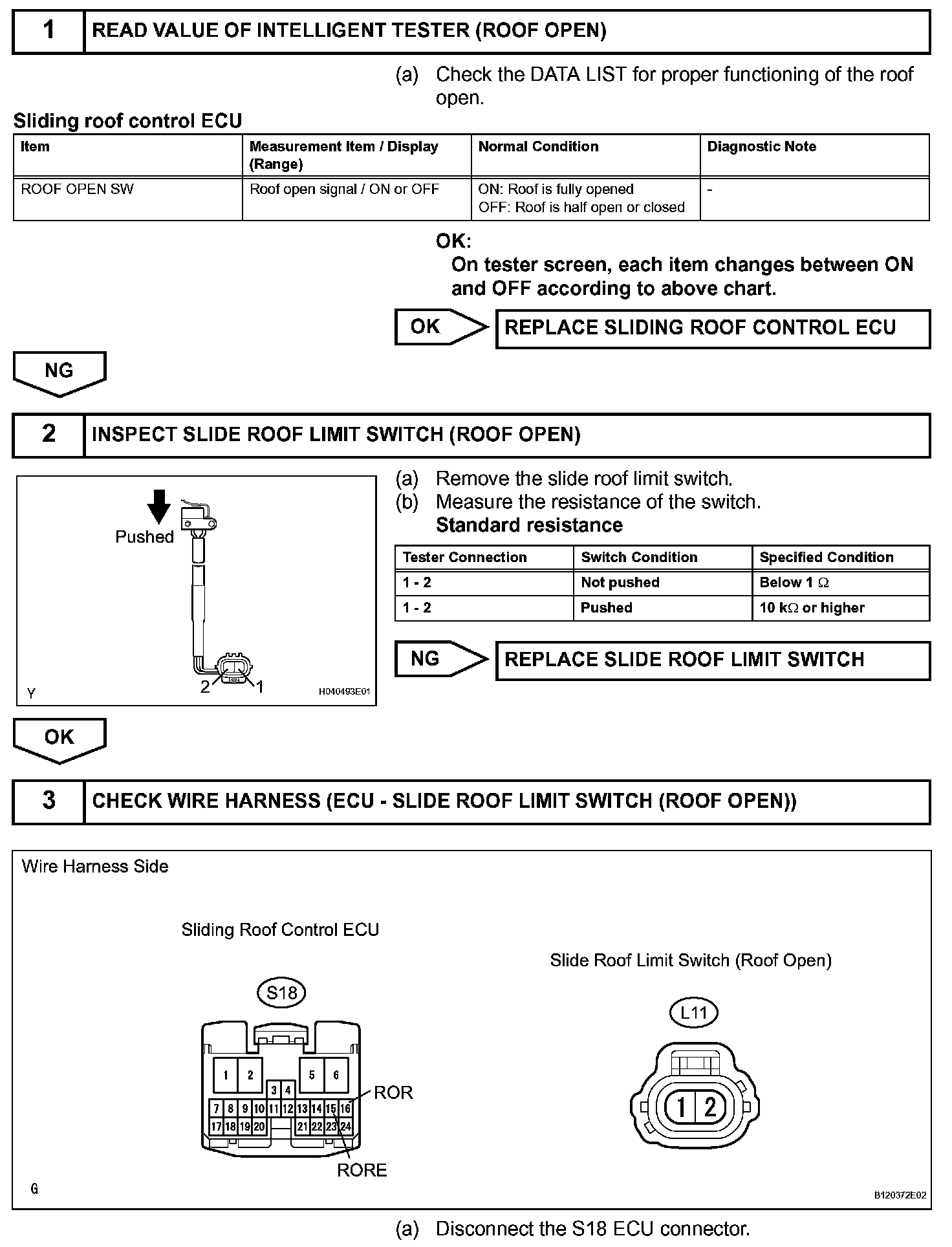

Step 1 - 3:

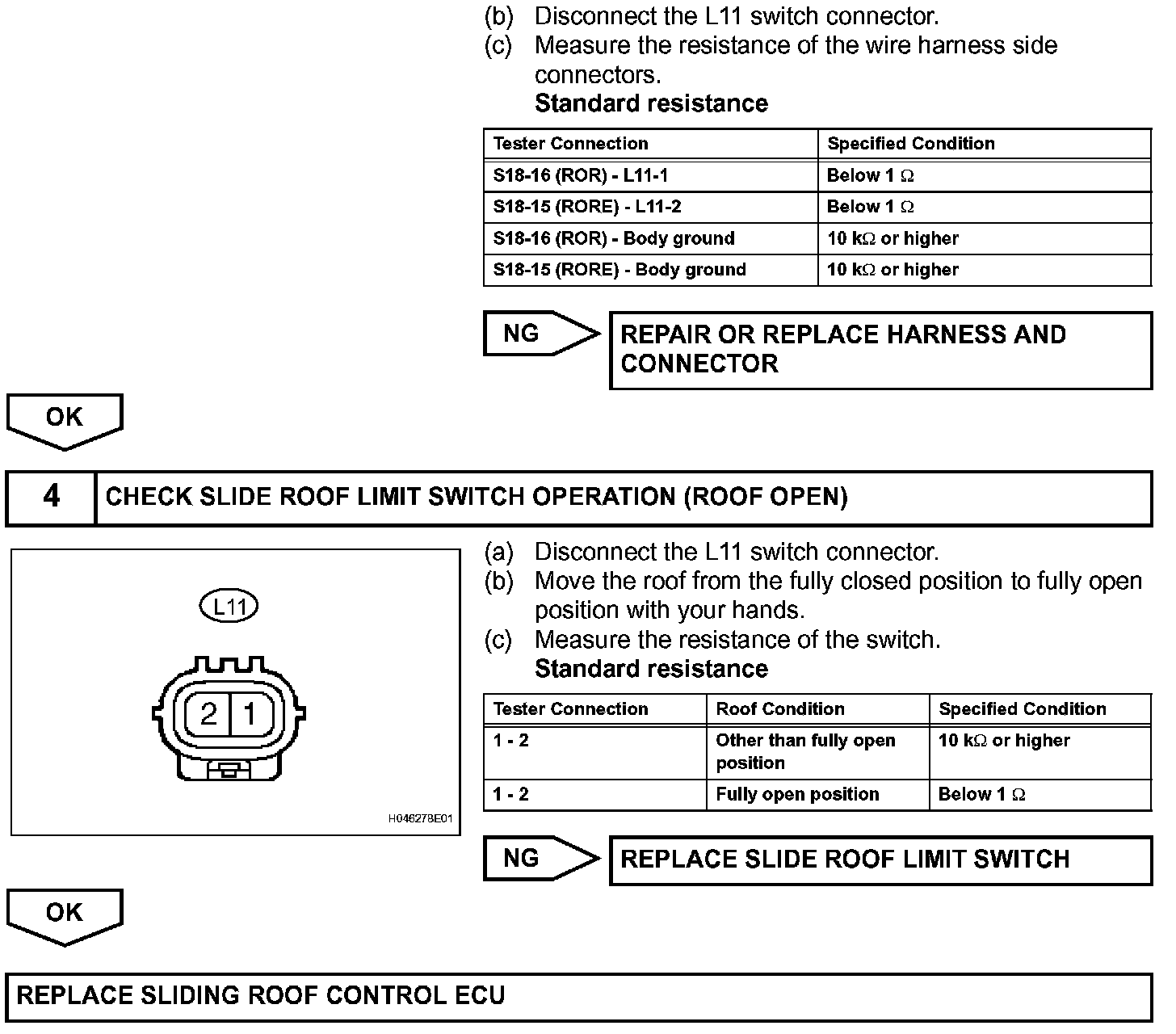

Step 3(Continued) - 4:
