B2526

DTC B2526 Roof Position Switch No. 1, No. 2 or No. 3 Mal-function

DESCRIPTION
This circuit indicates roof position switch No. 1, No. 2 or No. 3 depending on the position of the sliding roof.

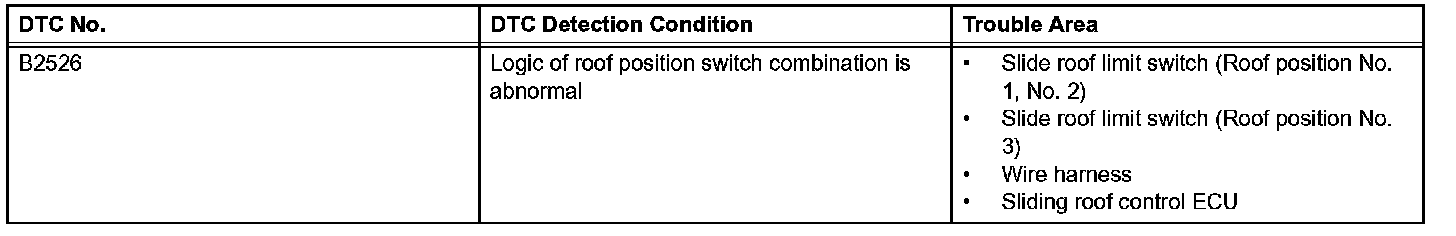

DTC Detection Condition:

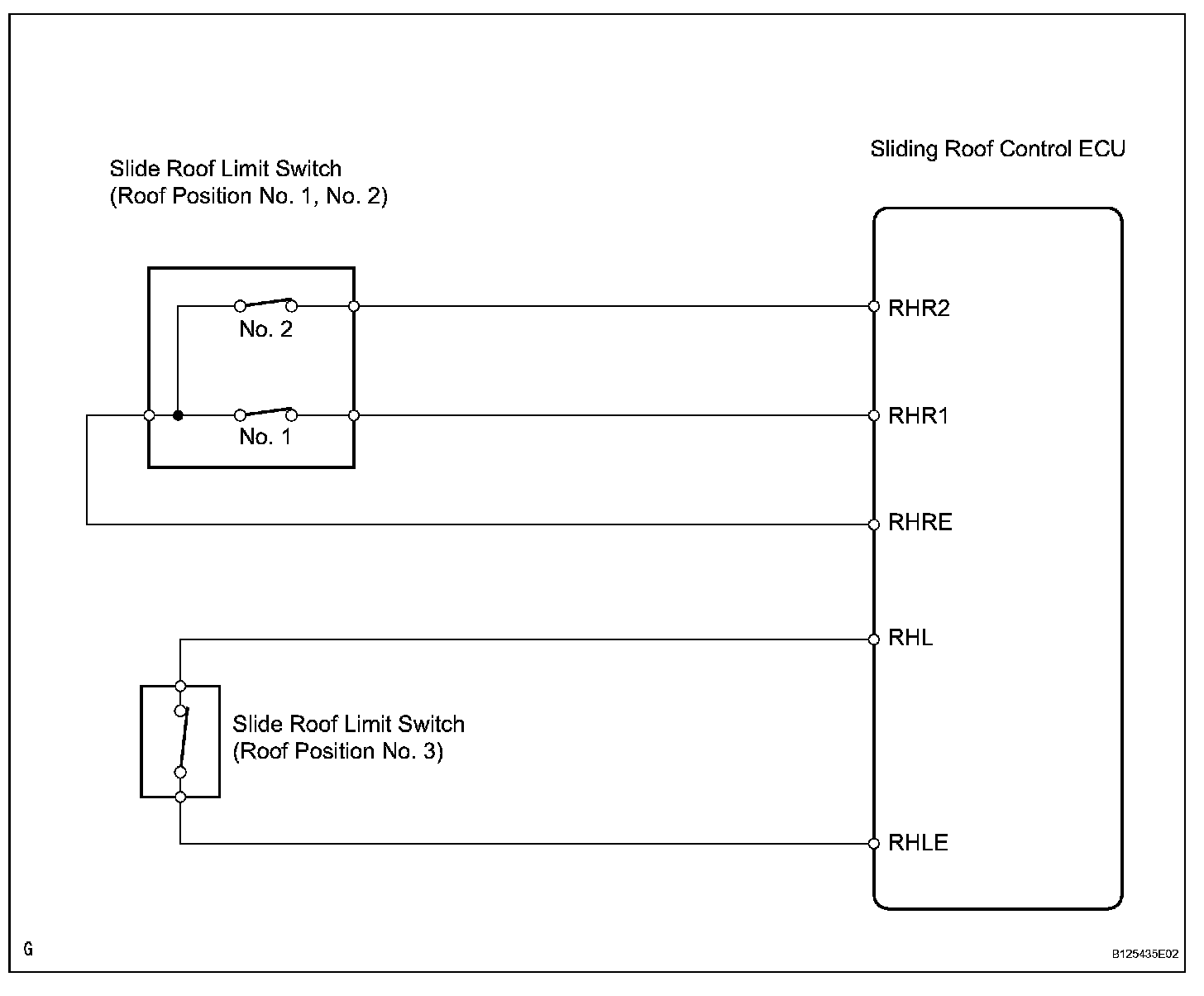

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

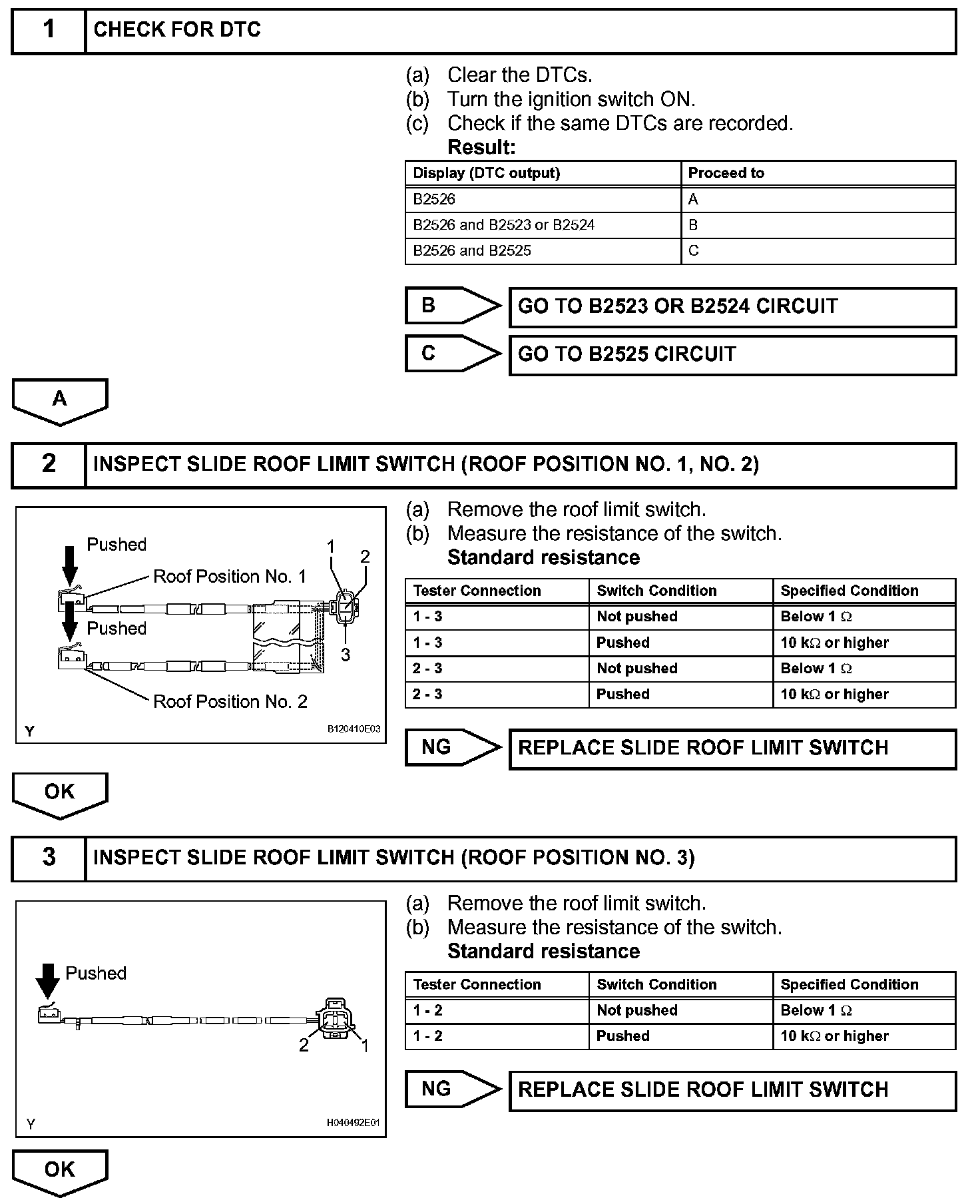

Step 1 - 3:

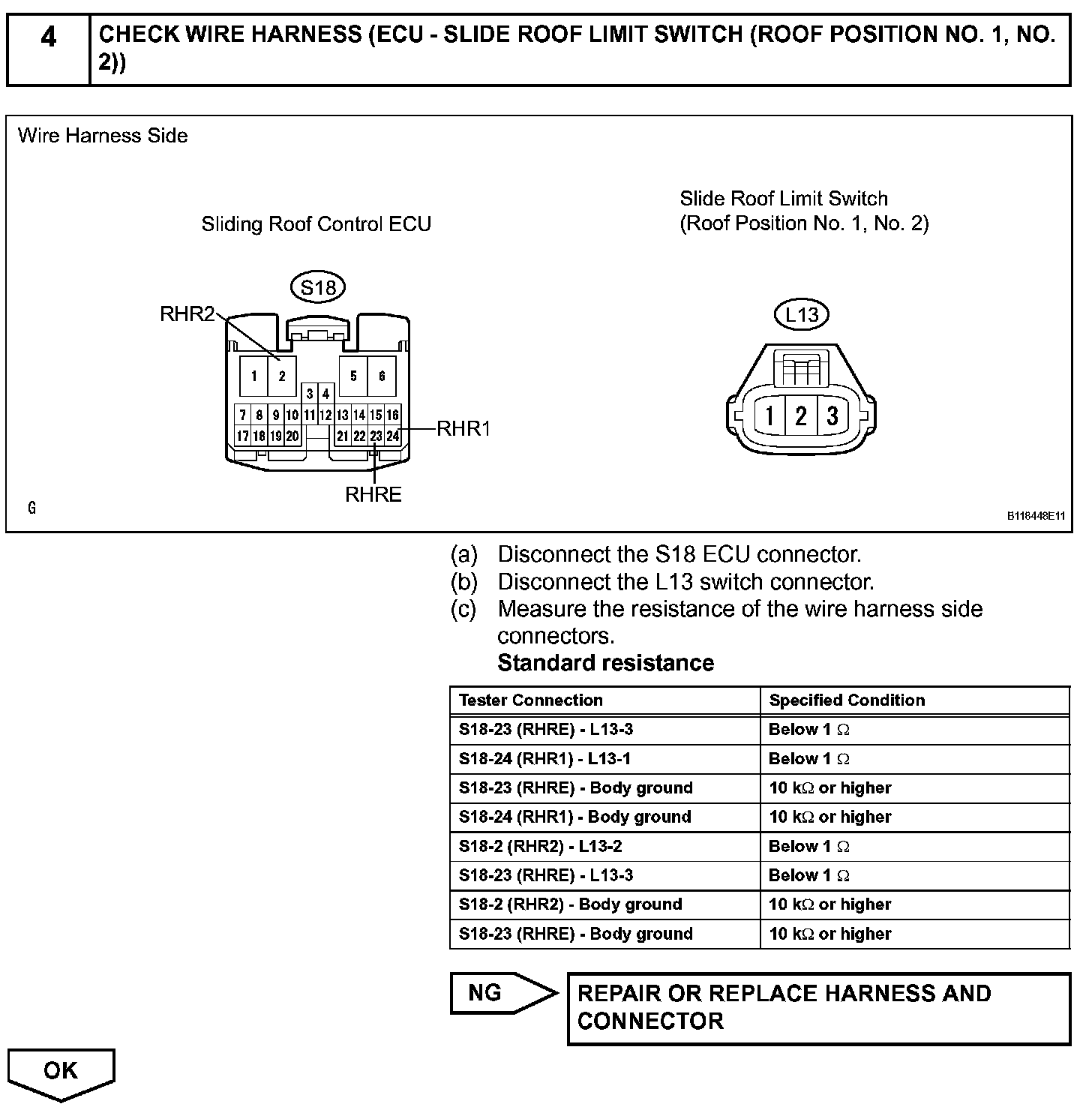

Step 4:

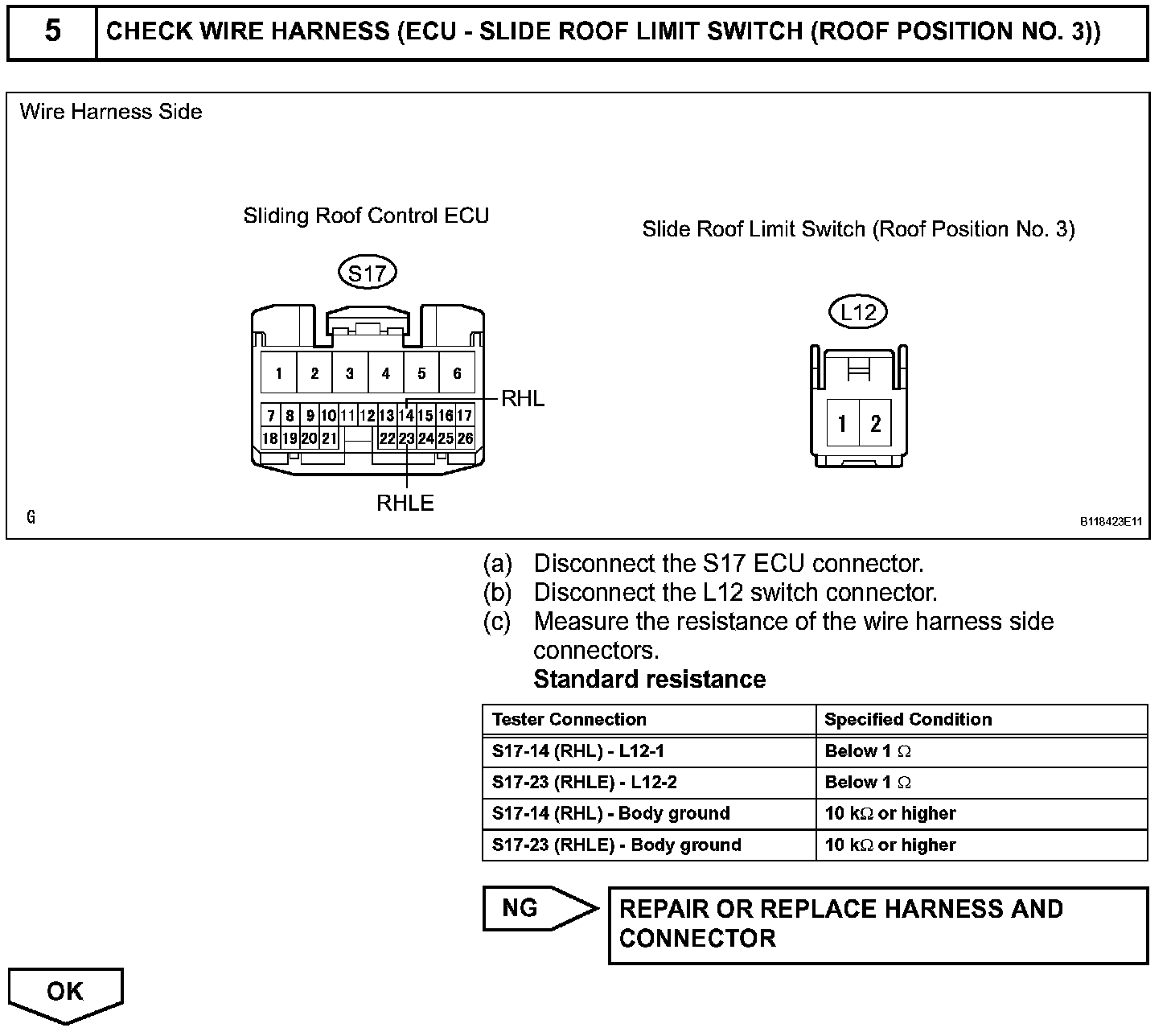

Step 5:

Step 6 - 7:

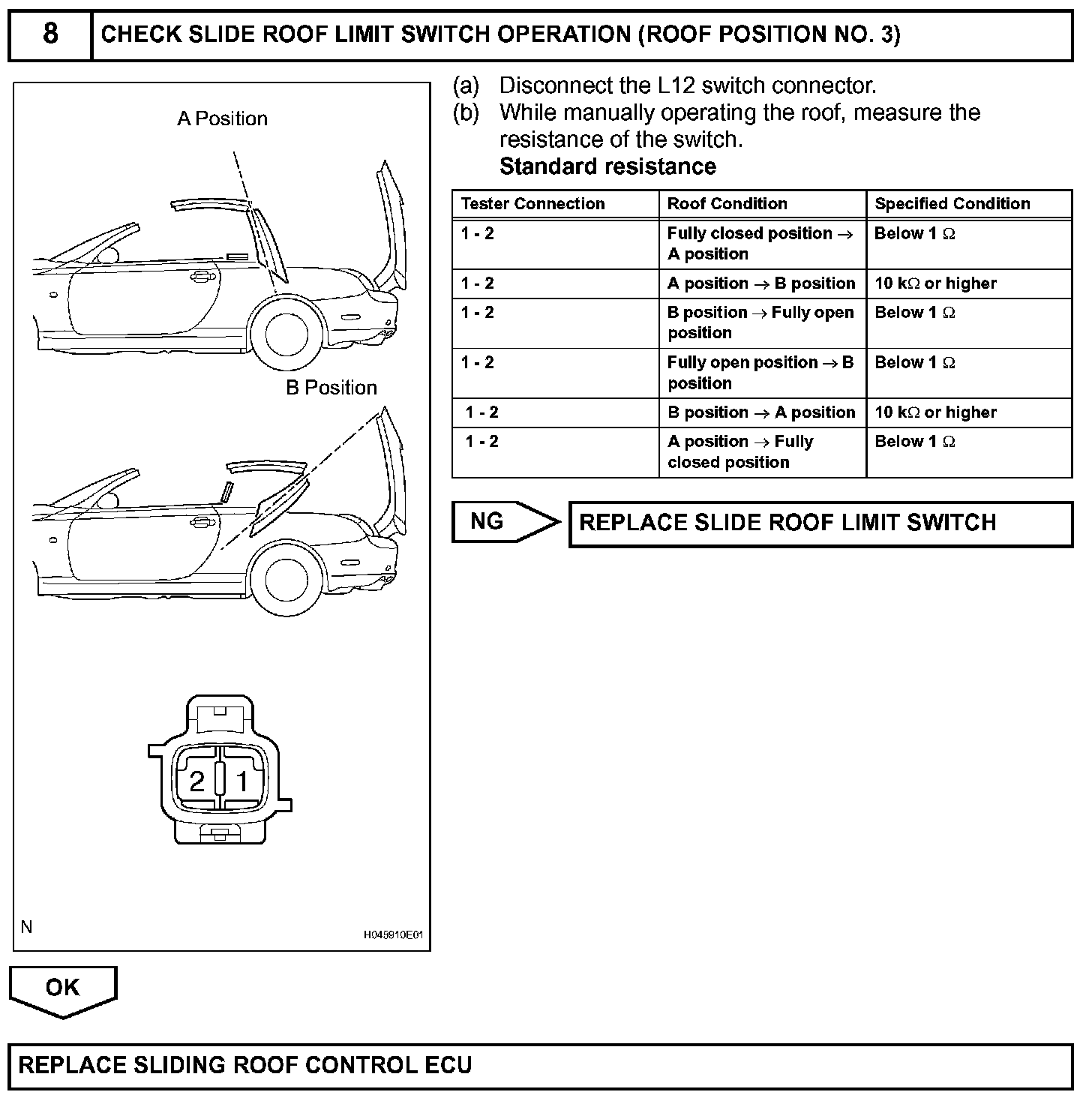

Step 8:
