B2525

DTC B2525 Roof Position Switch No. 3 Malfunction

DESCRIPTION
The roof position switch is located at the bottom of the roof link.

The roof position switch detects if the roof panel position (Position 3).

The roof position switch is turned ON when the roof is fully closed or fully open.

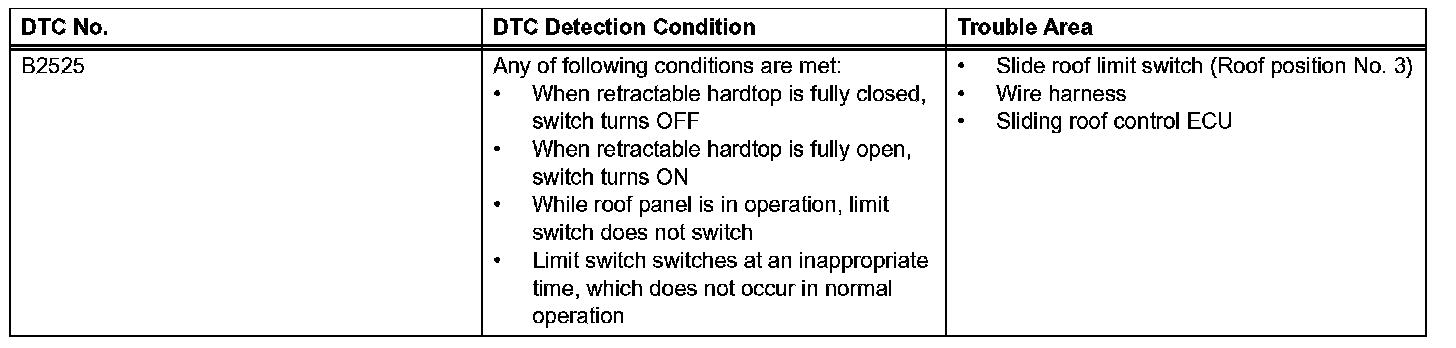

DTC Detection Condition:

WIRING DIAGRAM

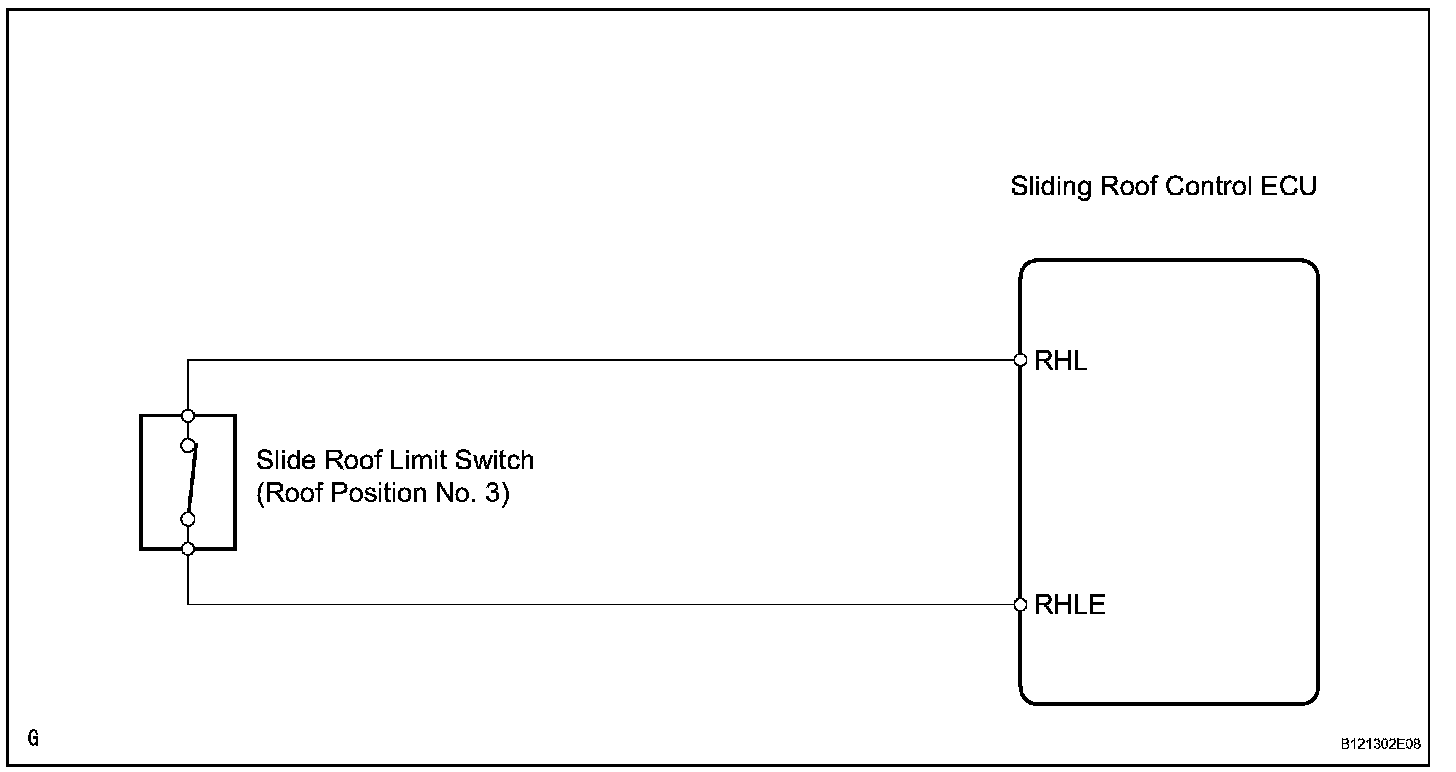

Wiring Diagram:

INSPECTION PROCEDURE

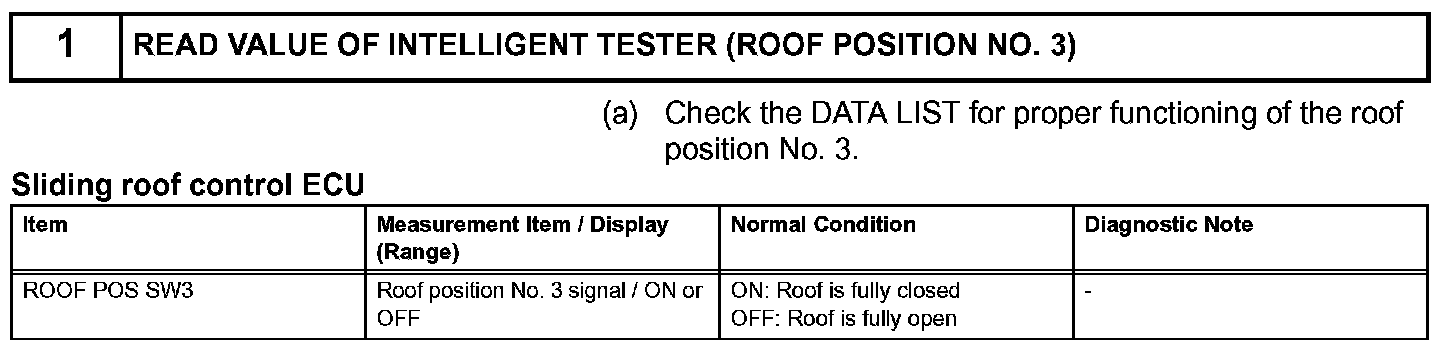

Step 1:

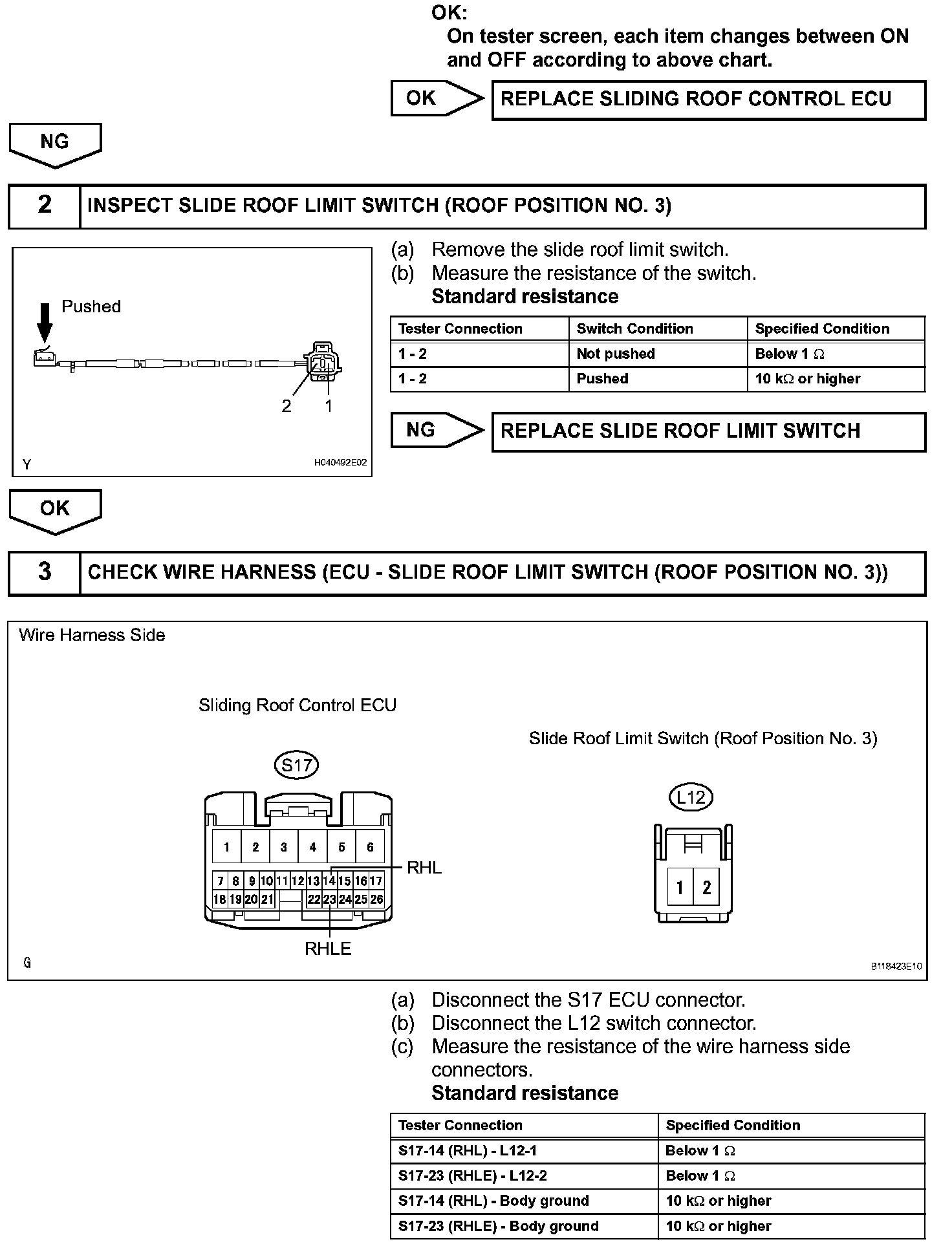

Step 1(Continued) - 3:

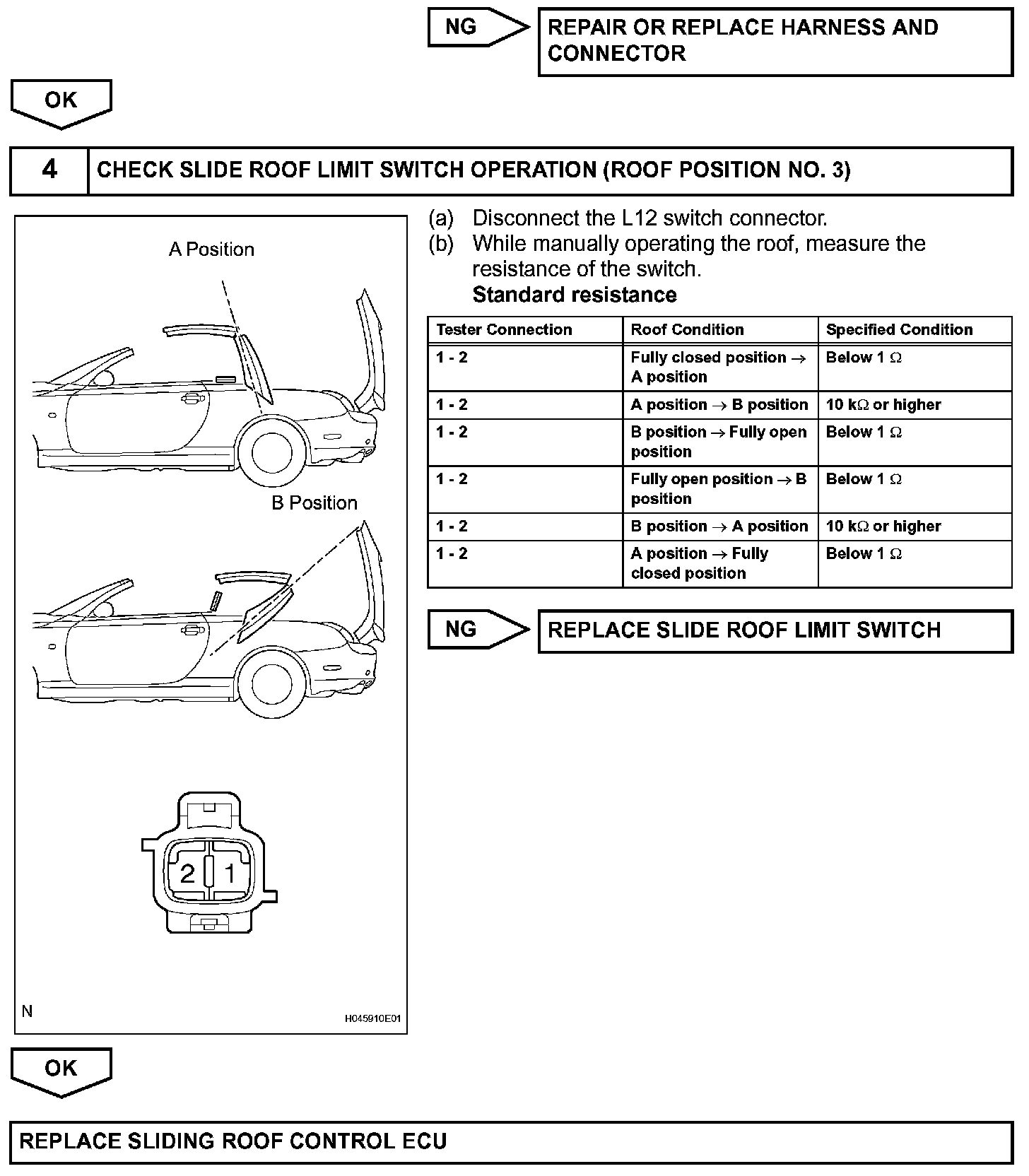

Step 3(Continued) - 4:
