B2521

DTC B2521 Roof Close Switch RH Malfunction

DESCRIPTION
The roof close switch is located at the inserting hole of the pillar guide pin.

The roof close switch detects if the roof panel is fully closed or not.

The roof close switch is turned ON when the roof is fully closed and turned OFF when it is fully open.

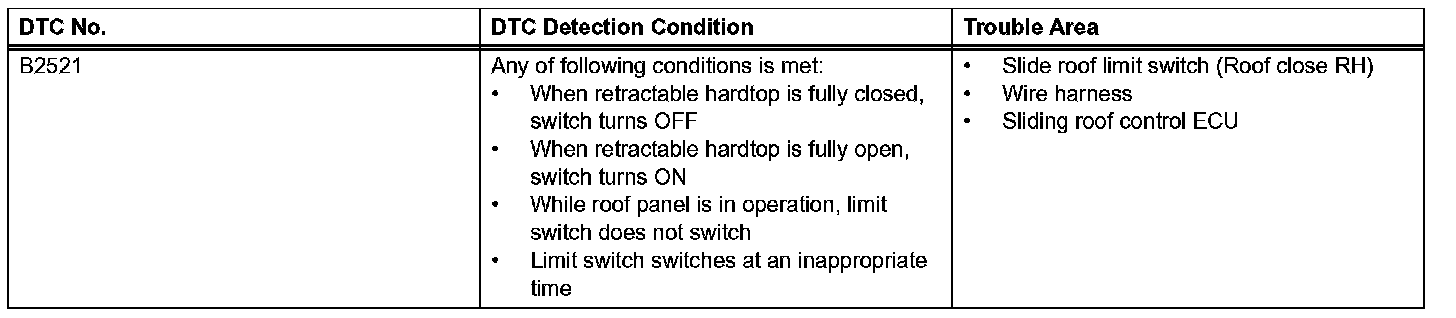

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.

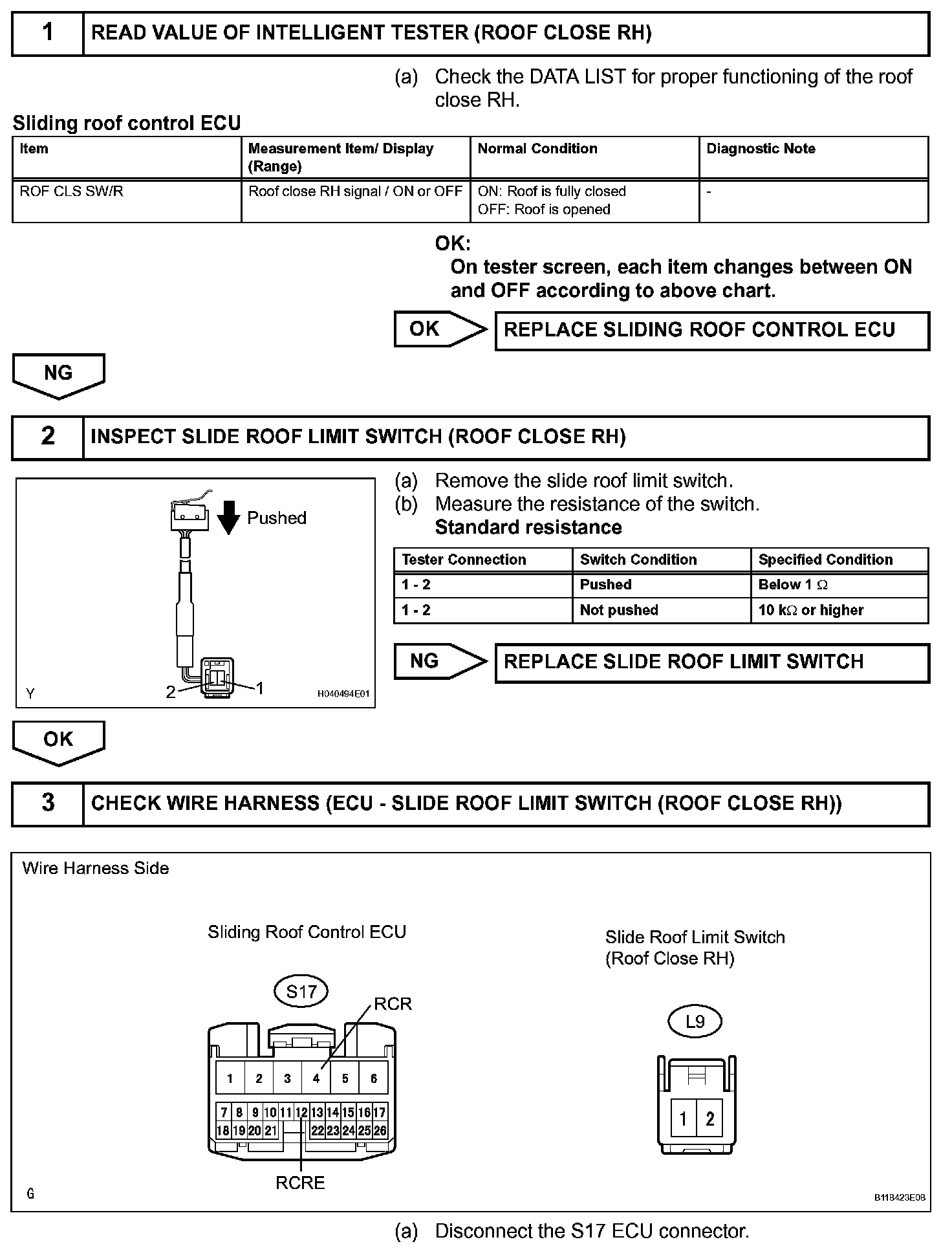

Step 1 - 3:

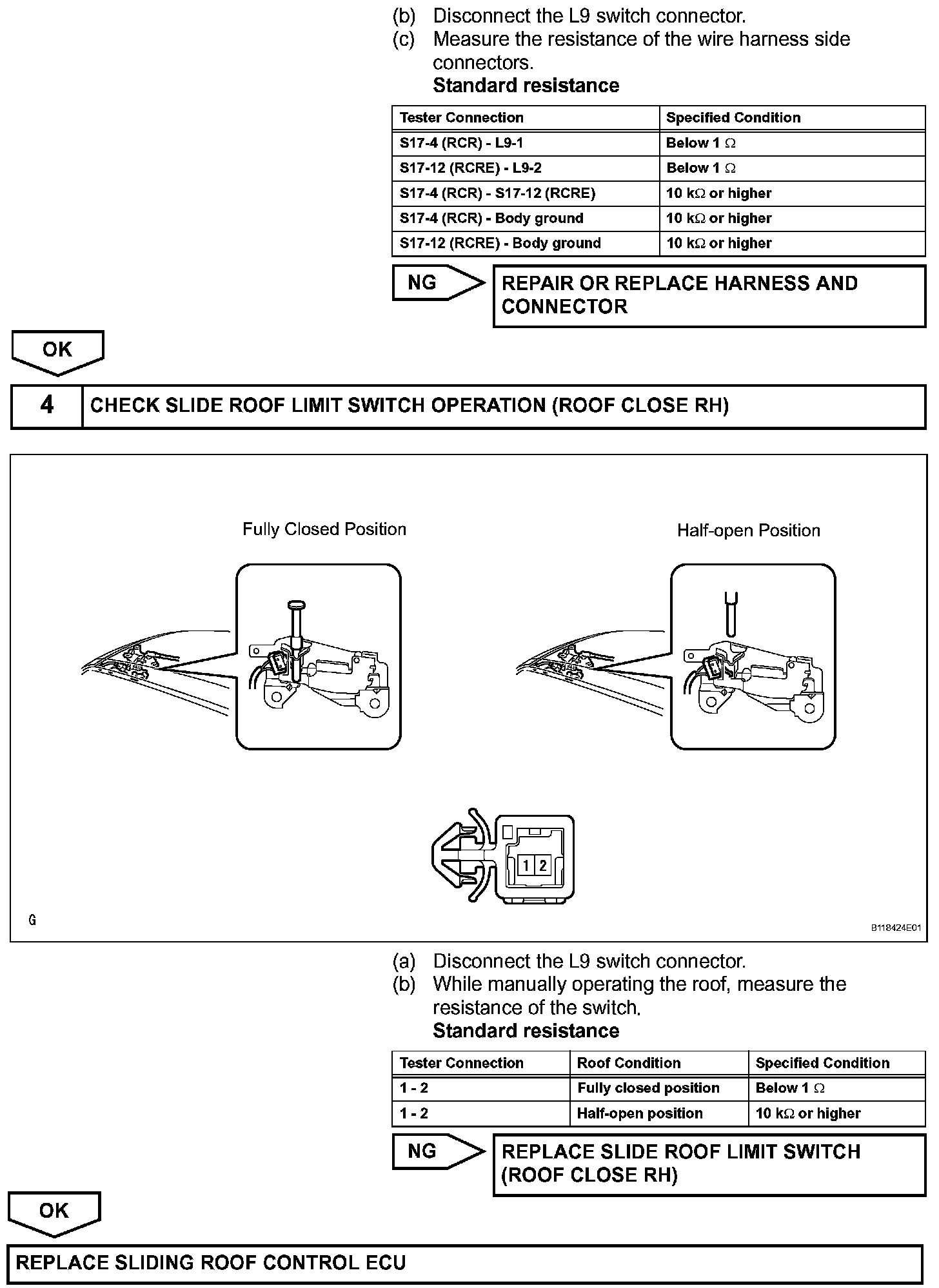

Step 3(Continued) - 4:
