DTC B2520 Roof Lock Switch Malfunction

DESCRIPTION
The roof lock switch is located at the roof lock portion of the roof panel front edge.

The roof lock switch detects the lock/unlock condition of the roof header lock when the roof panel is fully closed and the lock/unlock condition of the roof holding when the roof panel is fully open.

The roof lock switch is turned ON when the roof lock is locked and turned OFF when it is unlocked.

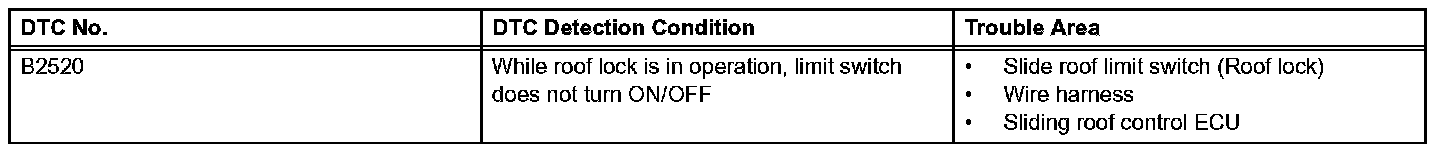

DTC Detection Condition:

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

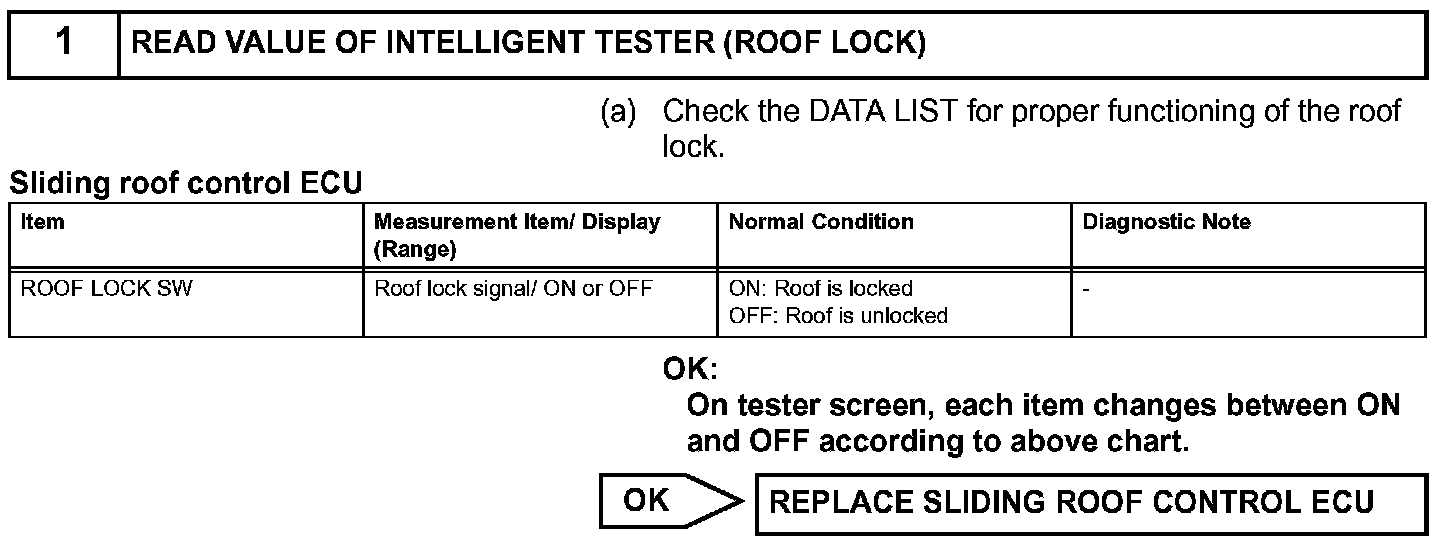

Step 1:

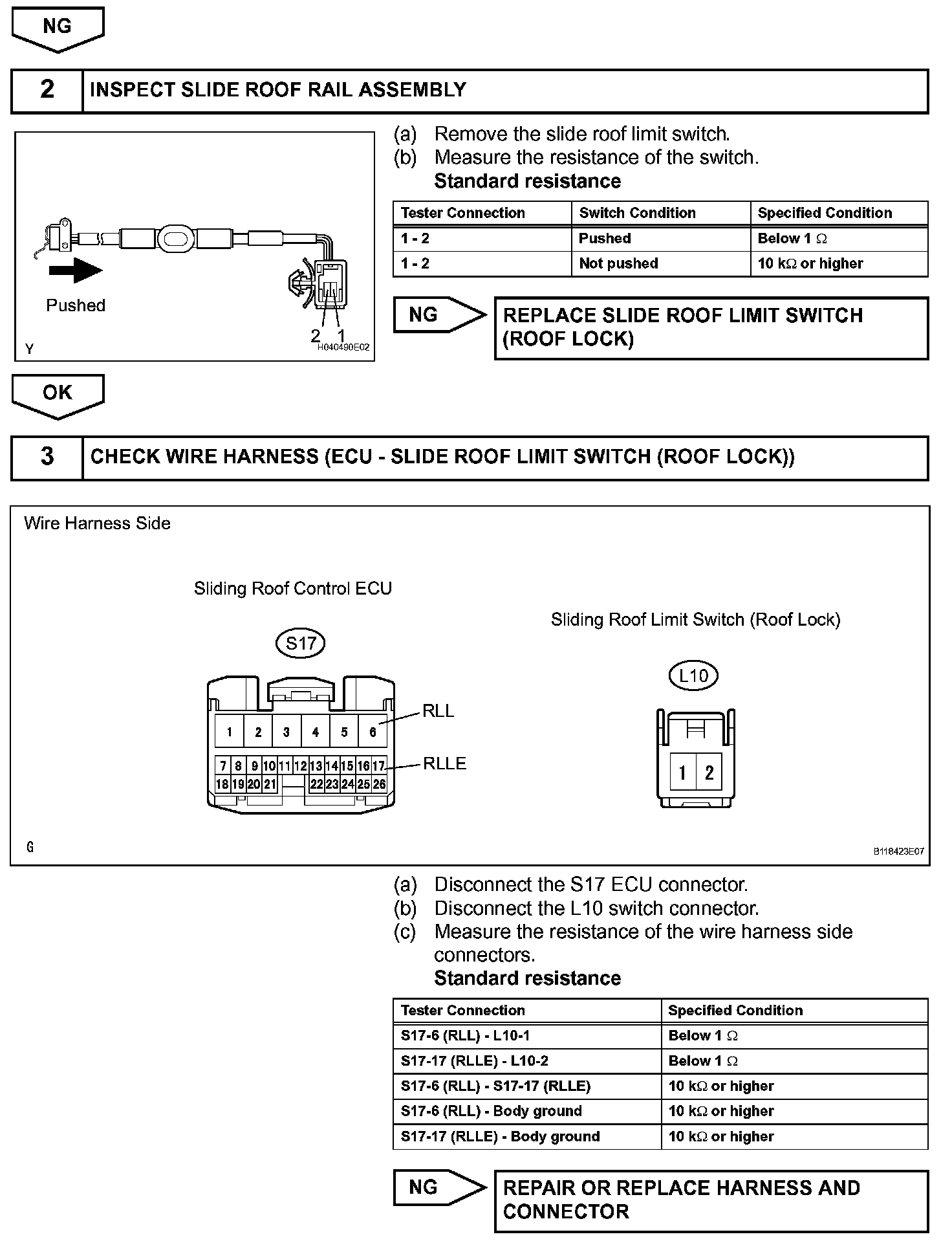

Step 2 - 3:

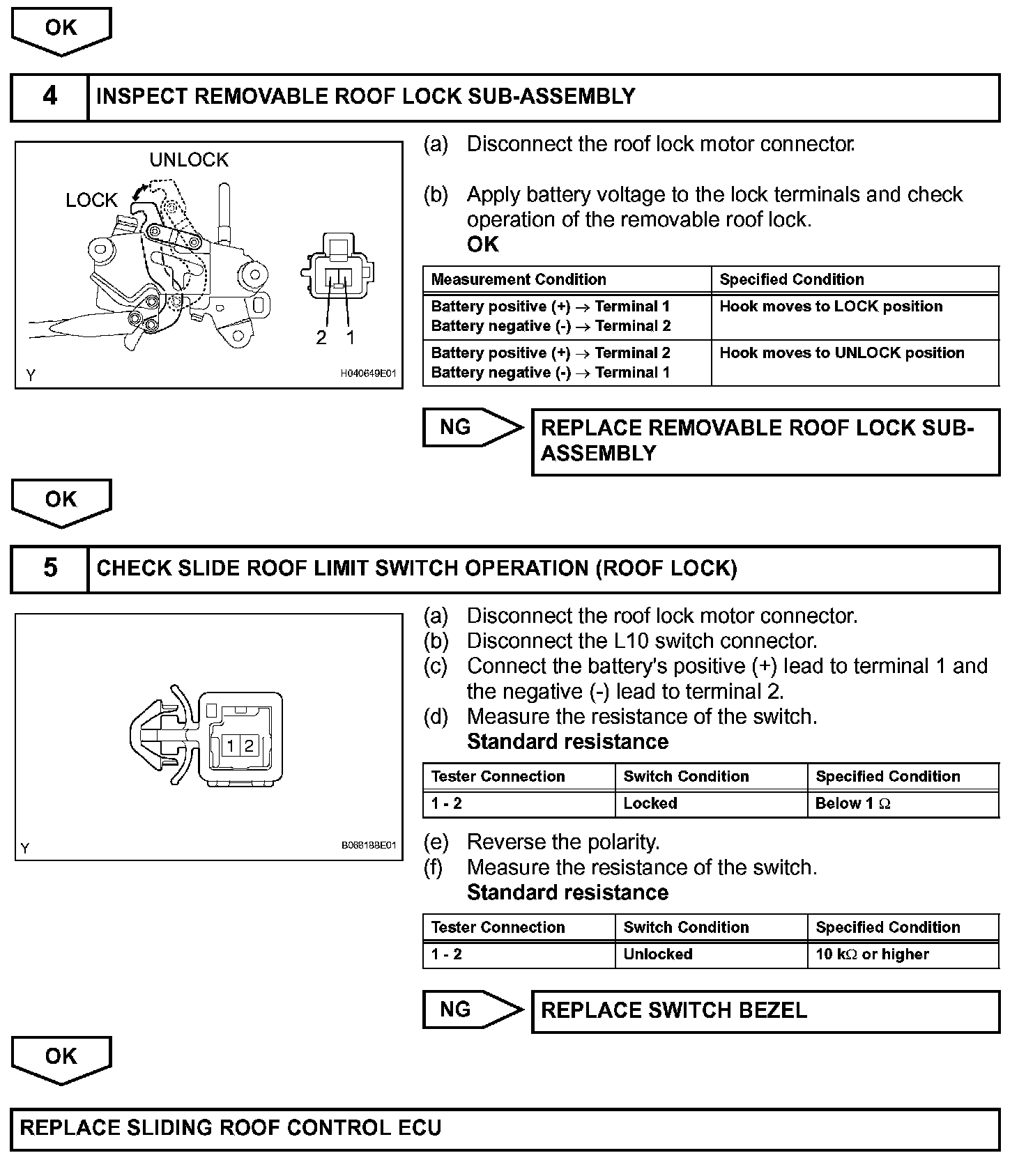

Step 4 - 5:
