B2517

DTC B2517 Open In Quarter Window Motor LH Circuit

DESCRIPTION
By operating the quarter window motor, the quarter window can be lowered or raised.

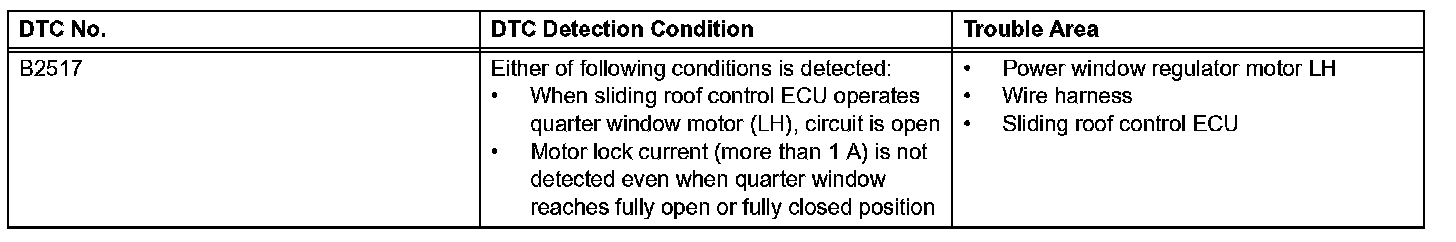

DTC Detection Condition:

WIRING DIAGRAM

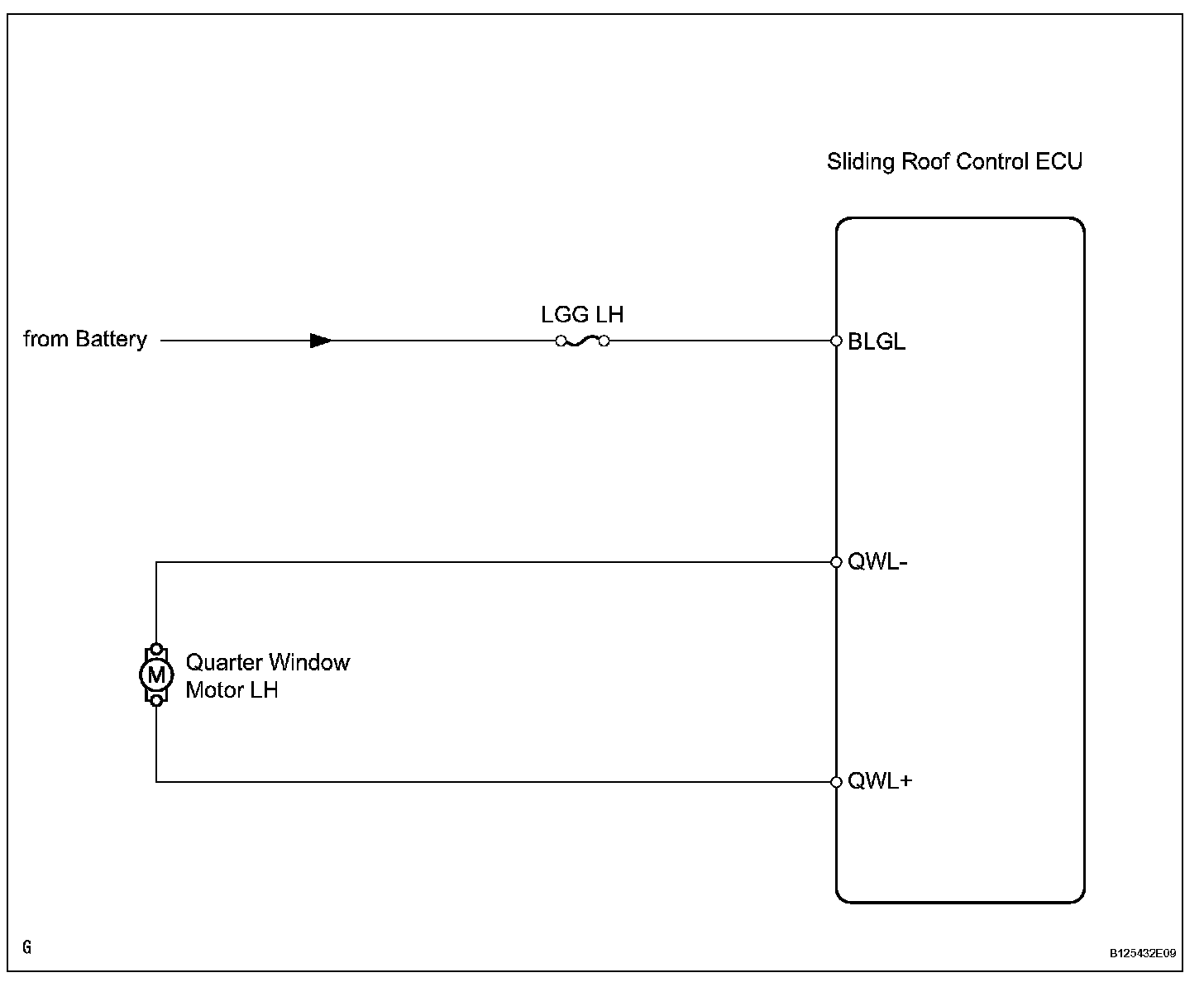

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.

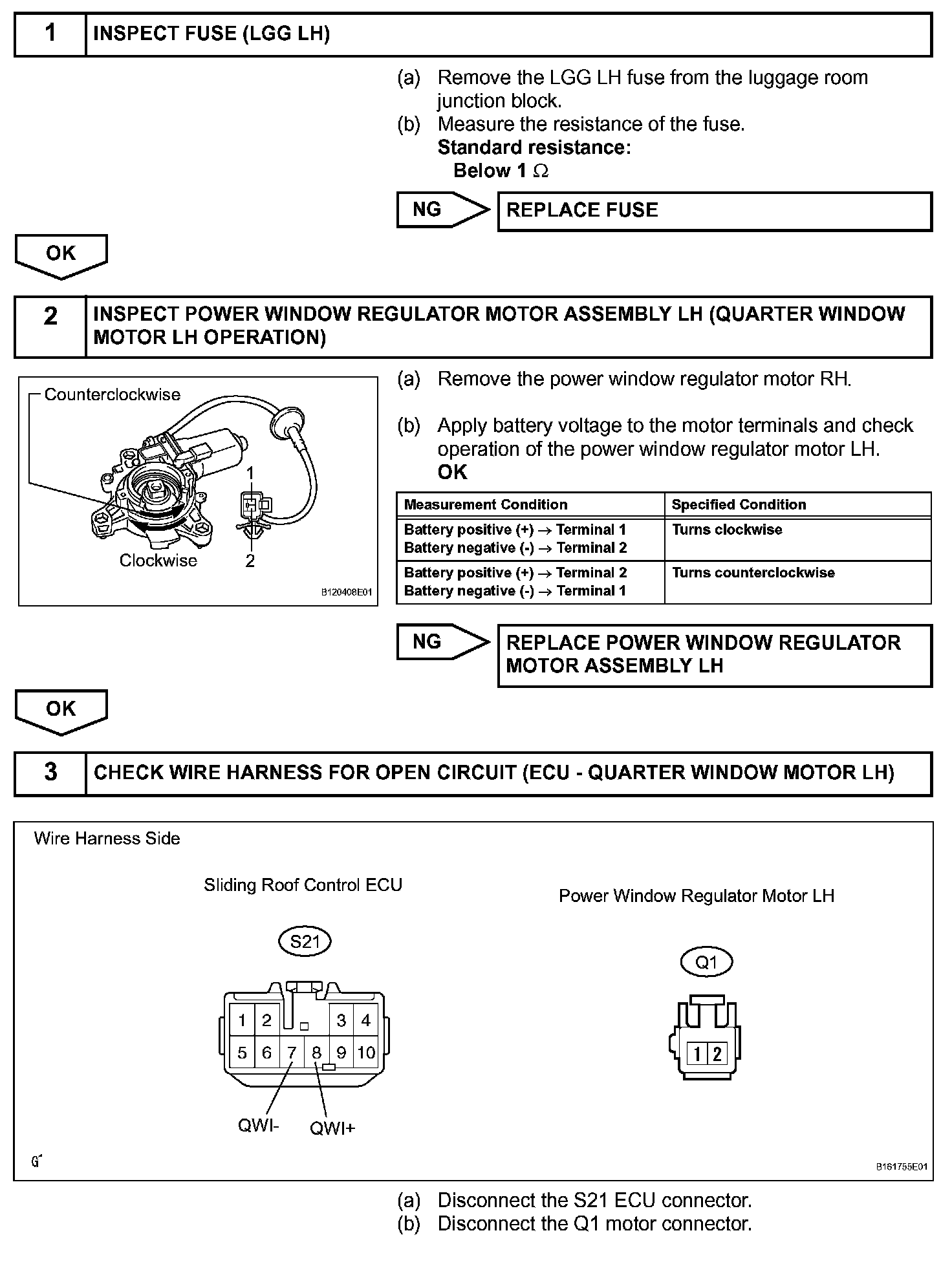

Step 1 - 3:

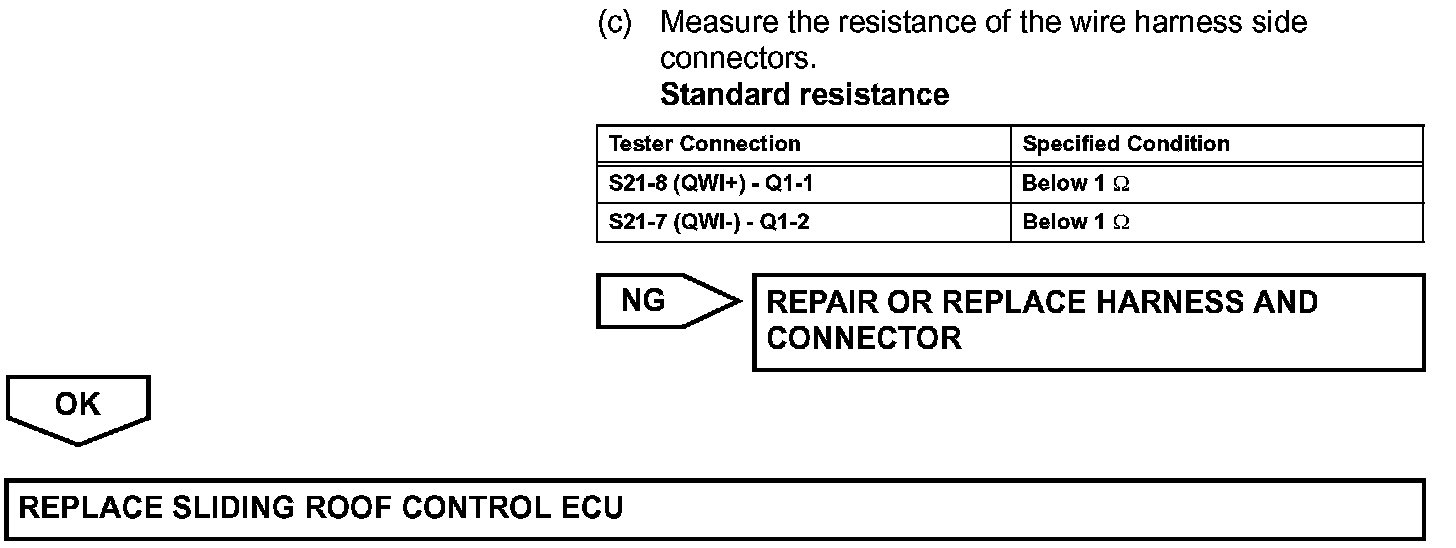

Step 3(Continued):
