DTC B2511 Open In Roof Lock Motor Circuit

DESCRIPTION
By operating the roof lock motor, the header lock function can be locked or unlocked when the roof panel is fully closed; and also the roof retaining function can be locked or unlocked when the roof panel is fully opened.

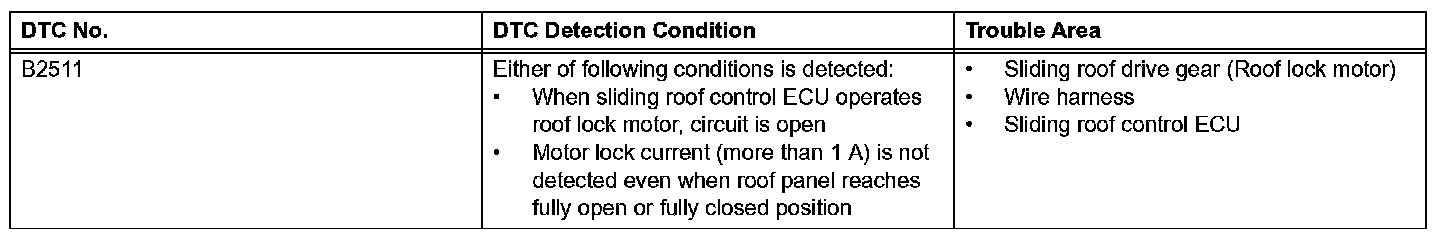

DTC Detection Condition:

WIRING DIAGRAM

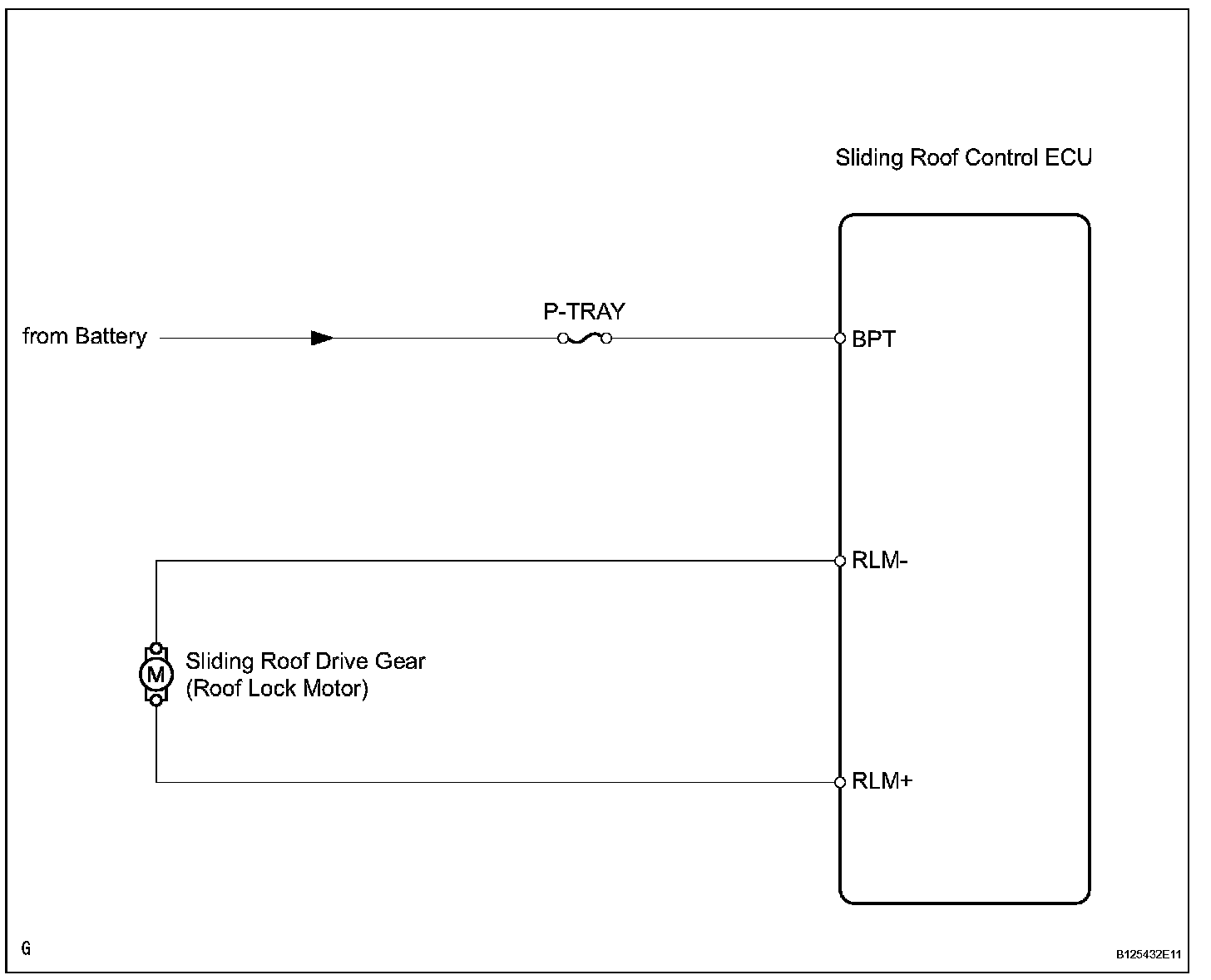

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.

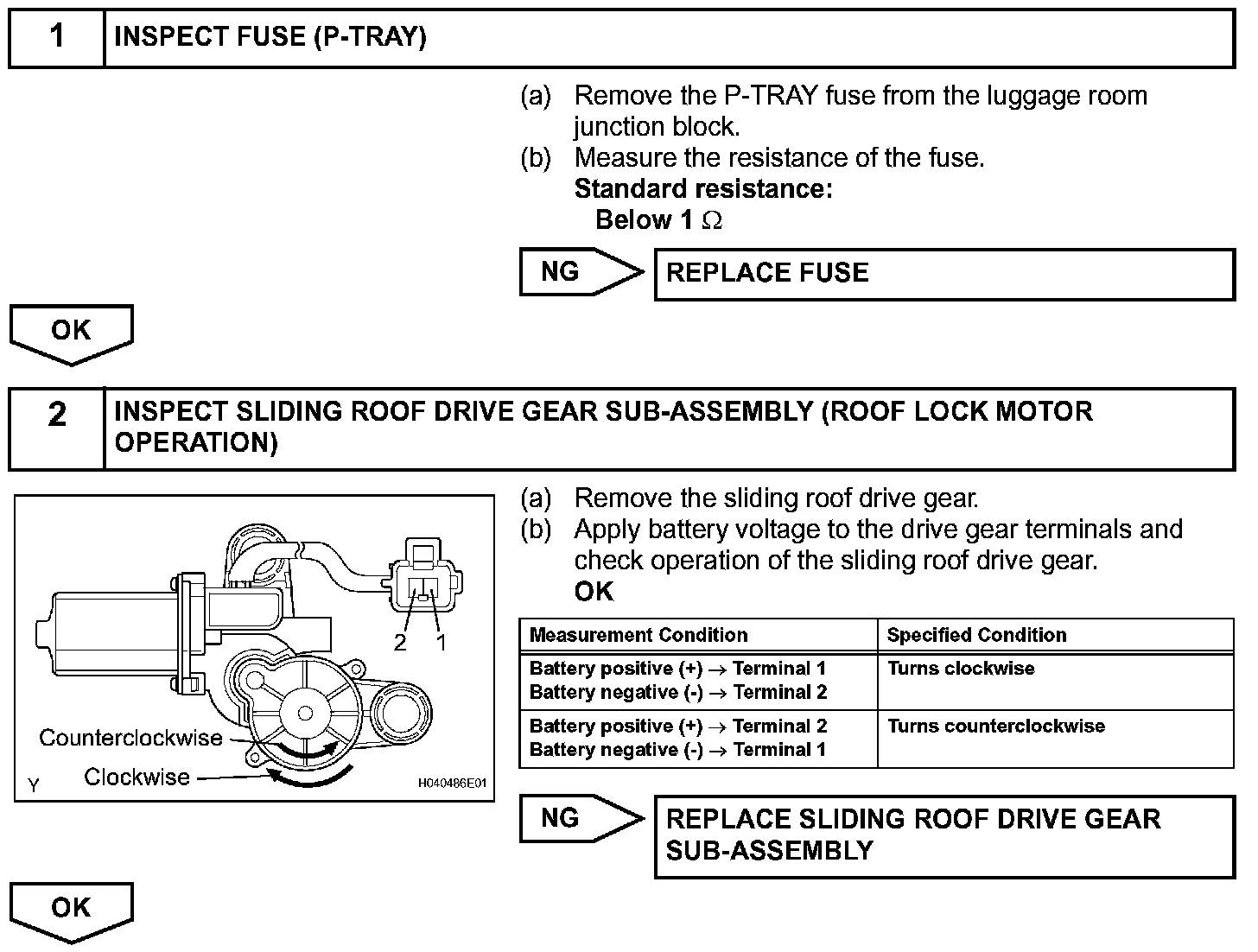

Step 1 - 2:

Step 3:
