B2509

DTC B2509 Short In Pulse Width Modulation Motor RH Circuit

DESCRIPTION
The pulse width modulation motor circuit includes the roof drive motor, luggage door drive motor and luggage closer motor.

The sliding roof control ECU drives these motors using this same circuit.

DTC Detection Condition:

WIRING DIAGRAM

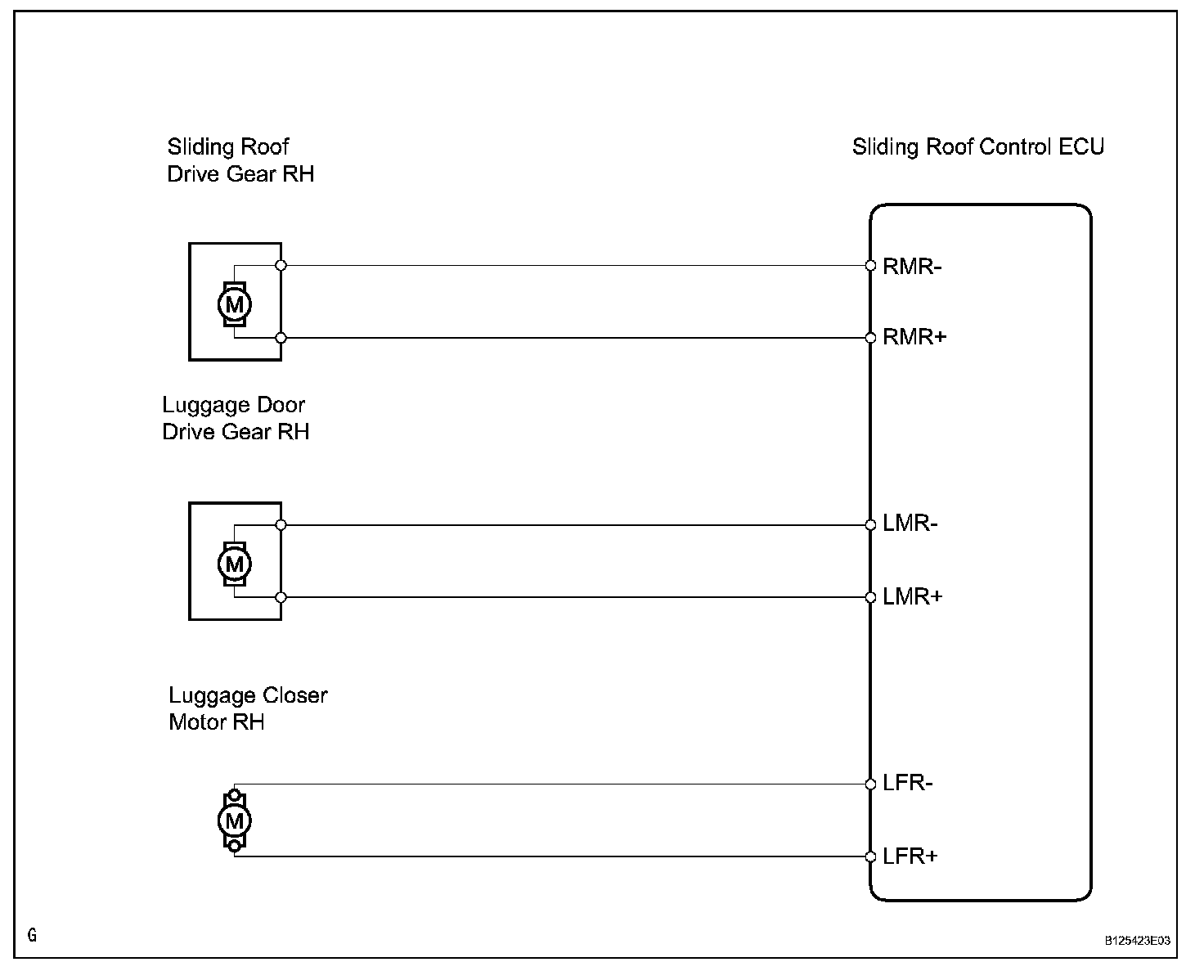

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 3:

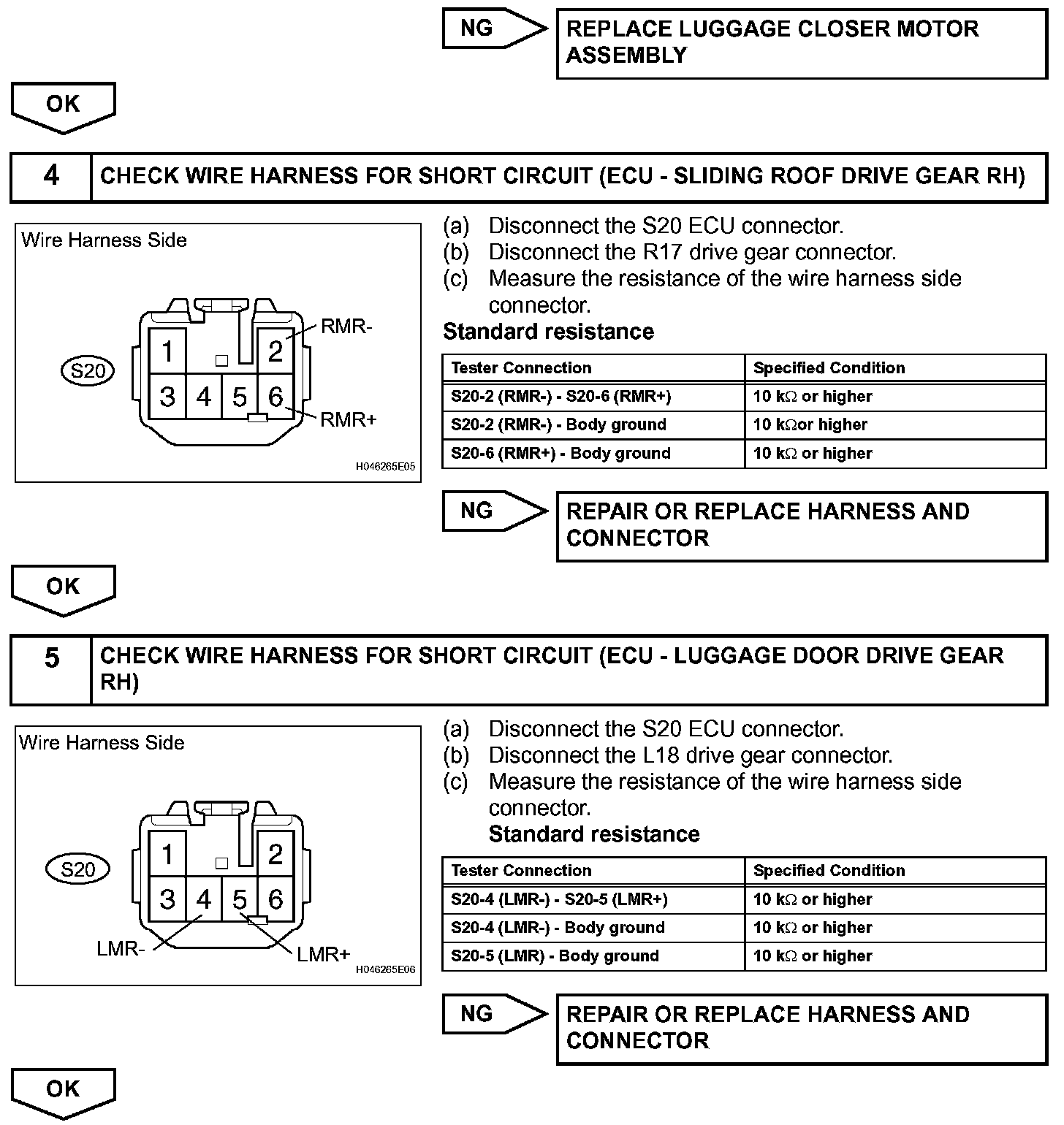

Step 3(Continued) - 5:

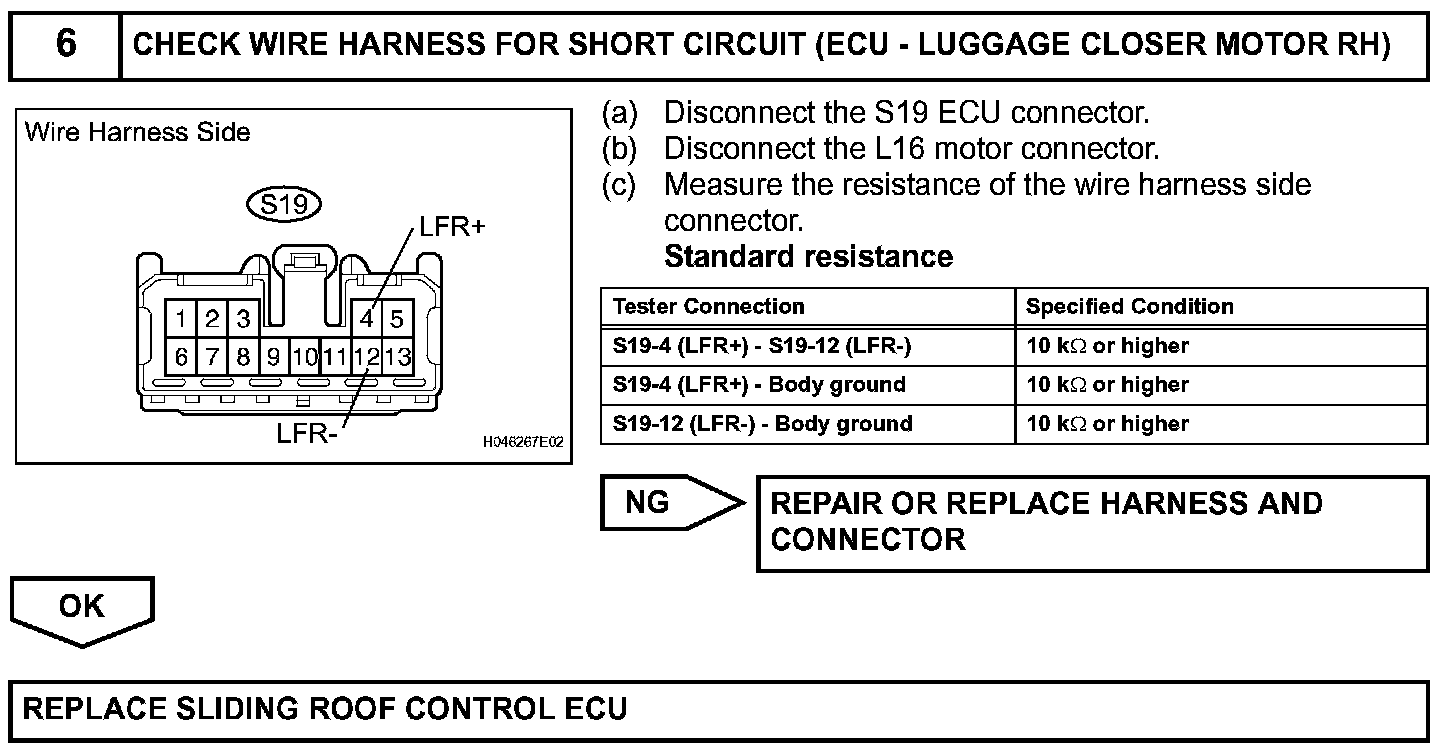

Step 6:
