B2505

DTC B2505 Short In Luggage Door Drive Motor RH Circuit

DESCRIPTION
With the roof control switch being pressed, the sliding roof control ECU operates the roof panel, luggage door and package tray (in that order).

The ECU operates the luggage door while adjusting the speed of the left and right motors.

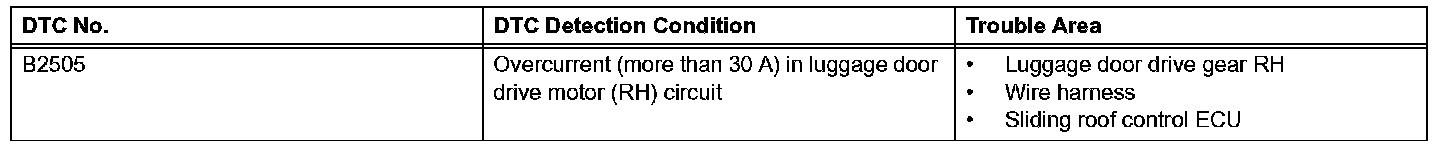

DTC Detection Condition:

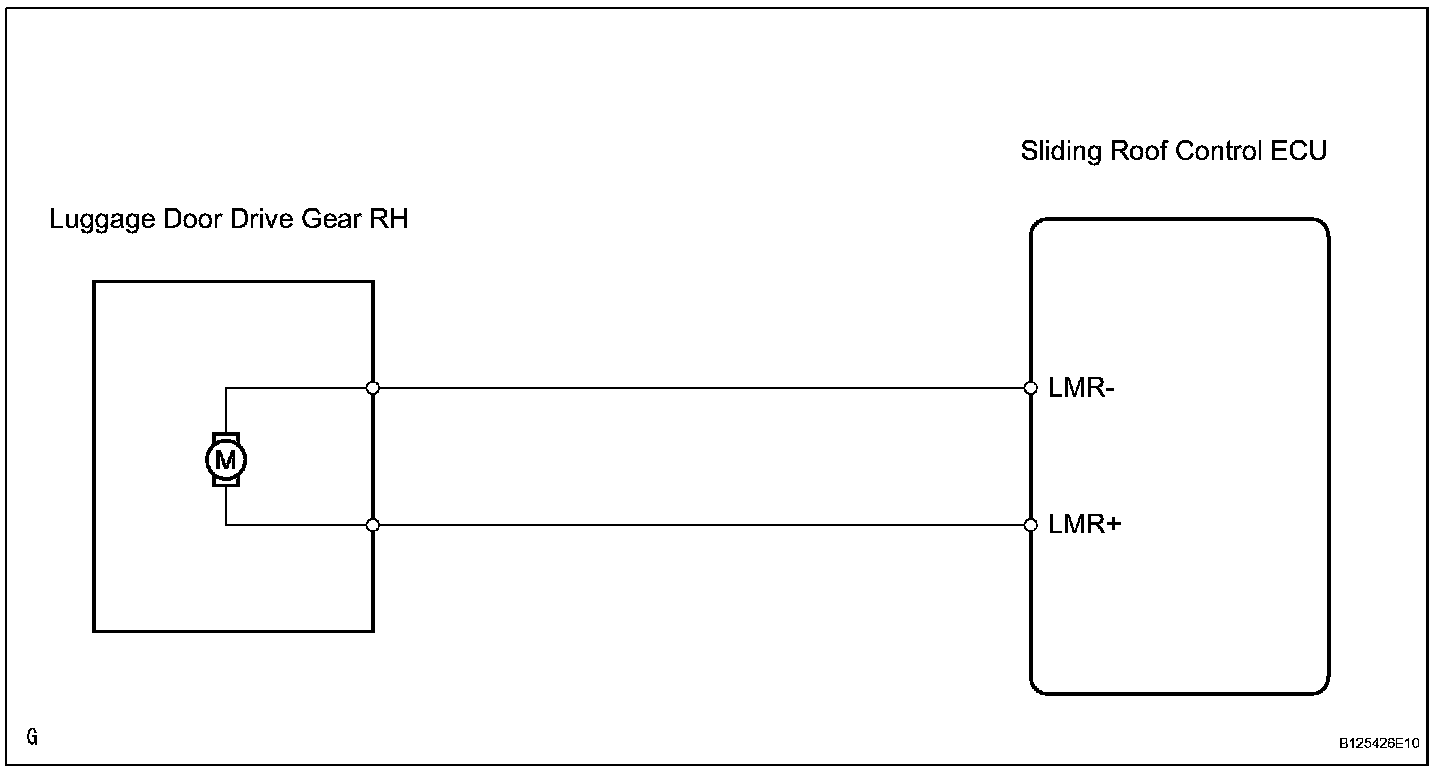

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

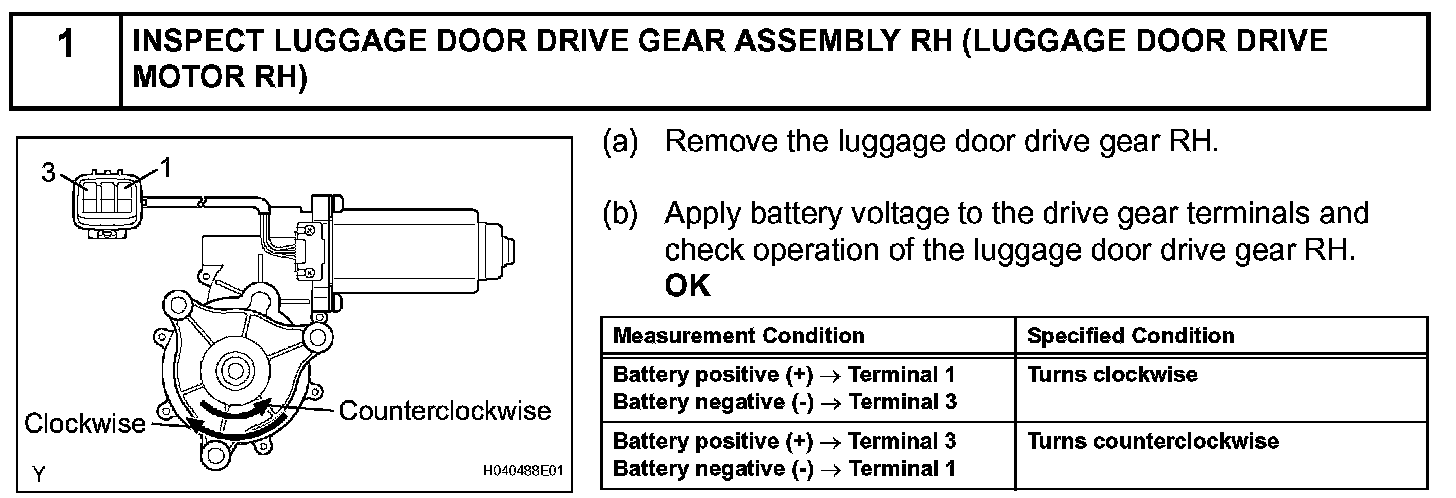

Step 1:

Step 1(Continued) - 2:
