B2503

DTC B2503 Short In Roof Drive Motor LH Circuit

DESCRIPTION
With the roof control switch being pressed, the sliding roof control ECU operates the roof panel, luggage door and package tray (in that order).

The ECU operates the roof panel while adjusting the speed of the left and right motors.

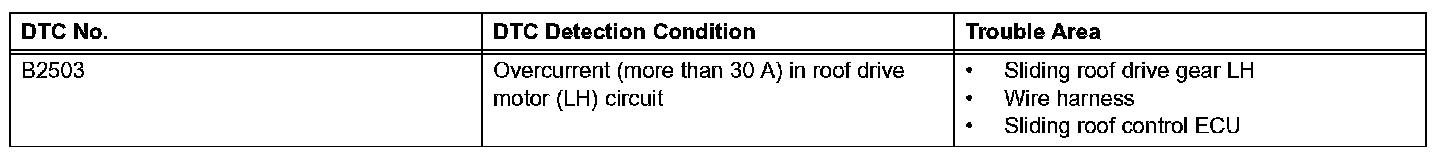

DTC Detection Condition:

WIRING DIAGRAM

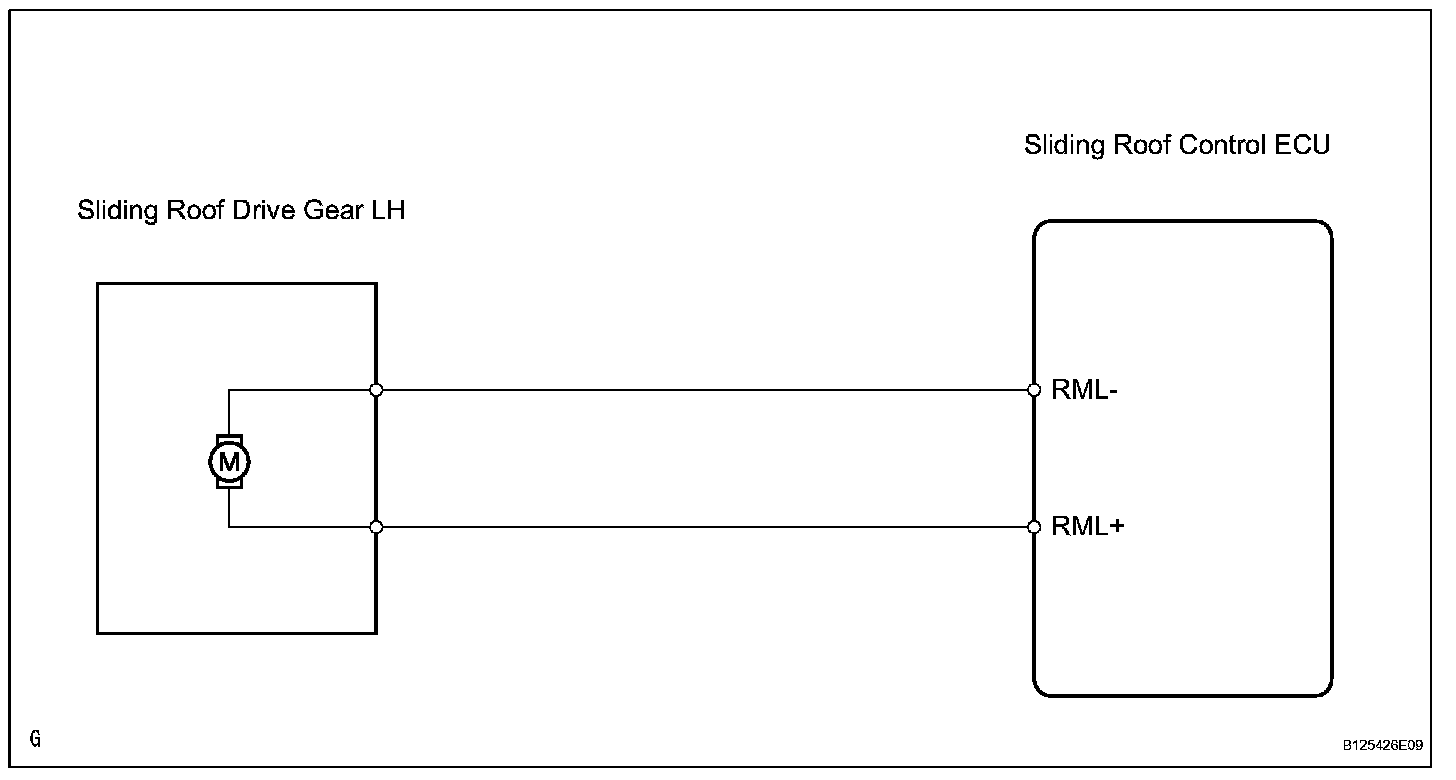

Wiring Diagram:

INSPECTION PROCEDURE

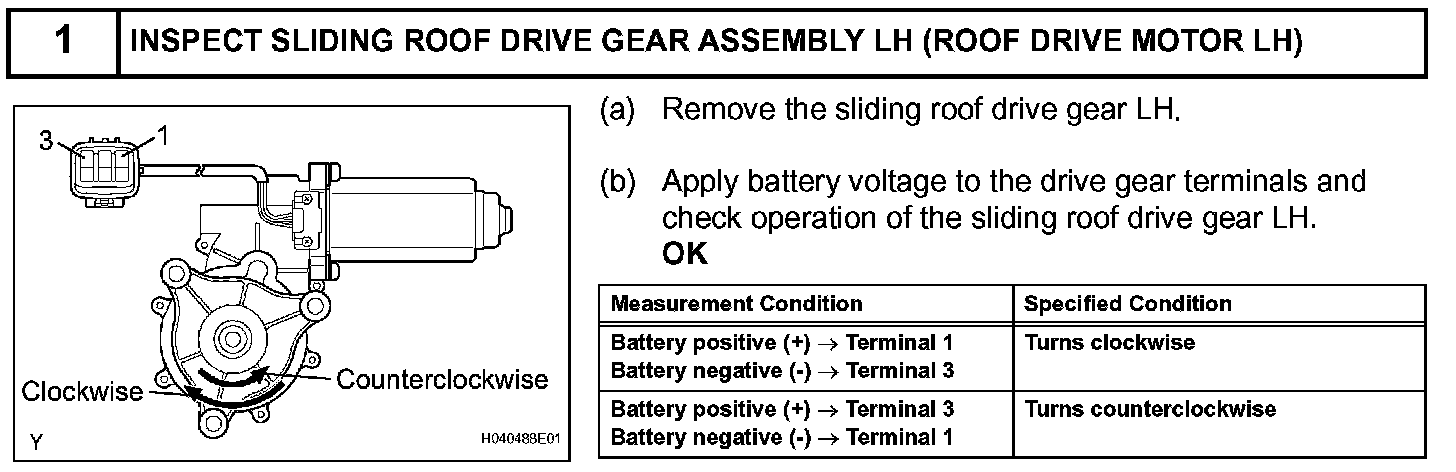

Step 1:

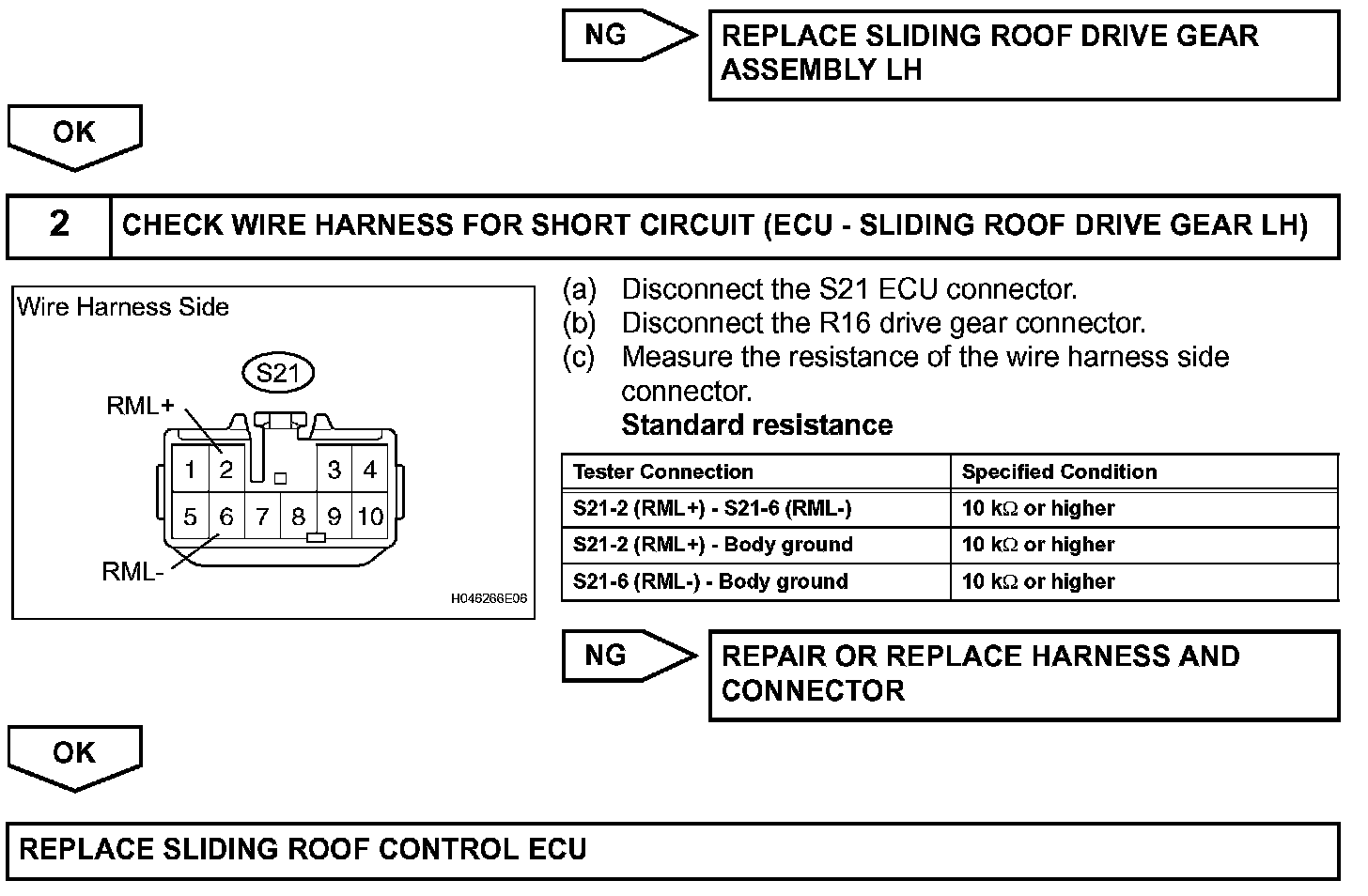

Step 1(Continued) - 2:
