B2419

DTC B2419 BEAN Communication Malfunction

DESCRIPTION

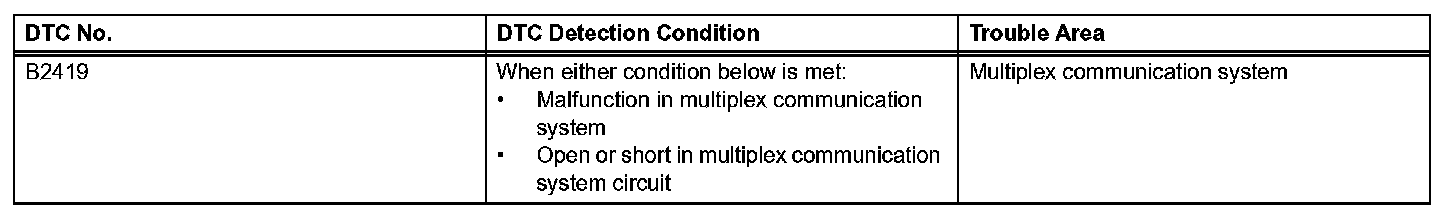

DTC Detection Condition:

The AFS ECU receives signals regarding the lighting condition of the headlight, shift position of the transmission, engine condition from the generator and vehicle speed from the combination meter using multiplex communication.

When the DTC B2419 is output, other DTCs are output at the same time.

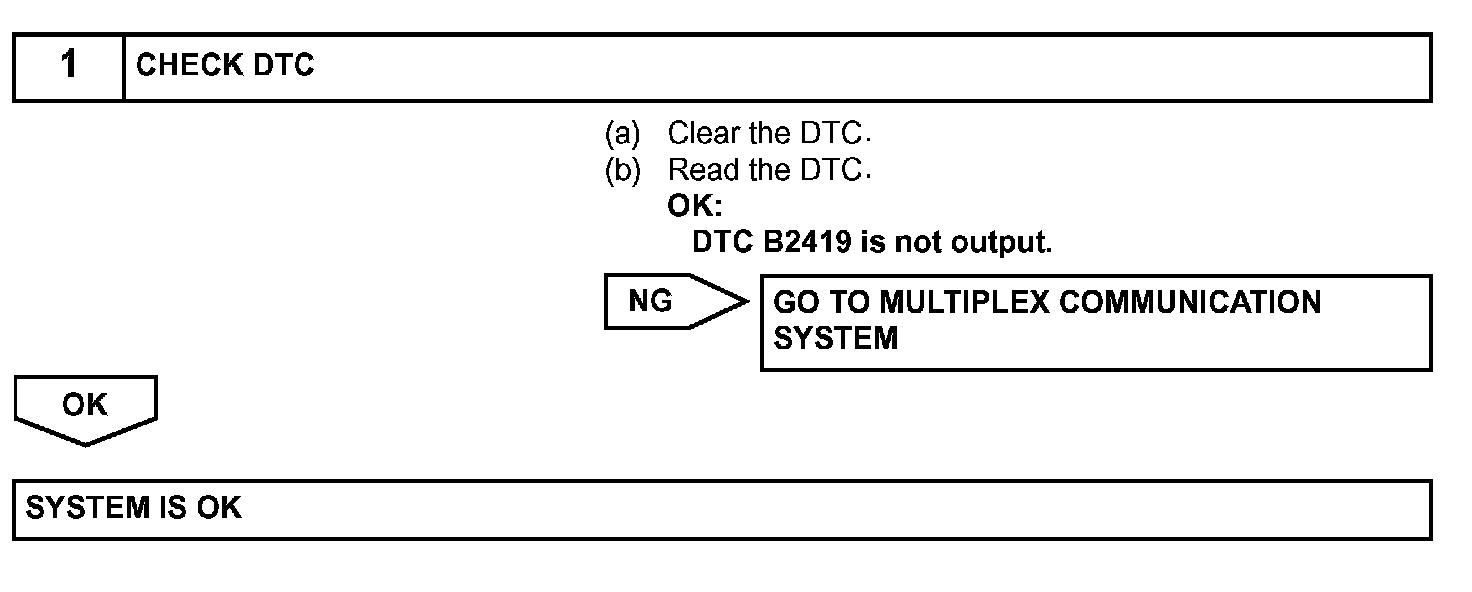

Step 1:

INSPECTION PROCEDURE
