B2416

DTC B2416 Height Control Sensor Malfunction

DESCRIPTION

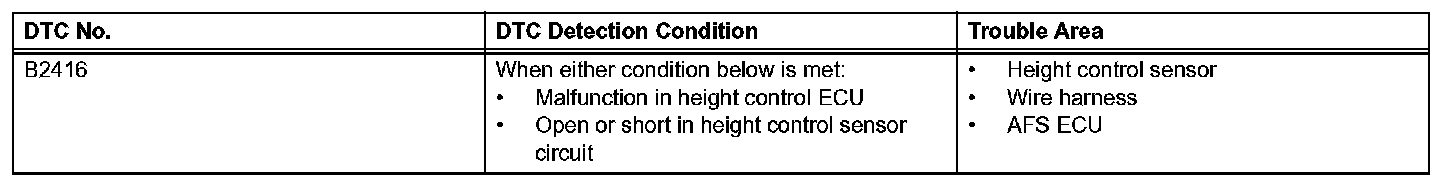

DTC Detection Condition:

The AFS ECU receives signals regarding the height of the front / rear of the vehicle from the height control sensors.

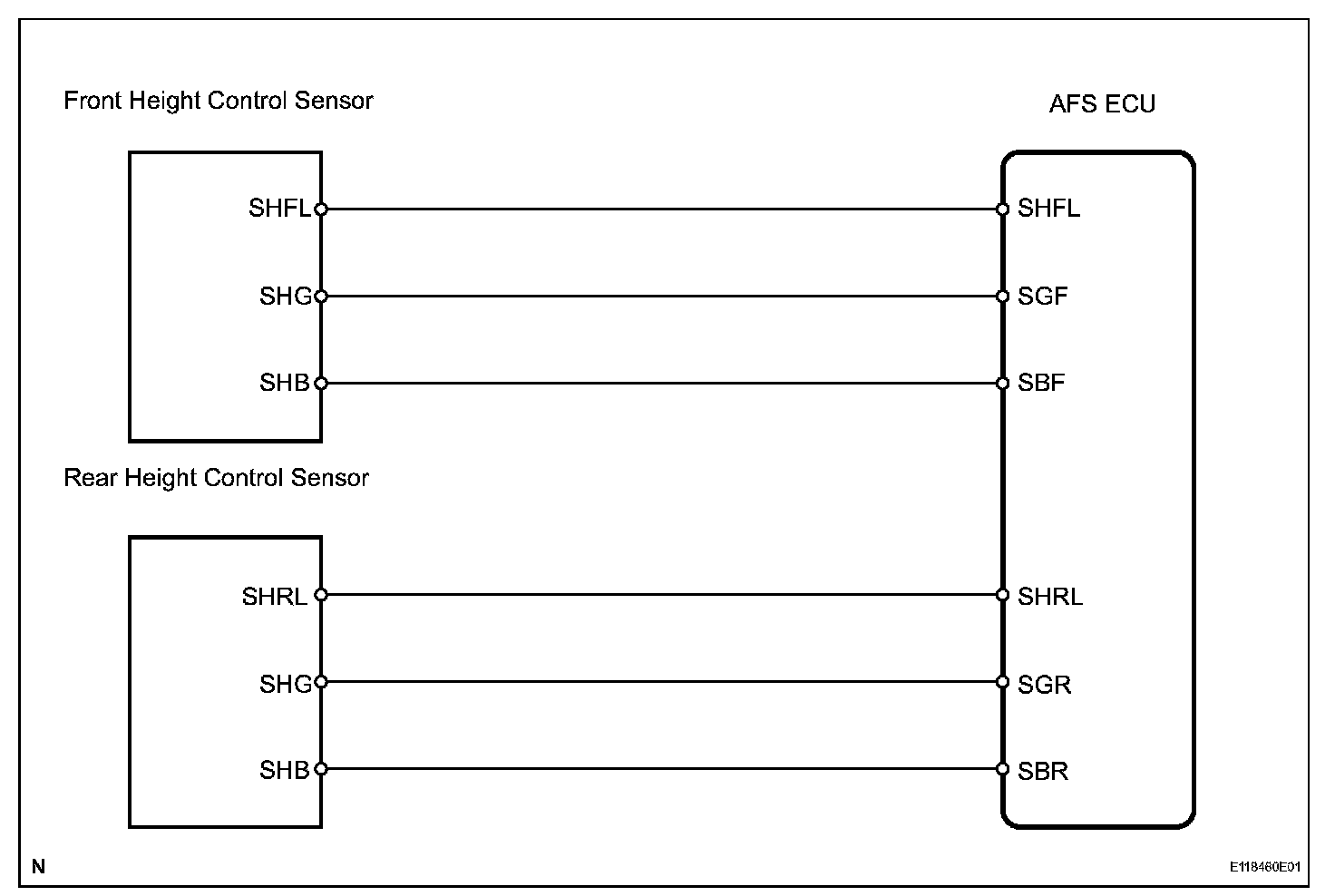

Wiring Diagram:

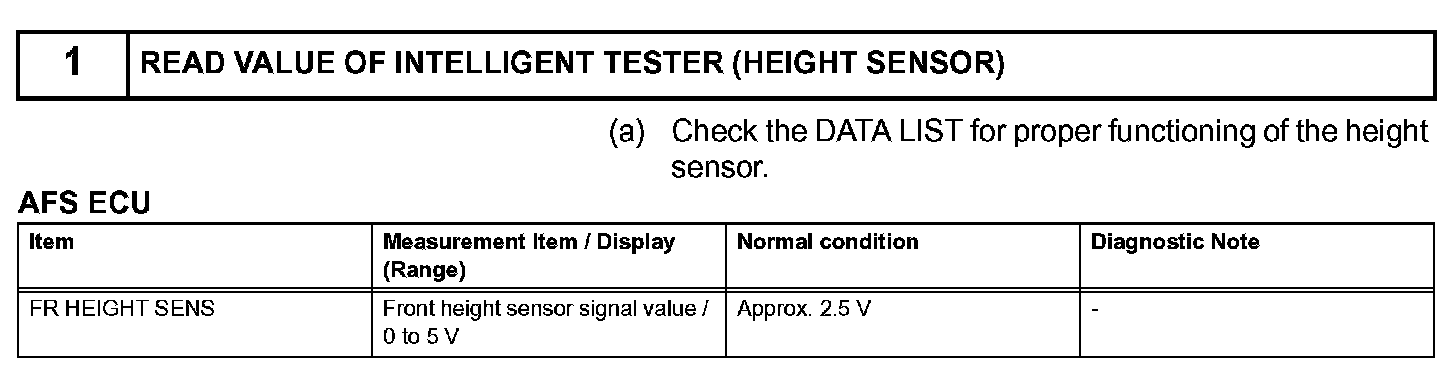

Step 1:

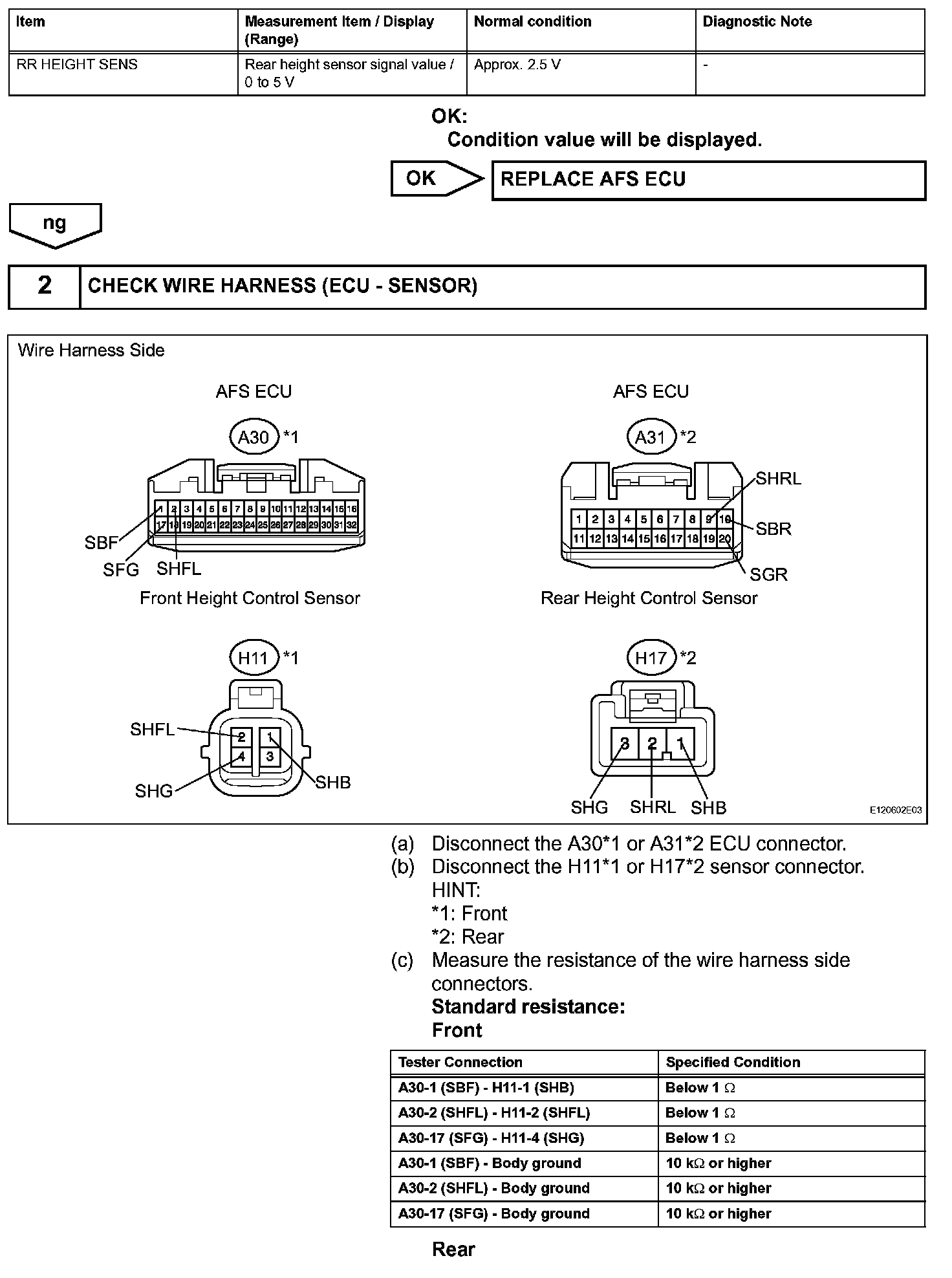

Step 1 (Continued)-2:

Step 2 (Continued)-3:

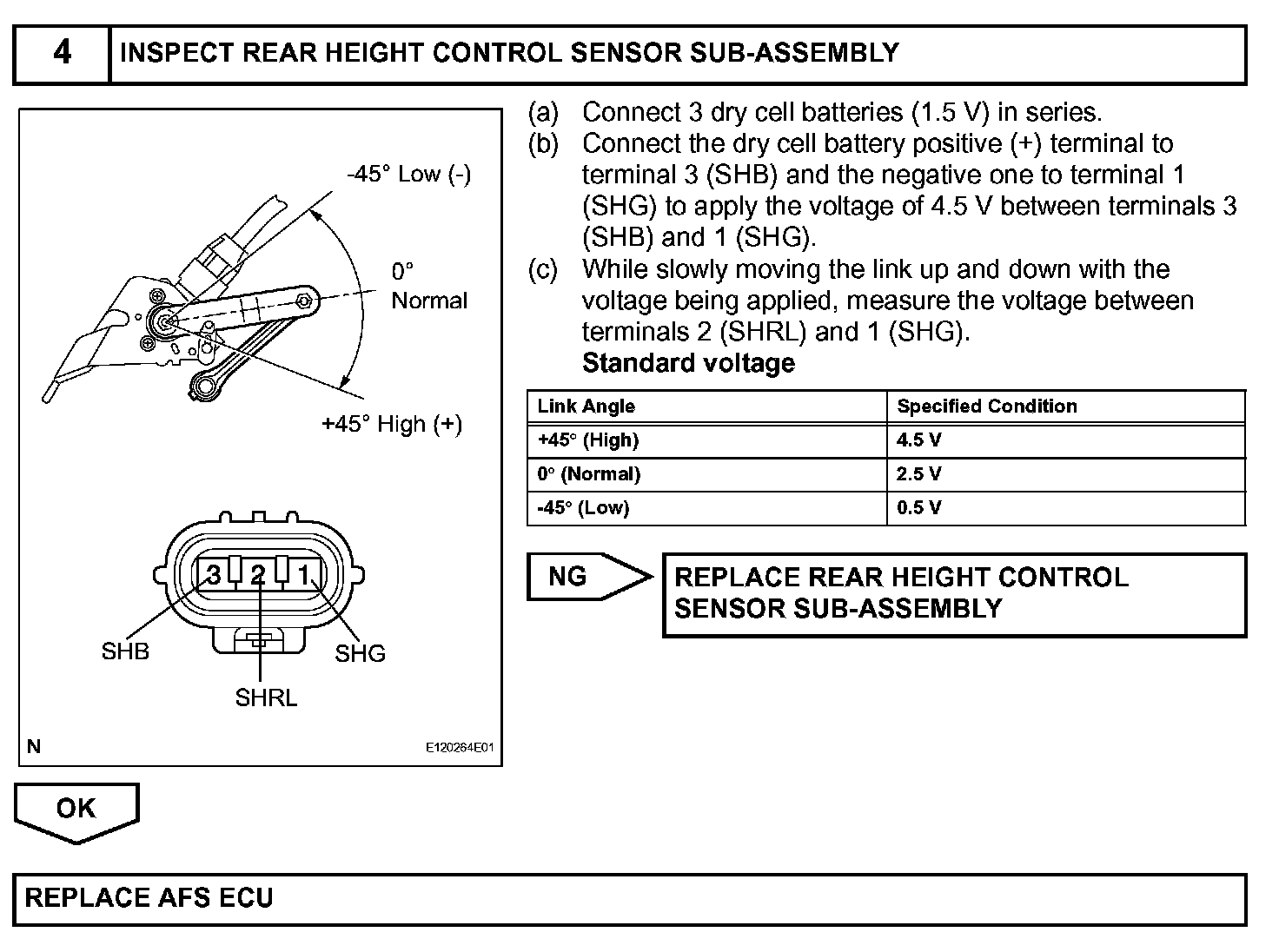

Step 4:

INSPECTION PROCEDURE
