B2413

DTC B2412 Headlight Swivel Motor LH Malfunction
DTC B2413 Headlight Swivel Motor RH Malfunction

DESCRIPTION

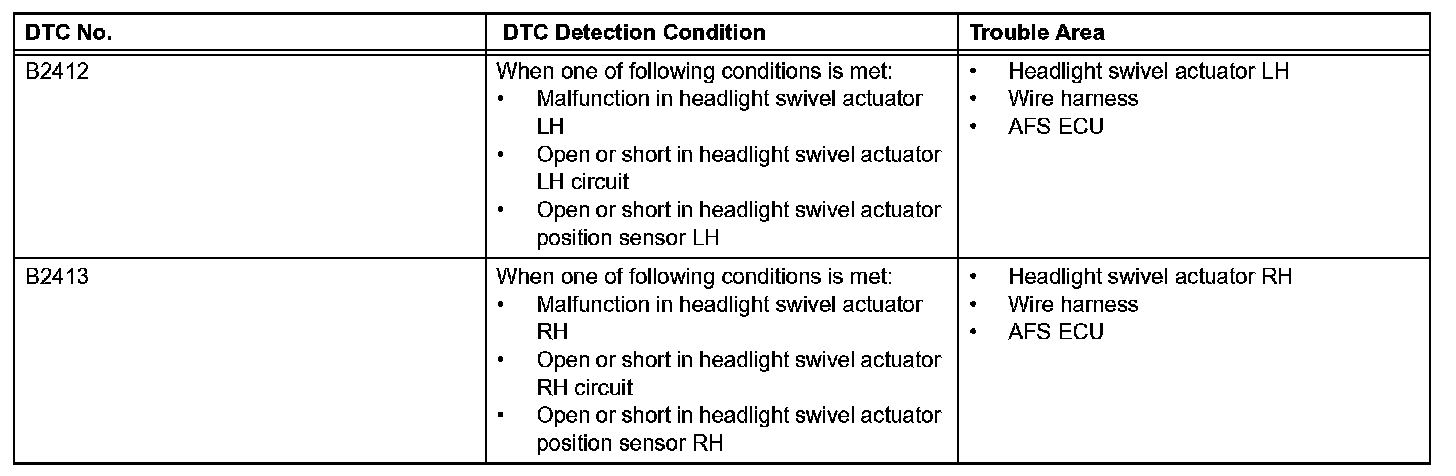

DTC Detection Condition:

The swivel actuator receives the signal from the AFS ECU to operate and sends the signal regarding the direction of the headlight swivel actuator and condition of the headlight swivel actuator swivel motor to the AFS ECU.

Wiring Diagram:

Step 1-2:

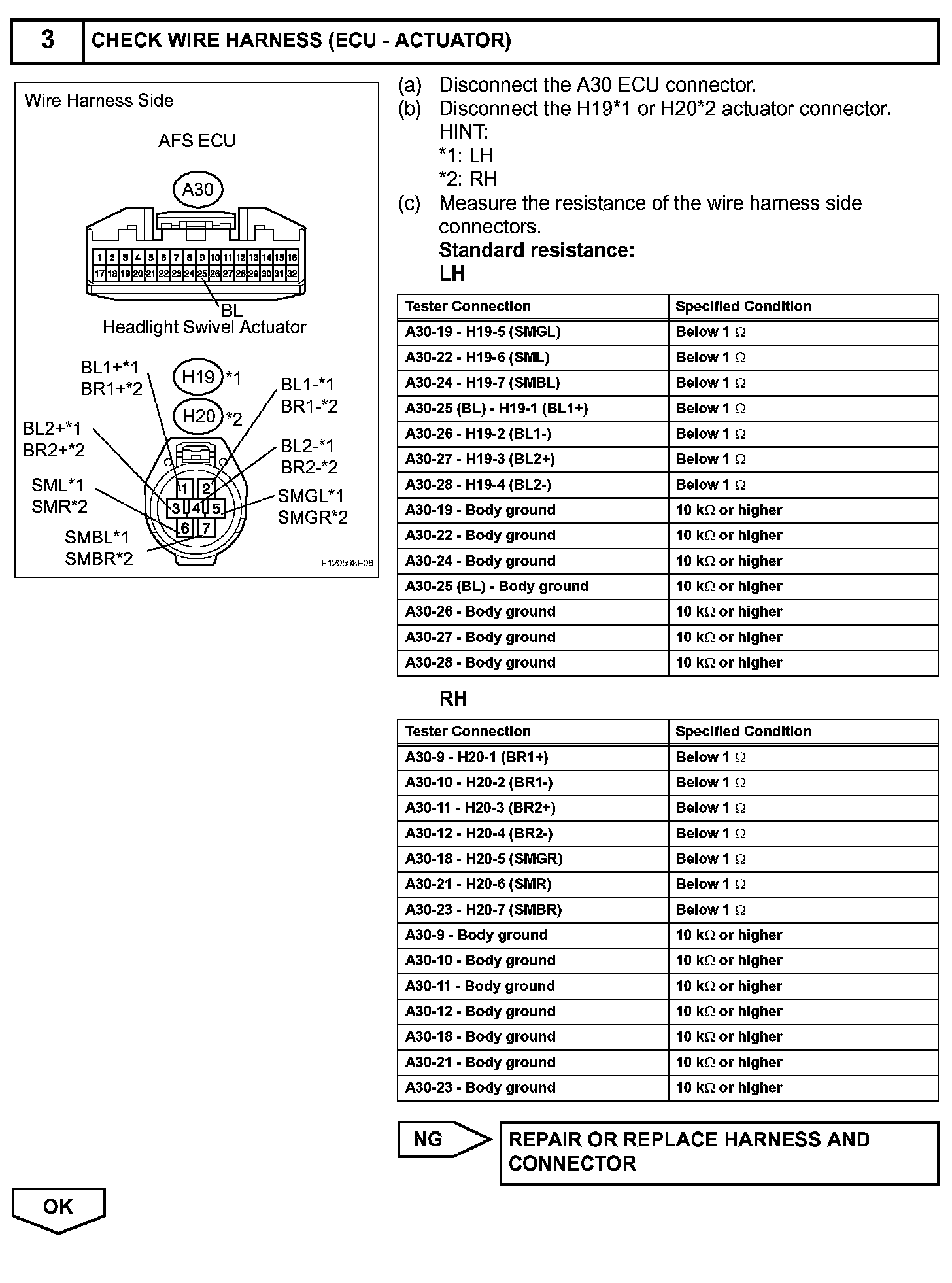

Step 3:

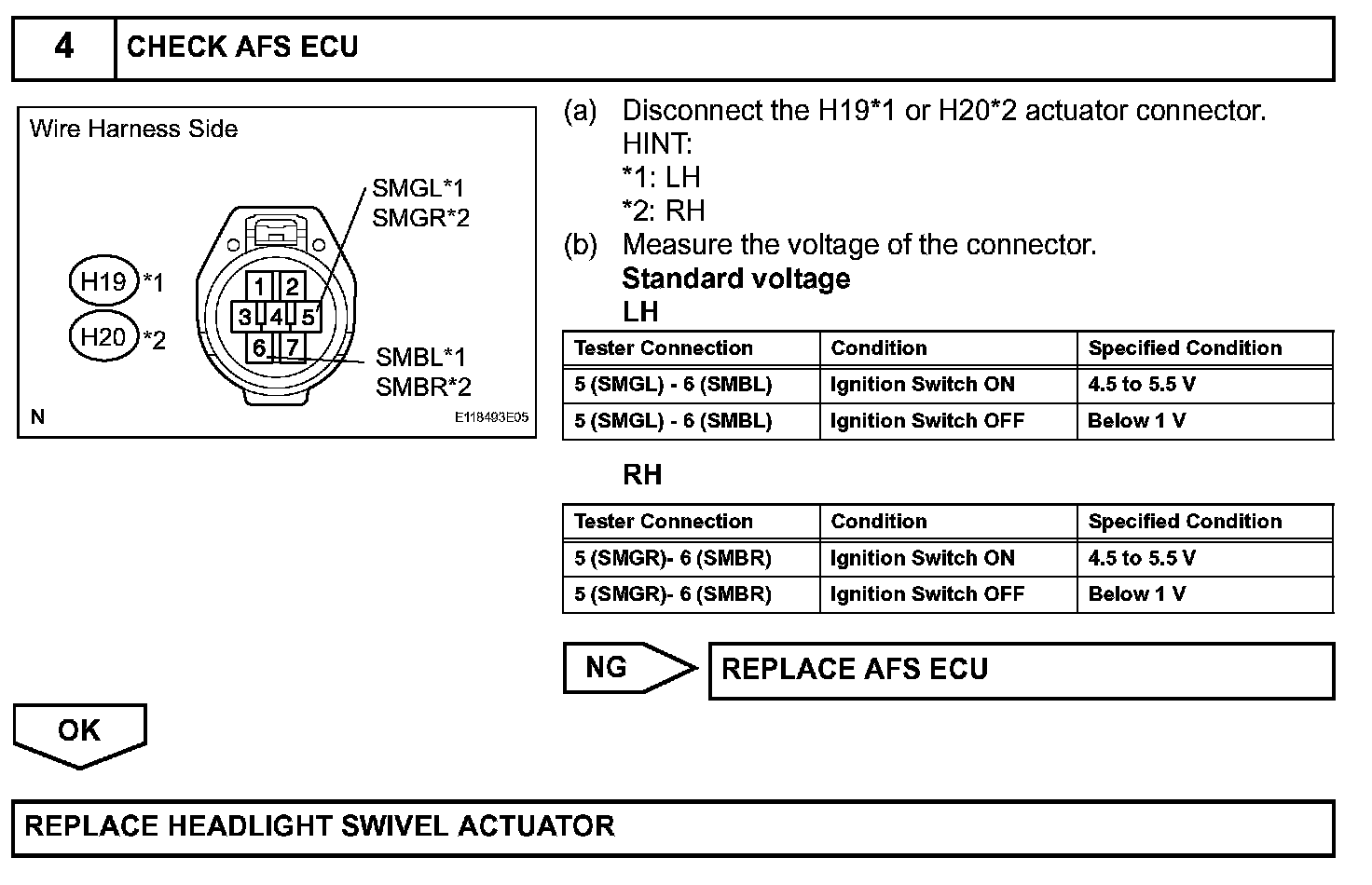

Step 4:

INSPECTION PROCEDURE
