B1795

DTC B1795 Occupant Classification ECU Malfunction

DESCRIPTION

DTC Detection Condition:

DTC B1795 is recorded when a malfunction is detected in the occupant classification ECU.

HINT: When DTC B1650/32 is detected as a result of troubleshooting for the "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1795 is output, perform troubleshooting for the DTC.

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the undersurface of the seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.

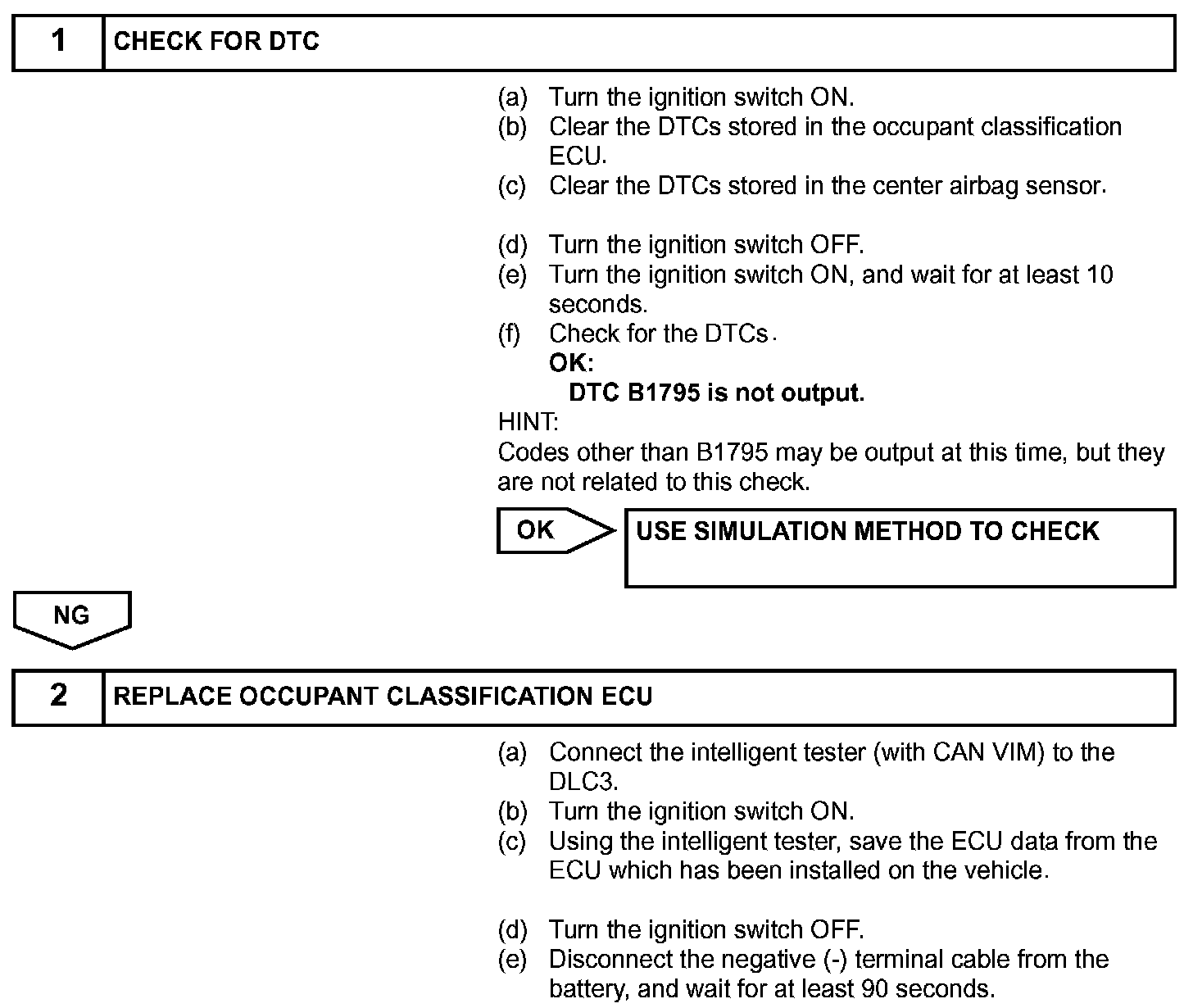

Step 1-2:

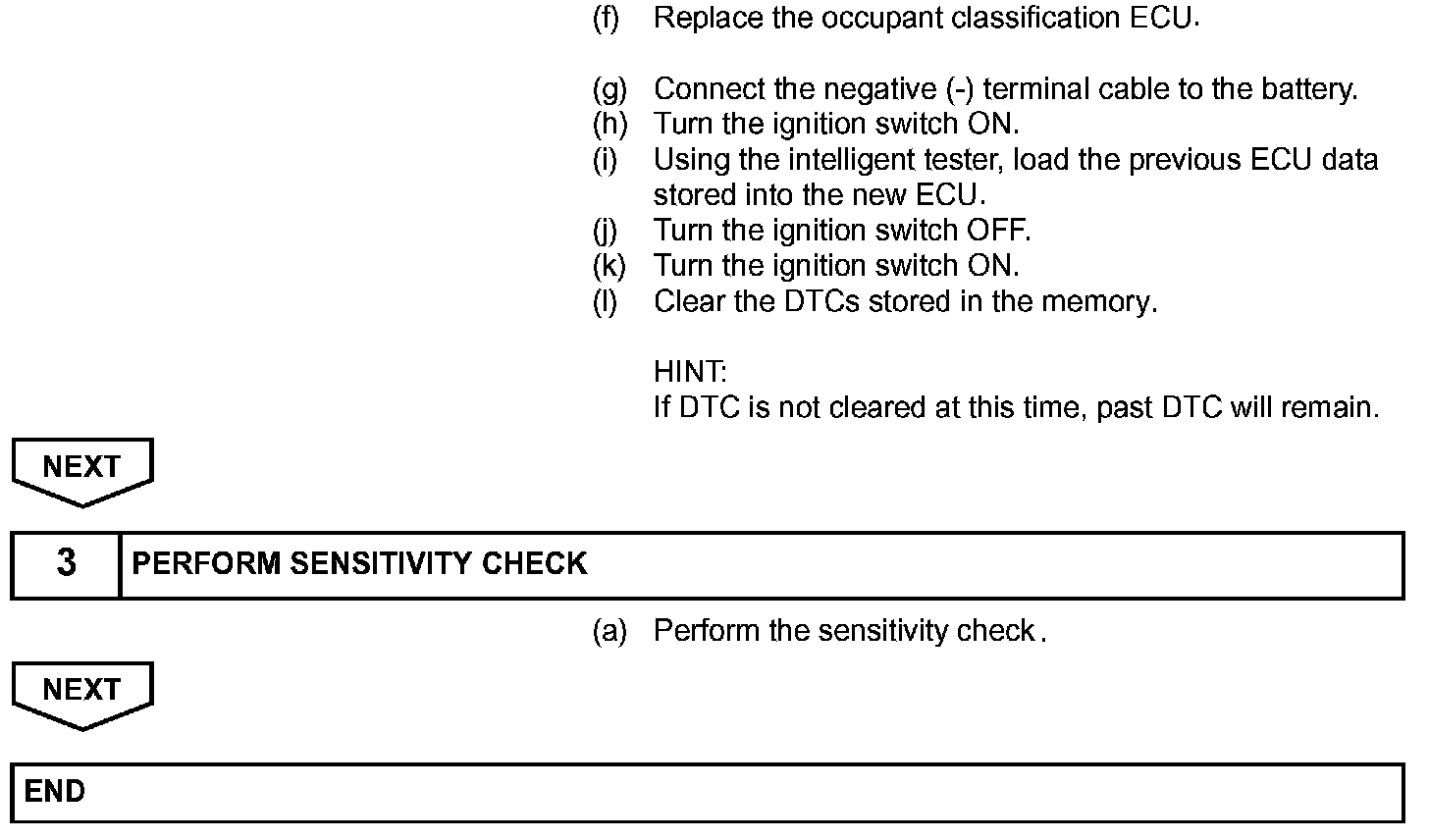

Step 2 (Continued)-3:
