B1776

DTC B1773 Belt Tension Sensor Circuit Malfunction
DTC B1776 Seat Belt Tension Sensor Power Source Circuit Malfunction

DESCRIPTION

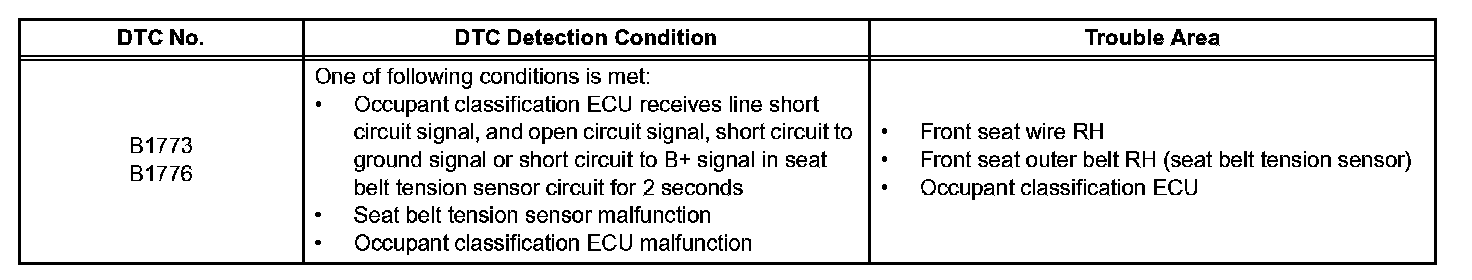

DTC Detection Condition:

The seat belt tension sensor circuit consists of the occupant classification ECU and the seat belt tension sensor.

The seat belt tension sensor sends the seat belt tension signal to the occupant classification ECU.

DTC B1773 and B1776 are recorded when a malfunction is detected in the seat belt tension sensor circuit.

HINT: When DTC B1650/32 is detected as a result of troubleshooting for the "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1773 and B1776 are output, perform troubleshooting for the DTC.

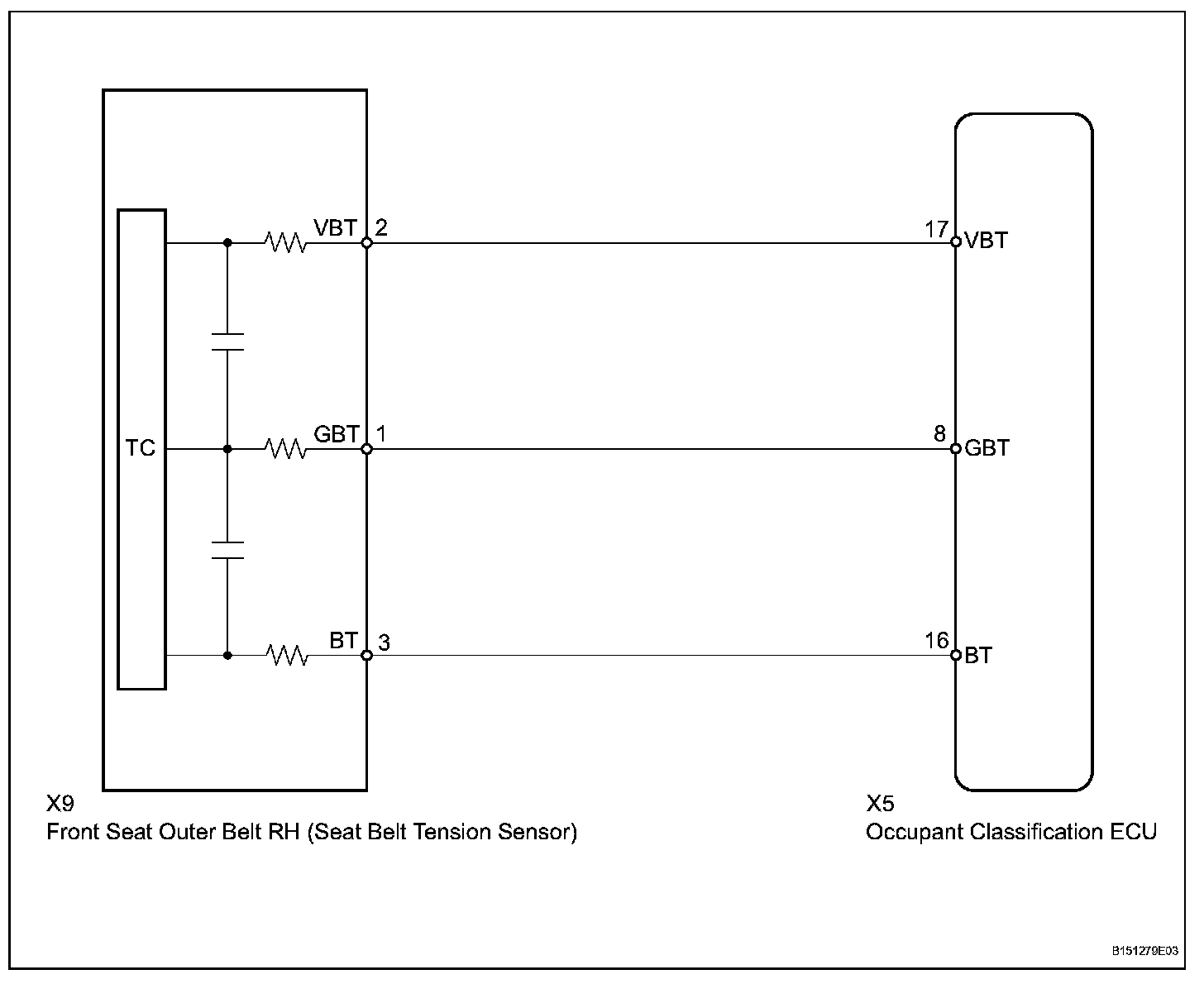

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the passenger seat installation bolts to see the undersurface of the seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.

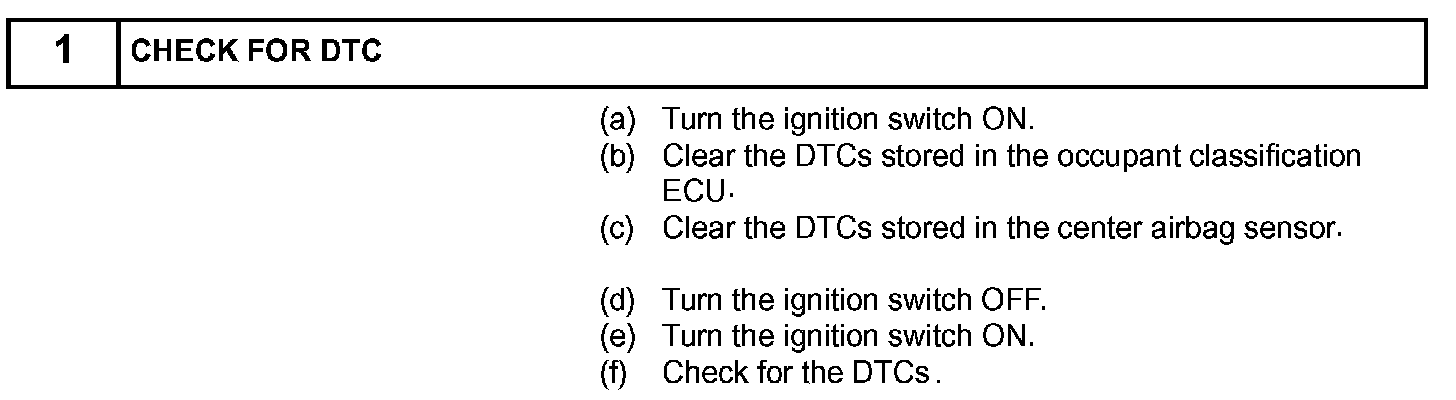

Step 1:

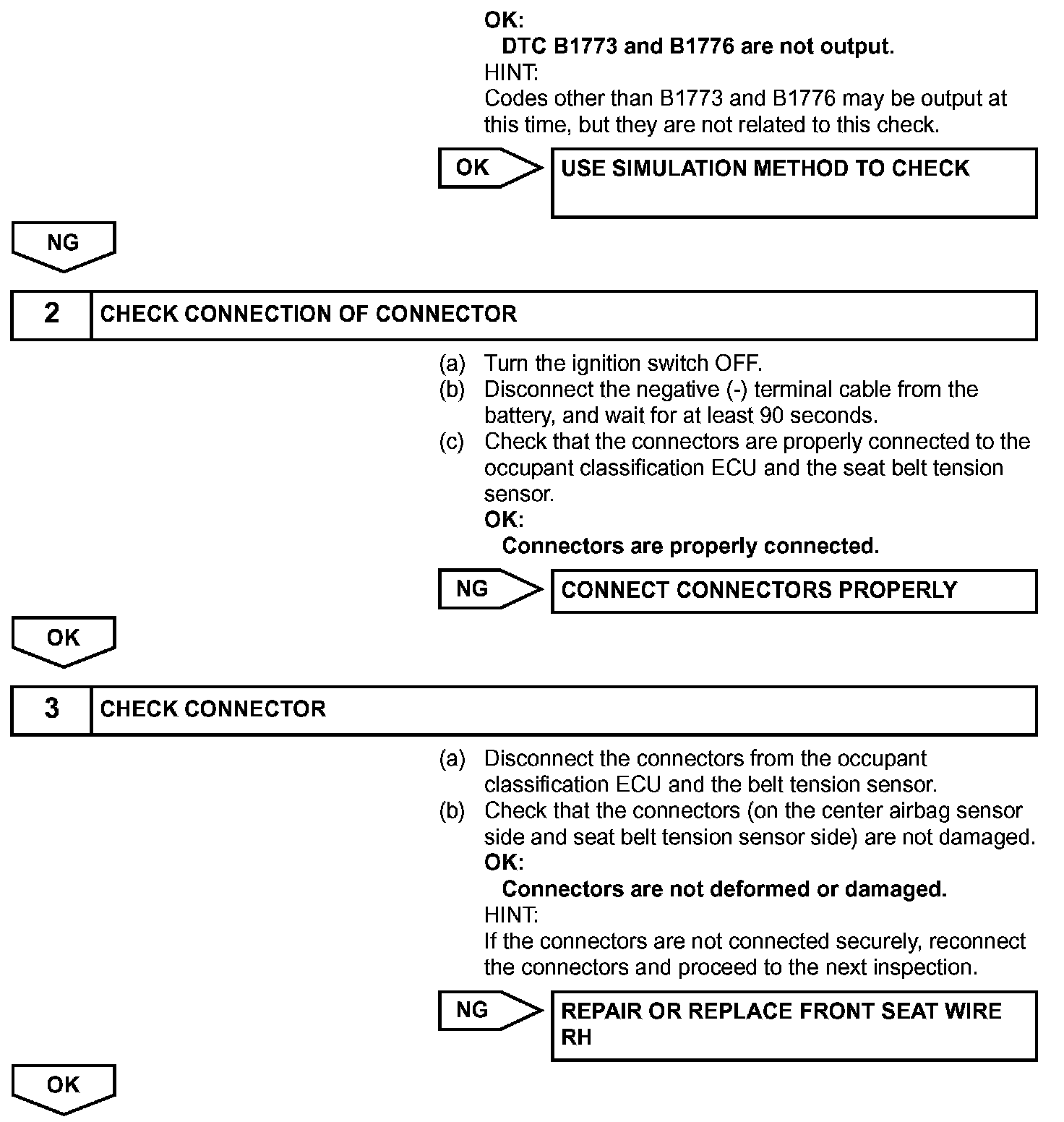

Step 1 (Continued)-3:

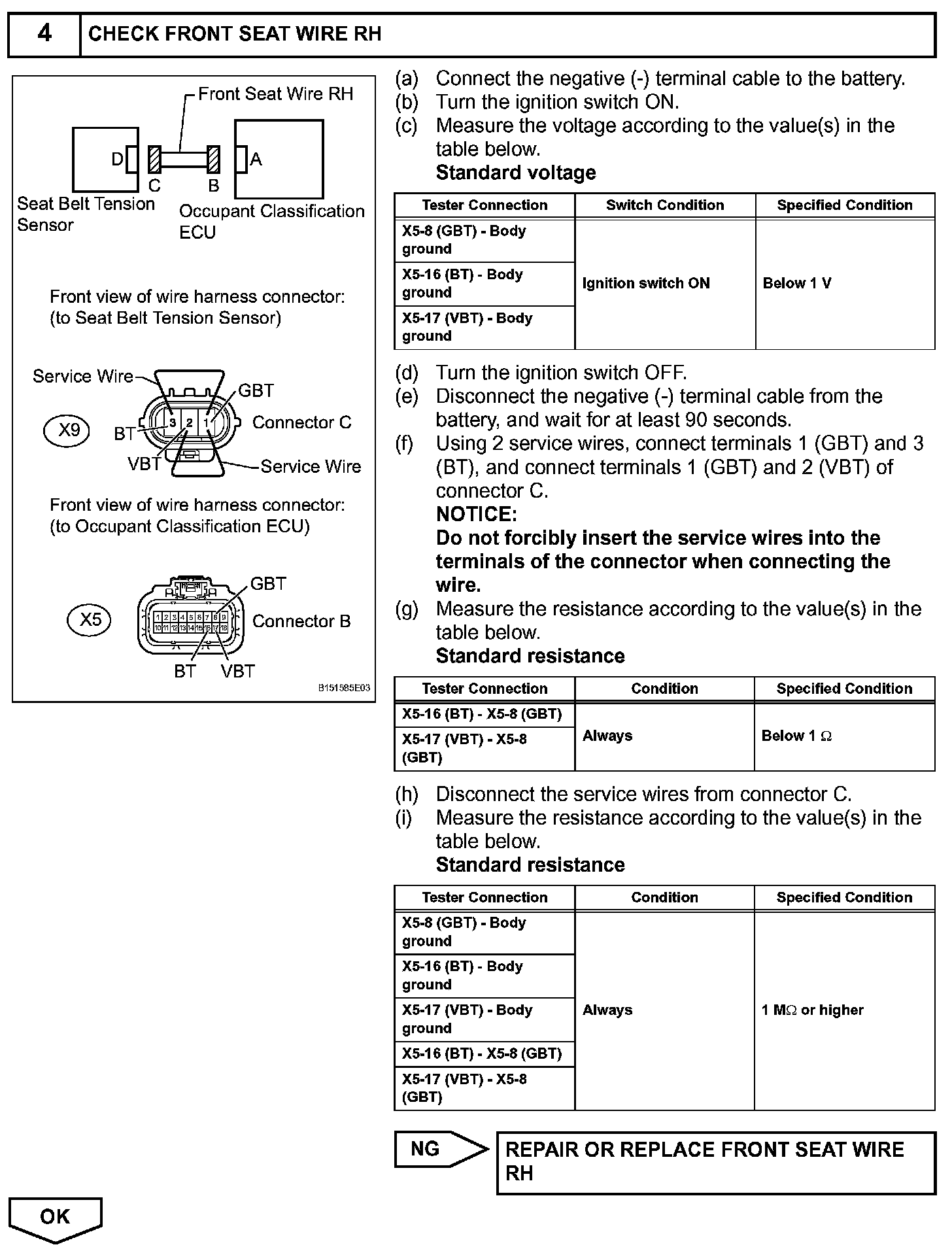

Step 4:

Step 5-6:

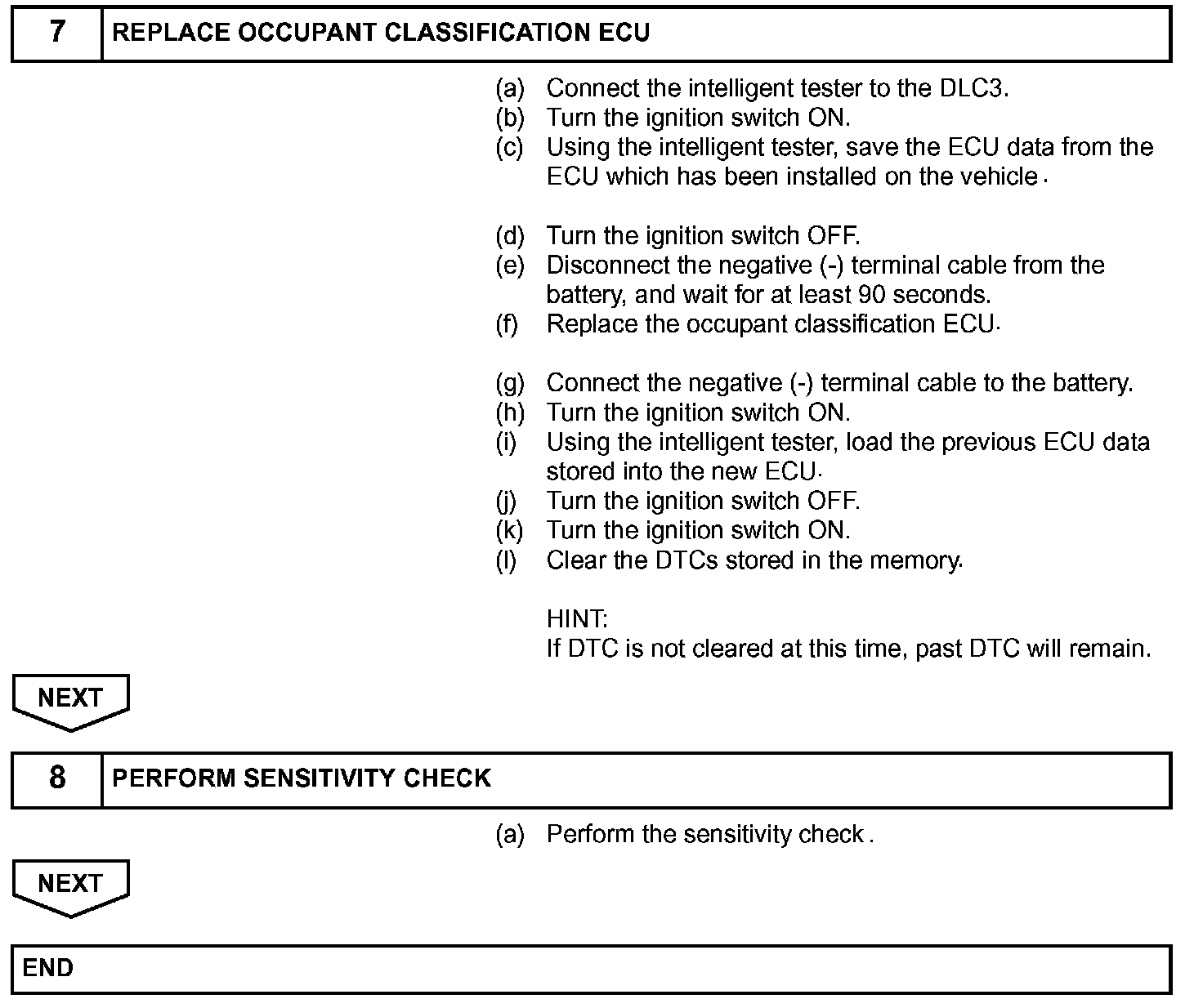

Step 7-8:
