DTC B1660/43 Passenger Airbag ON / OFF Indicator Circuit Malfunction

DESCRIPTION

Detection Condition:

The passenger airbag ON/OFF indicator circuit consists of the center airbag sensor and the passenger airbag ON/OFF indicator.

The passenger airbag ON/OFF indicator indicates the operation condition of the front passenger airbag, front passenger side knee airbag, front seat side airbag RH and front seat outer belt RH.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

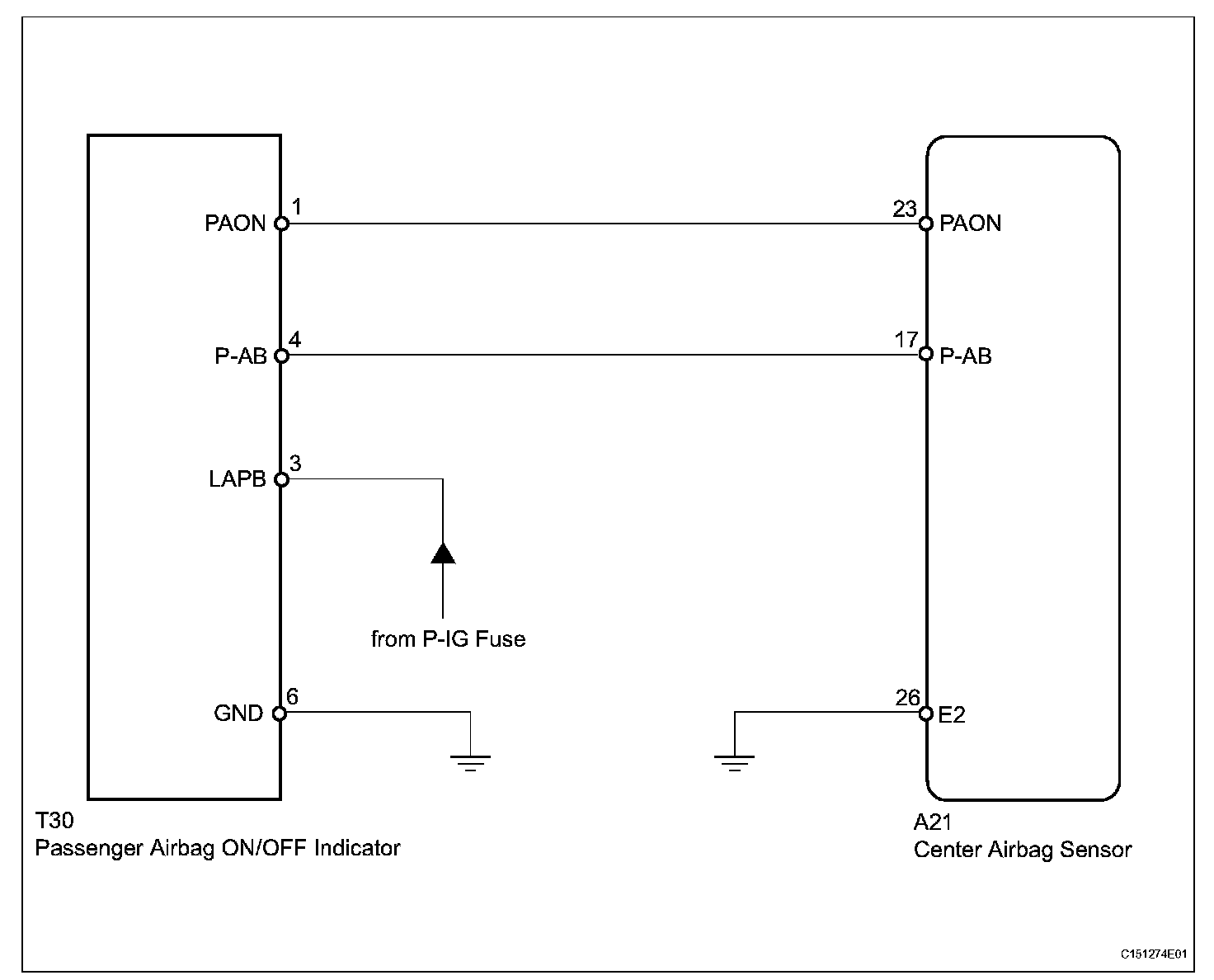

Wiring Diagram:

INSPECTION PROCEDURE

Step 1-2:

Step 2 (Continued)-5:

Step 5 (Continued)-6:

Step 6 (Continued)-8:

Step 8 (Continued)-9:

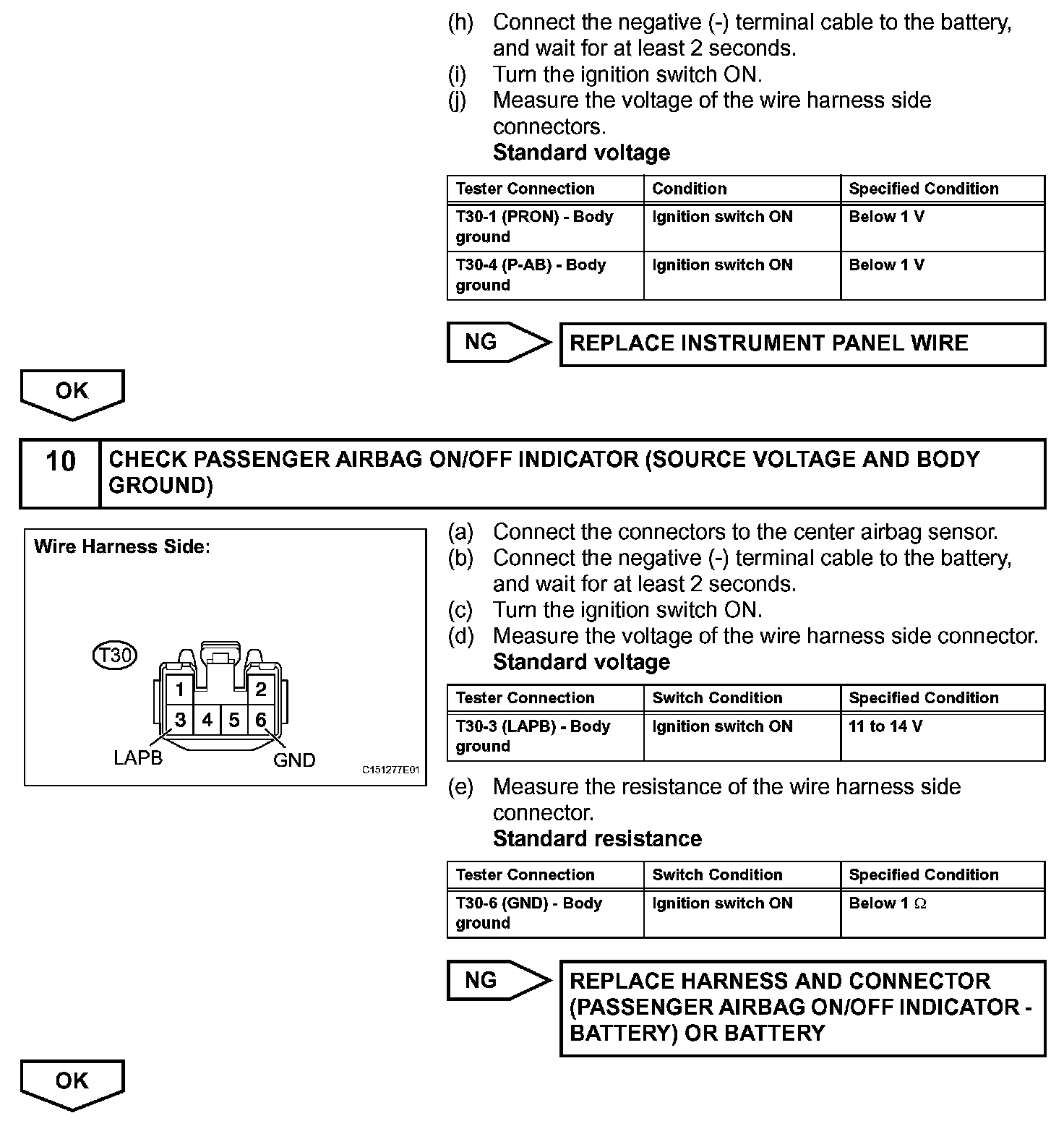

Step 9 (Continued)-10:

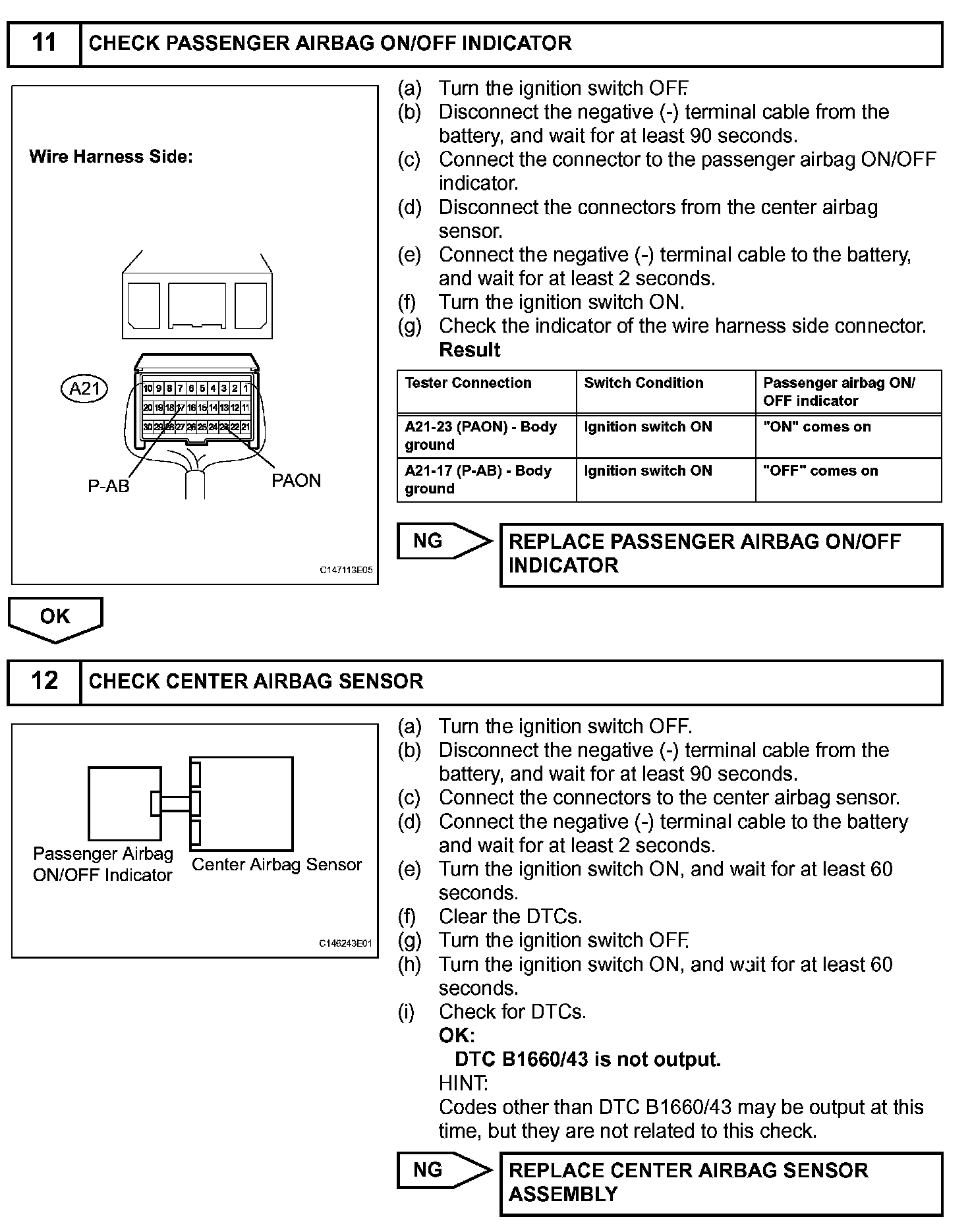

Step 11-12:

Step 12 (Continued):
