B1656

DTC B1656/38 Seat Belt Buckle Switch LH Circuit Malfunction

DESCRIPTION

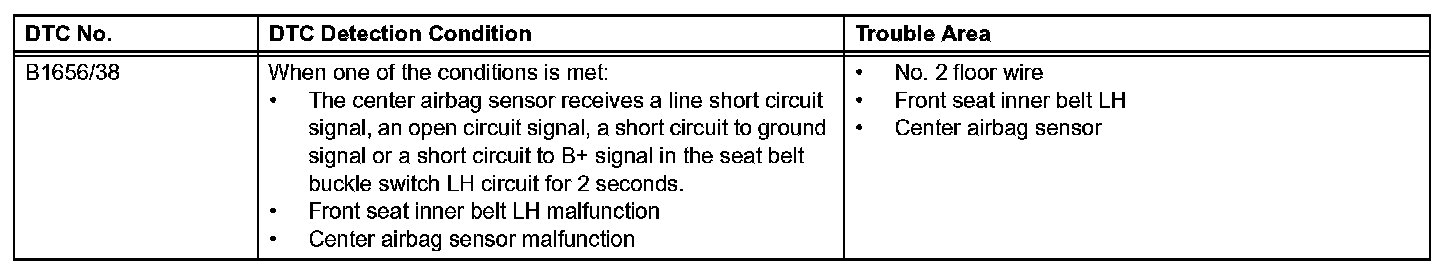

DTC Detection Condition:

The seat belt buckle switch LH circuit consists of the center airbag sensor and the front seat inner belt LH.

DTC B1656/38 is recorded when a malfunction is detected in the seat belt buckle switch LH circuit.

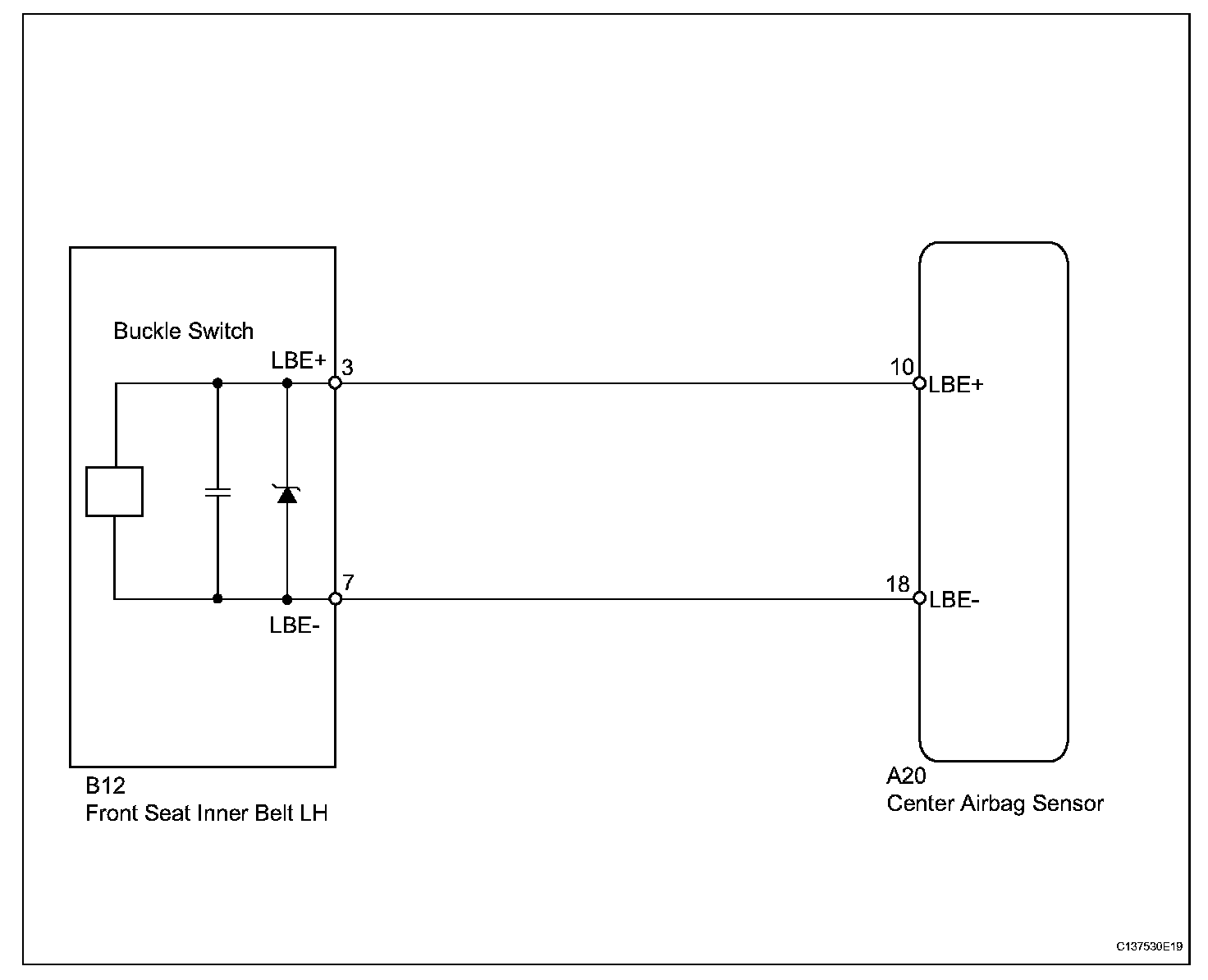

Wiring Diagram:

INSPECTION PROCEDURE

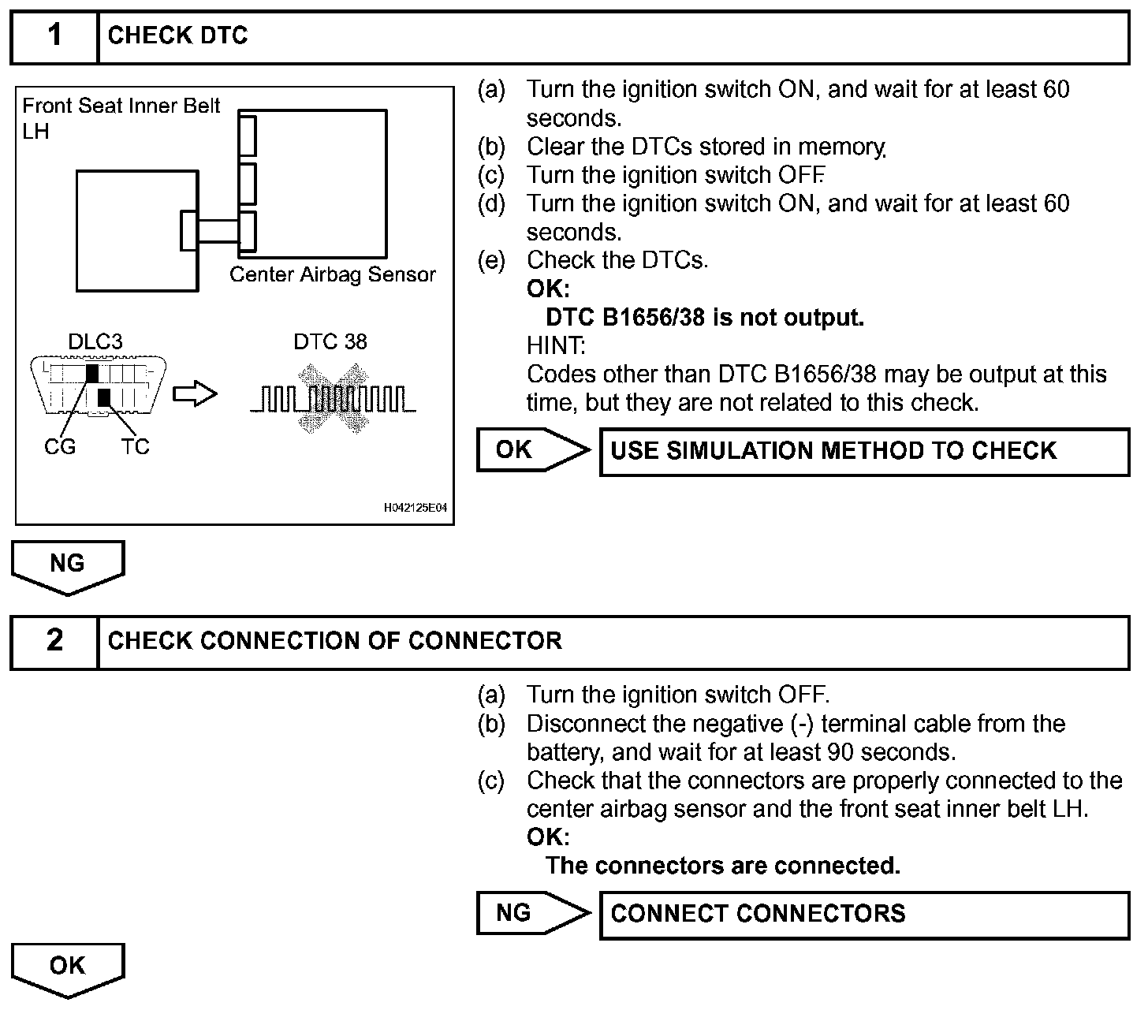

Step 1-2:

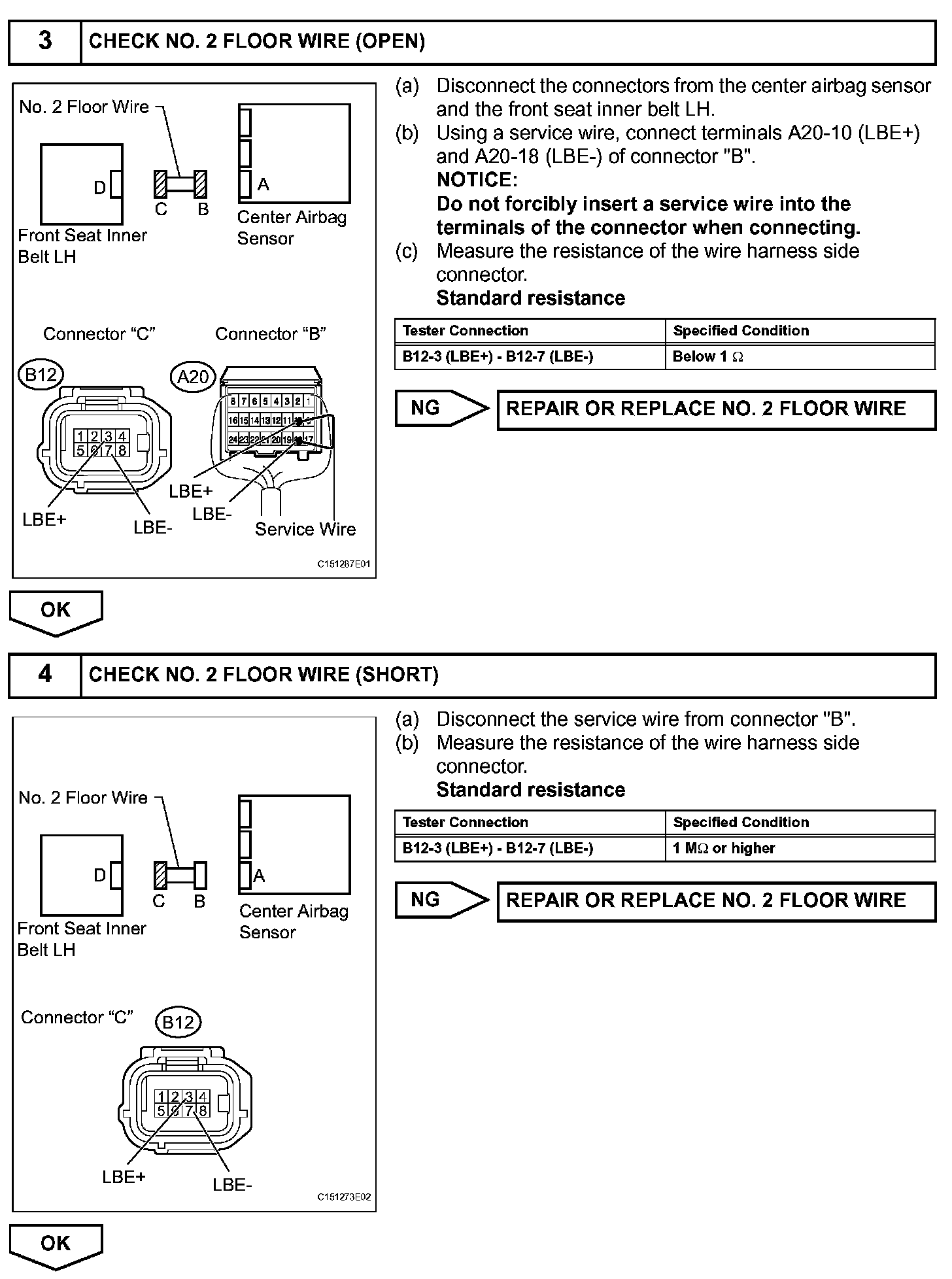

Step 3-4:

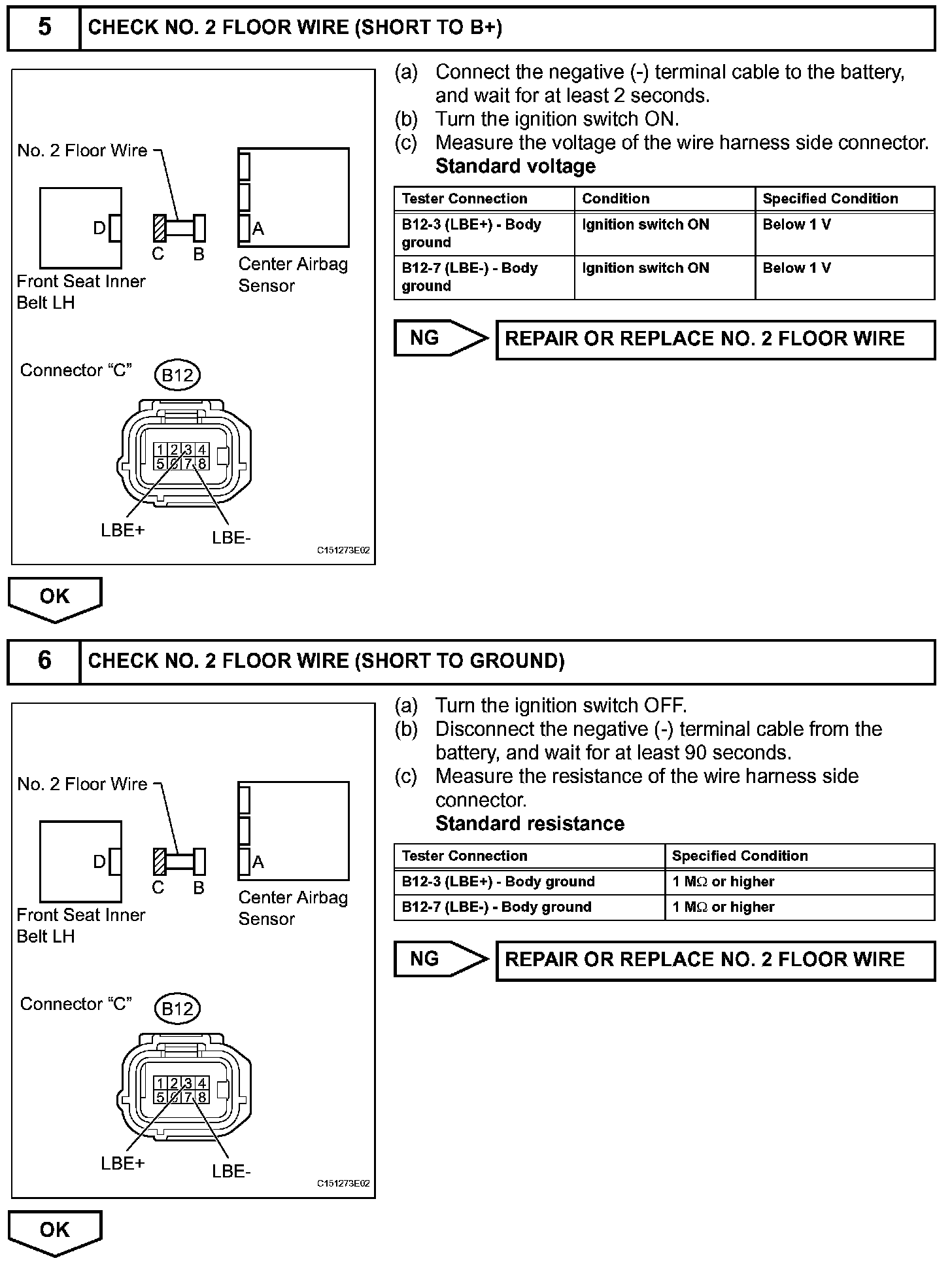

Step 5-6:

Step 7-9:

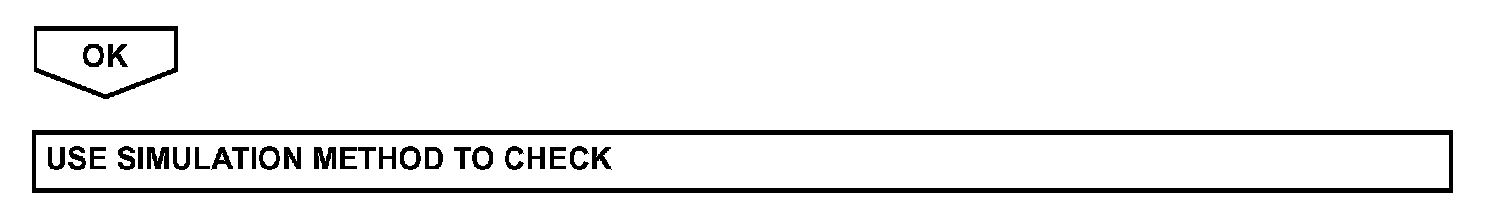

Step 9 (Continued):
