B1655

DTC B1655/37 Seat Belt Buckle Switch RH Circuit Malfunction

DESCRIPTION

DTC Detection Condition:

The seat belt buckle switch RH circuit consists of the center airbag sensor and the front seat inner belt RH.

DTC B1655/37 is recorded when a malfunction is detected in the seat belt buckle switch RH circuit.

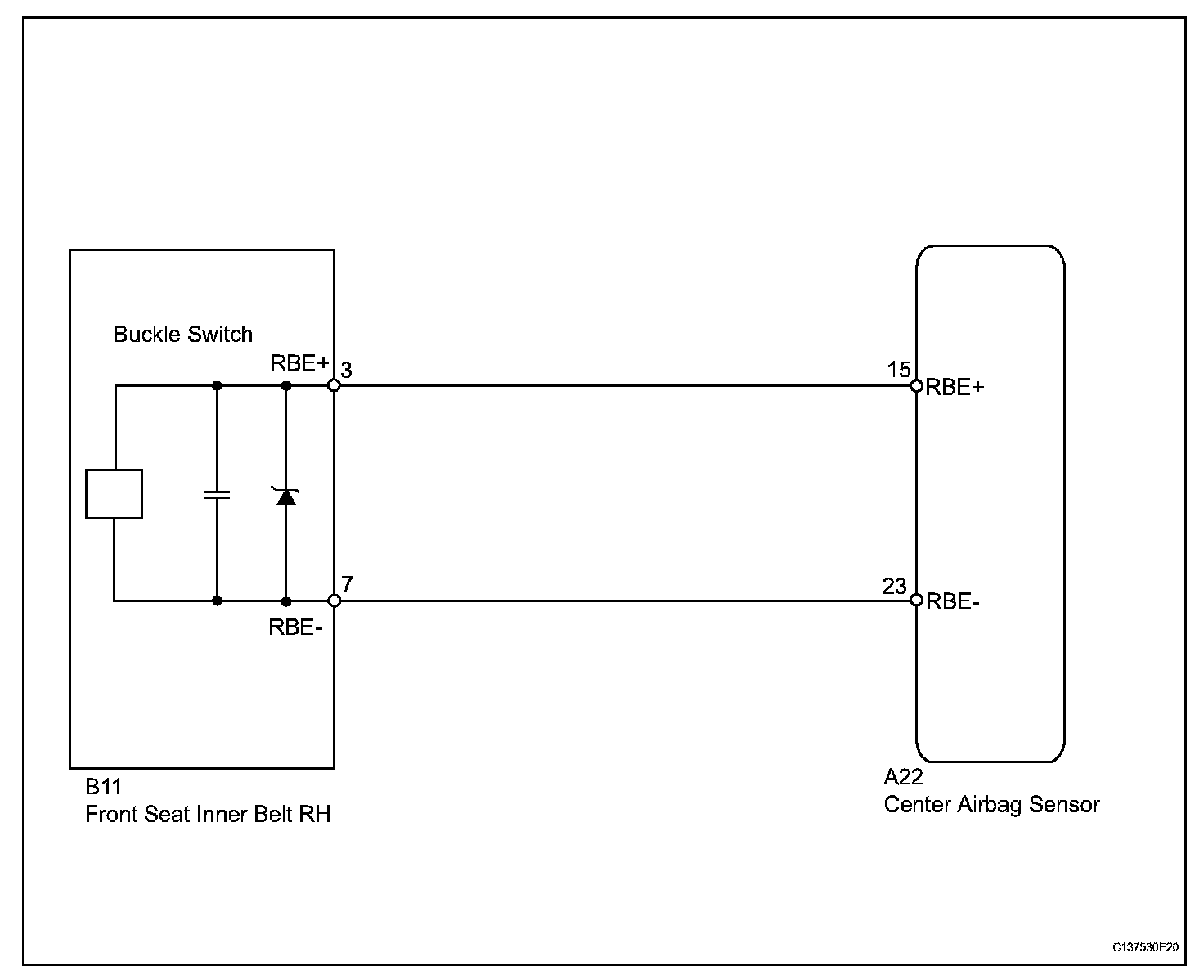

Wiring Diagram:

INSPECTION PROCEDURE

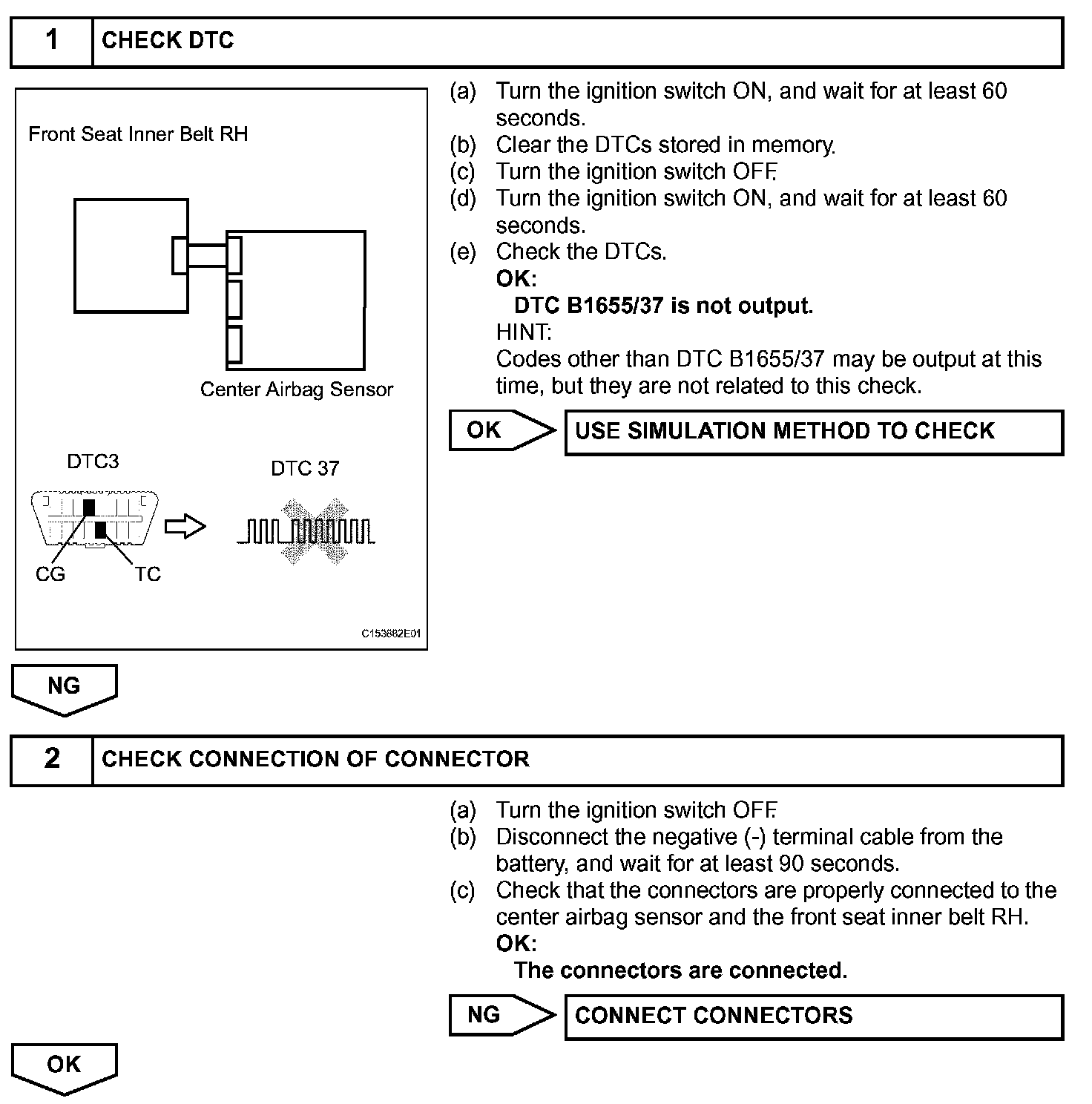

Step 1-2:

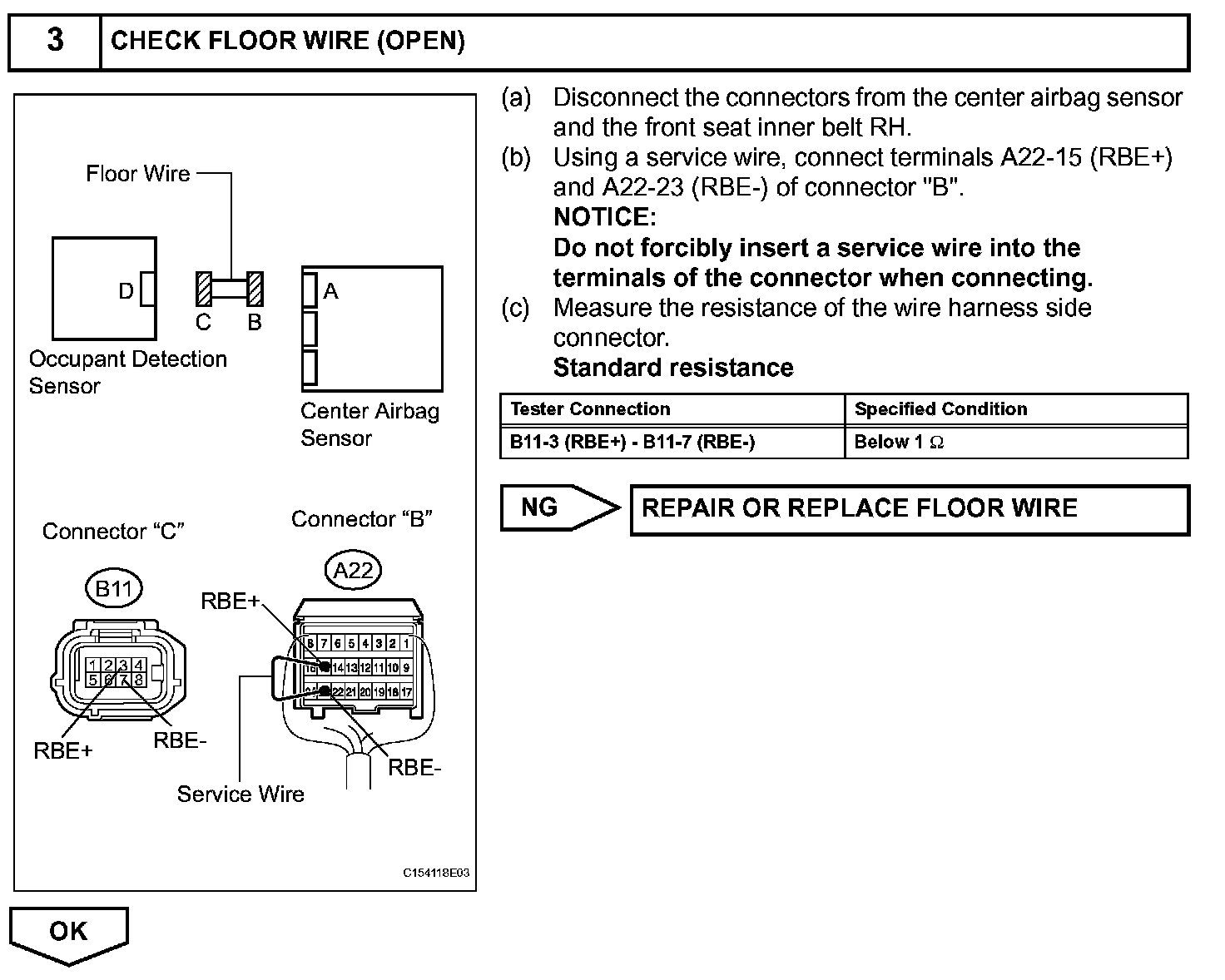

Step 3:

Step 4:

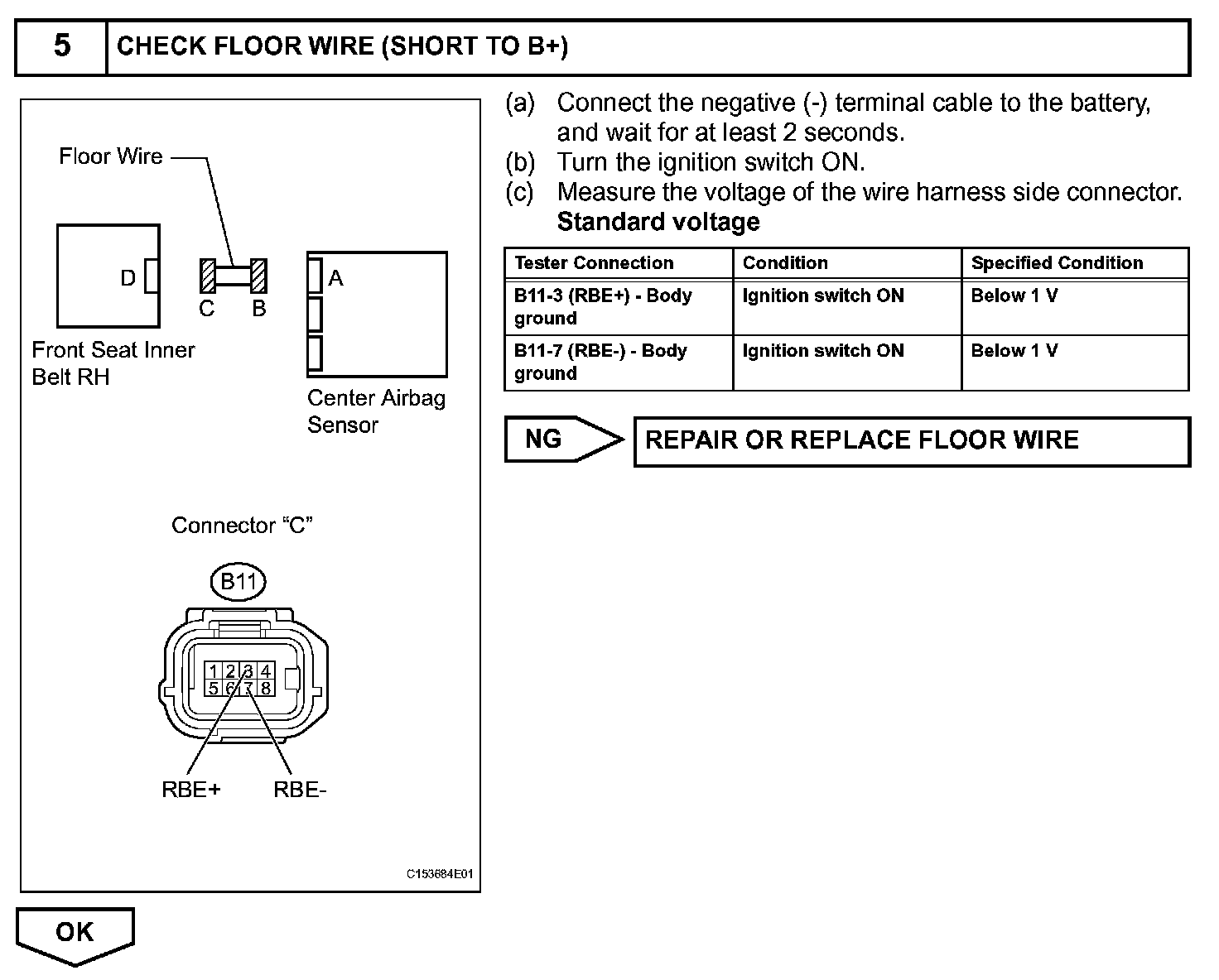

Step 5:

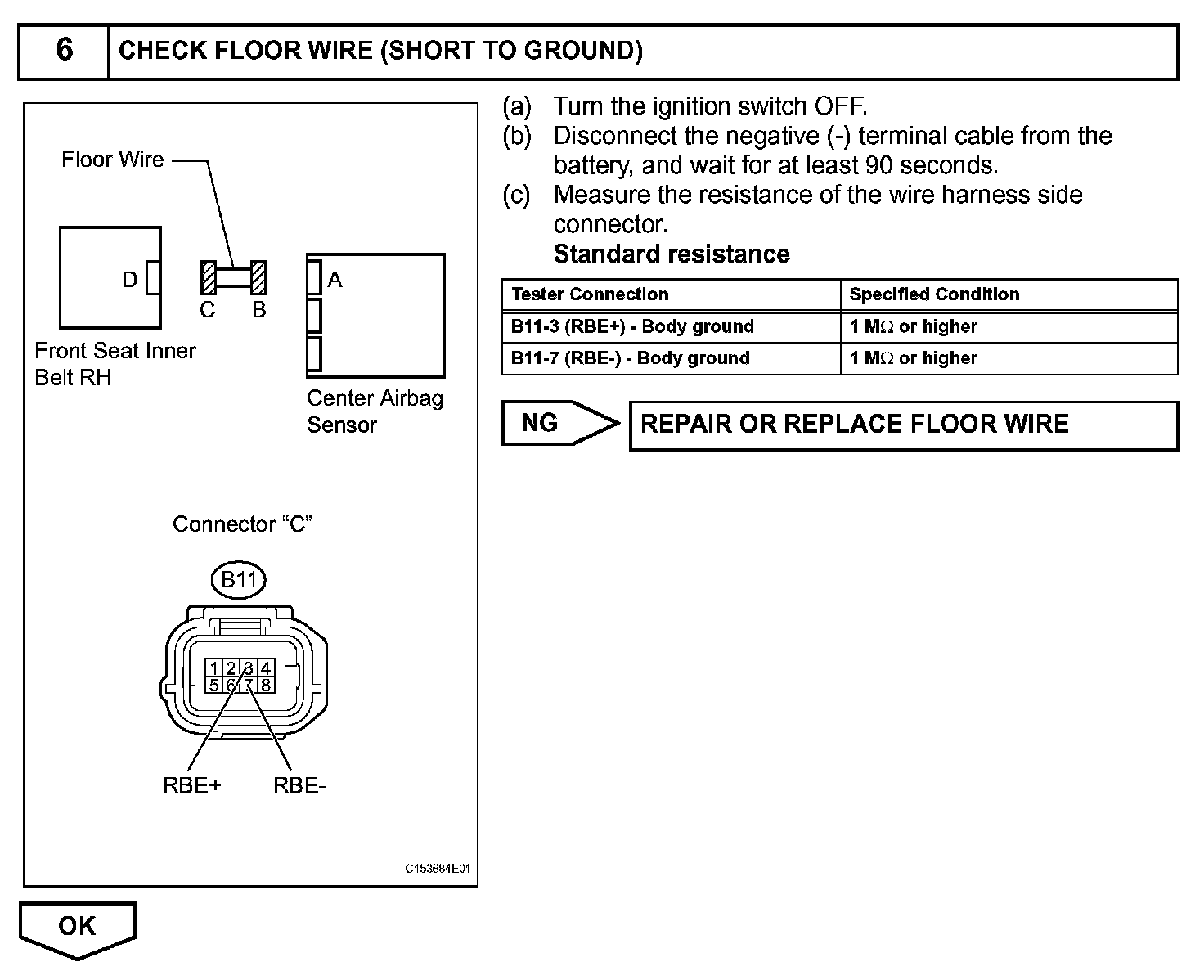

Step 6:

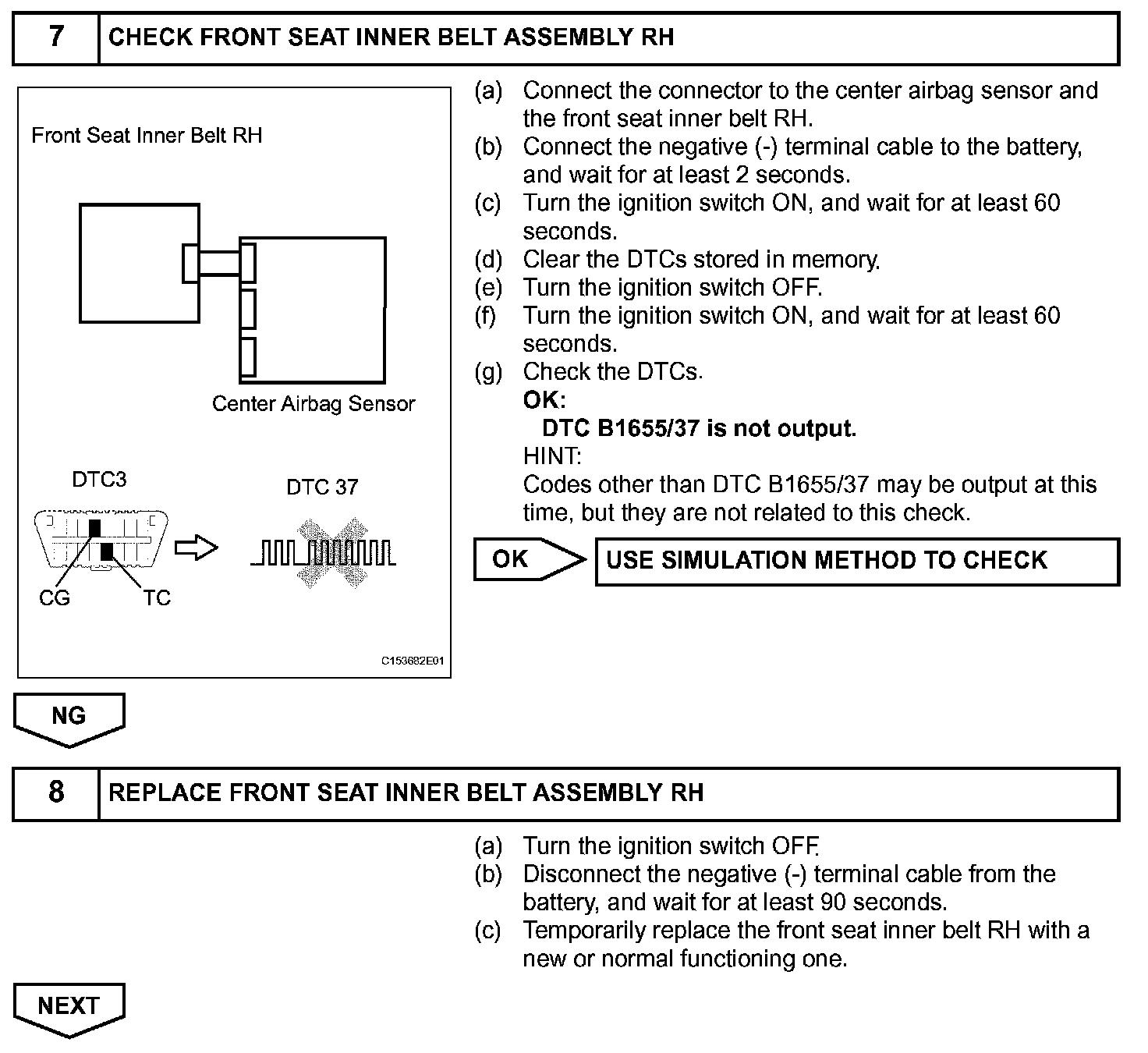

Step 7:

Step 9:
