B1653

DTC B1653/35 Seat Position Airbag Sensor Circuit Malfunction

DESCRIPTION

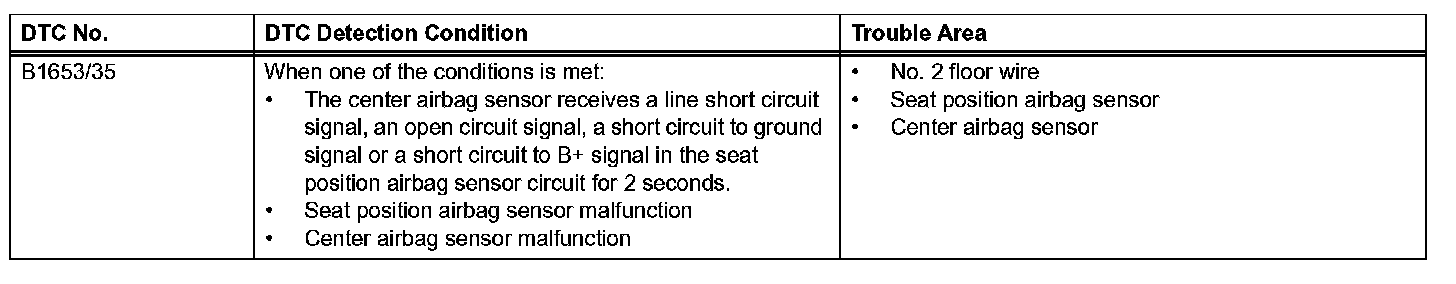

DTC Detection Condition:

The seat position airbag sensor circuit consists of the center airbag sensor and the seat position airbag sensor.

DTC B1653/35 is recorded when a malfunction is detected in the seat position airbag sensor circuit.

Wiring Diagram:

INSPECTION PROCEDURE

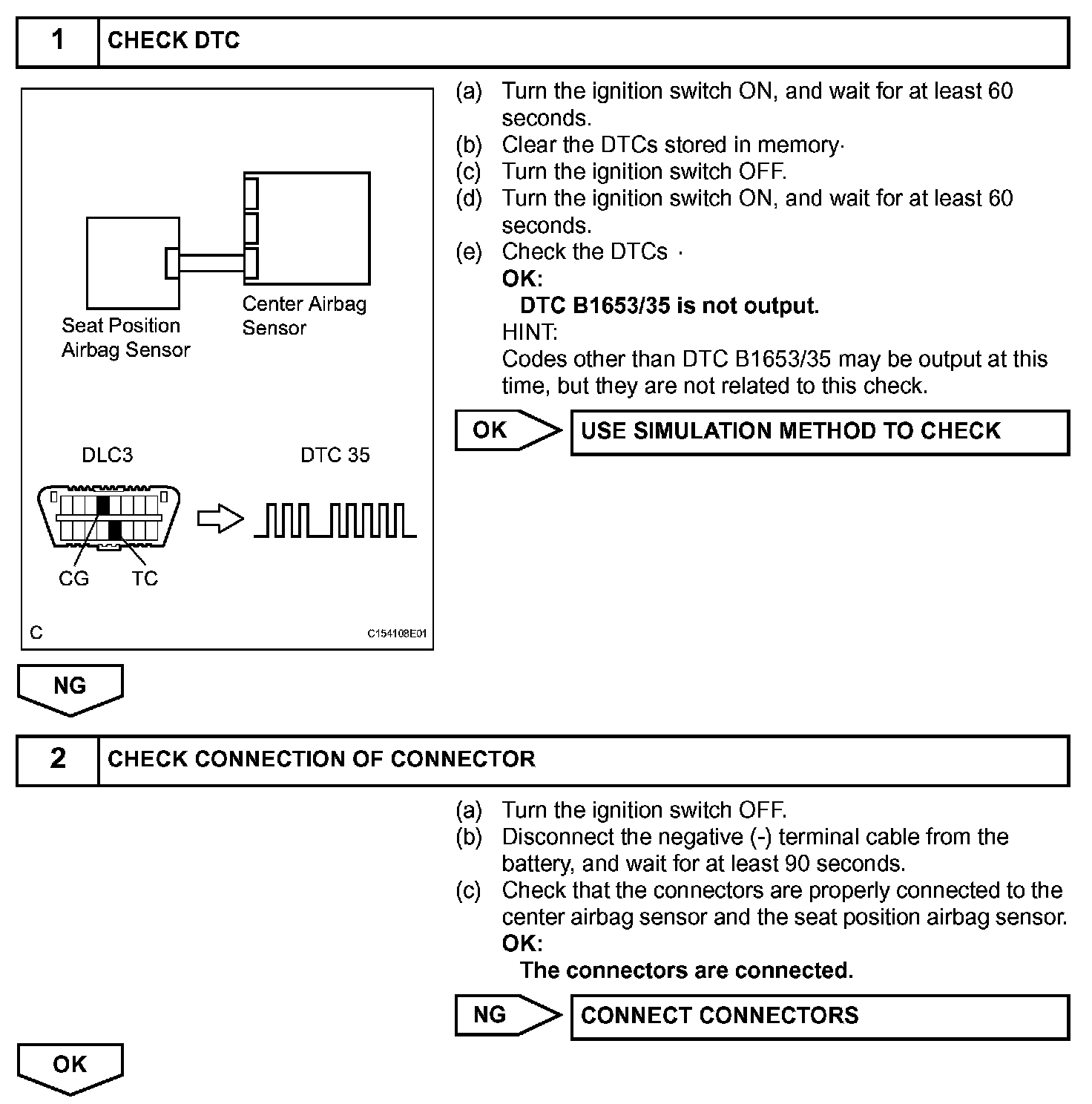

Step 1-2:

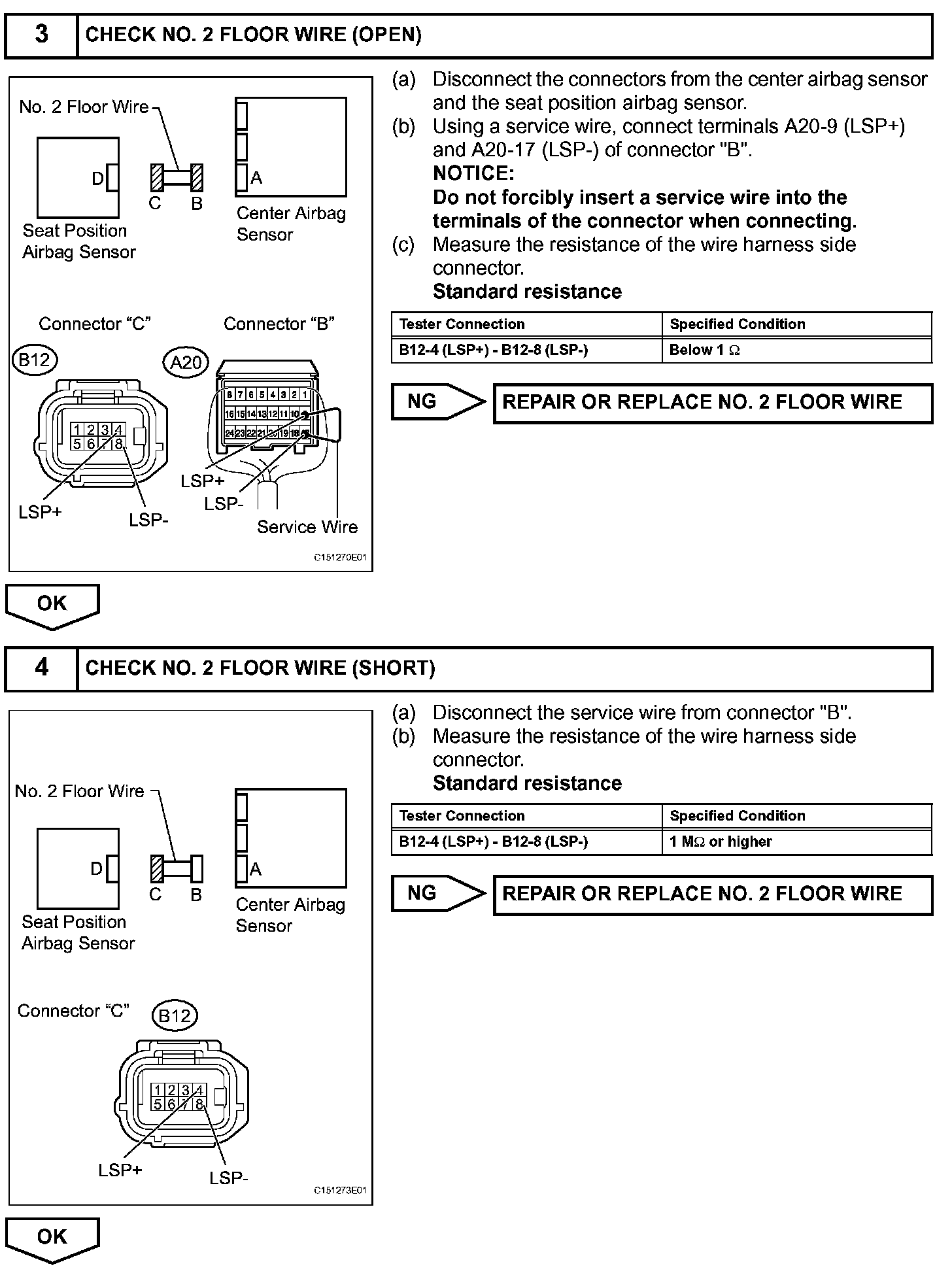

Step 3-4:

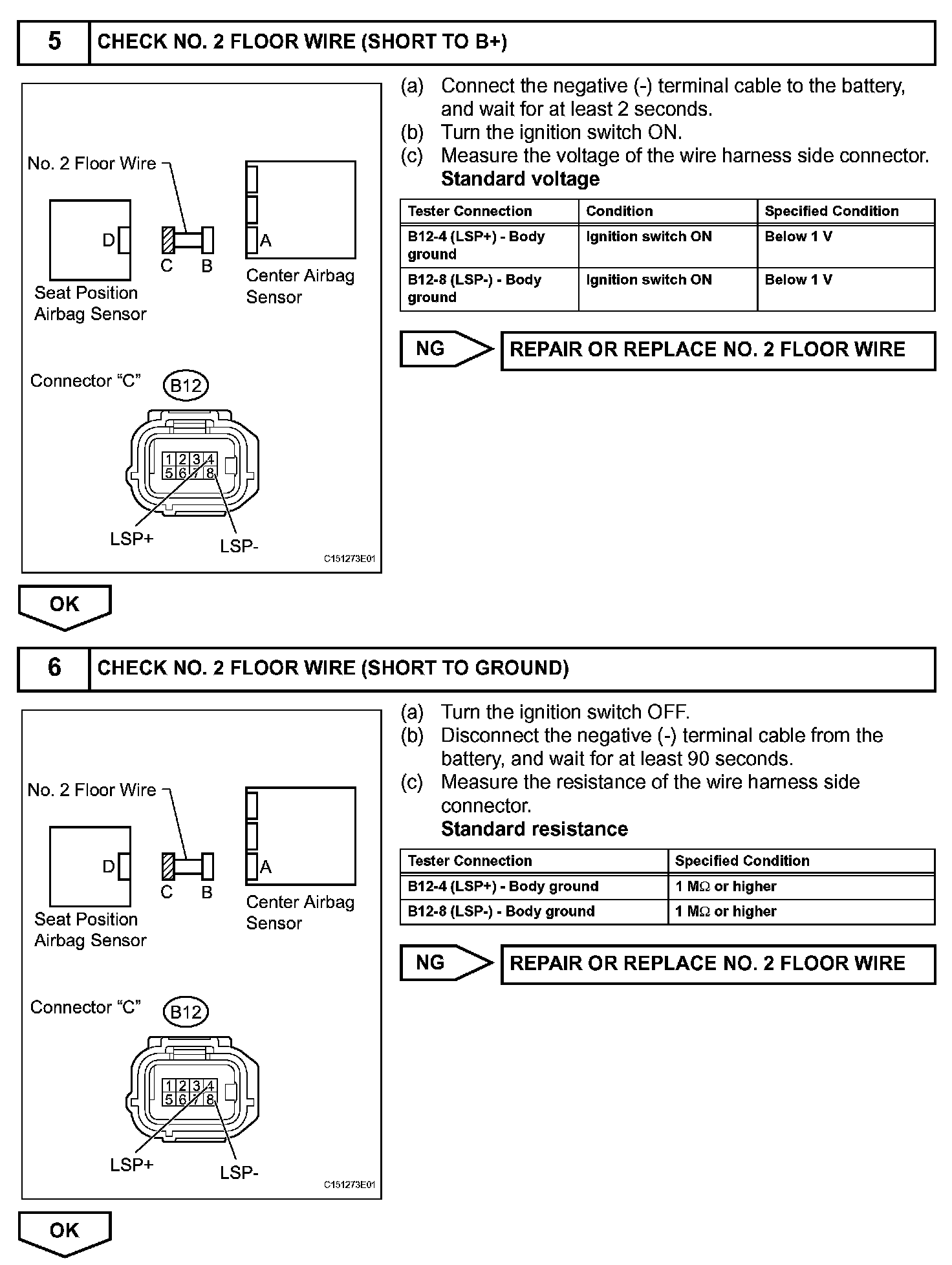

Step 5-6:

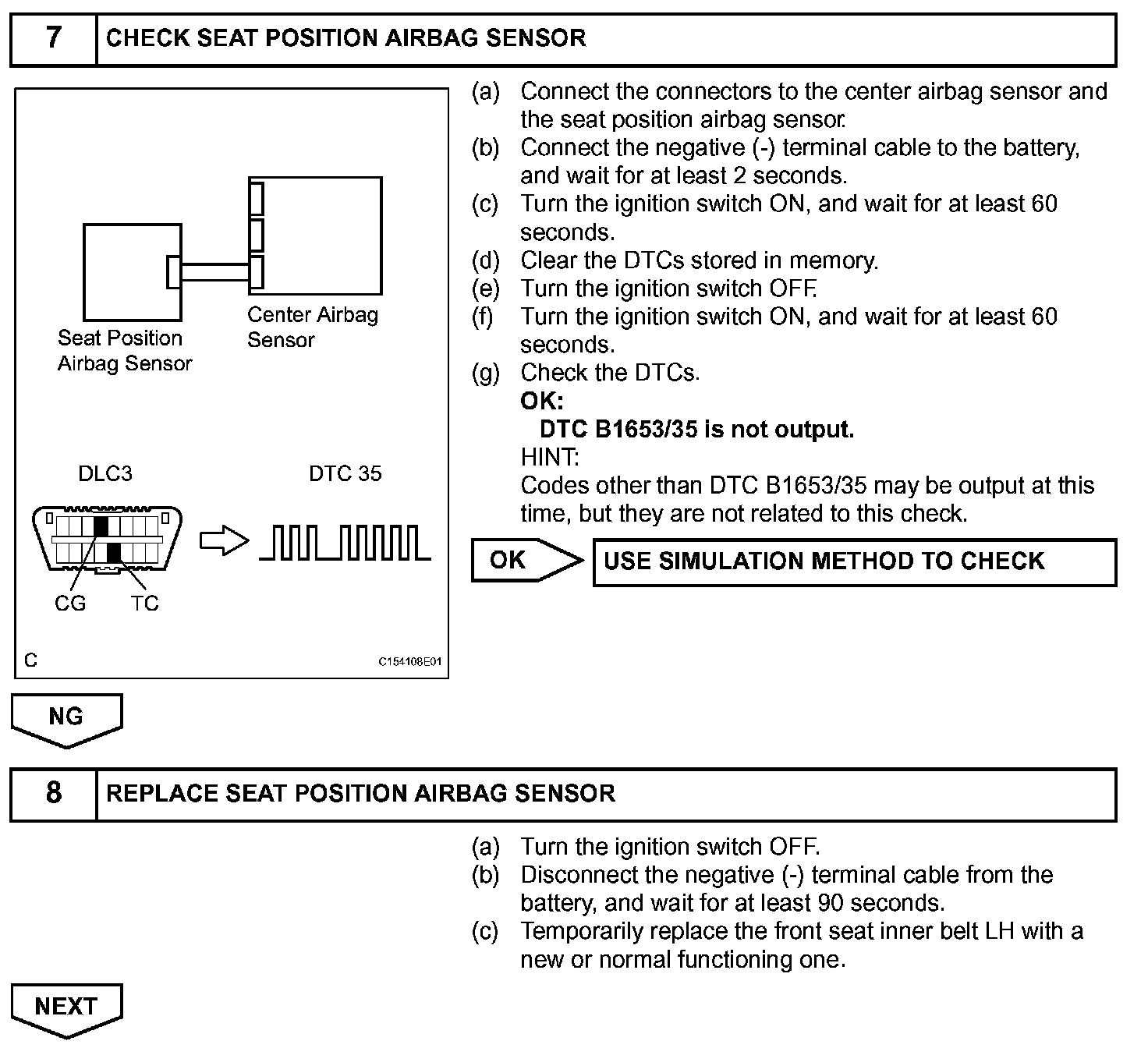

Step 7-8:

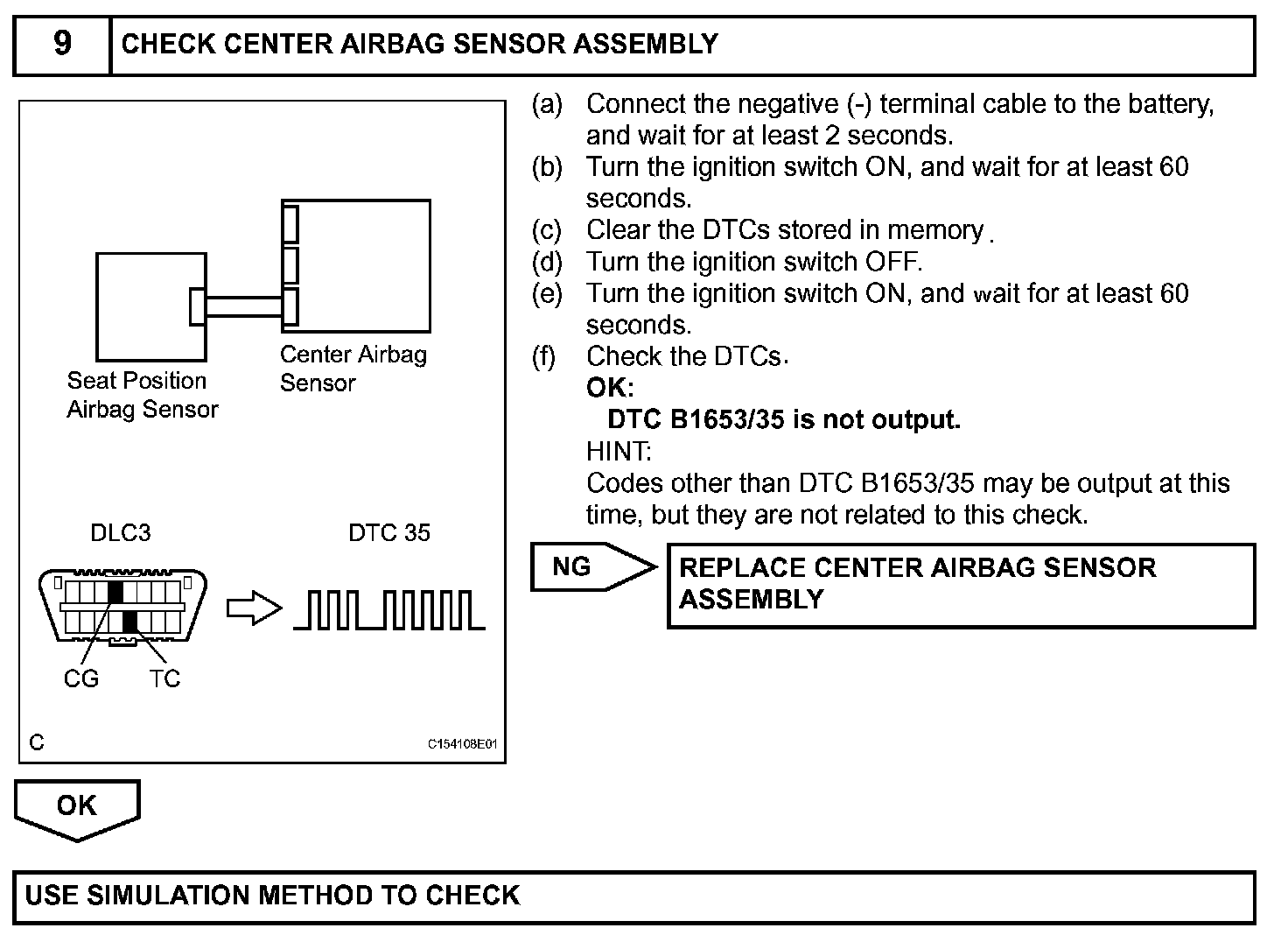

Step 9:
